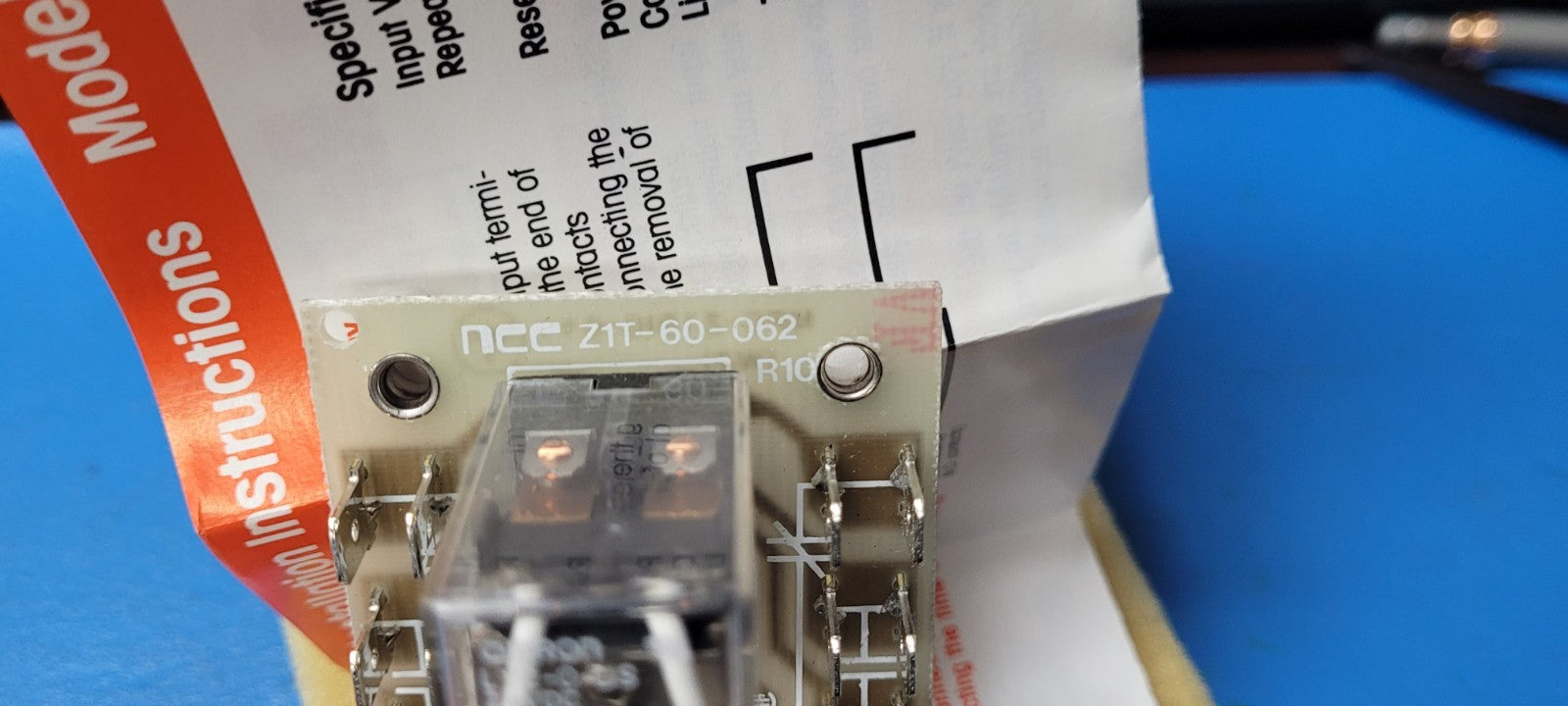

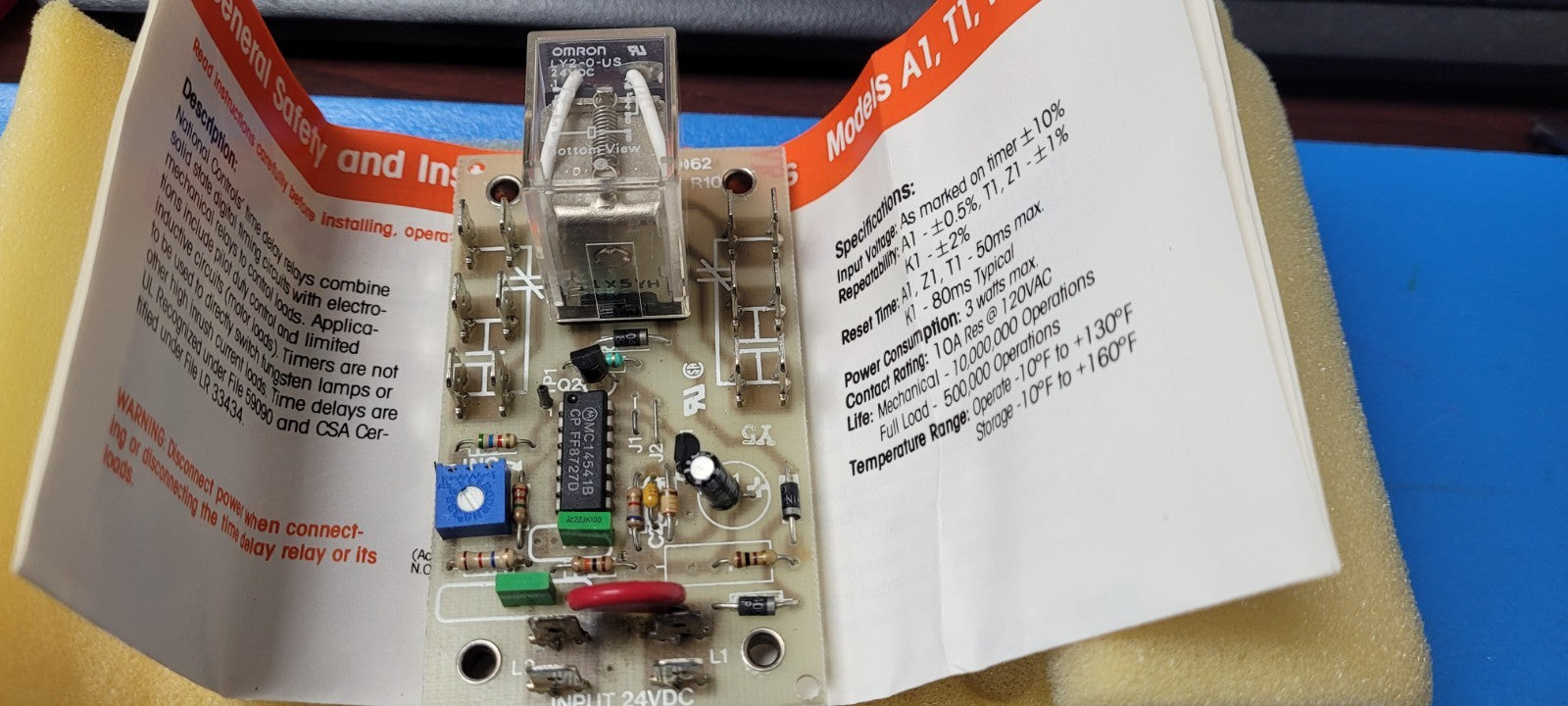

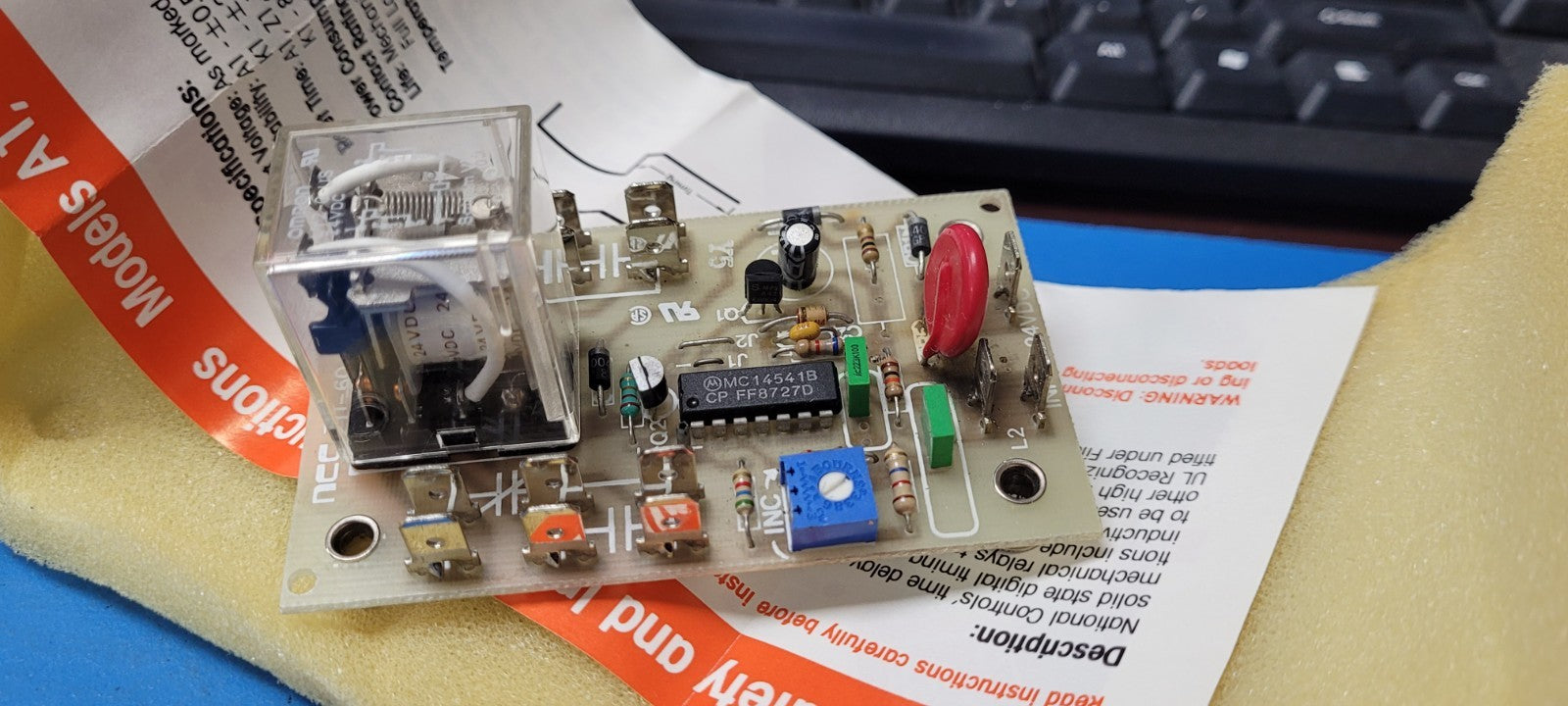

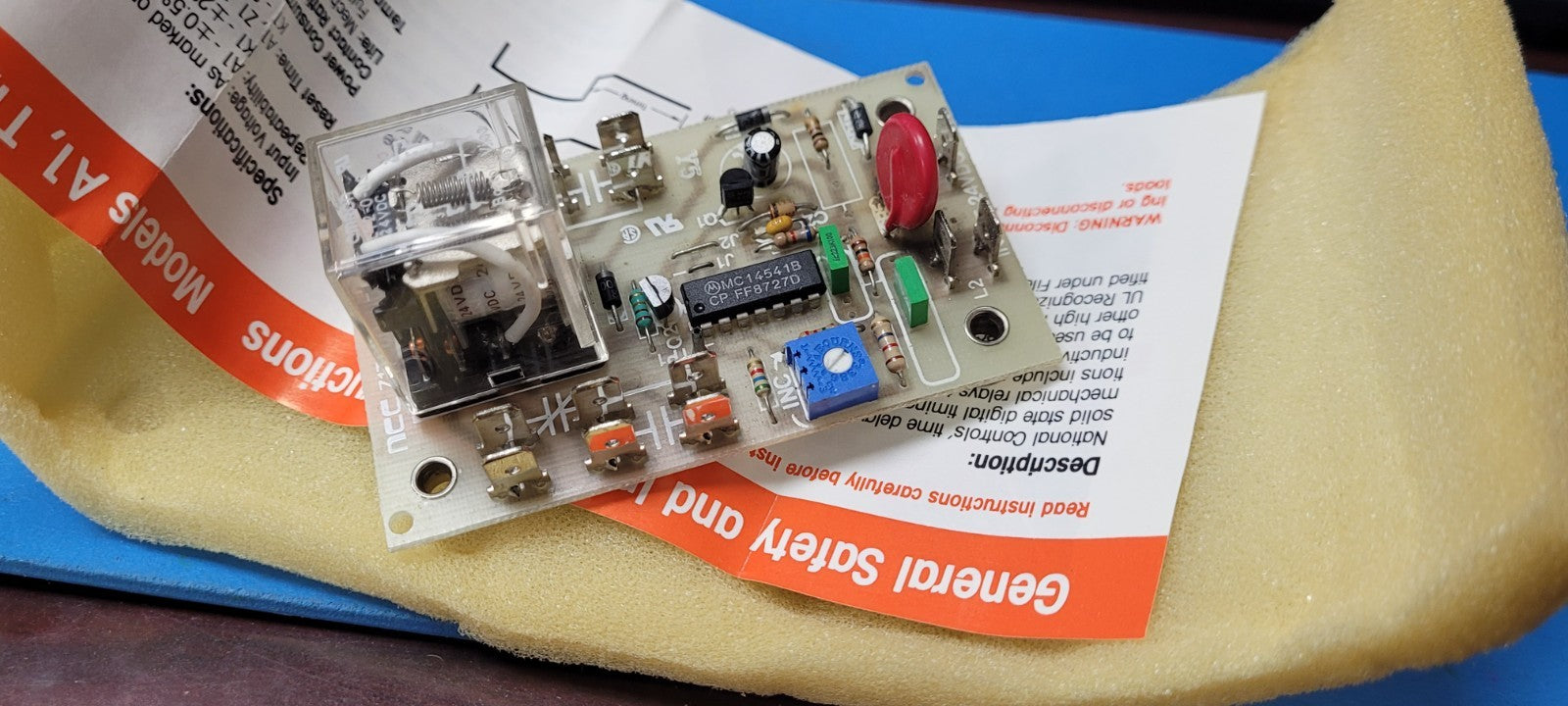

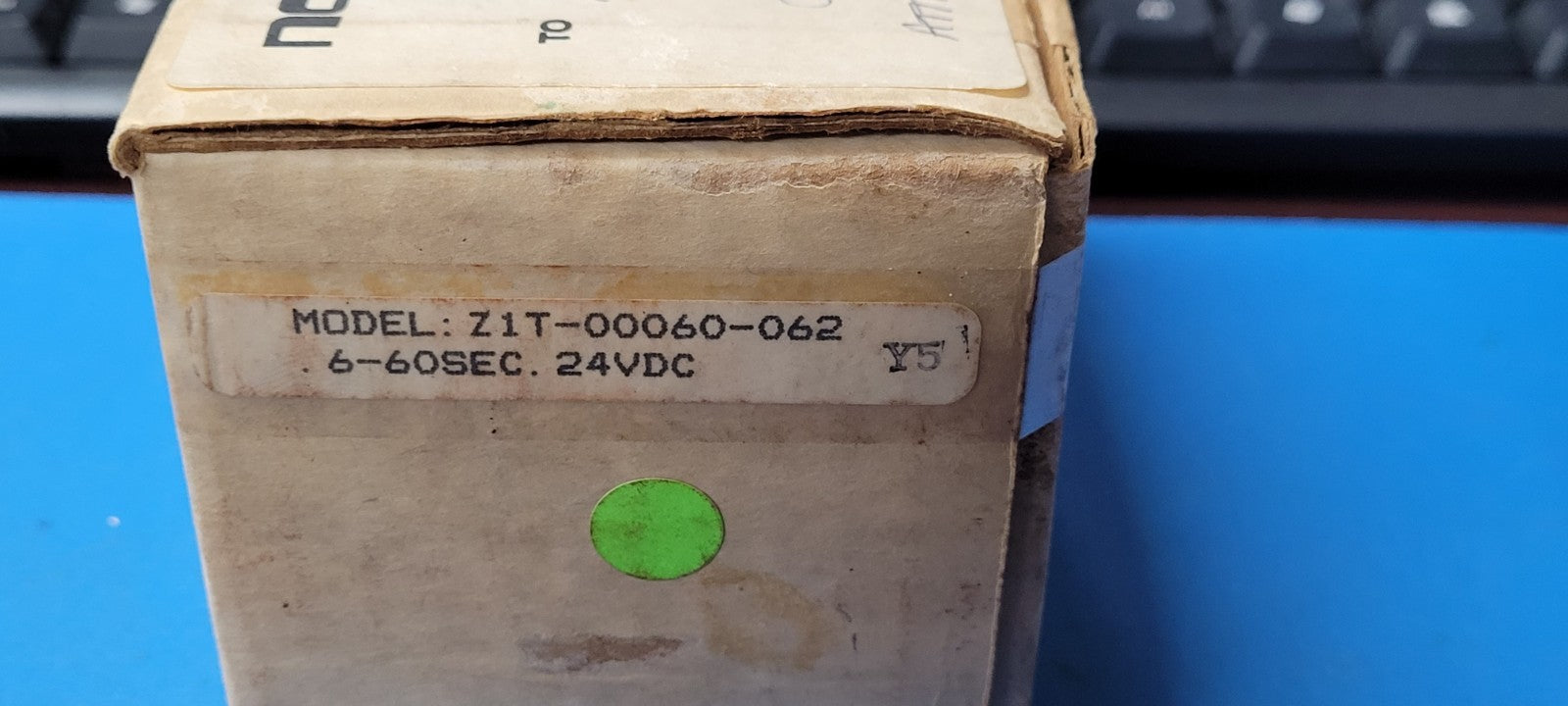

Z1T-00060-062 NCC TIME DELAY RELAYS
Tax included.
THIS IS FOR Z1T-00060-062 NCC TIME DELAY RELAYS
Delay On Make
Z1 Series
FEATURES
● 100% functionally tested
● Digital timing circuit
● Time delays to 5 minutes
● ±1% repeatability
● Fast-on terminals for quick installation

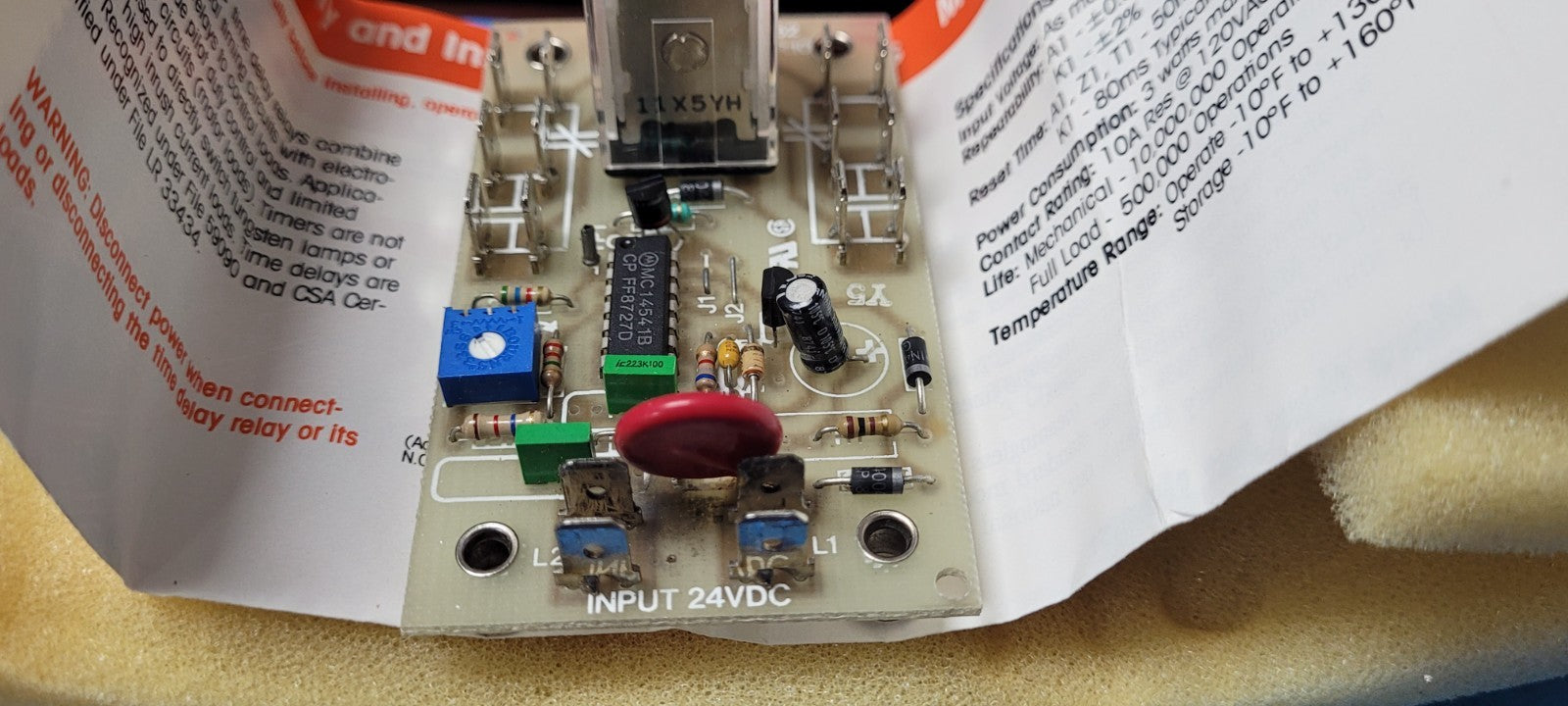

● Low cost, open board construction
● Fiberglass reinforced circuit board
● File #E59090

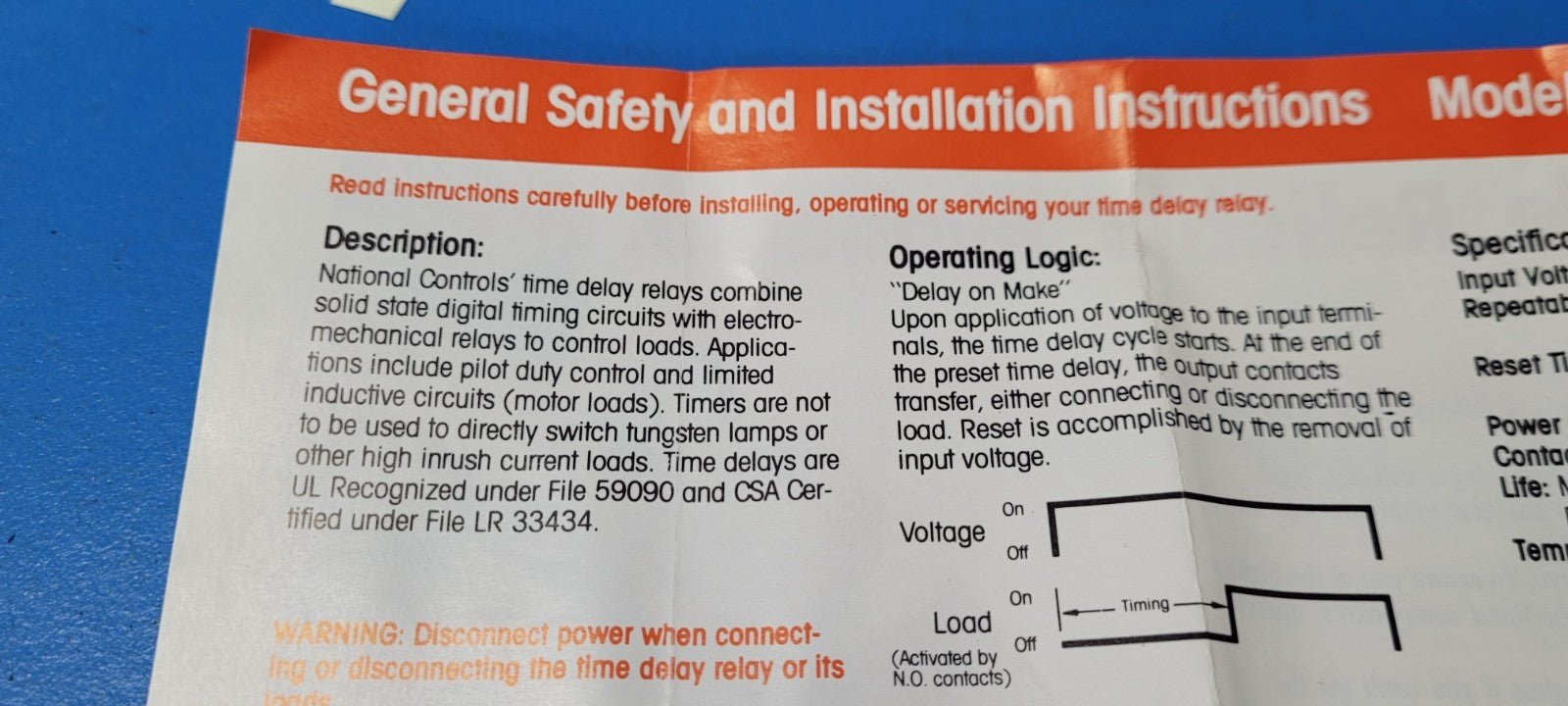

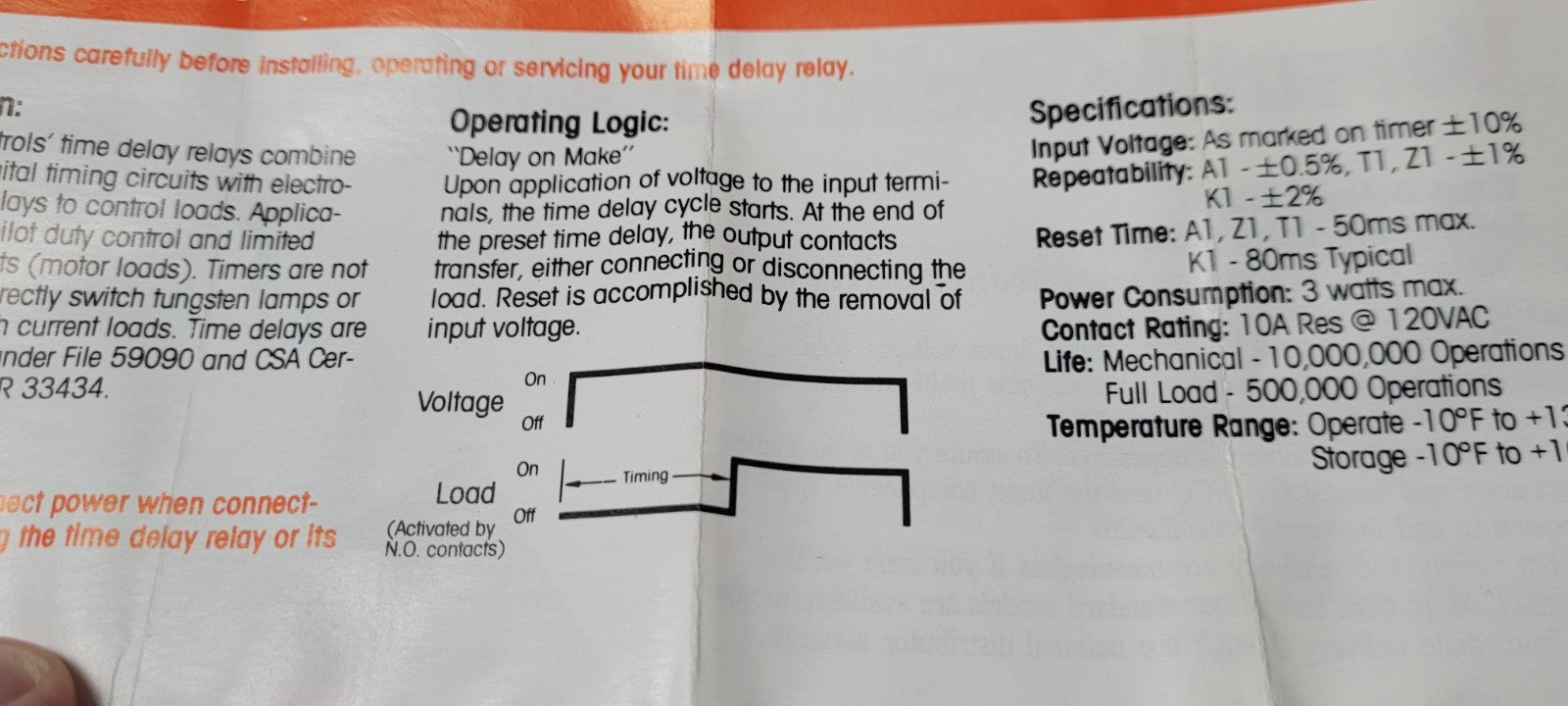

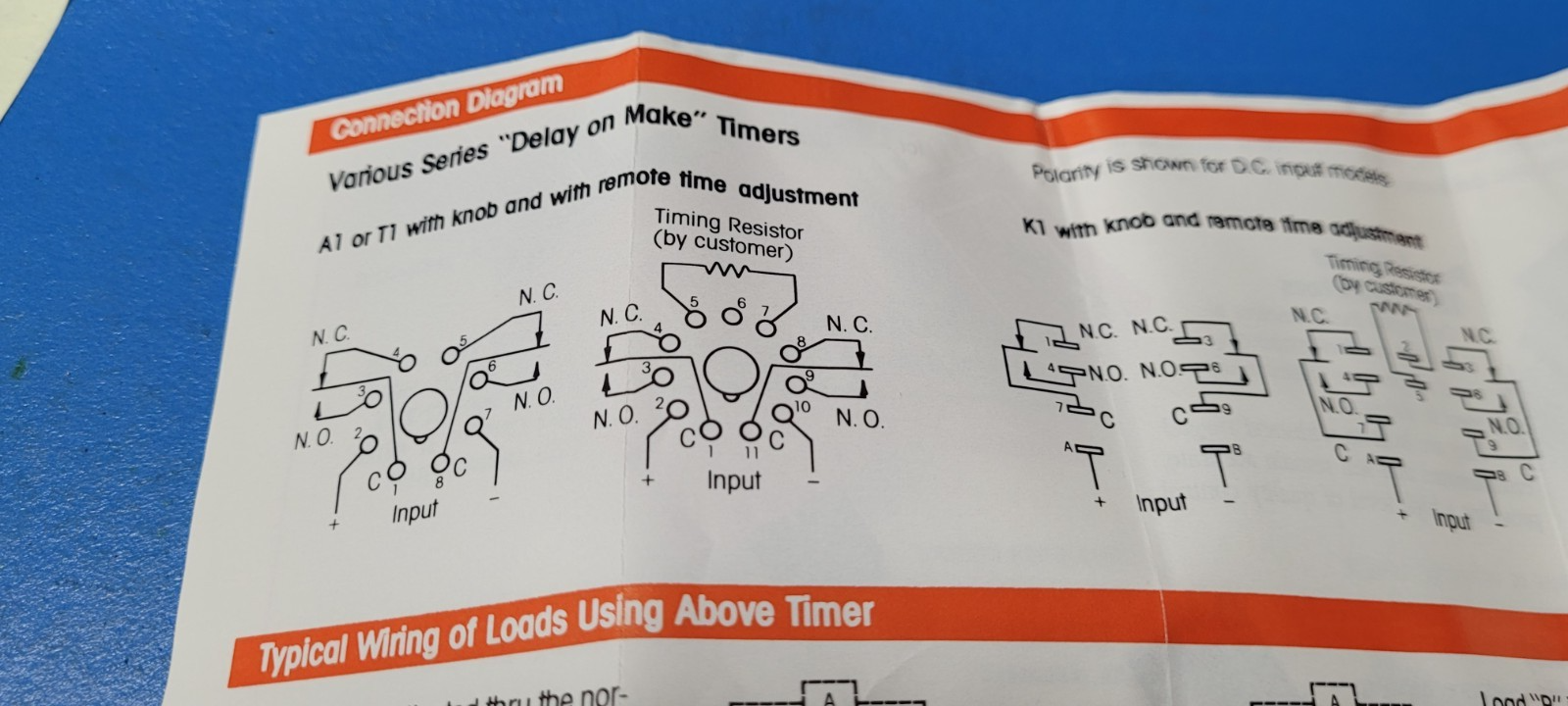

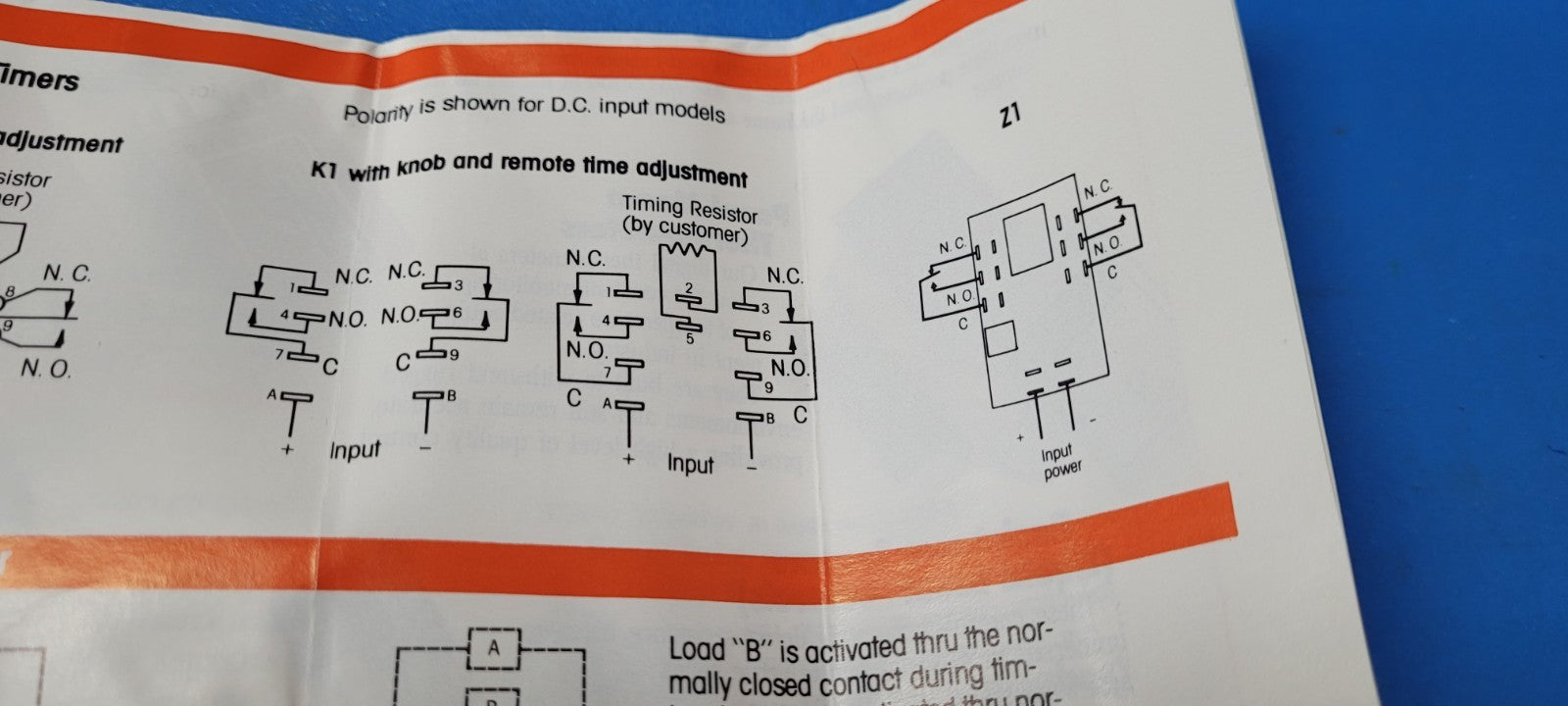

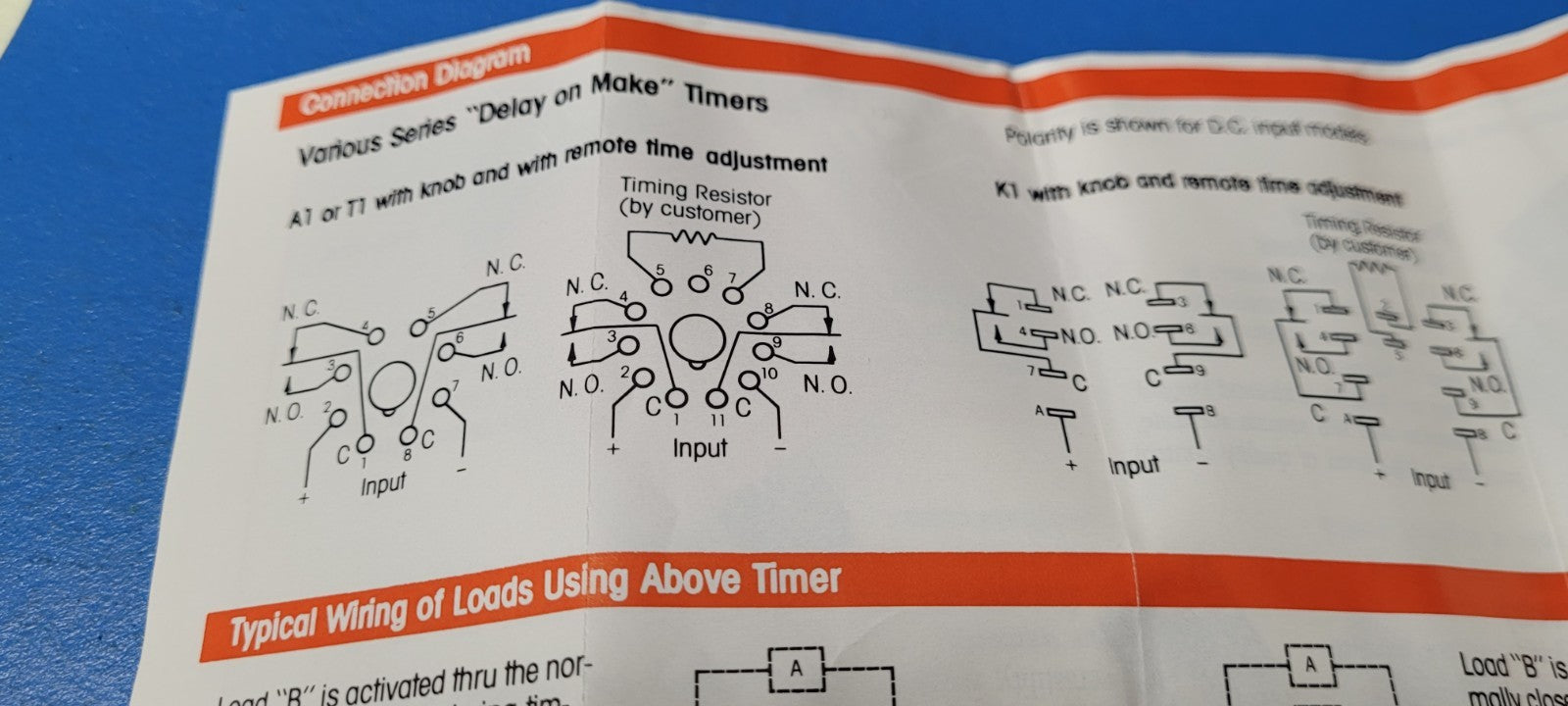

Operating Logic: Upon application of voltage to the input terminals, the time delay
cycle starts. At the end of the preset time
delay, the relay coil is energized and the
contacts transfer. Reset is accomplished by
the removal of input voltage.

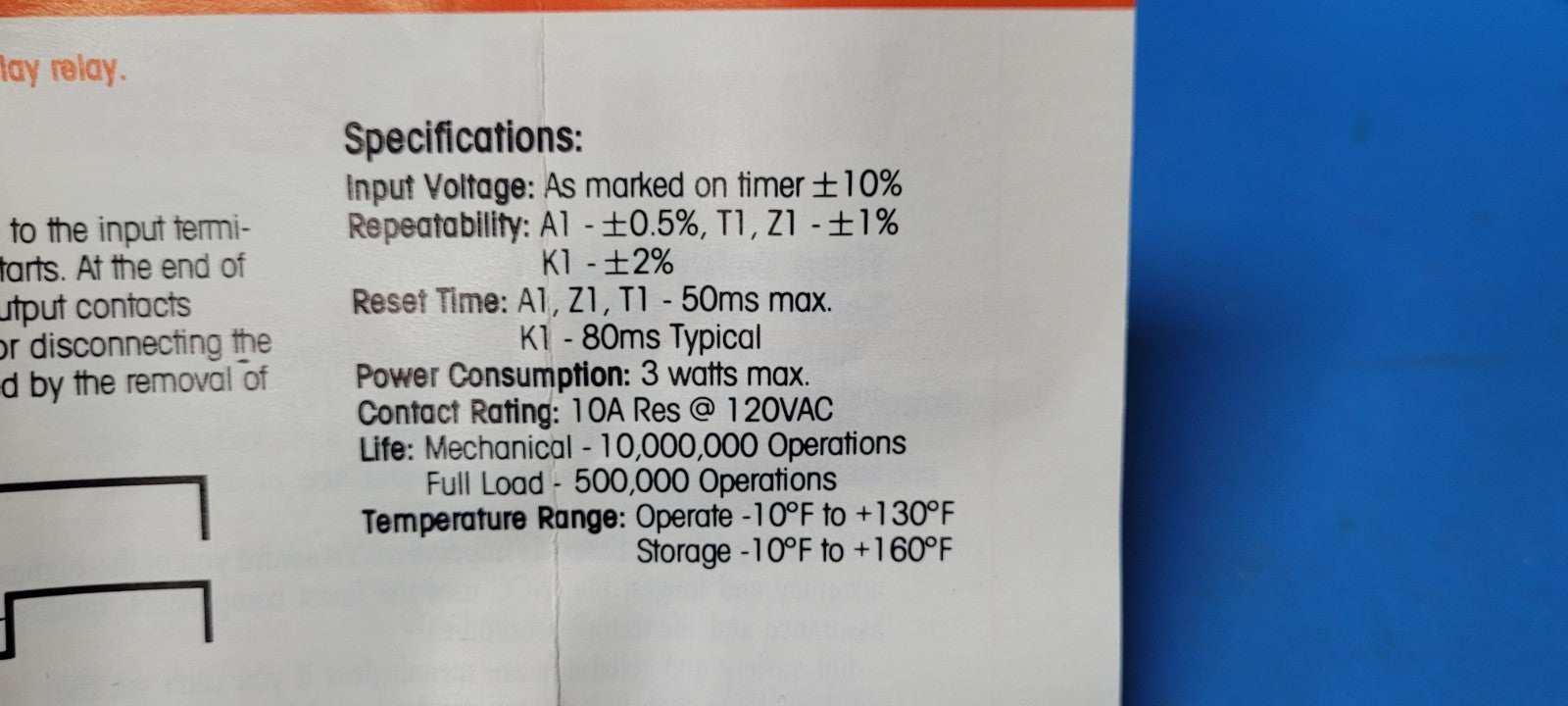

TIME DELAY
Adjustment: Trimpot, factory fixed on
special order (min. order required)
Range: 100 ms to 5 minutes in 4 ranges
(other ranges available on special order)
Repeatability: ±1% at constant temperature
Accuracy: Maximum -0%, +10%; Minimum time
+0%, -50%
Reset Time: 50 ms max. (25 ms typical)
INPUT
Operating Voltage: 24, 120 VAC; 24 VDC ±10%
(DC models have reverse polarity protection;
unfiltered input voltage to them must be full-wave
rectified)
Power Consumption: 3 VA max.
Frequency: 50/60 Hz
OUTPUT
Type: Relay contacts, DPDT (2 form C)
Rating: 10 A max. resistive at 240 VAC; 100 mA
at 5 VDC min. load current
Life:
Mechanical: 10,000,000 operations
Full Load: 500,000 operations
PROTECTION
Transient Voltage: 24 V timers are protected by
an 8.8 joule metal oxide varistor; 120 V timers are
protected by a 30 joule metal oxide varistor
Dielectric Breakdown: 1500 VAC, RMS min. at
60 Hz between input and outputs and between
outputs
MECHANICAL
Termination: .25" x .032" male fast-on terminals
Mounting: .25" standoffs, #6 screw
ENVIRONMENTAL
Storage Temperature: -23°C to 70°C
Operating Temperature: -23°C to 55°C
