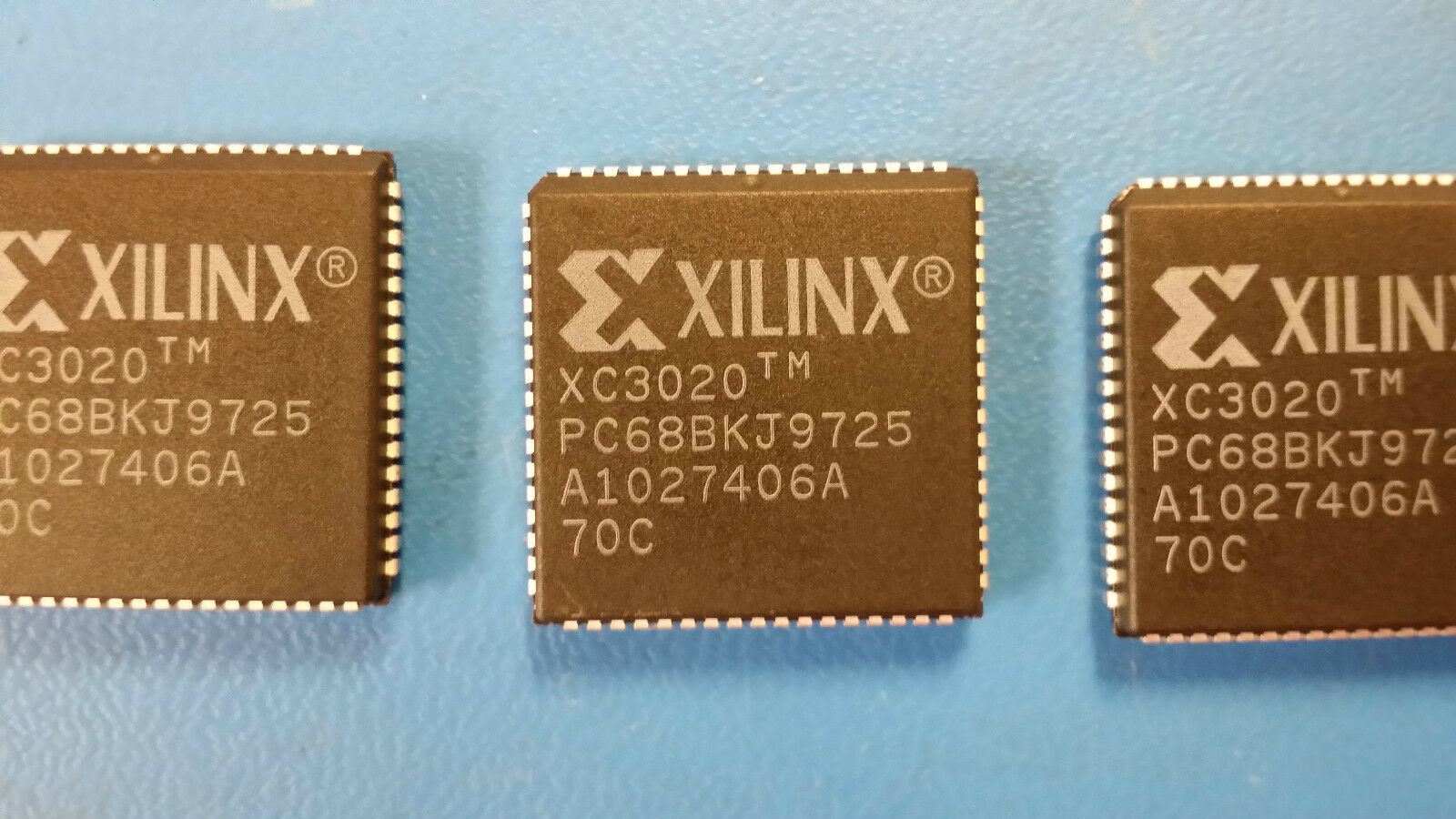

XC3020-70PC68C FPGA, 64 CLBS, 1000 GATES, 70 MHz, PLCC68

  • $7.95
    Unit price per
Tax included.

Only 21 left!

THIS LISTING IS FOR (1PC) OF XC3020-70PC68C BY  XILINX

Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 70 MHz
Combinatorial Delay of a CLB-Max 9 ns
JESD-30 Code S-PQCC-J68
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of CLBs 64
Number of Equivalent Gates 1000
Number of Inputs 58
Number of Logic Cells 64
Number of Outputs 58
Number of Terminals 68
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85 Cel
Organization 64 CLBS, 1000 GATES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Qualification Status COMMERCIAL
Seated Height-Max 4.44 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 24.23 mm
Width 24.23 mm
