TMS320C6201GJC200 TI Digital Signal Processor, 32-Bit, 200MHz, CMOS, PBGA352
Tax included.

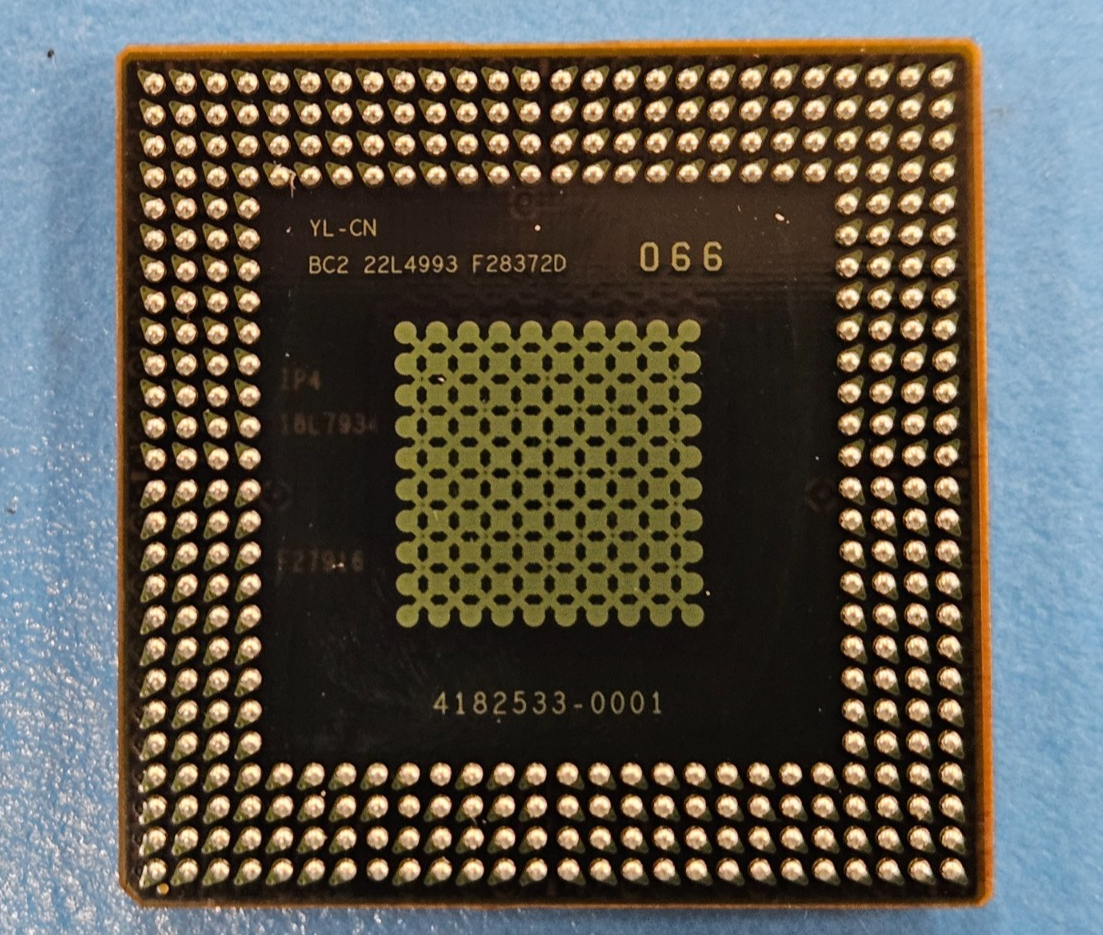

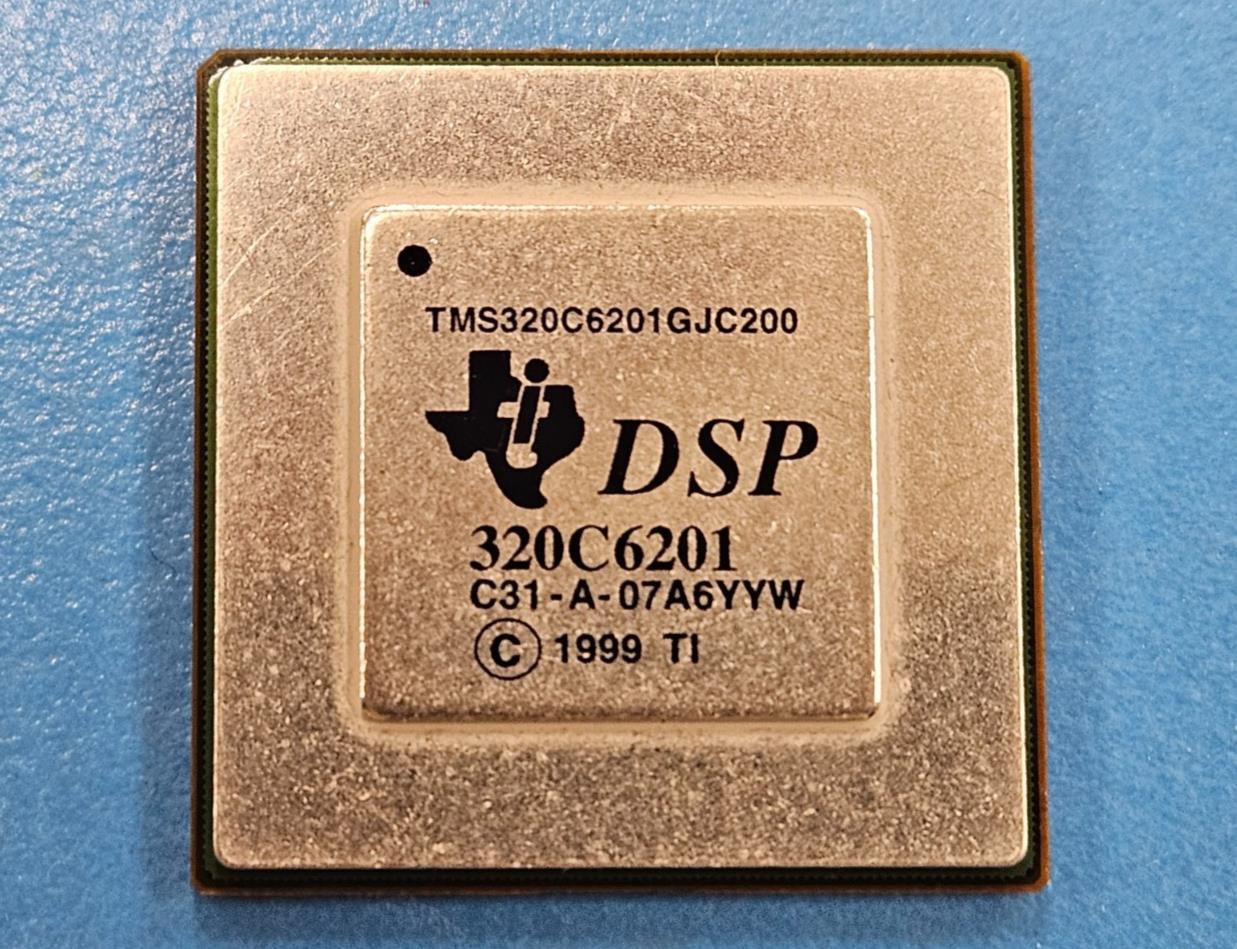

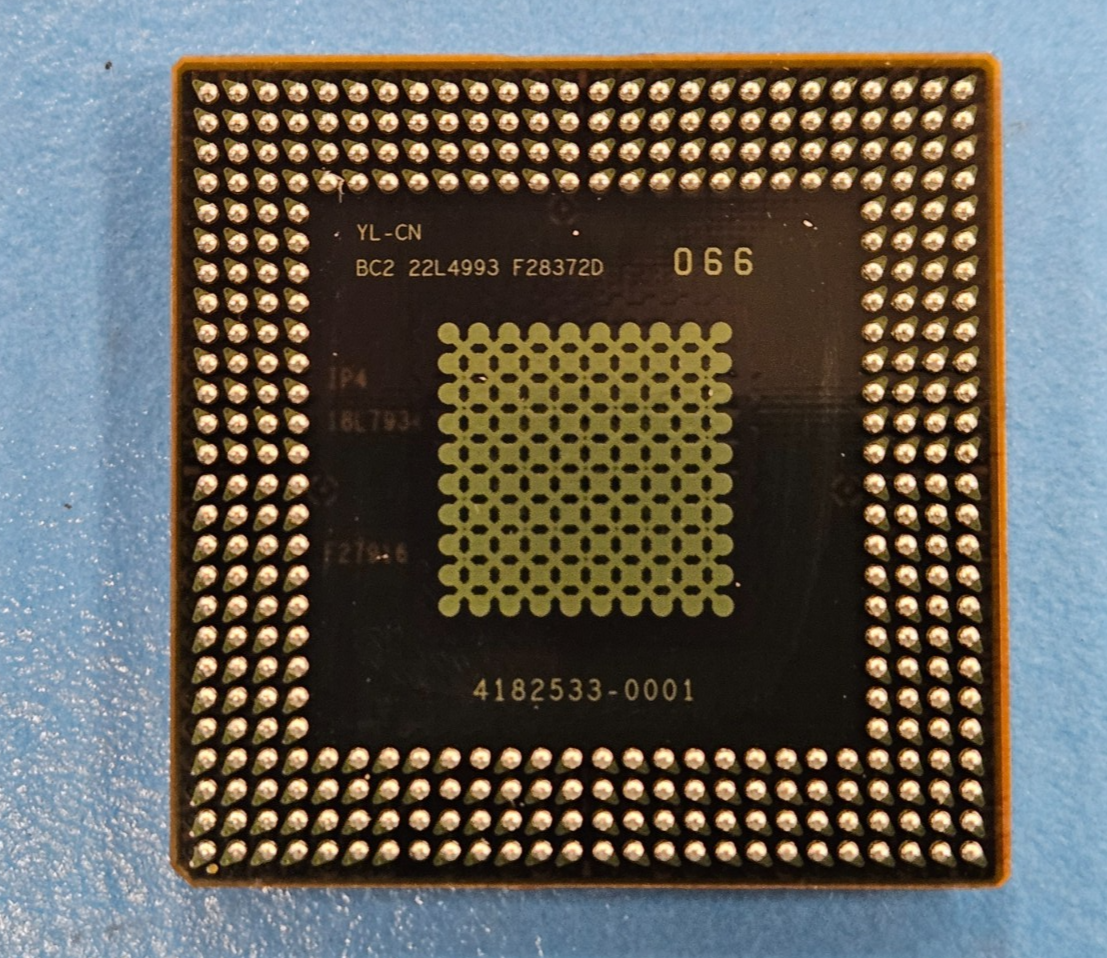

This listing is for (1PC) of TMS320C6201GJC200 by Texas Instruments
Status Discontinued
Additional Feature ALSO REQUIRES 3.3V SUPPLY
Address Bus Width 22
Barrel Shifter NO
Bit Size 32
Boundary Scan YES
Clock Frequency-Max (MHz) 200.0000000000000000
External Data Bus Width 32
Format FIXED POINT
Integrated Cache YES
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PBGA-B352
J-STD-609 Code e0
Length (mm) 35.0000
Low Power Mode YES
Moisture Sensitivity Level 4
Number of DMA Channels 4
Number of External Interrupts 4
Number of Terminals 352
Number of Timers 2
Operating Temperature-Max (Cel) 90.0000
Operating Temperature-Min (Cel) 0.0000
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA352,26X26,50
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 220
DLA Qualification Not Qualified
RAM (words) 16384
Seated Height-Max (mm) 3.5000
Supply Voltage-Max (V) 1.8900
Supply Voltage-Min (V) 1.7100
Supply Voltage-Nom (V) 1.8000
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form BALL
Terminal Pitch (mm) 1.270
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 35.0000
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
