TMS320C31PQL60 TI Digital Processor, 32-Bit Size, 32-Ext Bit, 60MHz, CMOS QFP32
Tax included.

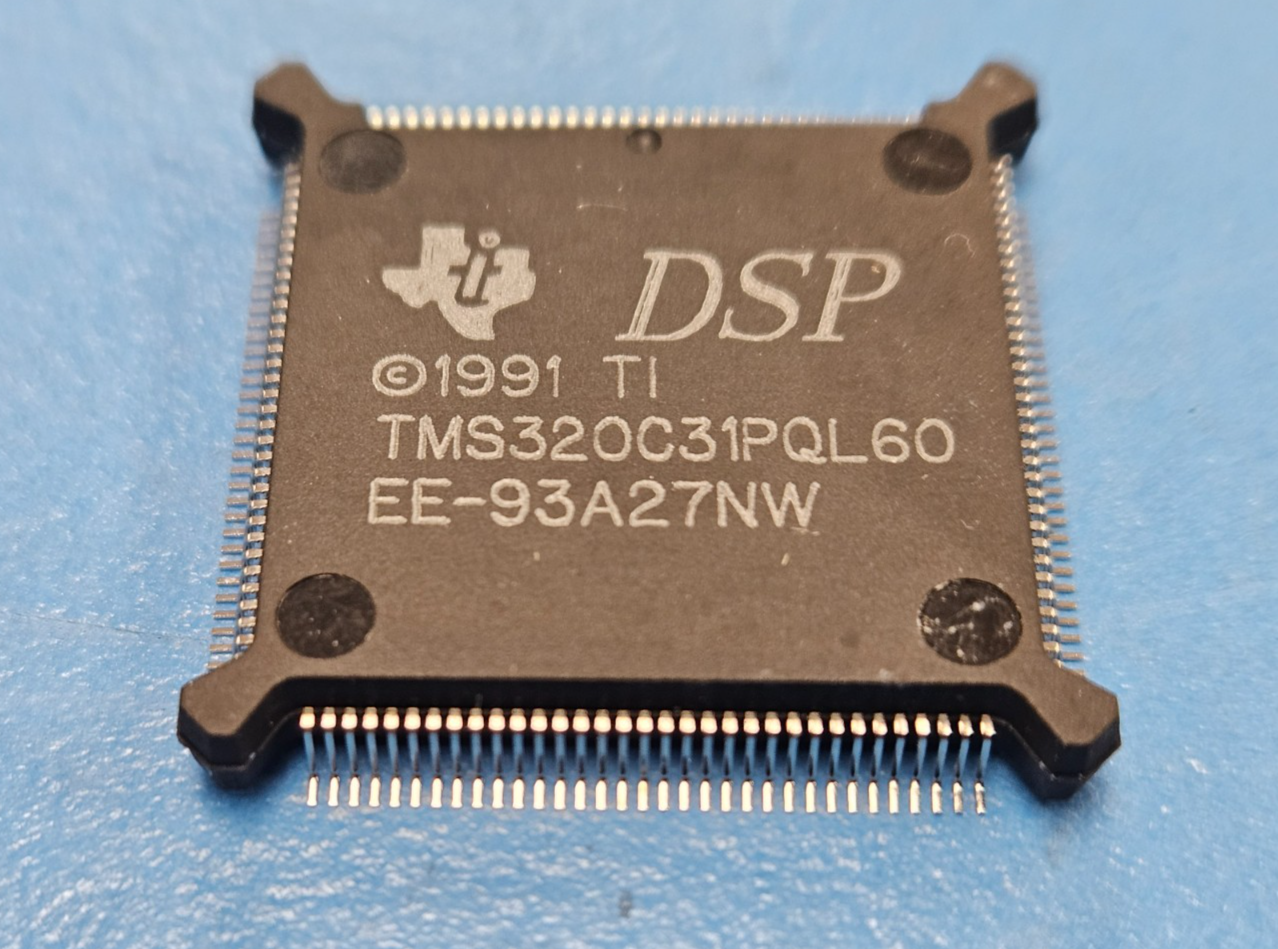

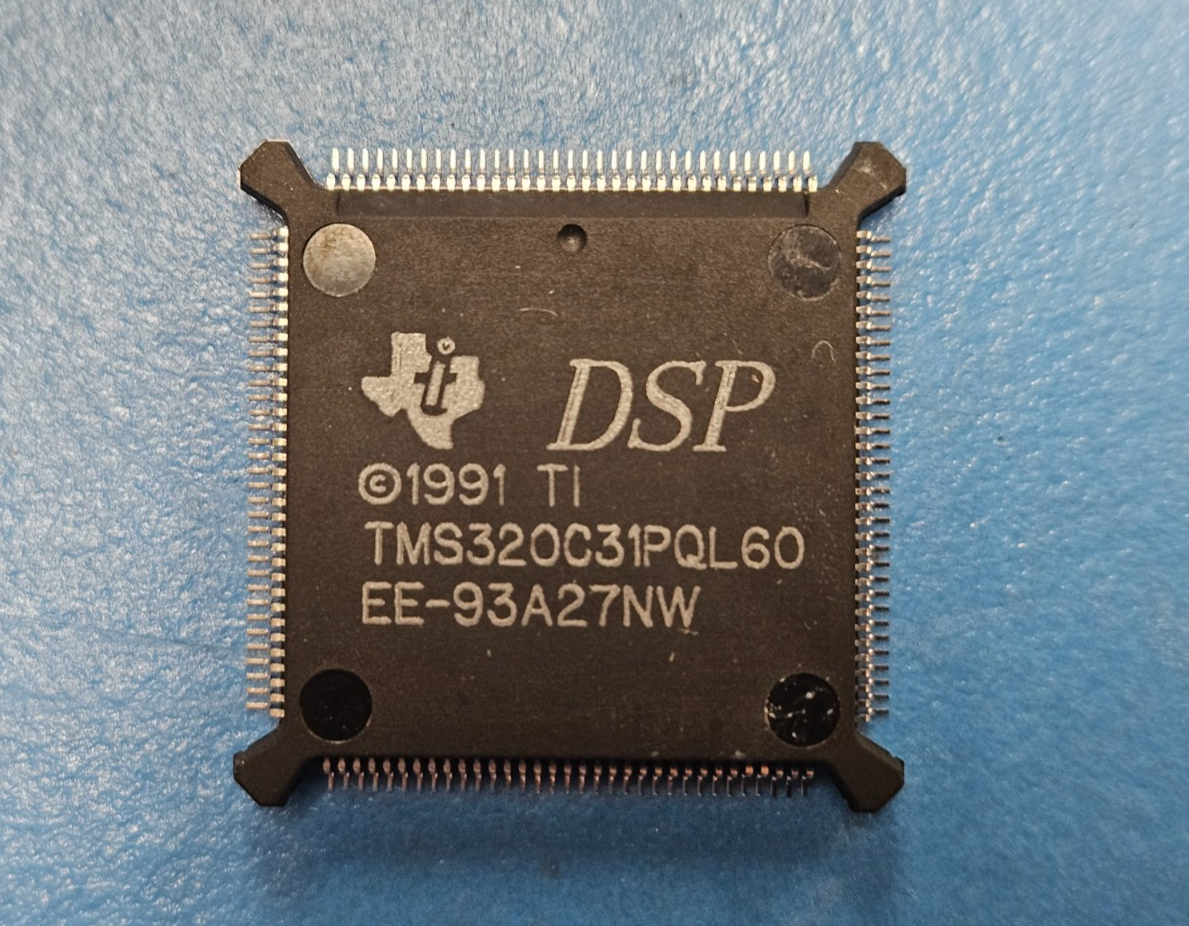

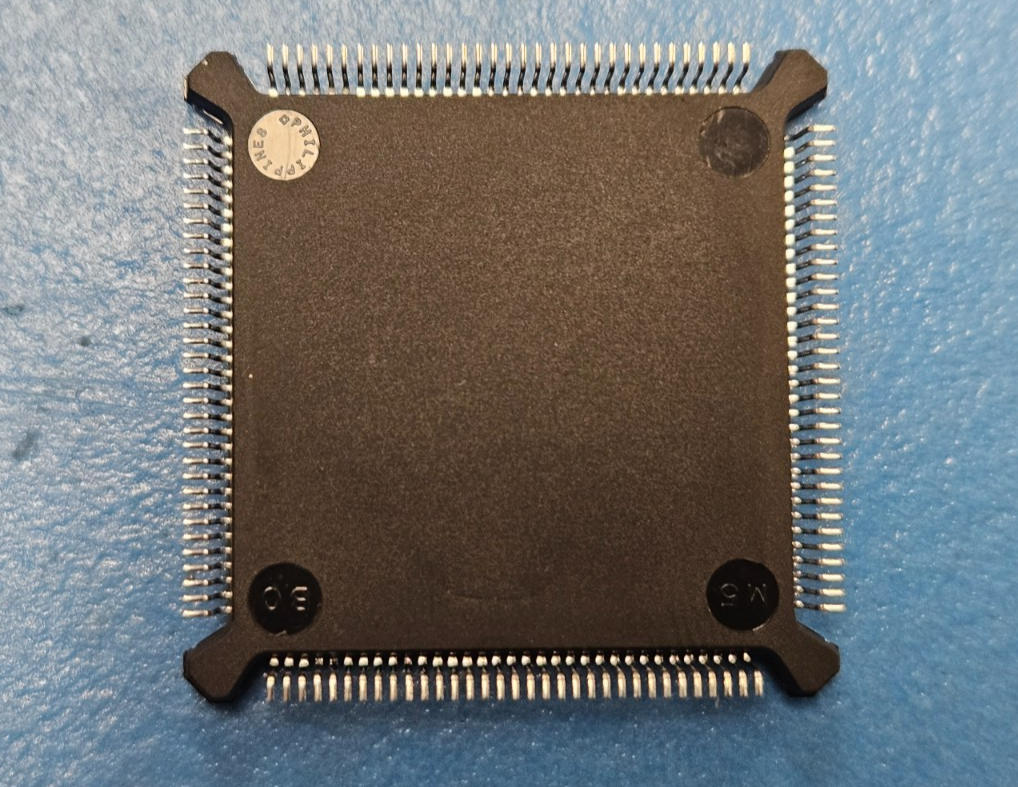

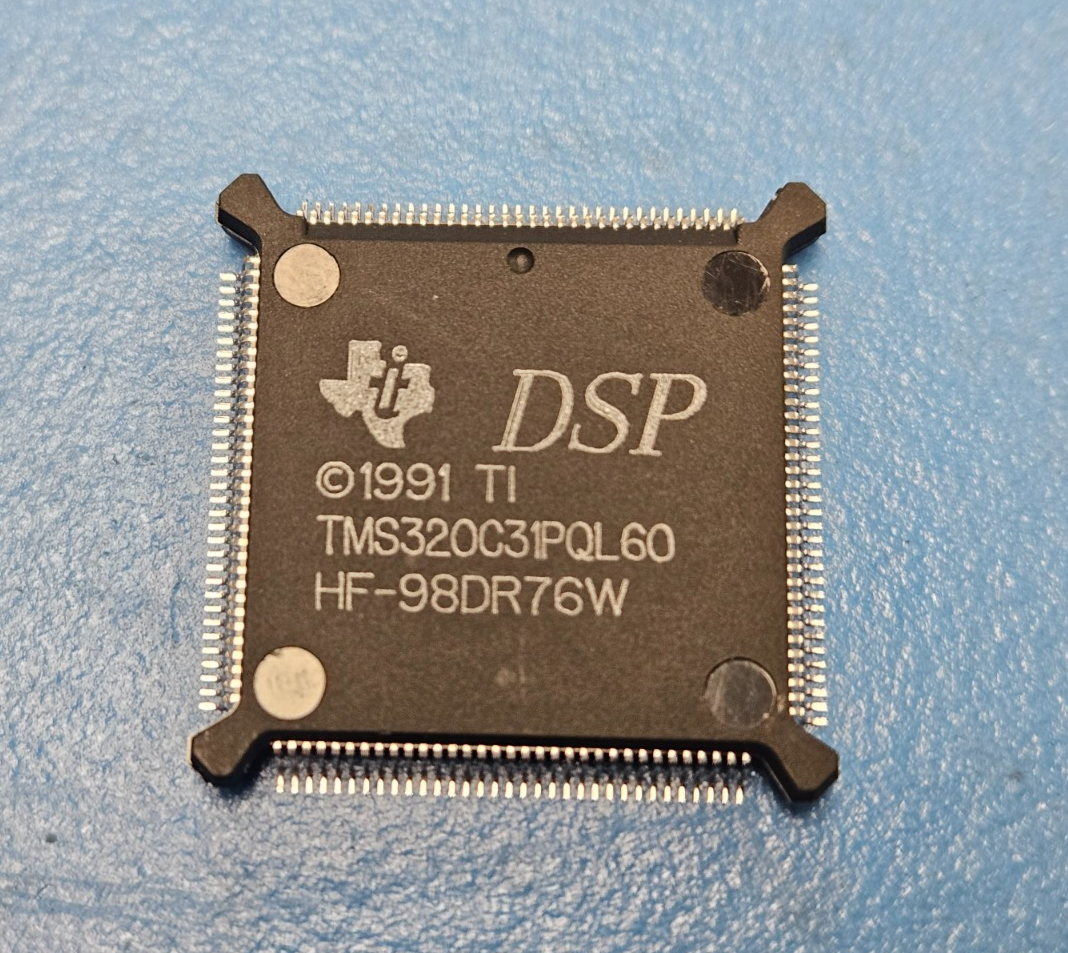

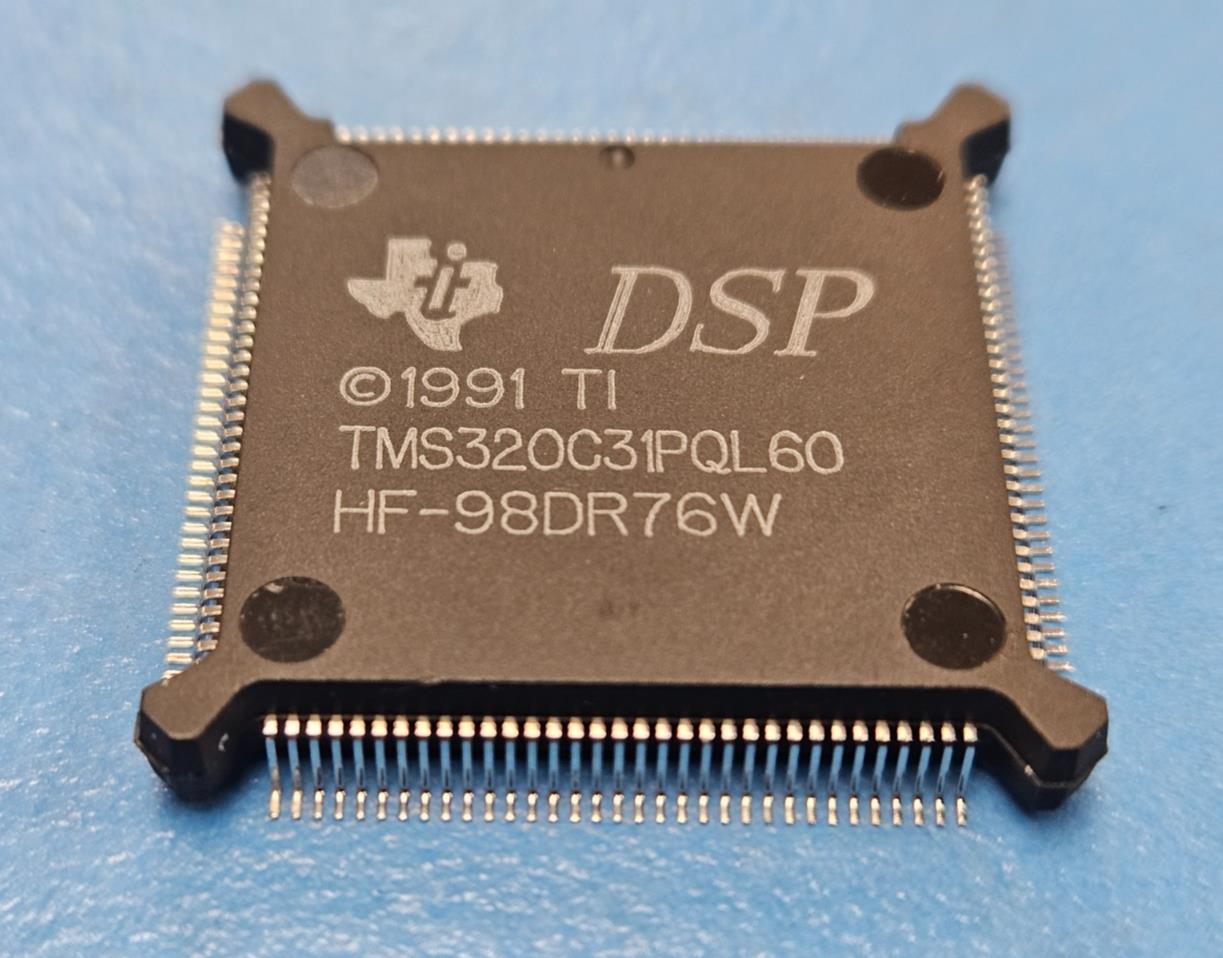

This listing is for (1PC) TMS320C31PQL60 by Texas Instruments
Status Discontinued
Address Bus Width 24
Barrel Shifter YES
Bit Size 32
Boundary Scan NO
Clock Frequency-Max (MHz) 60.0000000000000000
External Data Bus Width 32
Format FLOATING POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQFP-G132
J-STD-609 Code e4
Length (mm) 24.1300
Low Power Mode YES
Moisture Sensitivity Level 4
Number of DMA Channels 1
Number of External Interrupts 4
Number of Serial I/Os 1
Number of Terminals 132
Number of Timers 2
On Chip Data RAM Width 32
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) 0.0000
Package Body Material PLASTIC/EPOXY
Package Code BQFP
Package Equivalence Code SPQFP132,1.1SQ
Package Shape SQUARE
Package Style FLATPACK, BUMPER
Peak Reflow Temperature (Cel) 260
DLA Qualification Not Qualified
RAM (words) 1024
Screening Level / Reference Standard TS 16949
Seated Height-Max (mm) 4.5700
Supply Current-Max (mA) 475.00000000
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch (mm) 0.635
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 24.1300
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR
