SMDA05 PROTEK 500W, UNIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE

  • $15.00
    Unit price per
Tax included.

Only 100 left!

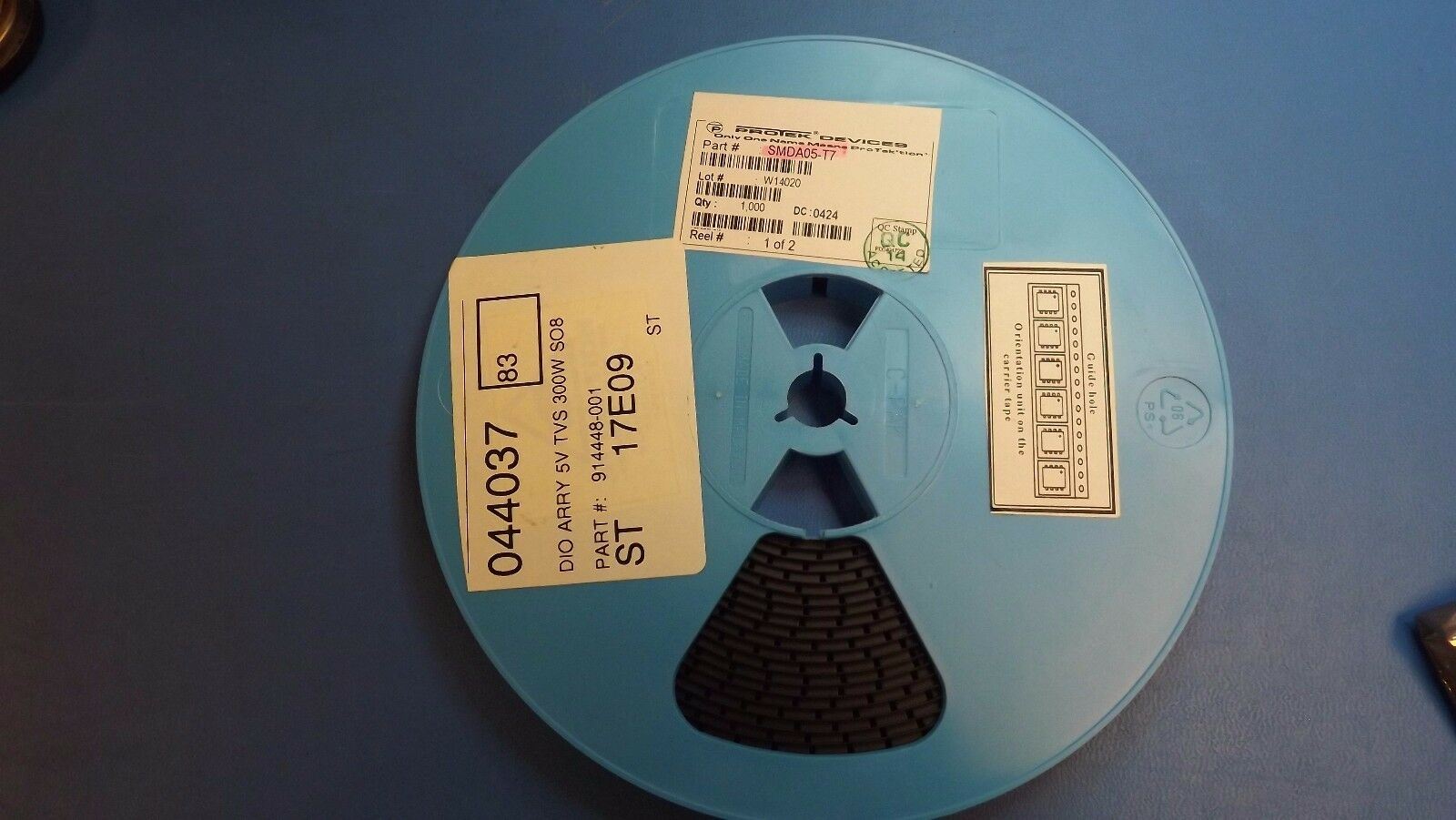

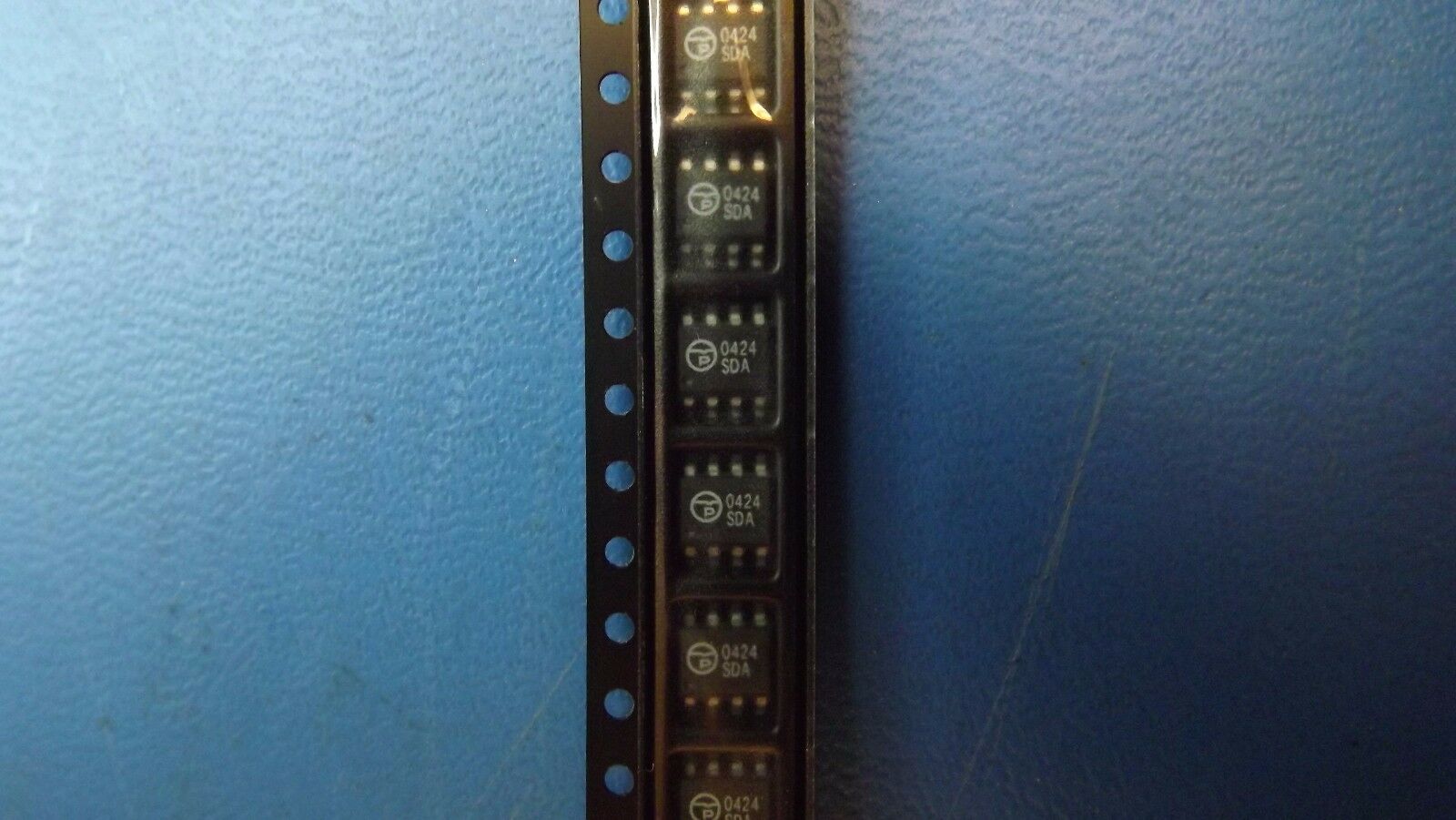

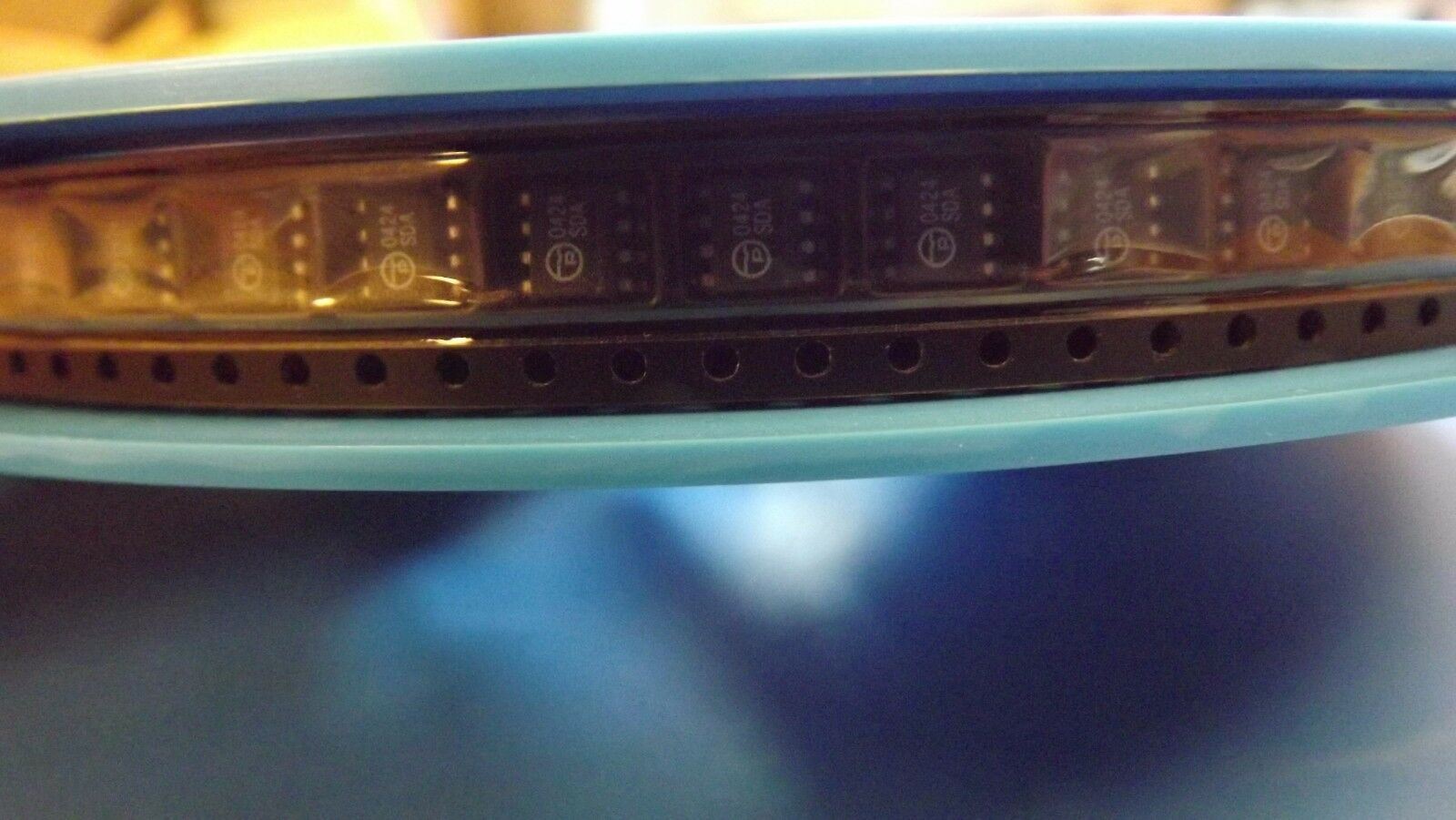

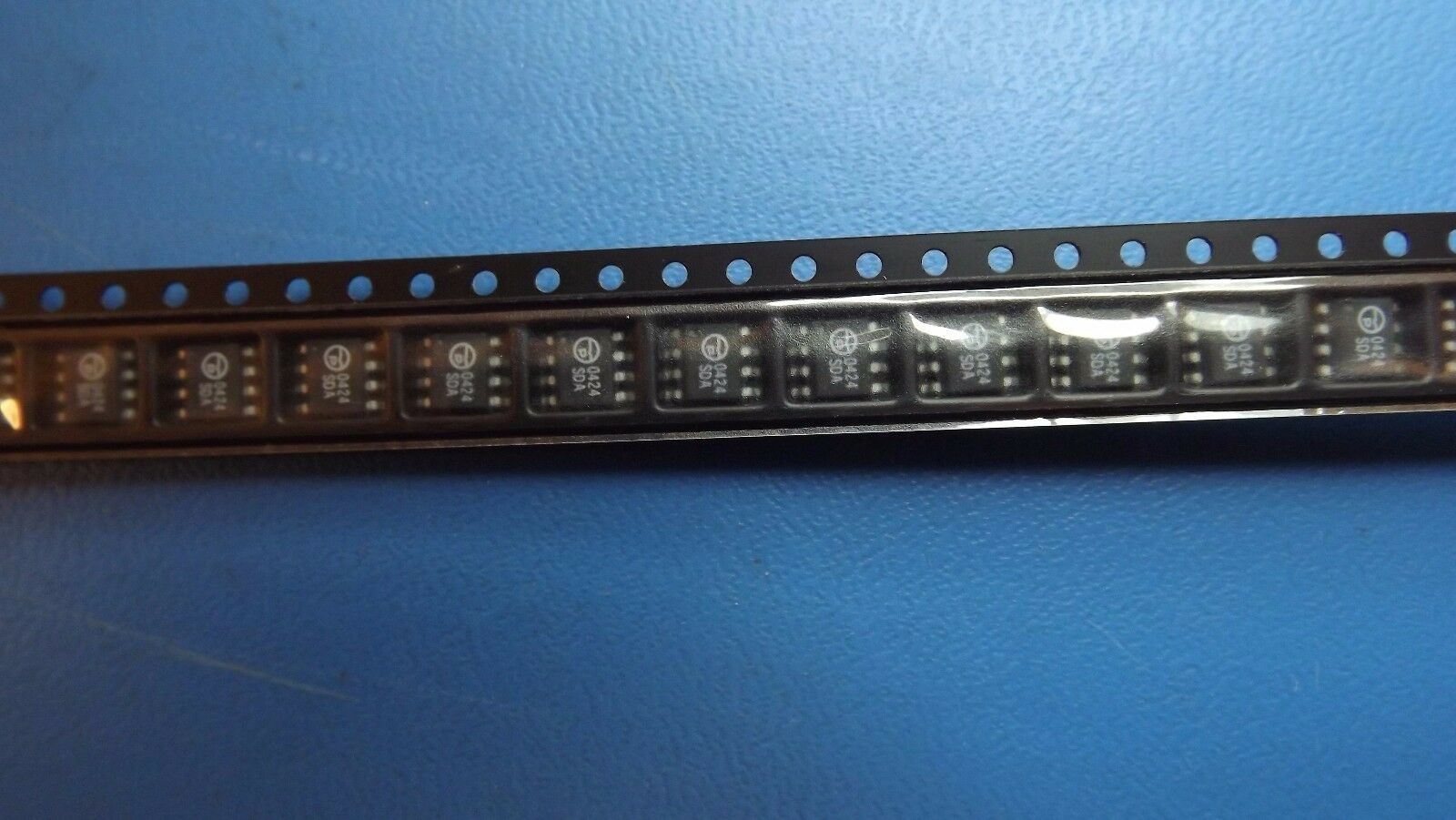

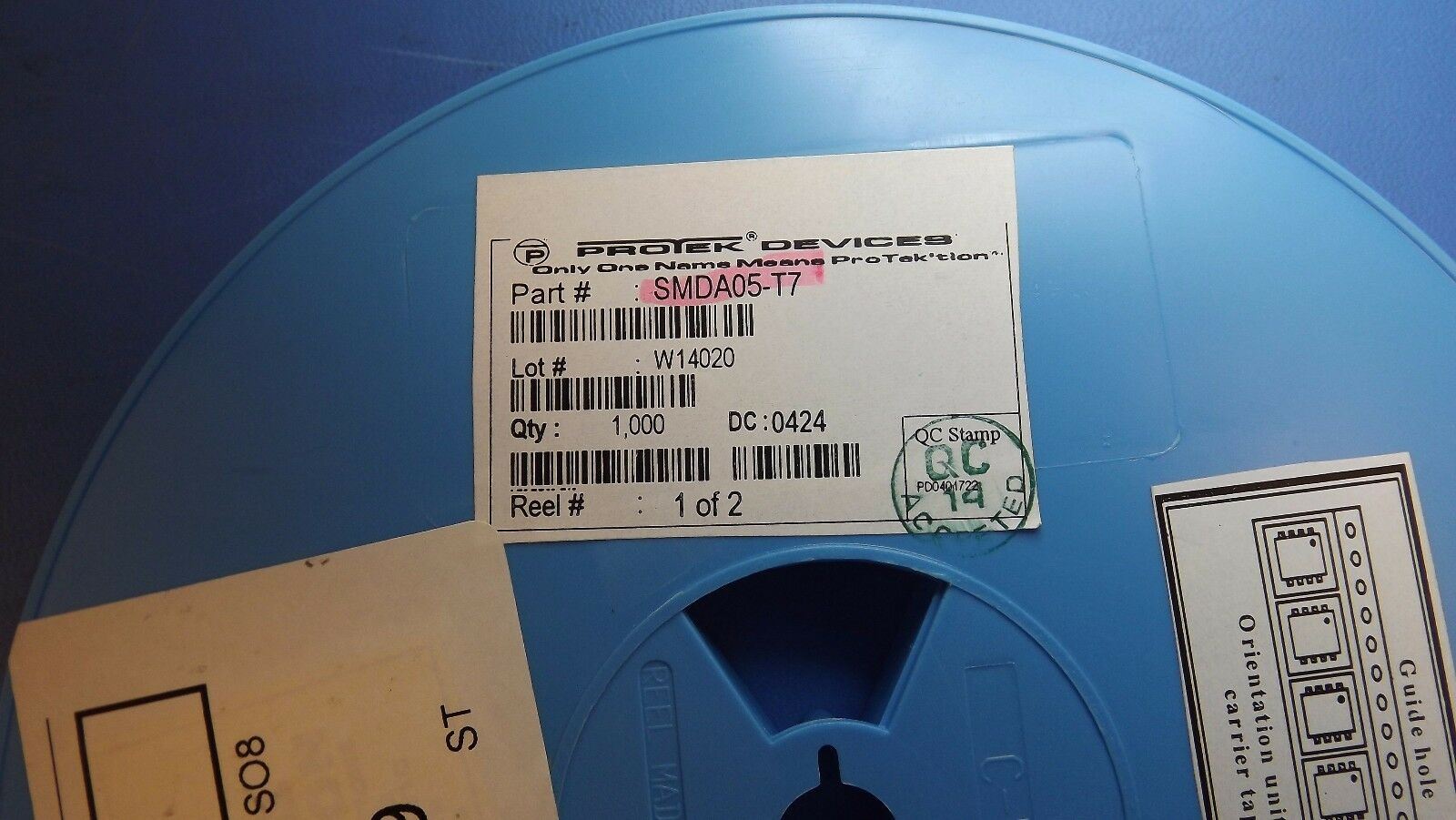

THIS LISTING IS FOR (10PCS) OF SMDA05 BY PROTEK DEVICES

SPECIFICATIONS

Mfr Package Description PLASTIC, SOP-8
REACH Compliant Yes
Status Discontinued
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 6.0 V
Clamping Voltage-Max 11.0 V
Configuration SEPARATE, 4 ELEMENTS
Diode Capacitance-Min 550.0 pF
Diode Element Material SILICON
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Moisture Sensitivity Level NOT SPECIFIED
Non-rep Peak Rev Power Dis-Max 500.0 W
Number of Elements 4.0
Number of Terminals 8
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1.0 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 5.0 V
Reverse Current-Max 100.0 µA
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature LOW CAPACITANCE
