RS3SC008_928223 INTEL RAID controller PCI Express x8 3.0 12 Gbit/s
Tax included.
THIS IS FOR (1) FACTORY BOX OF RS3SC008 928223 BY INTEL
Specifications
- Essentials
Status Launched
Launch Date Q3'14
Expected Discontinuance 2H'20

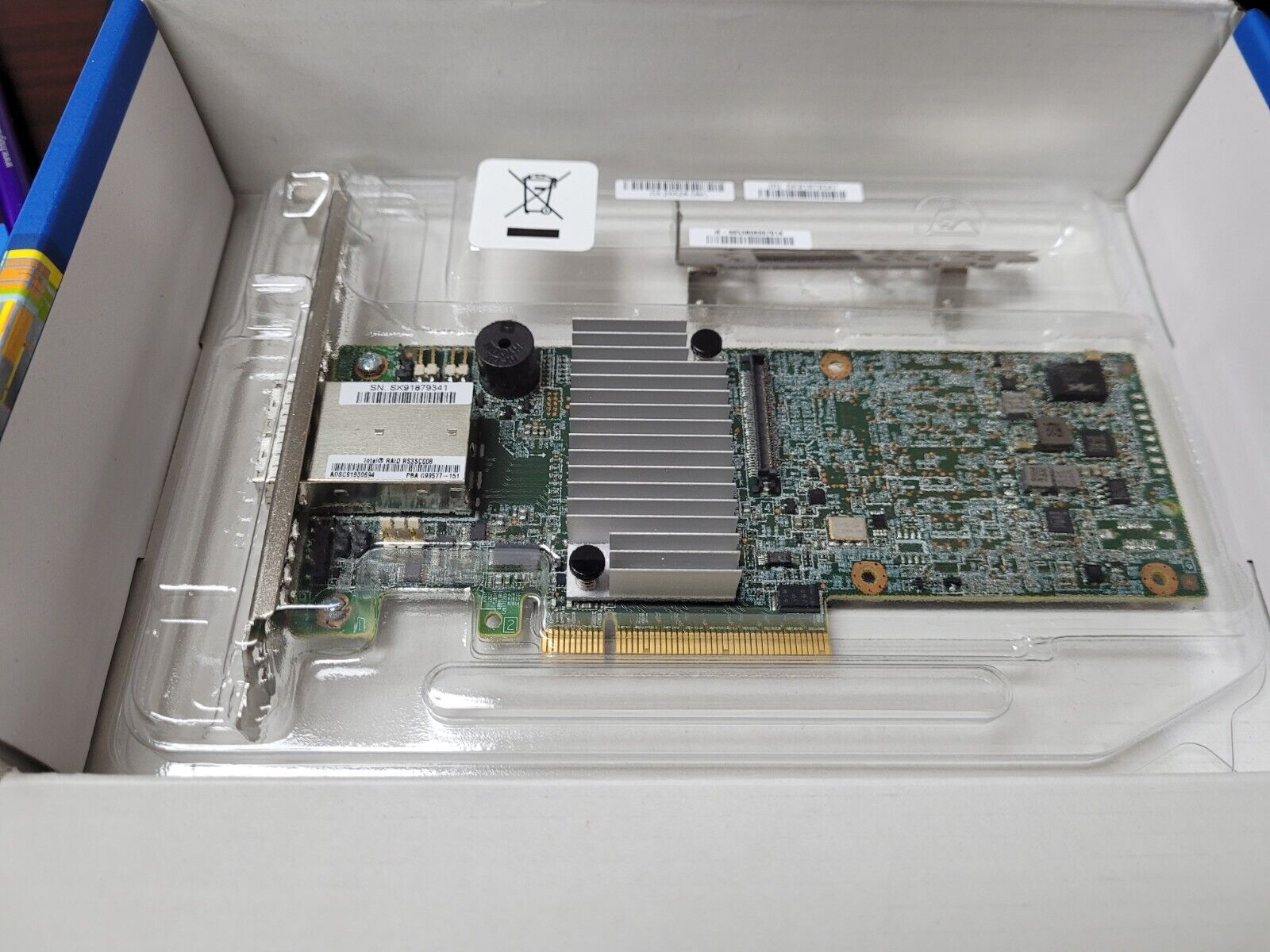

Description
12Gb/s SAS12Gb/s SAS, 6Gb/s
SATA, LSI3108 ROC Scalable
Performance Intelligent RAID
0,1,5,10,50,60 add-in card with
x8 PCIe 3.0, 8 external ports,
MD2 Low Profile form factor.
Target Market Scalable Performance
Board Form Factor Low Profile MD2 Card
Data Transfer Rate 12 Gb/s
Supported Devices SAS/SATA
RAID Level Supported 0, 1, 10, 5, 50, 6, 60
JBOD Mode No
# of Ports External 8
# of Devices Supported 240
Embedded Memory 1GB
PCIe Host Interface PCIe x8 Gen3
IO Processor Model LSI3108
Connector Orientation External
