(5 pcs) QS3125Q IDT Bus Driver, 1-Func, 4-Bit, True Output, CMOS, QSOP16
(5 pcs) QS3125Q IDT Bus Driver, 1-Func, 4-Bit, True Output, CMOS, QSOP16

(5 pcs) QS3125Q IDT Bus Driver, 1-Func, 4-Bit, True Output, CMOS, QSOP16

Tax included.
Only 48 left!

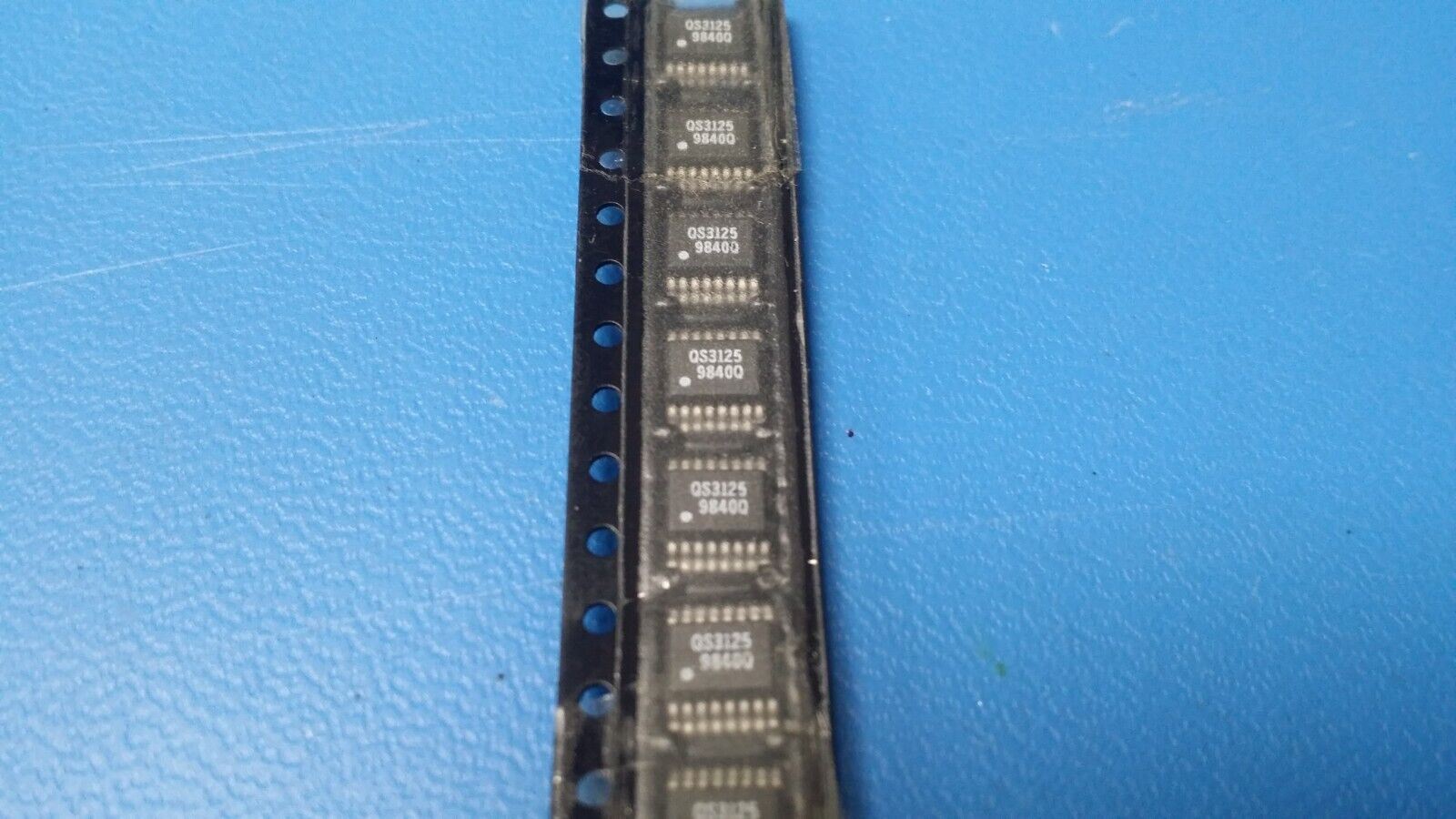

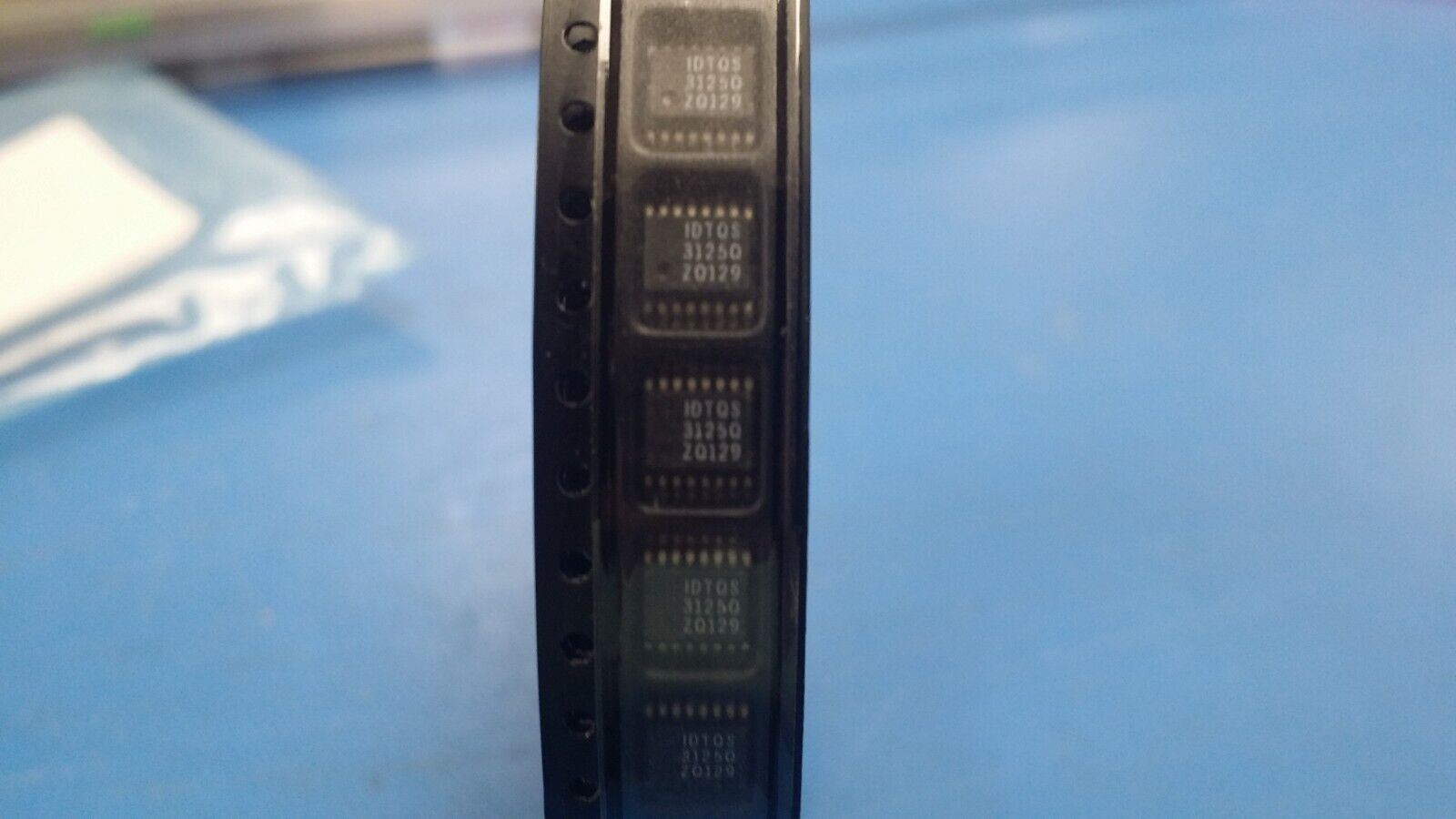

THIS IS FOR (5 PCS) QS 3125, QS3125Q IDT
Bus Driver, 1-Func, 4-Bit, True Output, CMOS, QSOP16

Part #: QS3125Q
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDSO16

Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Number of Bits 4
Number of Functions 1
Number of Ports 2
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Propagation Delay (tpd) 0.25 ns
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature BUS SWITCH
