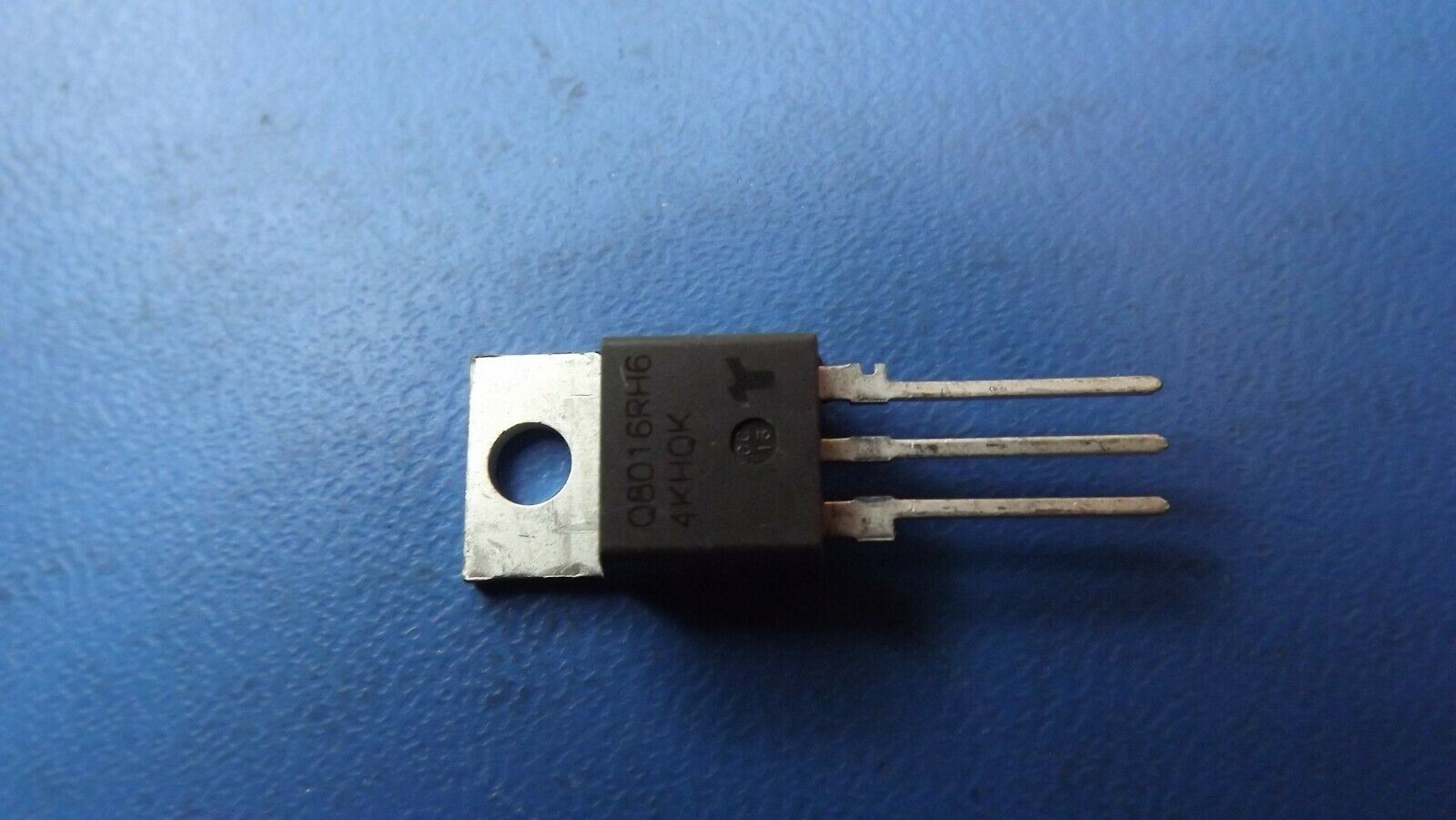

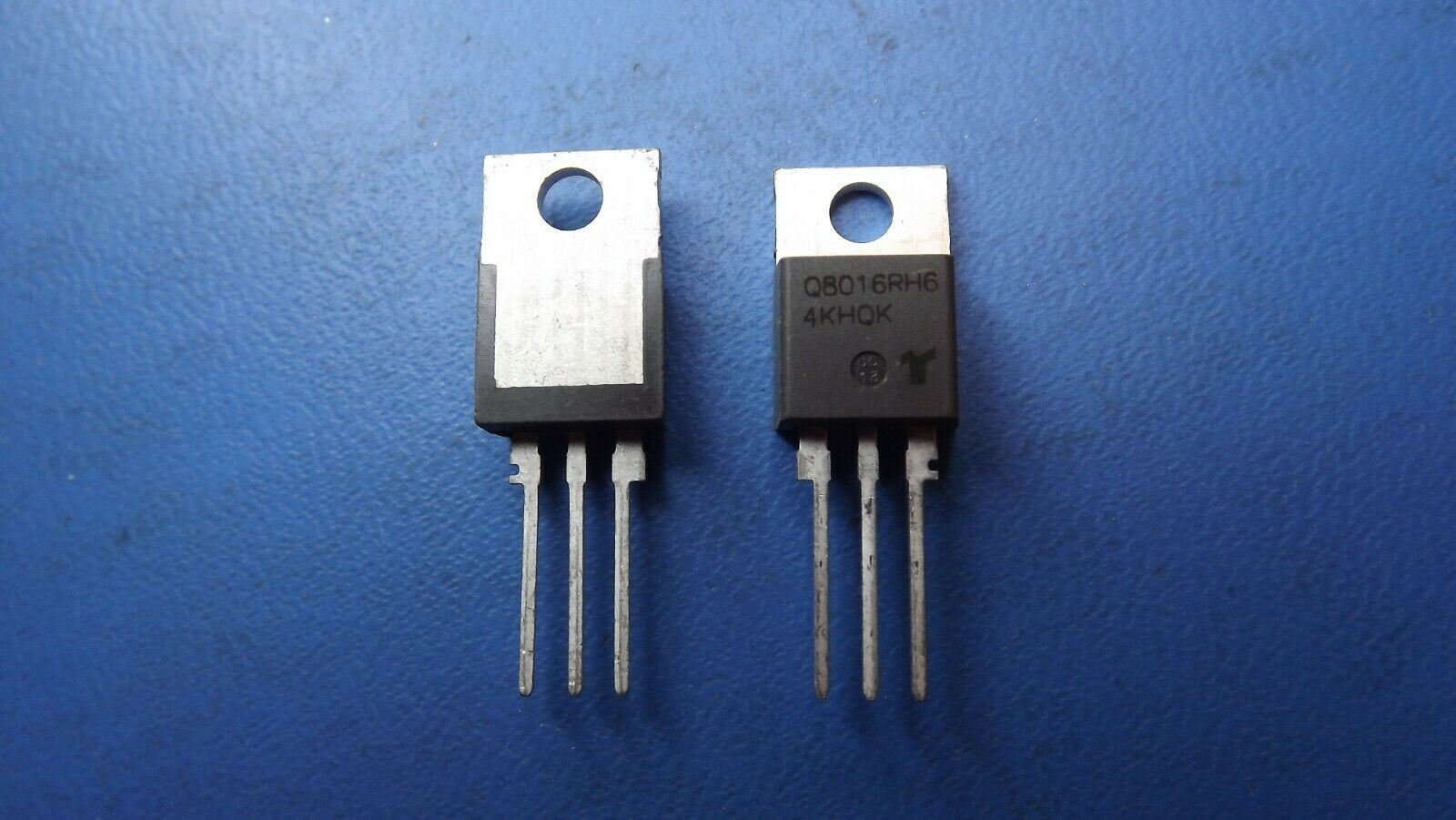

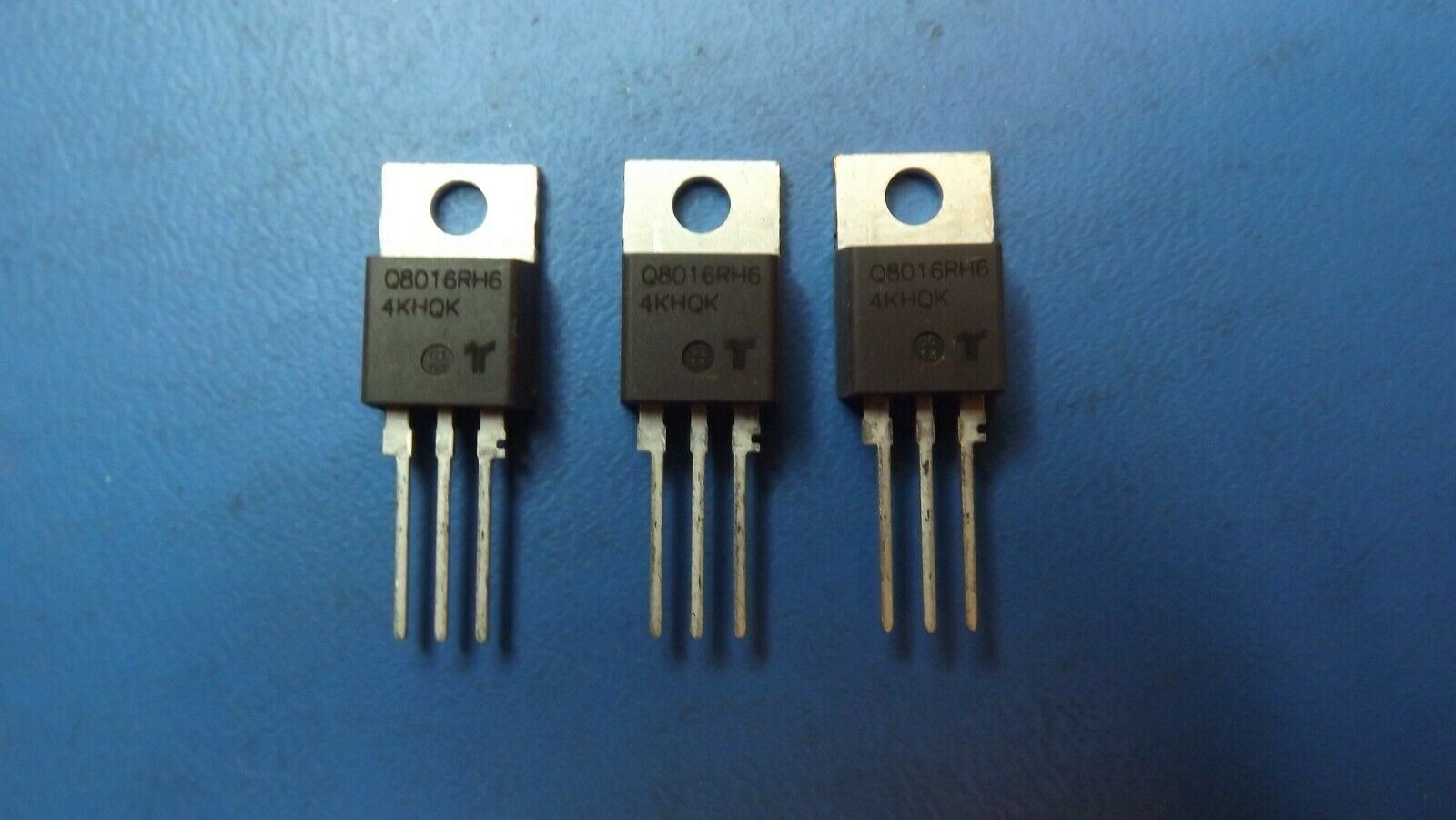

(5PCS) Q8016RH6 Q8016RH6TP TRIAC ALTERNISTOR 800V 16A TO220
Tax included.

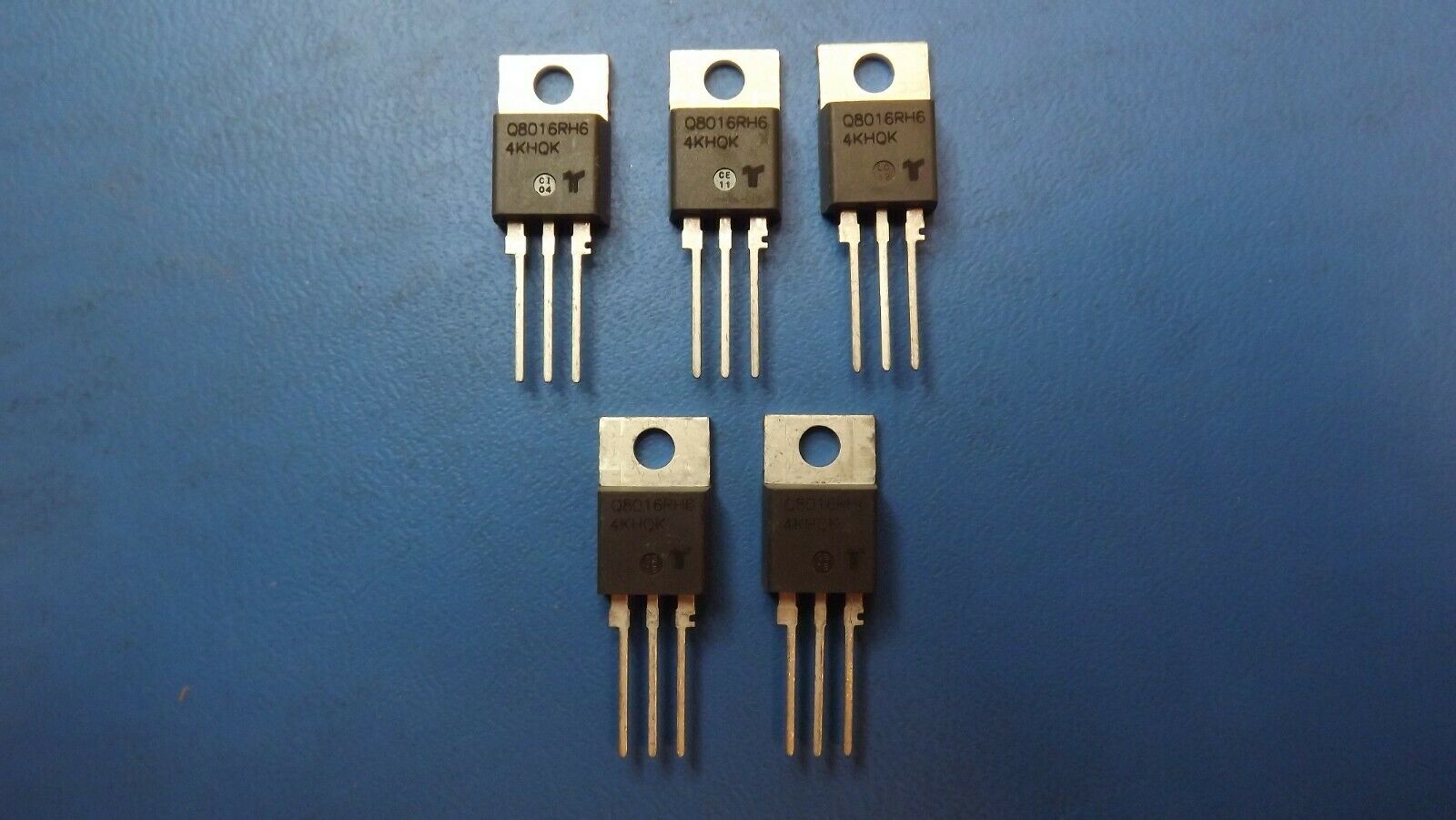

THIS LISTING IS FOR (5PCS) OF Q8016RH6TP BY LITTELFUSE/TECCOR
Product Attribute Attribute Value Search Similar
Manufacturer: Littelfuse
Product Category: Triacs
RoHS: Details
Series: Qxx16xHx
On-State RMS Current - It RMS: 16 A
Rated Repetitive Off-State Voltage VDRM: 800 V
Off-State Leakage Current @ VDRM IDRM: 100 uA
On-State Voltage: 1.6 V
Holding Current Ih Max: 70 mA
Gate Trigger Voltage - Vgt: 1.3 V
Gate Trigger Current - Igt: 80 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Package / Case: TO-220-2
Packaging: Tube
Current Rating: 16 A
Operating Temperature Range: - 40 C to + 125 C
Brand: Littelfuse
Product Type: Triacs
