PH320240T-015-I02Q 3.5" 16 bit parallel, w/TP
Tax included.

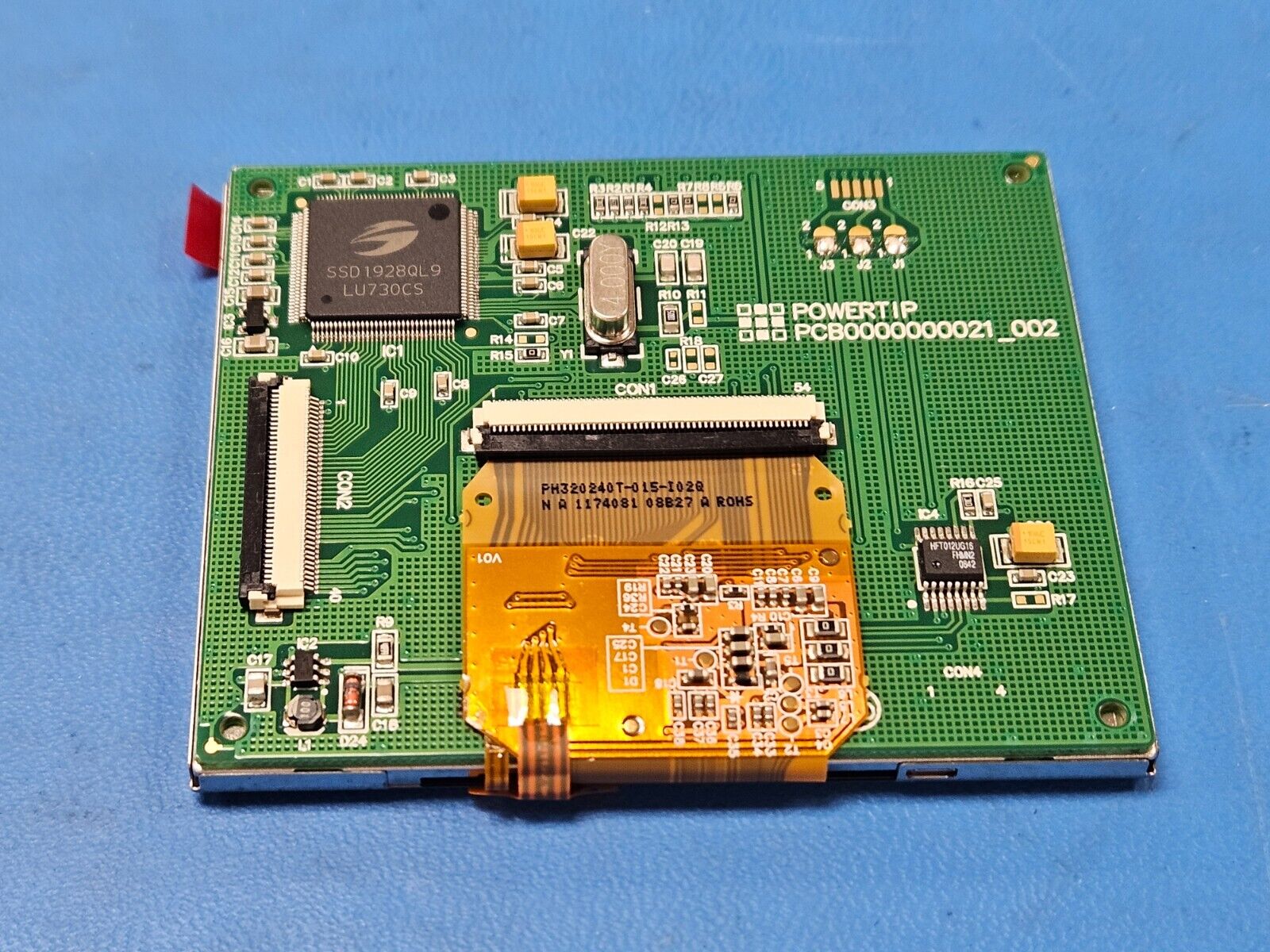

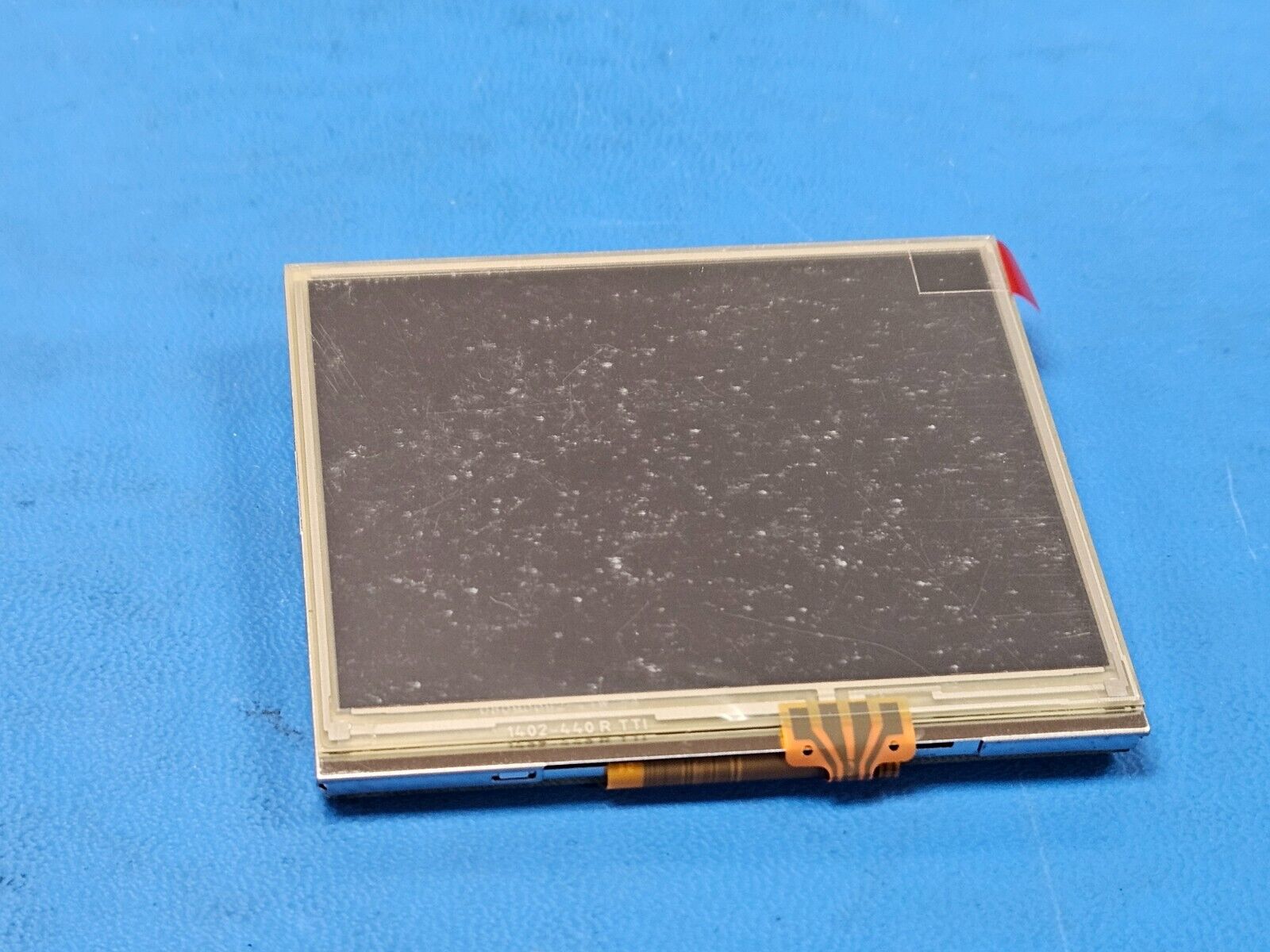

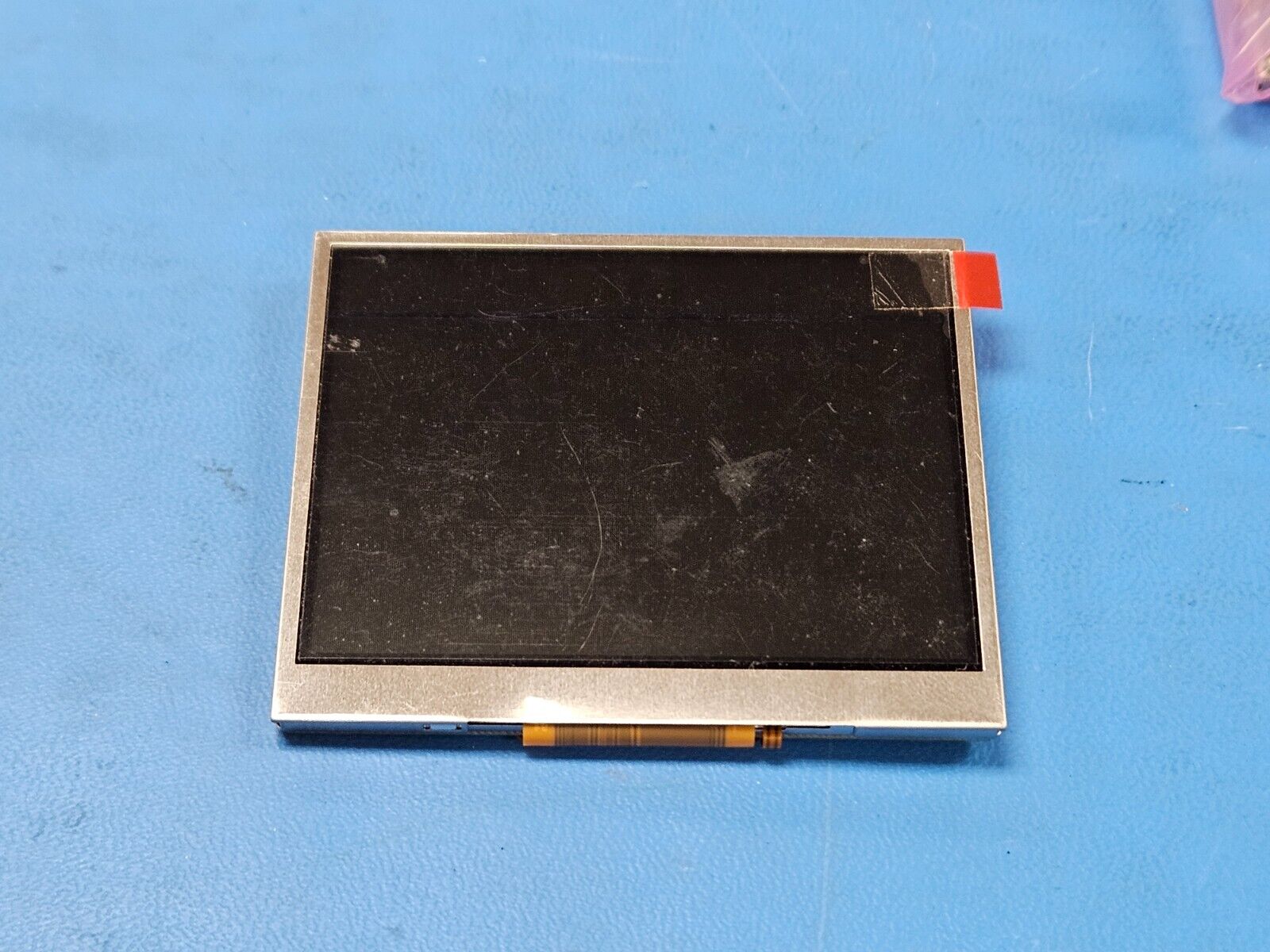

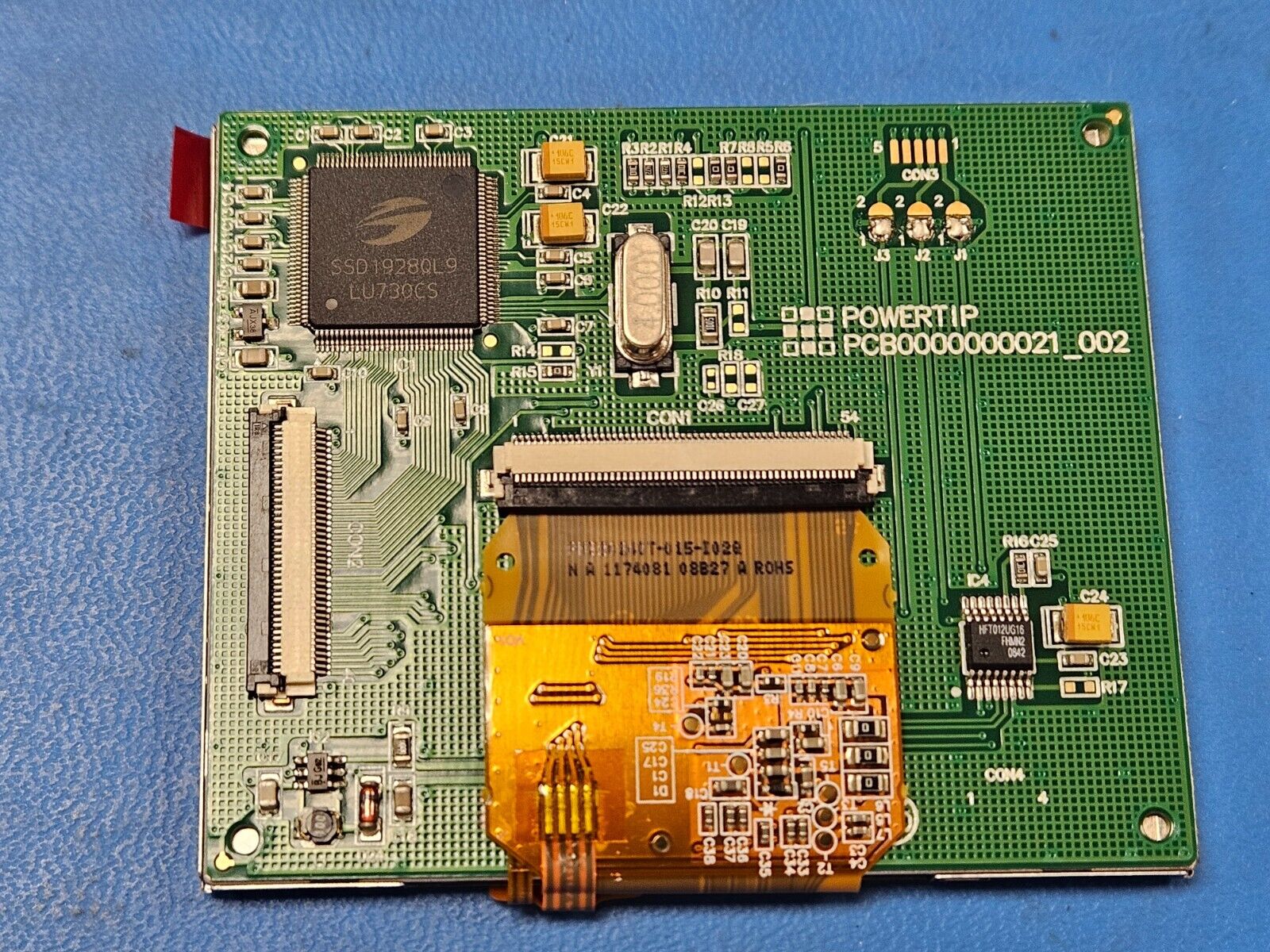

THIS LISTING IS FOR 1 PH320240T-015-I02Q DISPLAY BY POWERTIP
Display Type 320(RΕGΕB) * 240 Dots
LCD Type Normally white , Transmissive type
Screen size(inch) 3.5 inch
Viewing Direction 6 O’clock
Color configuration RGB-Strip
Backlight LED B/L
Interface 8-bits serial RGB interface
Driver IC Himax: HX8238-A
Outline Dimension 76.9 (W) * 63.9(L) * 9.75 (H)(Max) mm
Viewing Area 71.68 (W) * 54.16 (L) mm
Active Area 70.08 (W) * 52.56 (L) mm
Viewing Area (T/P) 72.00 (W) * 54.56 (L) mm
Active Area (T/P) 70.80 (W) * 53.26 (L) mm
