PAL20R8ACJS OT PLD, 25ns, PAL-Type, TTL, CDIP24
Tax included.

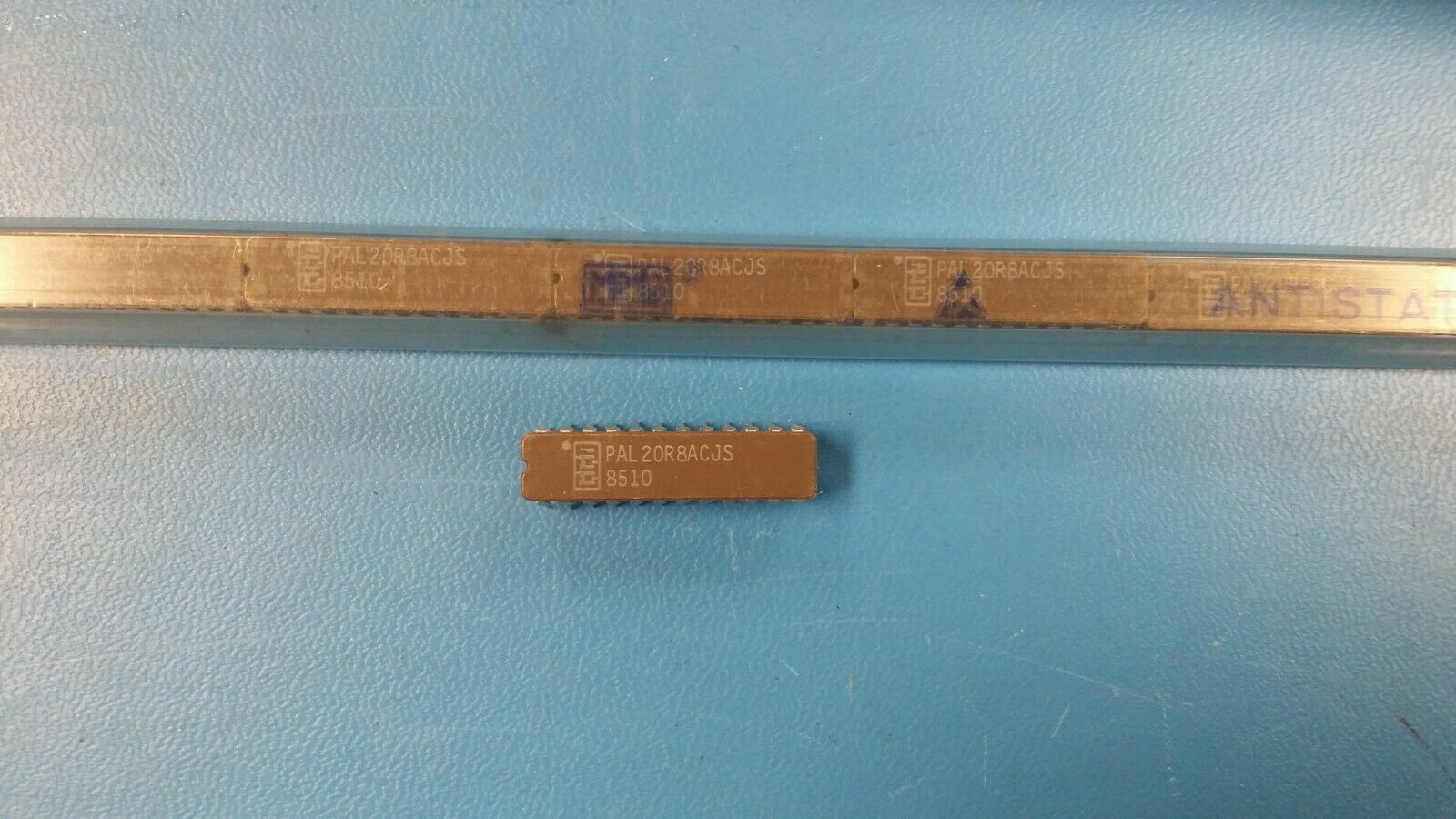

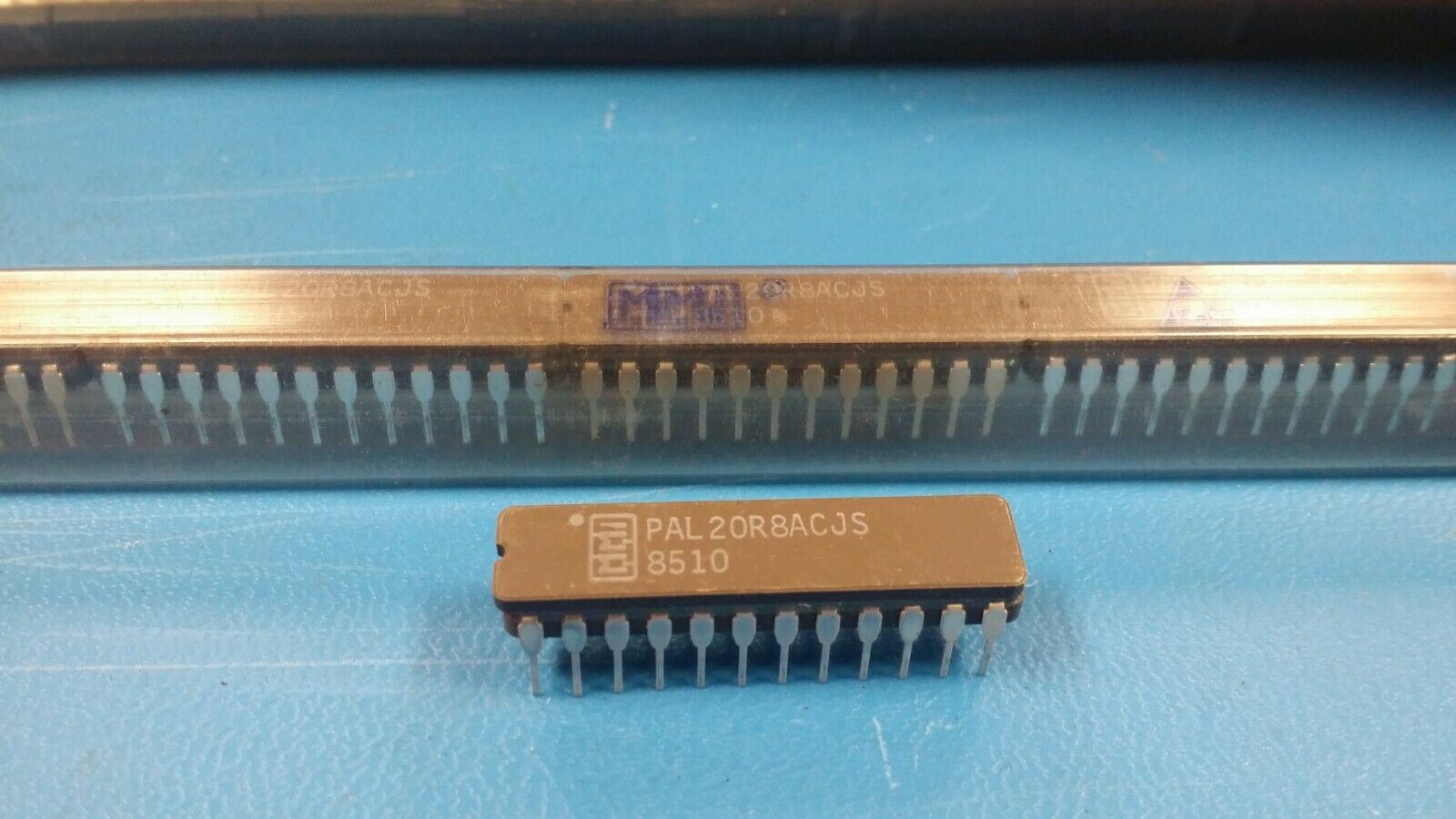

THIS LISTING IS FOR (1 PC) OF PAL20R8ACJS BY MMI
OT PLD, 25ns, PAL-Type, TTL, CDIP24
Part #: PAL20R8ACJS
Part Category: Programmable Logic ICs
Manufacturer: (Formerly MMI) Advanced Micro Devices, Inc.
Description: OT PLD, PAL-Type, TTL, CDIP24
Clock Frequency-Max 25.0 MHz
JESD-30 Code R-XDIP-T24
JESD-609 Code e0
Number of Inputs 12.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Function REGISTERED
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
