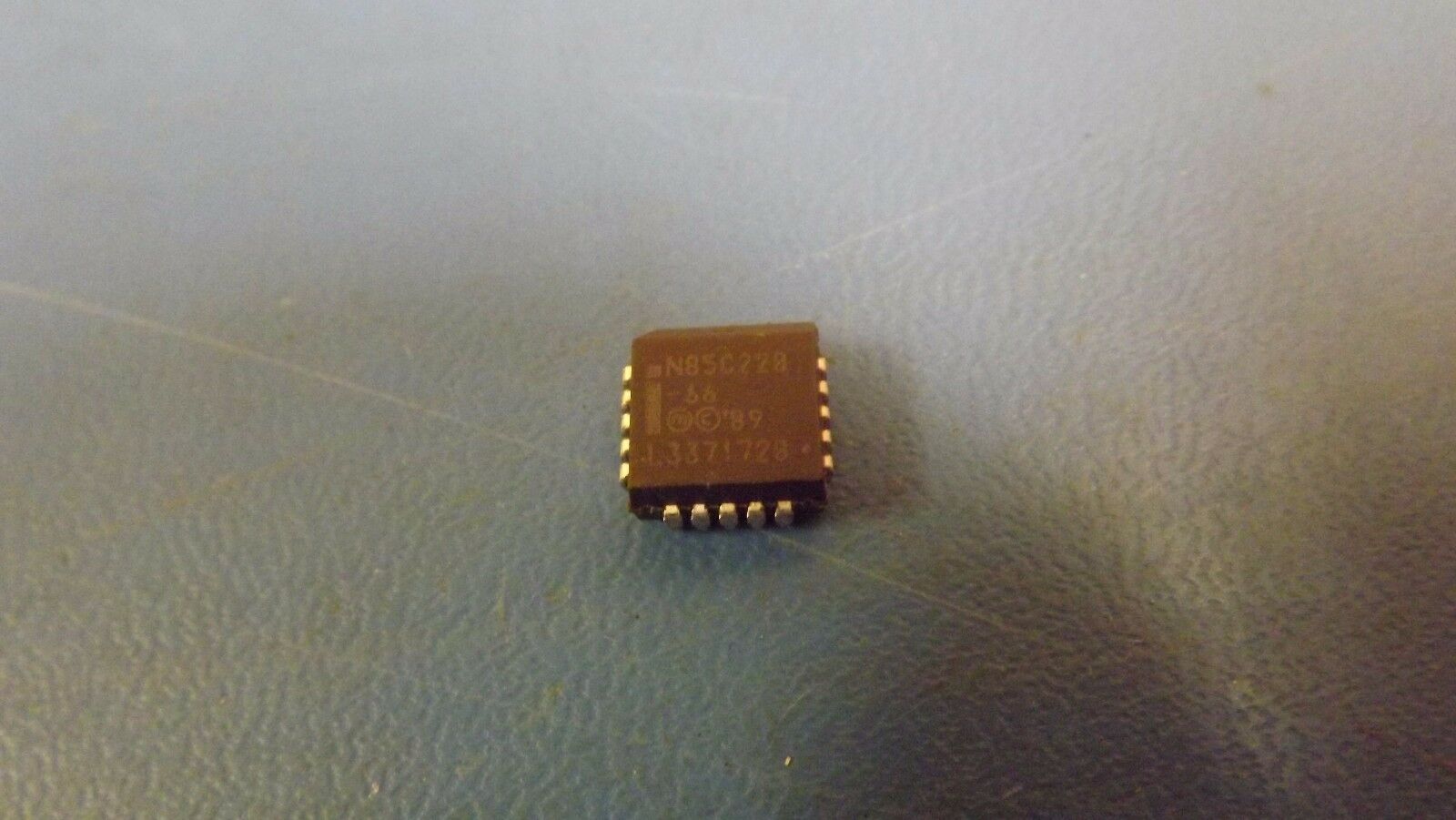

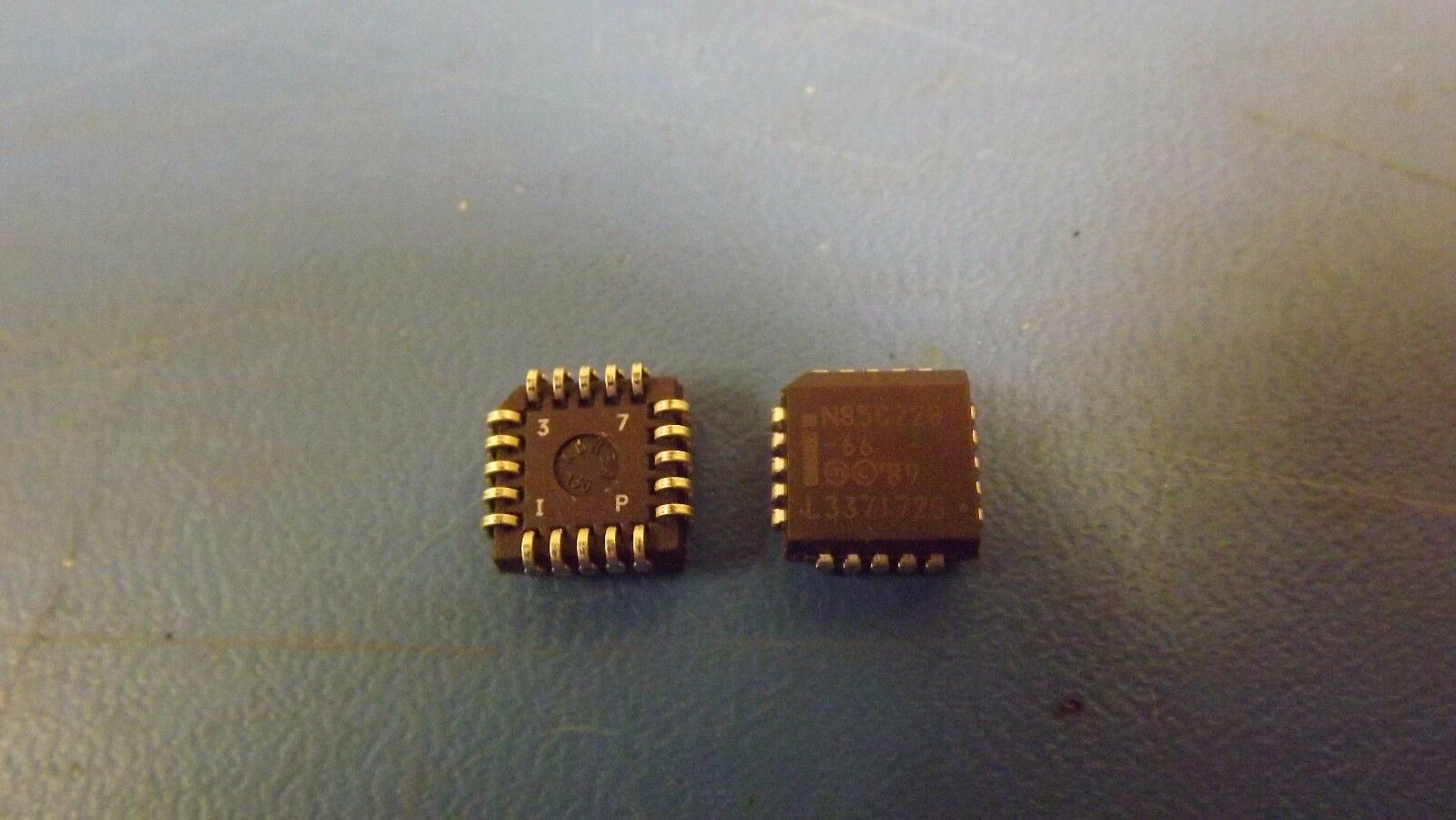

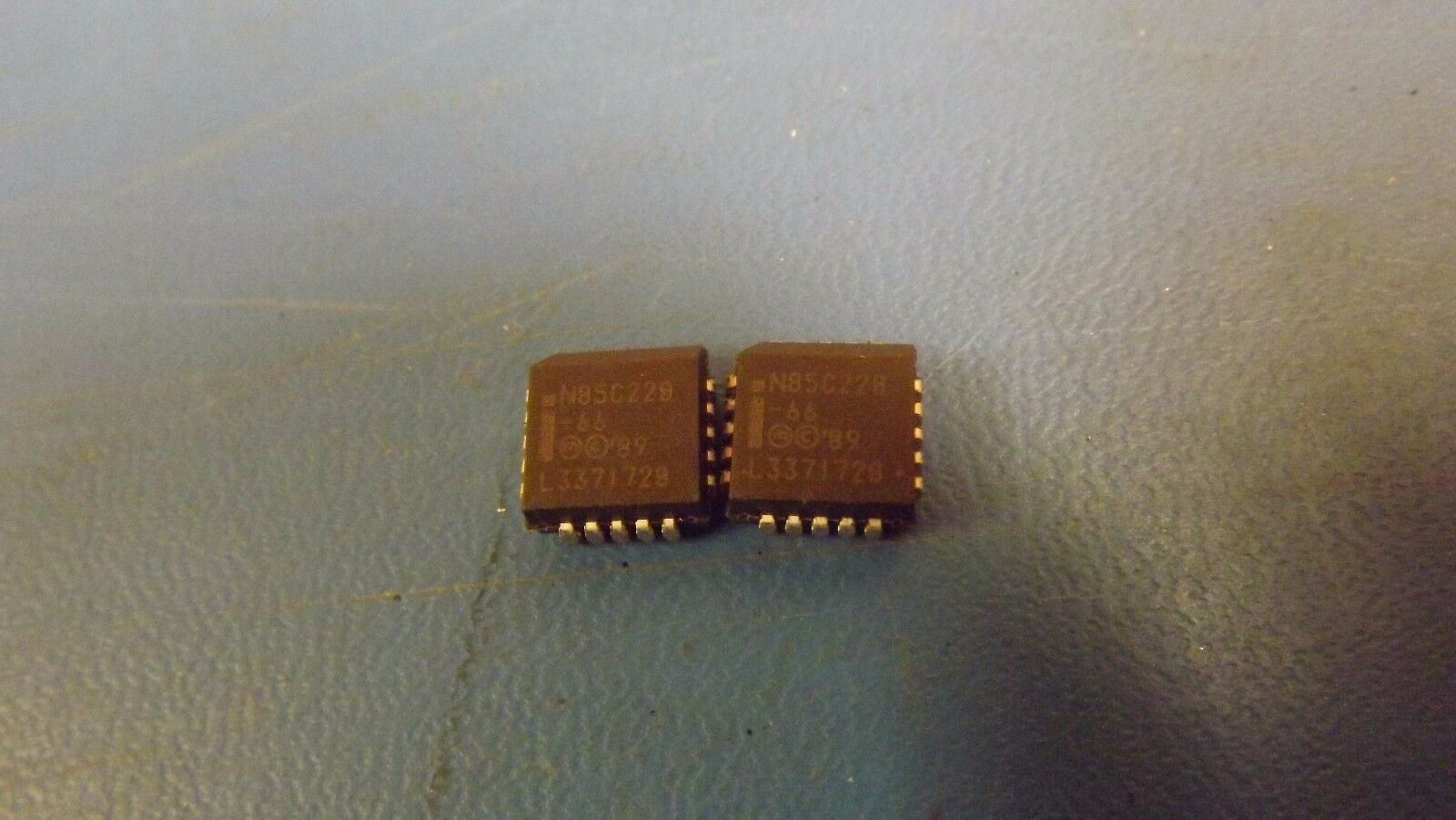

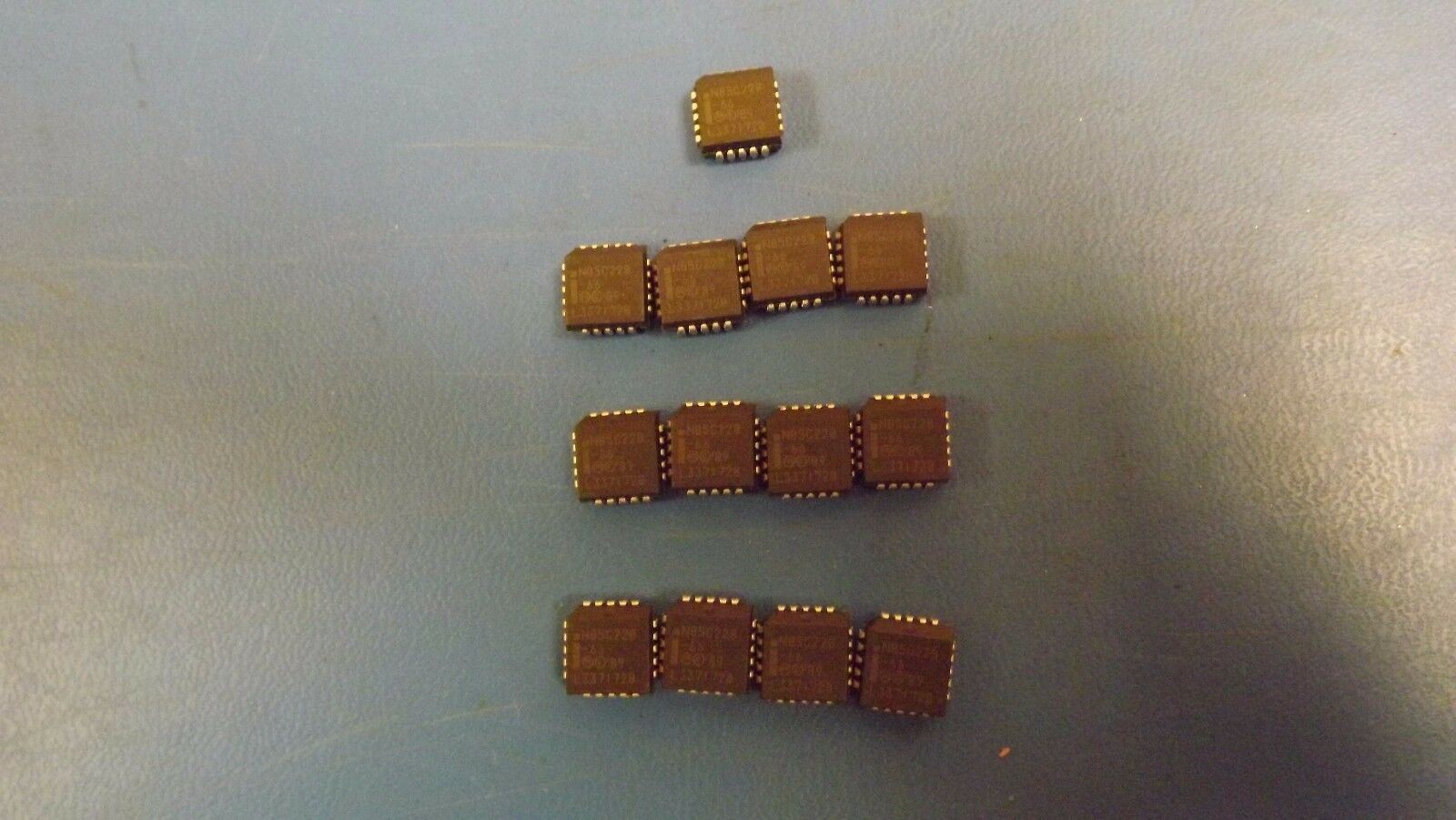

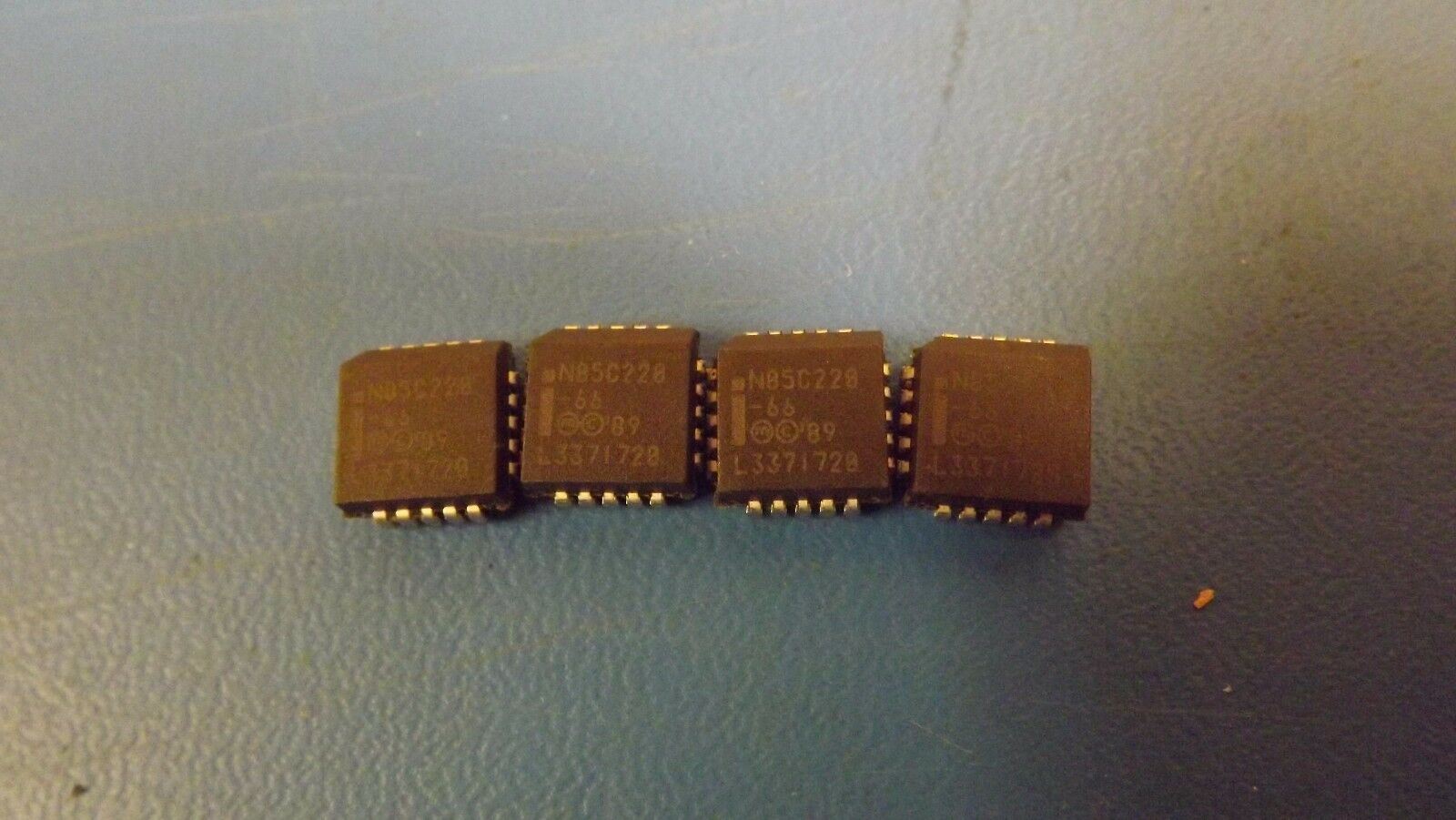

N85C220-66 OT PLD, 12ns, PLCC20
Tax included.
THIS LISTING IS FOR (1PC) OF N85C220-66 BY INTEL
SPECIFICATIONS
| Mfr Package Description | PLASTIC, LCC-20 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Programmable Logic Type | OT PLD |
| Architecture | PAL-TYPE |
| Clock Frequency-Max | 66.0 MHz |
| JESD-30 Code | S-PQCC-J20 |
| JESD-609 Code | e0 |
| Number of Dedicated Inputs | 9.0 |
| Number of I/O Lines | 8.0 |
| Number of Inputs | 18.0 |
| Number of Outputs | 8.0 |
| Number of Product Terms | 72.0 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 9 DEDICATED INPUTS, 8 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC20,.4SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 5 |
| Propagation Delay | 12.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 8.9662 mm |
| Width | 8.9662 mm |
| Additional Feature | PAL WITH MACROCELLS; 8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK |
