MX27C1000QC-15 MACRONIX OTP ROM, 128KX8, 150ns, CMOS, PLCC32
Tax included.

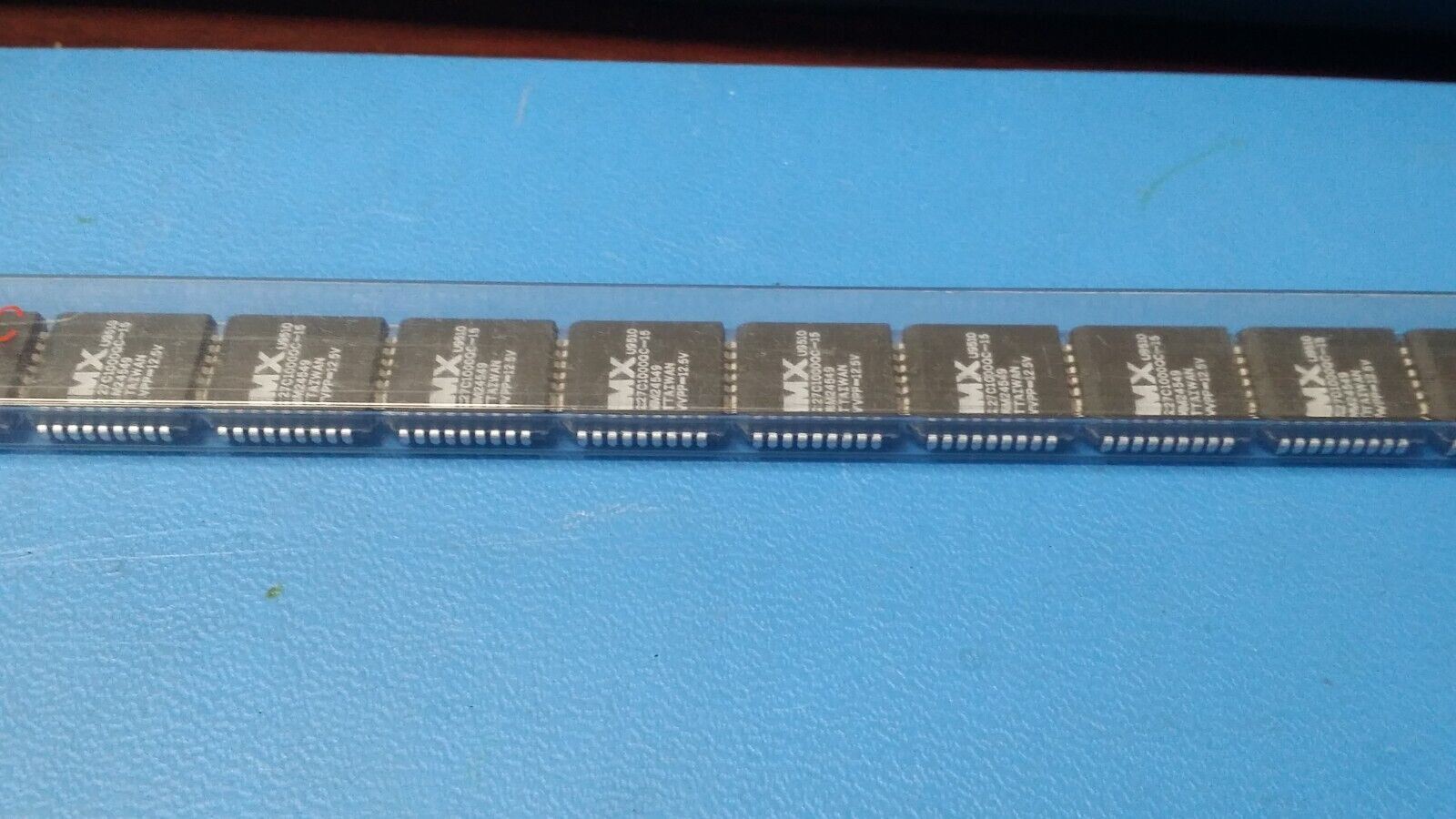

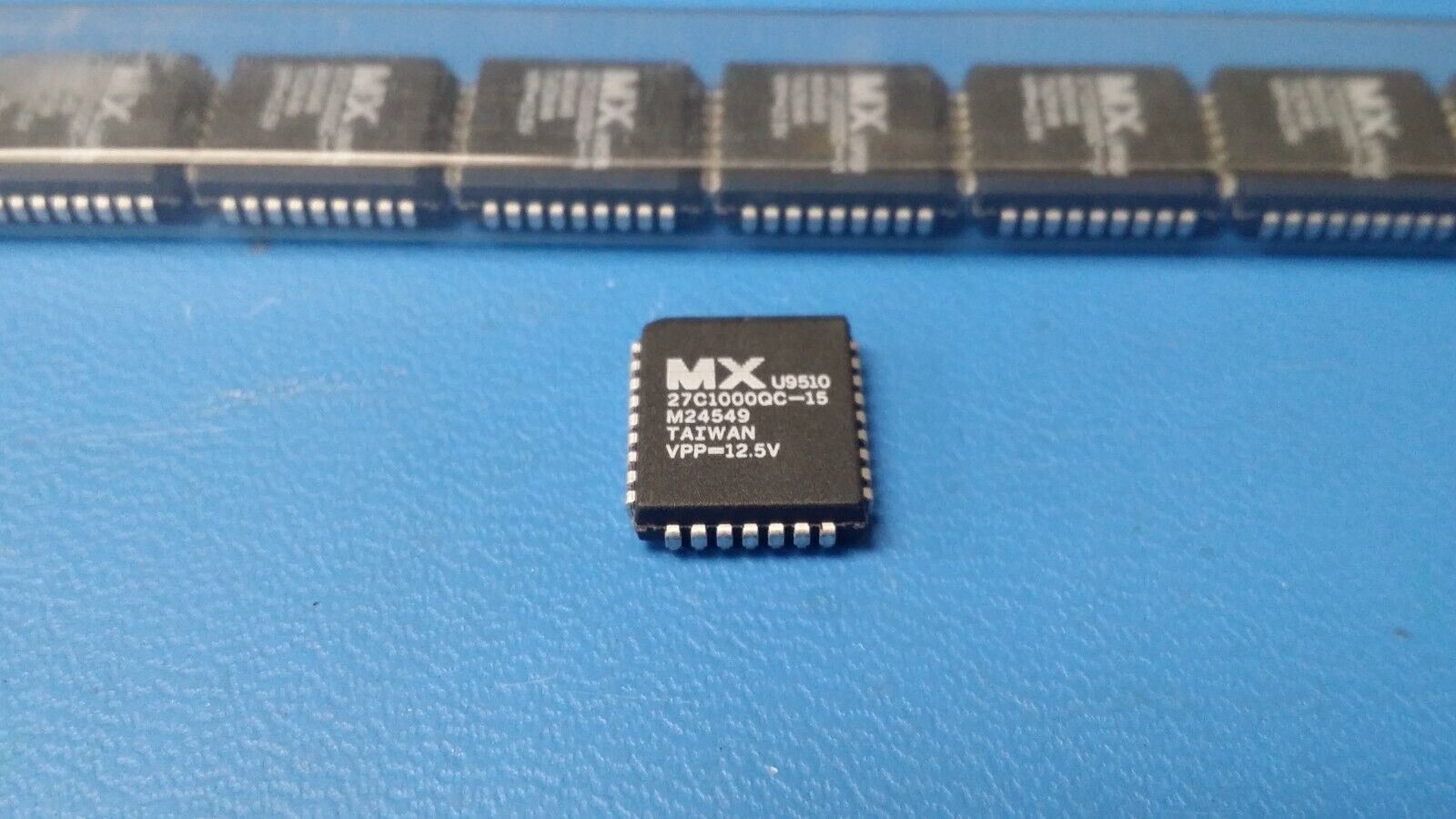

THIS IS FOR (1 PC) OF MX27C1000QC-15 BY MACRONIX
OTP ROM, 128KX8, 150ns, CMOS, PLCC32
Part #: MX27C1000QC-15
Part Category: Memory ICs
Manufacturer: Macronix International Co., Ltd.
Description: OTP ROM, 128KX8, 150ns, CMOS, PQCC32
Mfr Package Description PLASTIC, MS-016, LCC-32
Status Discontinued
Sub Category OTP ROMs
Access Time-Max 150.0 ns
I/O Type COMMON
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type OTP ROM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 3.55 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 14.05 mm
Width 11.43 mm
Additional Feature QUICK PULSE PROGRAMMING ALGORITHM
