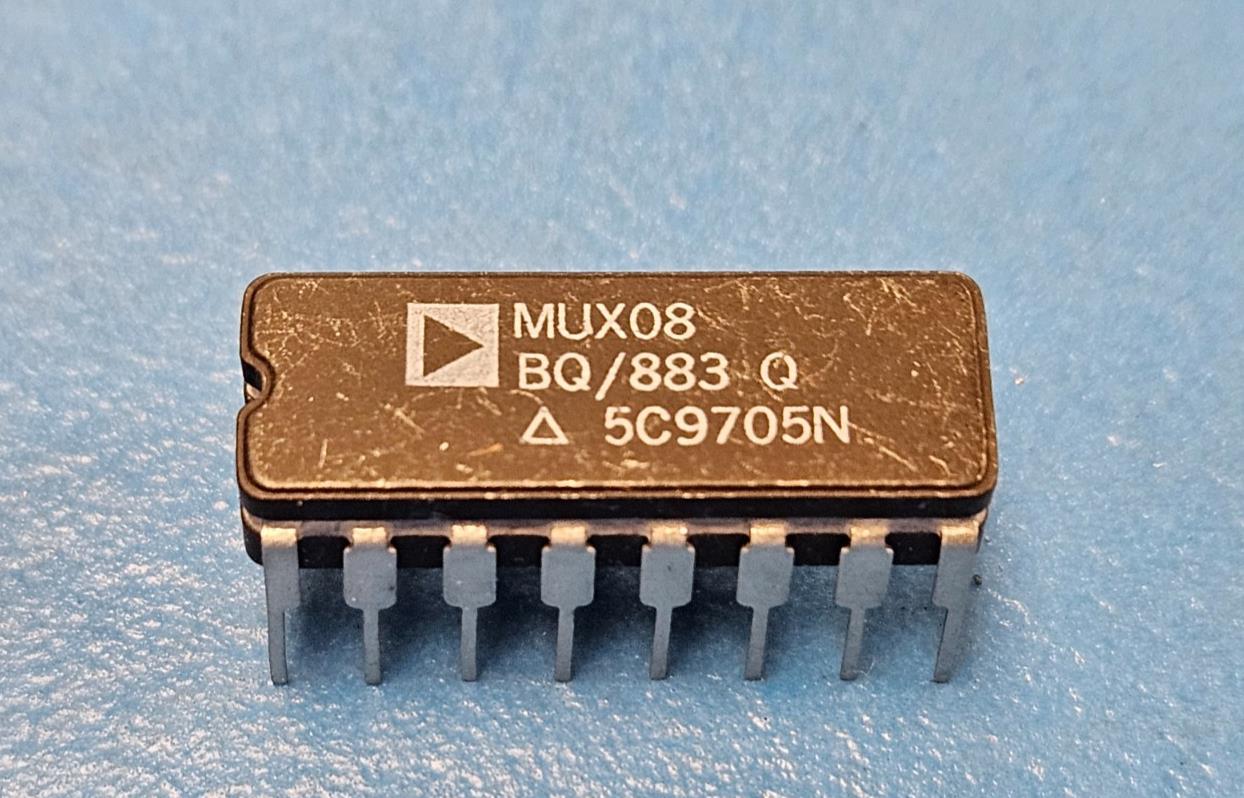

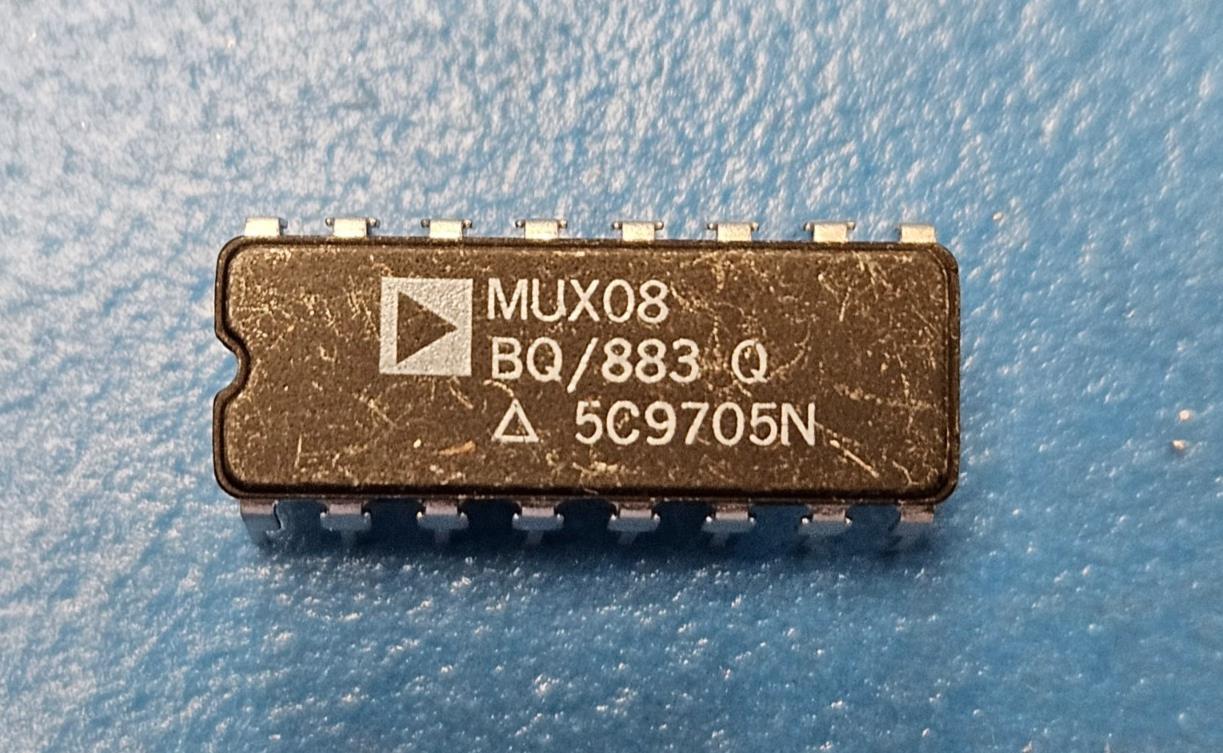

MUX08BQ/883 Analog/PMI Single-Ended Multiplexer, 1 Func, 8 Channel, JFET, CDIP16
Tax included.
This listing is for (1PC) of MUX08BQ/883 by Analog Devices/PMI
Mfr Package Description DIP-16
Status Discontinued
Analog IC - Other Type SINGLE-ENDED MULTIPLEXER
JESD-30 Code R-CDIP-T16
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Channels 8
Number of Functions 1
Number of Terminals 16
Off-state Isolation-Nom 60.0 dB
On-state Resistance Match-Nom 40.0 ohm
On-state Resistance-Max (Ron) 500.0 ohm
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Signal Current-Max 0.025 A
Sub Category Multiplexer or Switches
Supply Current-Max (Isup) 15.0 mA
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Switch-off Time-Max 400.0 ns
Switch-on Time-Max 2000.0 ns
Technology JFET
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
