MT41J64M16LA-187E:B Micron SDRAM - DDR3 Memory IC 1Gbit Parallel 533 MHz 96-FBGA
Tax included.

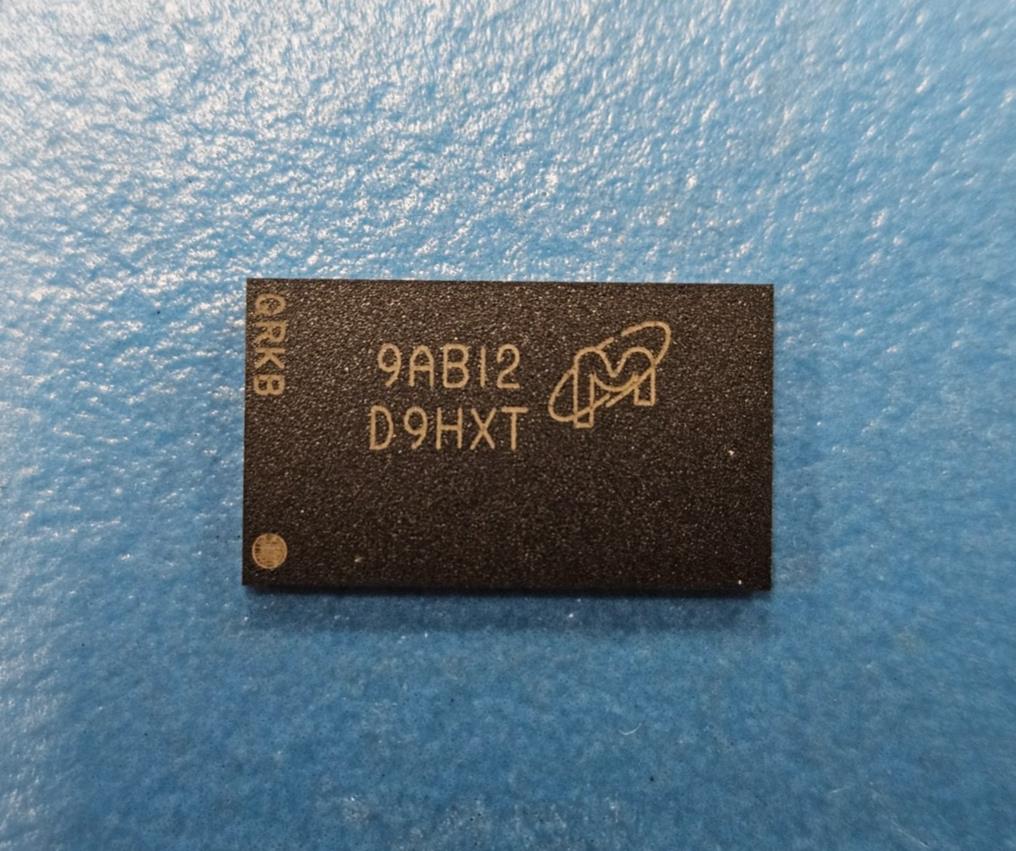

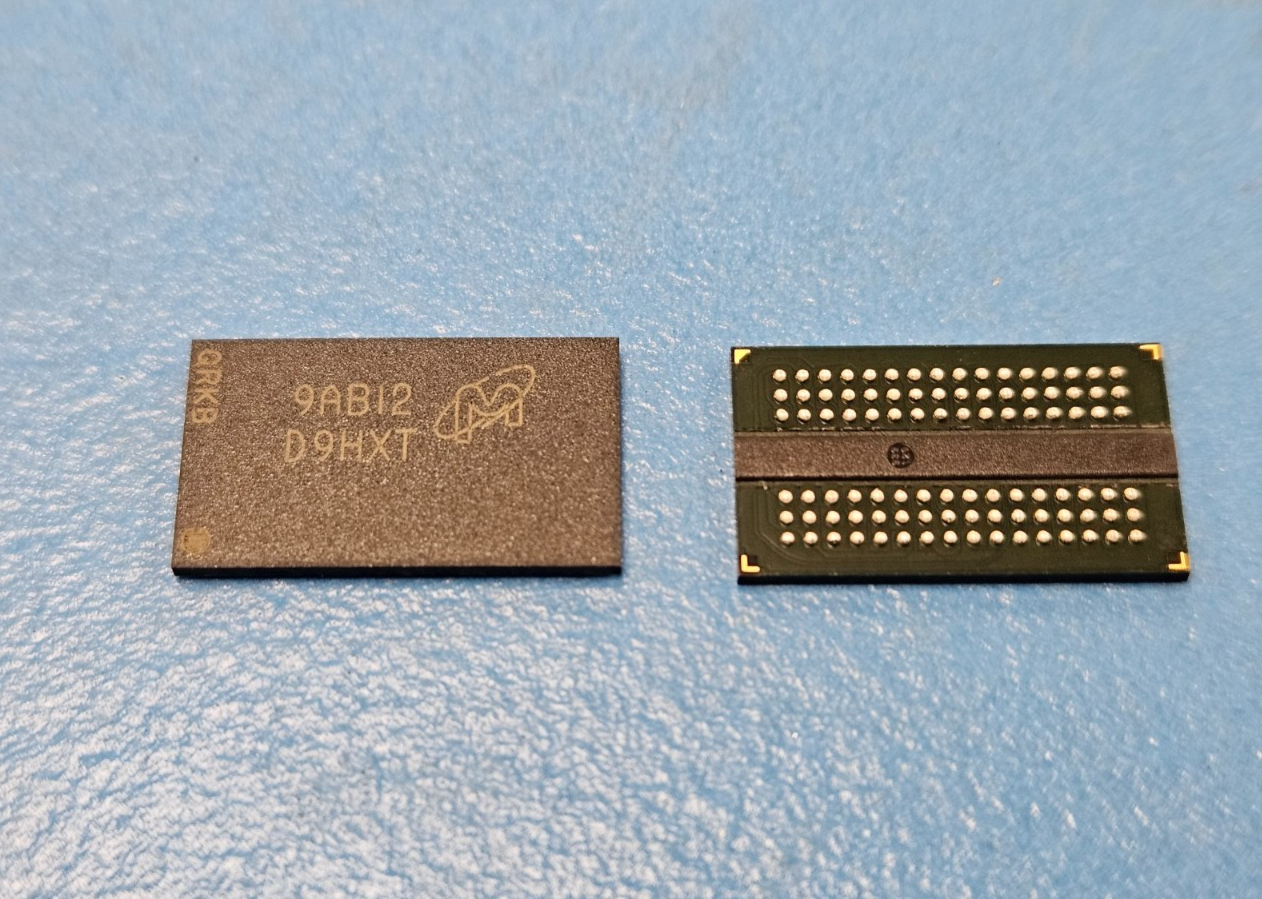

This listing is for (1PC) of MT41J64M16LA-187E:B by Micron
Status Discontinued
Access Mode MULTI BANK PAGE BURST
Access Time-Max (ns) 0.1500000000000000
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (MHz) 533.00000
I/O Type COMMON
Interleaved Burst Length 8
JESD-30 Code R-PBGA-B96
J-STD-609 Code e1
Length (mm) 15.5000
Memory Density (bits) 1073741824.0000000000000000
Memory IC Type DDR3 DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 96
Number of Words (words) 67108864.0000000000000000
Number of Words Code 64M
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 64MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA96,9X16,32
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
DLA Qualification Not Qualified
Refresh Cycles 8192
Seated Height-Max (mm) 1.2000
Self Refresh YES
Sequential Burst Length 8
Standby Current-Max (A) 0.010000000000000
Supply Current-Max (mA) 380.000000000000000
Supply Voltage-Max (V) 1.57500
Supply Voltage-Min (V) 1.42500
Supply Voltage-Nom (V) 1.5
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch (mm) 0.800
Terminal Position BOTTOM
Width (mm) 9.0000
