MPC750ARX266LH RISC Microprocessor, 32-Bit, 266MHz, CMOS, CBGA255
Tax included.

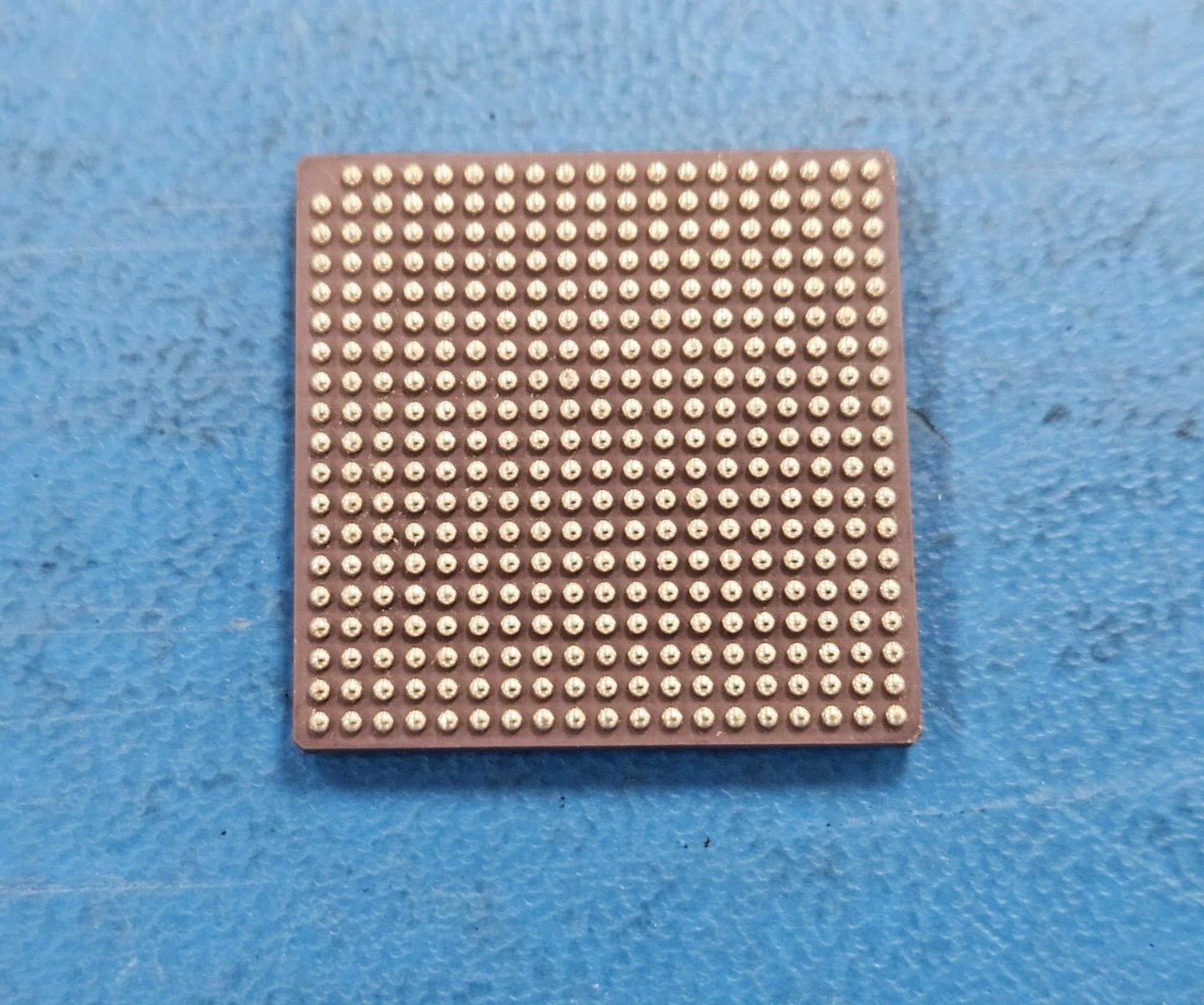

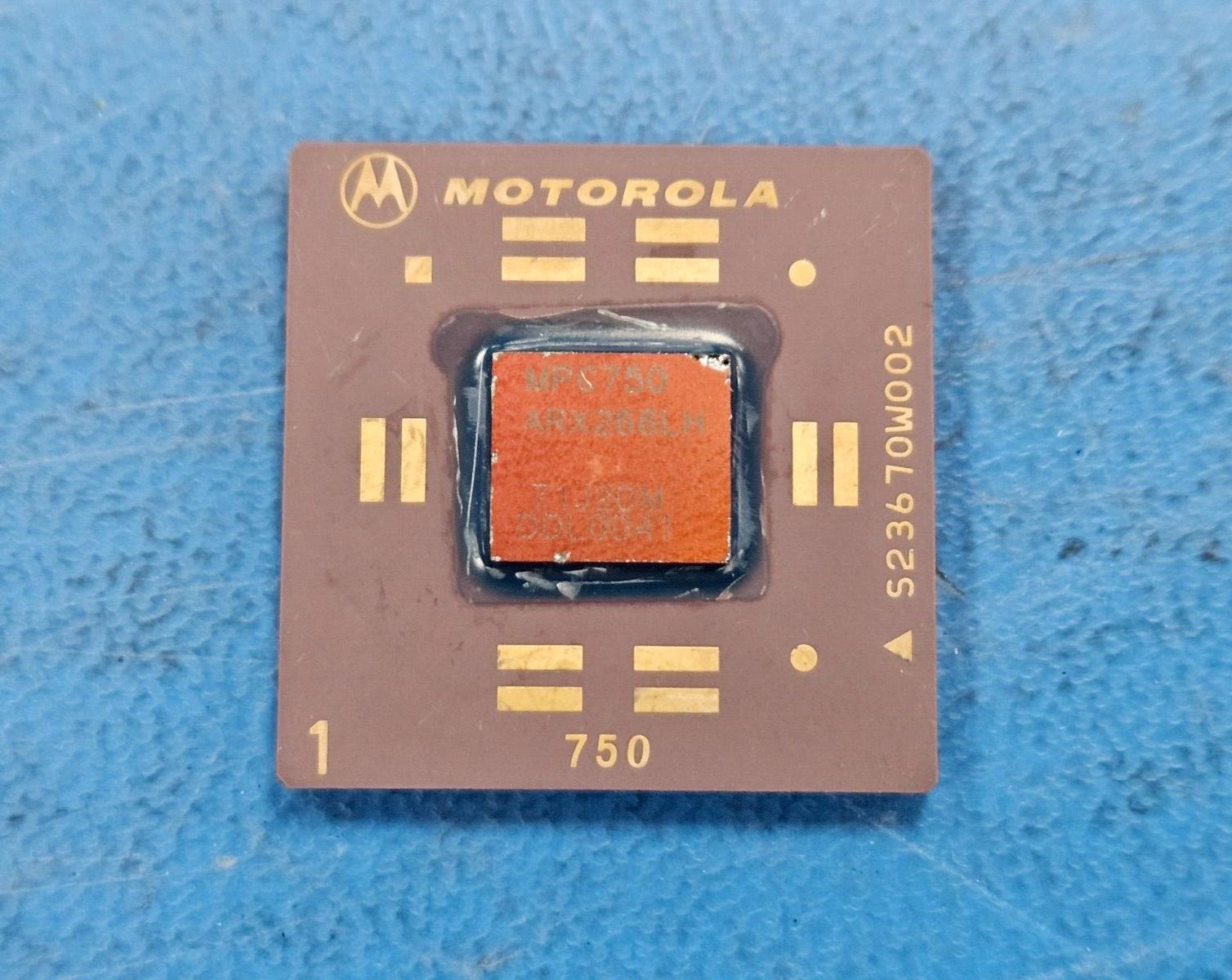

THIS LISTINGIS FOR (1) MPC750ARX266LH BY MOTOROLA
Mfr Package Description CERAMIC, BGA-255
Status Transferred
Address Bus Width 32.0
Bit Size 32
Boundary Scan NO
Clock Frequency-Max 266.0 MHz
External Data Bus Width 64.0
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-CBGA-B255
JESD-609 Code e0
Low Power Mode YES
Number of Terminals 255
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 105.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code BGA
Package Equivalence Code BGA360,19X19,50
Package Shape SQUARE
Package Style GRID ARRAY
Power Supplies 2.6,3.3
Qualification Status Not Qualified
Speed 266.0 MHz
Sub Category Microprocessors
Supply Voltage-Nom 2.6 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Additional Feature ALSO REQUIRES 3.3V I/O SUPPLY
