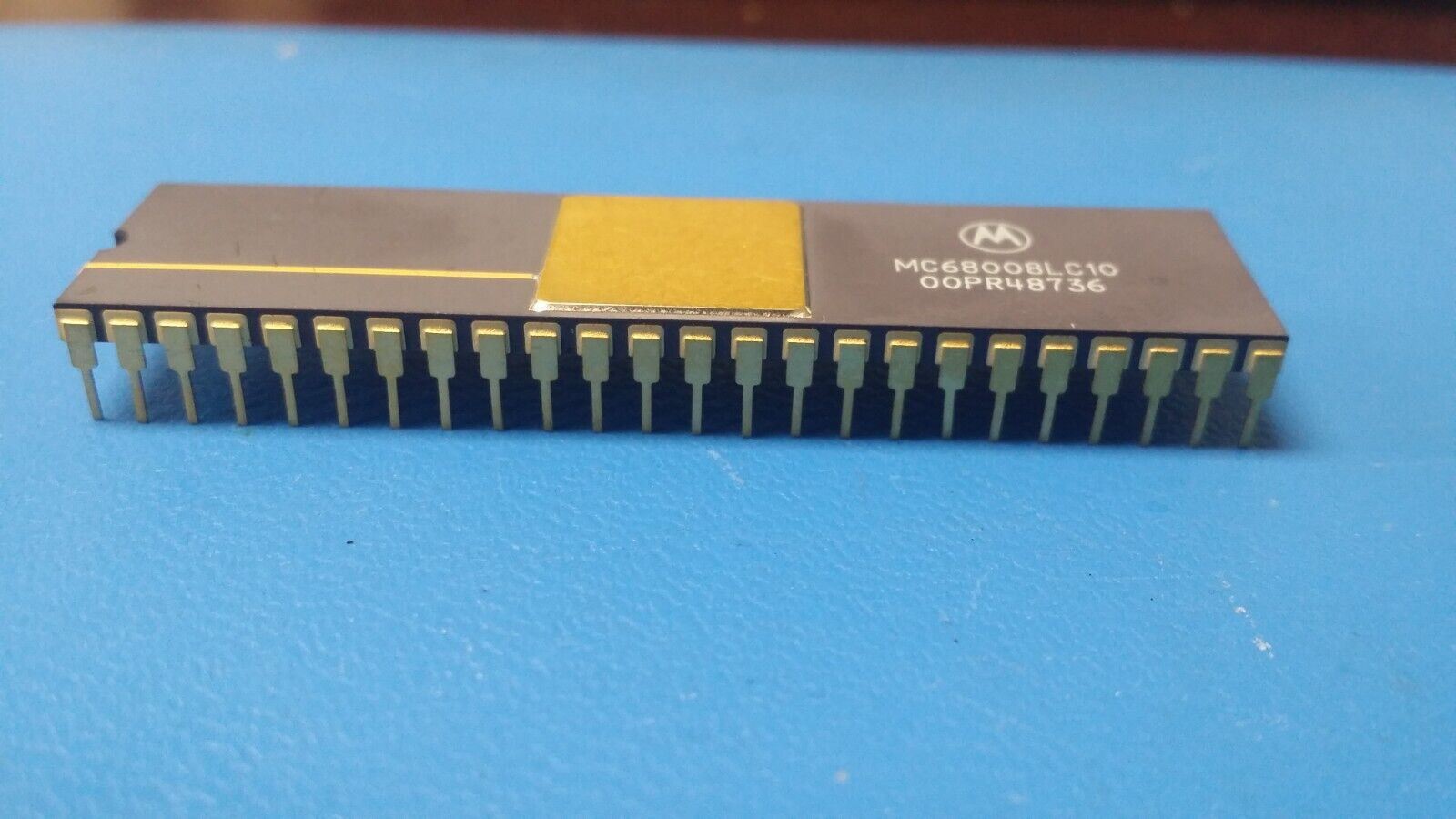

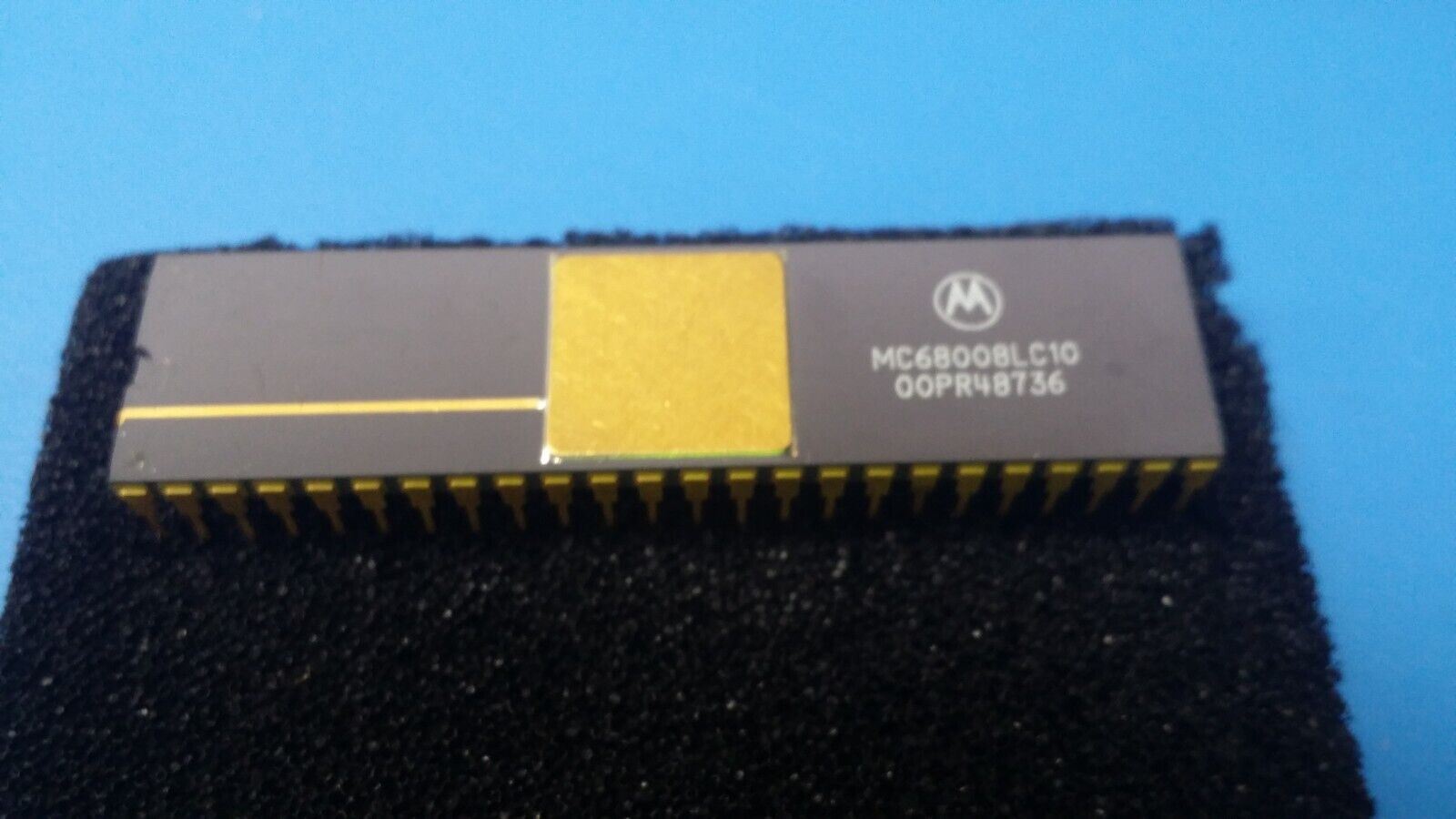

MC68008LC10 MOTOROLA Microprocessor, 16-Bit, 10MHz, NMOS, CDIP48
Tax included.
THIS IS FOR (1 PC) OF MC68008LC10 BY MOTOROLA
Microprocessor, 16-Bit, 10MHz, NMOS, CDIP48
Part #: MC68008LC10
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Motorola Solutions, Inc.
Description: Microprocessor, 16-Bit, 10MHz, NMOS, CDIP48
Mfr Package Description CERAMIC, DIP-48
Status Discontinued
Address Bus Width 20.0
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 10.0 MHz
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-CDIP-T48
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 3.0
Number of Serial I/Os 0.0
Number of Terminals 48
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP48,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 4.31 mm
Speed 10.0 MHz
Sub Category Microprocessors
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 60.96 mm
Width 15.24 mm
