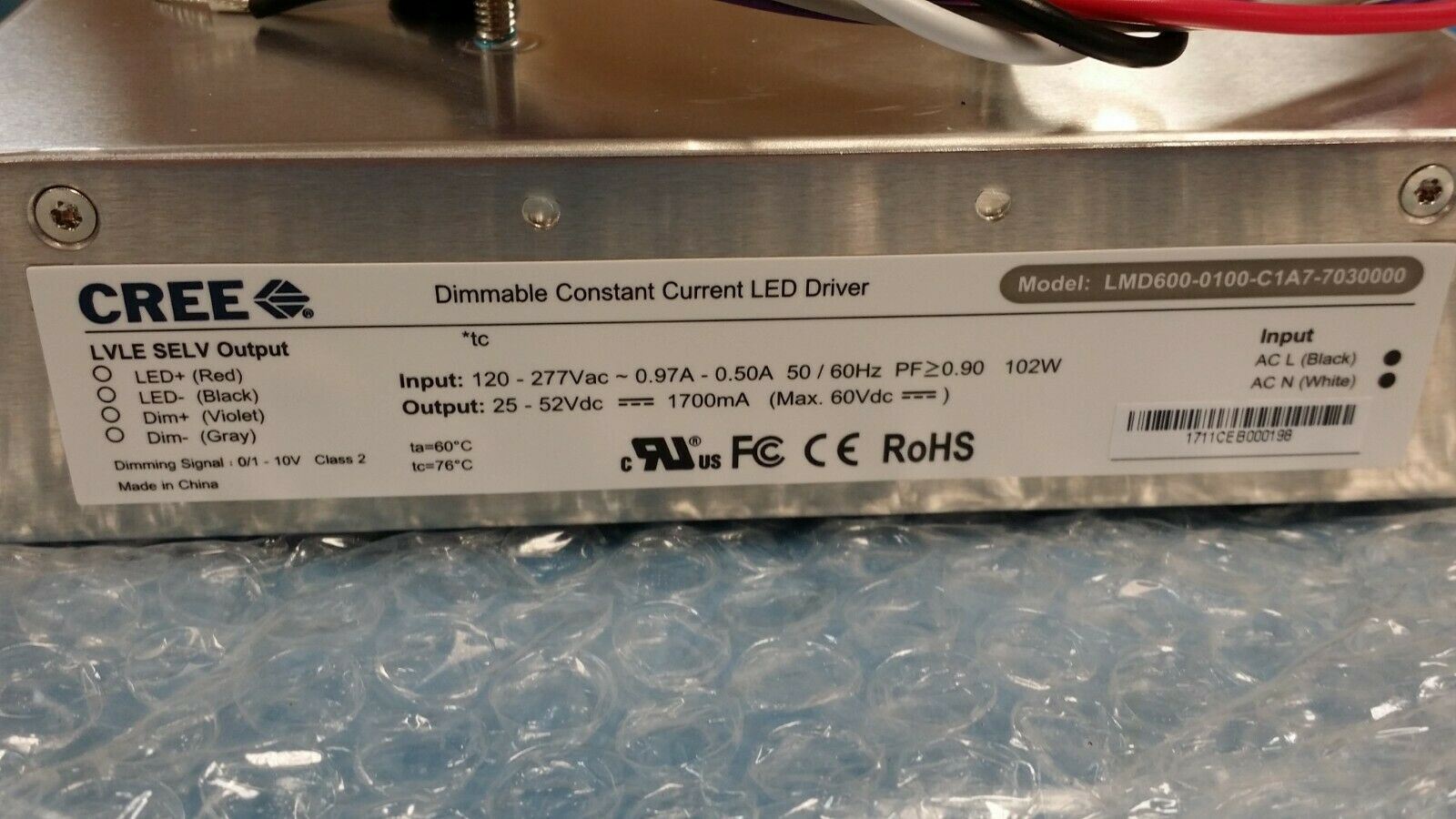

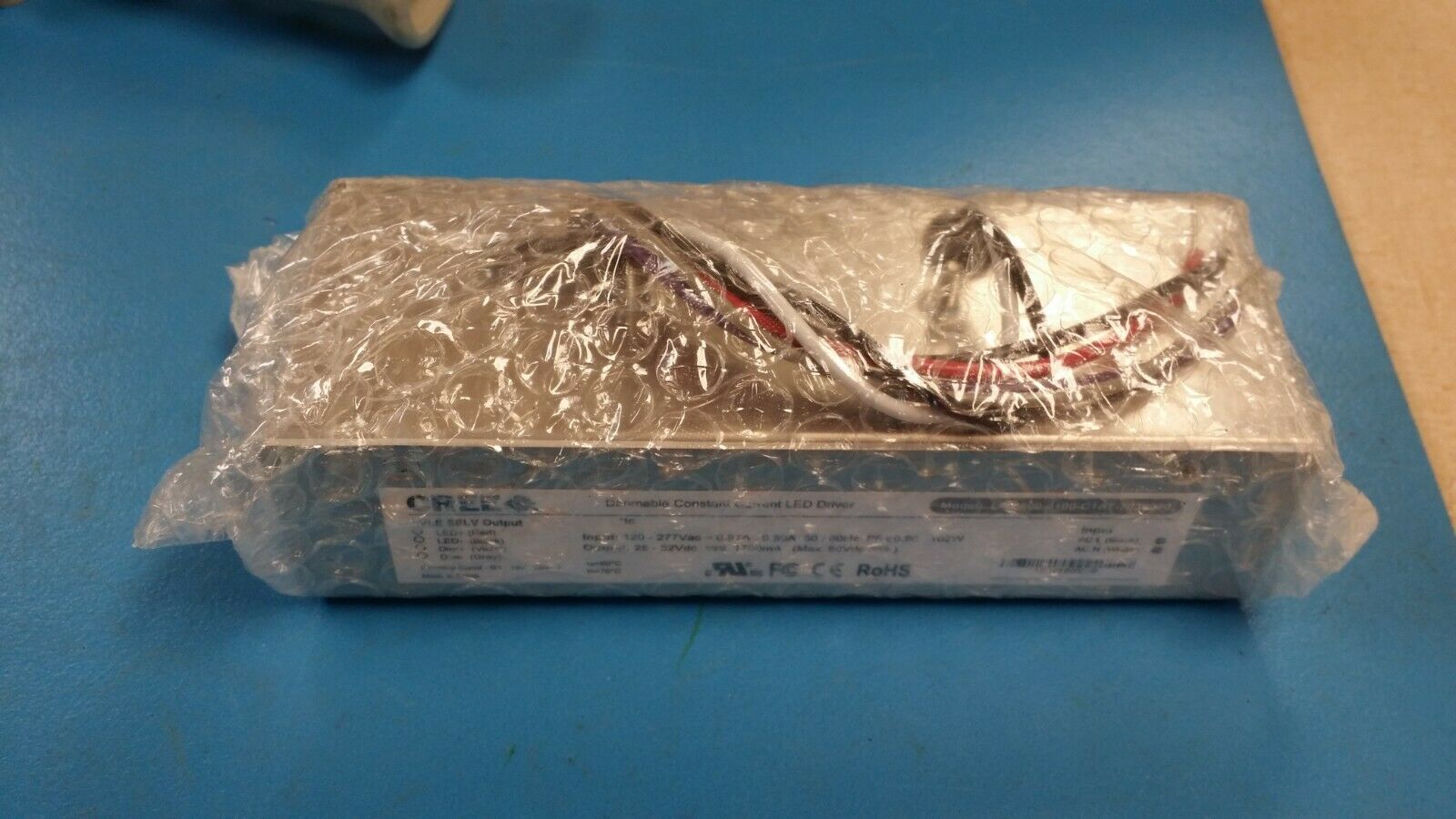

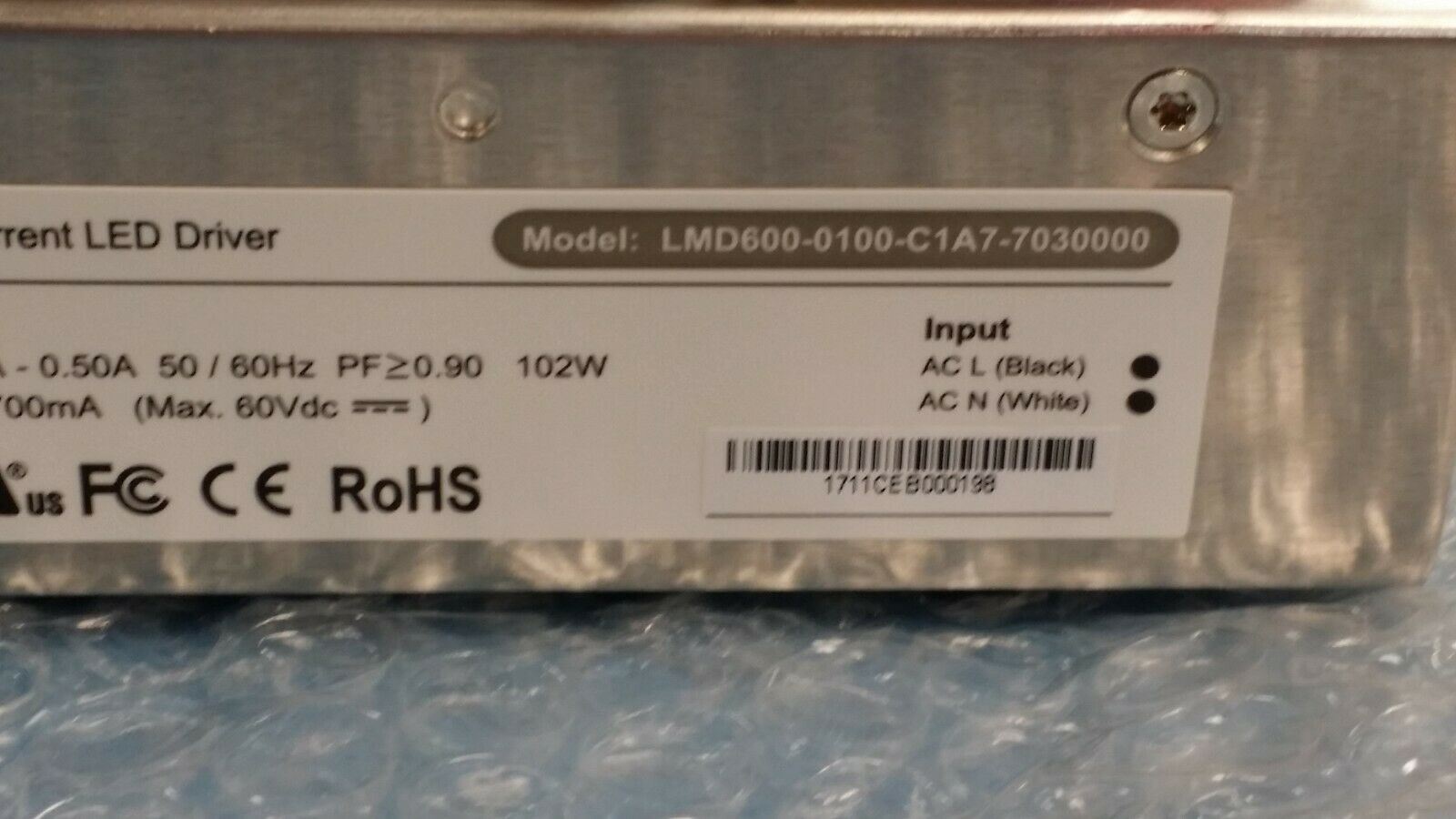

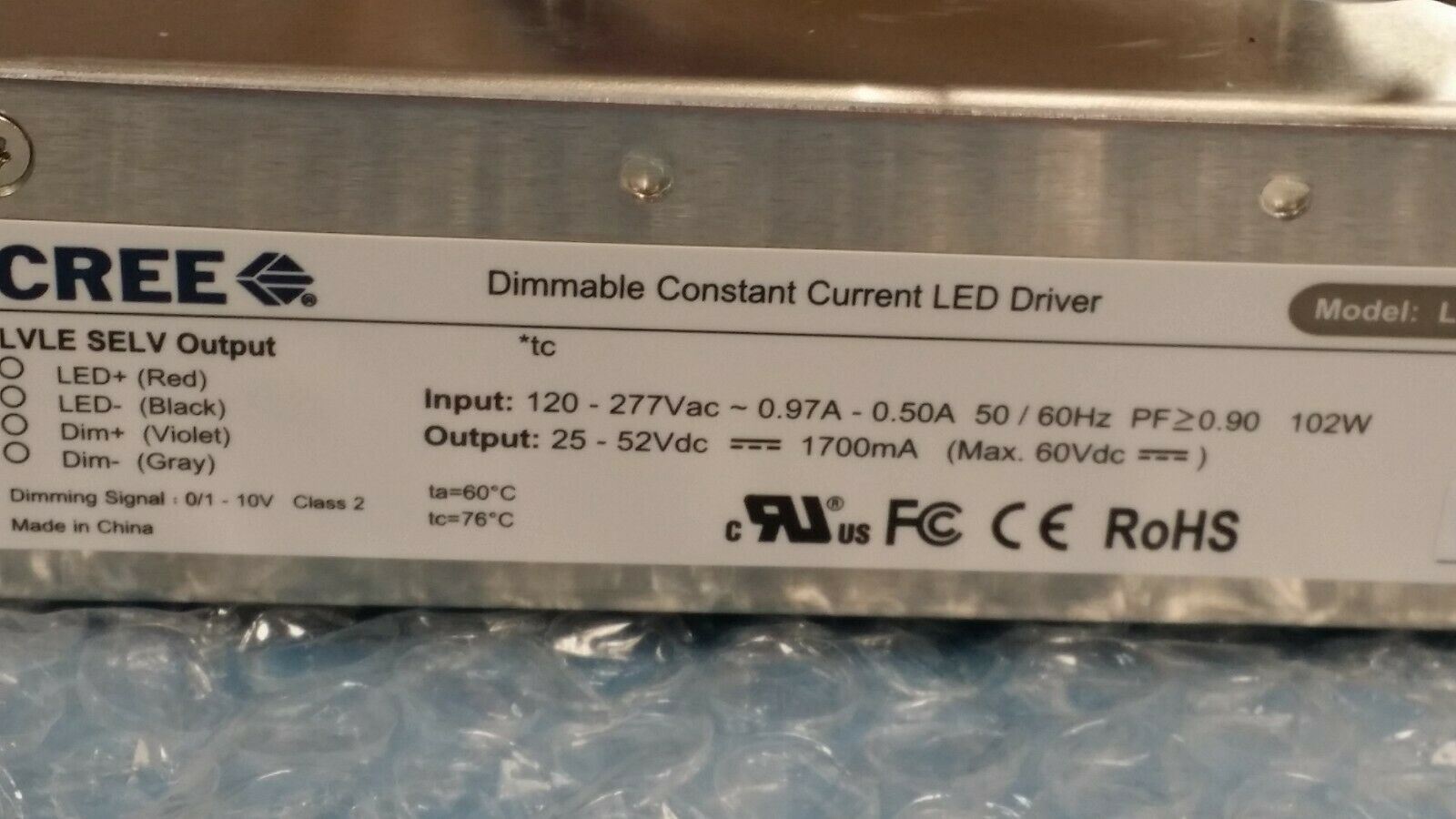

LMD600-0100-C1A7-7030000 CREE LED DRIVER CC AC/DC 25-52V 1.7A
Tax included.
THIS LISTING IS FOR (1 PC) OF LMD600-0100-C1A7-7030000 BY CREE
LED DRIVER CC AC/DC 25-52V 1.7A
Manufacturer Cree Inc.
Series LMD600
Part Status Active
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 25 ~ 52V
Current - Output (Max) 1.7A
Power (Watts) 88W
Dimming Analog
Features -
Ratings IP20, NEMA 410
Operating Temperature 0°C ~ 90°C
Efficiency 87%
Termination Style Wire Leads
Size / Dimension 6.30" L x 2.48" W x 1.84" H (160.0mm x 63.0mm x 46.6mm)
Approval Agency CE, CQC, cULus
Mounting Type Chassis Mount
Weight 0.97 lb (439.98 g)
