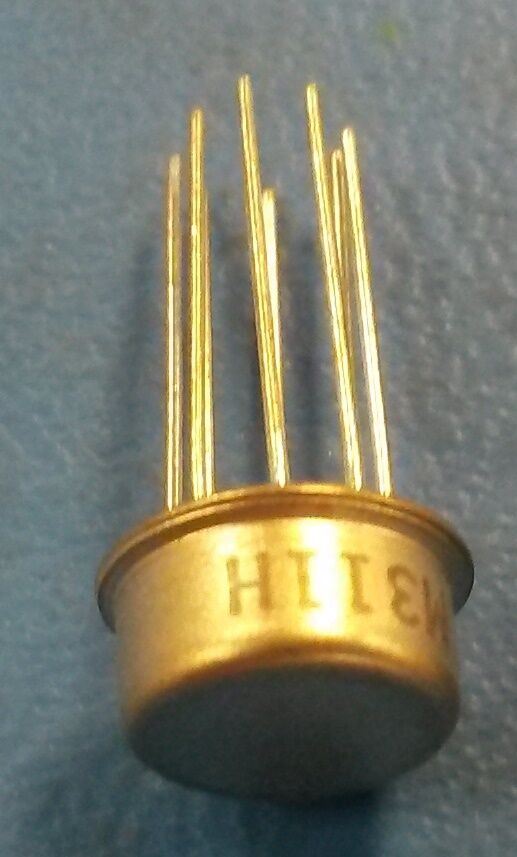

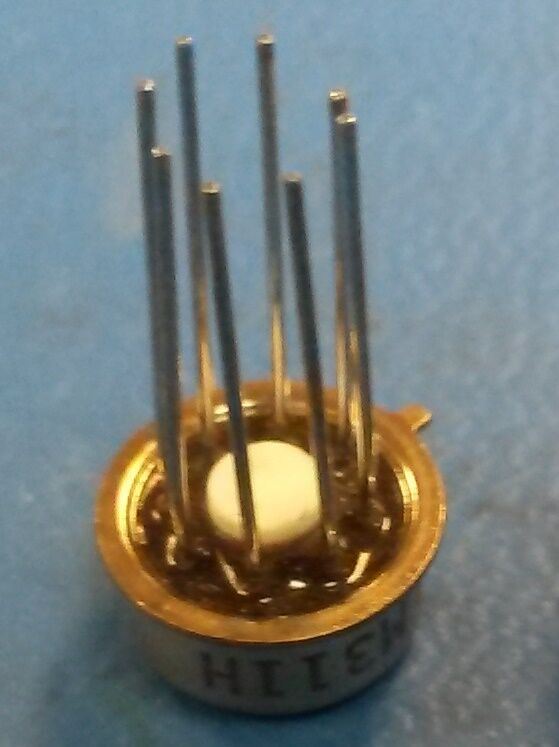

LM311H, NSC, Voltage Comparator Single, ±18V/36V 8-Pin TO-99
Tax included.
This listing is for IC.
| Number of Elements | 1 |
| Output Type | Open Collector |
| Technology | Bipolar |
| Input Offset Voltage | 7.5mV |
| Response Time | 200ns |
| Single Supply Voltage (Typ) | 9/12/15/18/24/28V |
| Dual Supply Voltage (Typ) | ±3/±5/±9/±12/±15V |
| Supply Current | 7.5mA |
| Power Supply Requirement | Single/Dual |
| Voltage Gain in dB | 106.02dB |
| Single Supply Voltage (Min) | 5V |
| Single Supply Voltage (Max) | 36V |
| Dual Supply Voltage (Min) | ±2.5V |
| Dual Supply Voltage (Max) | ±18V |
| Power Dissipation | 500mW |
| Operating Temp Range | 0C to 70C |
| Operating Temperature Classification | Commercial |
| Mounting | Through Hole |
| Pin Count | 8 |
| Package Type | TO-99 |
