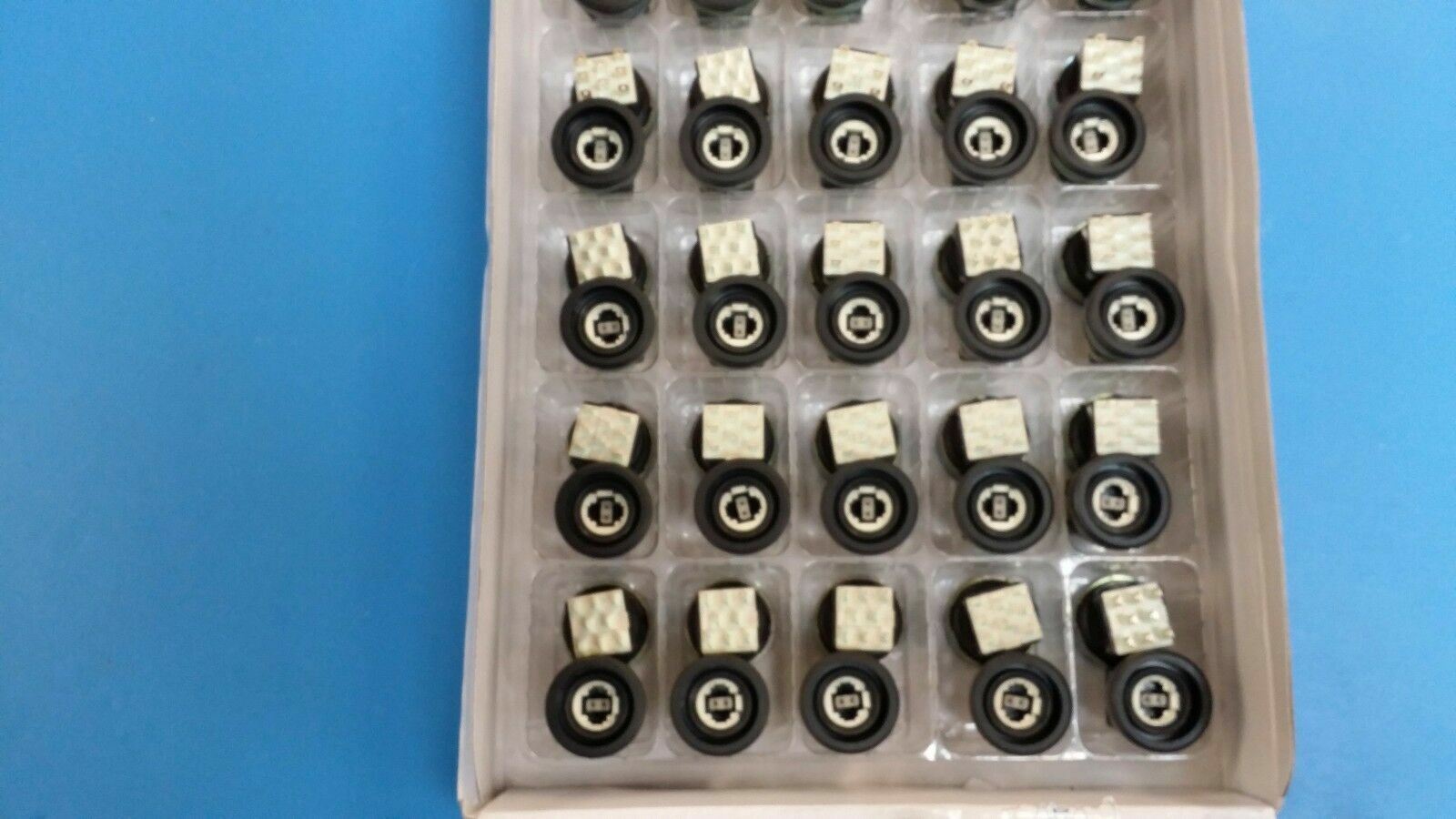

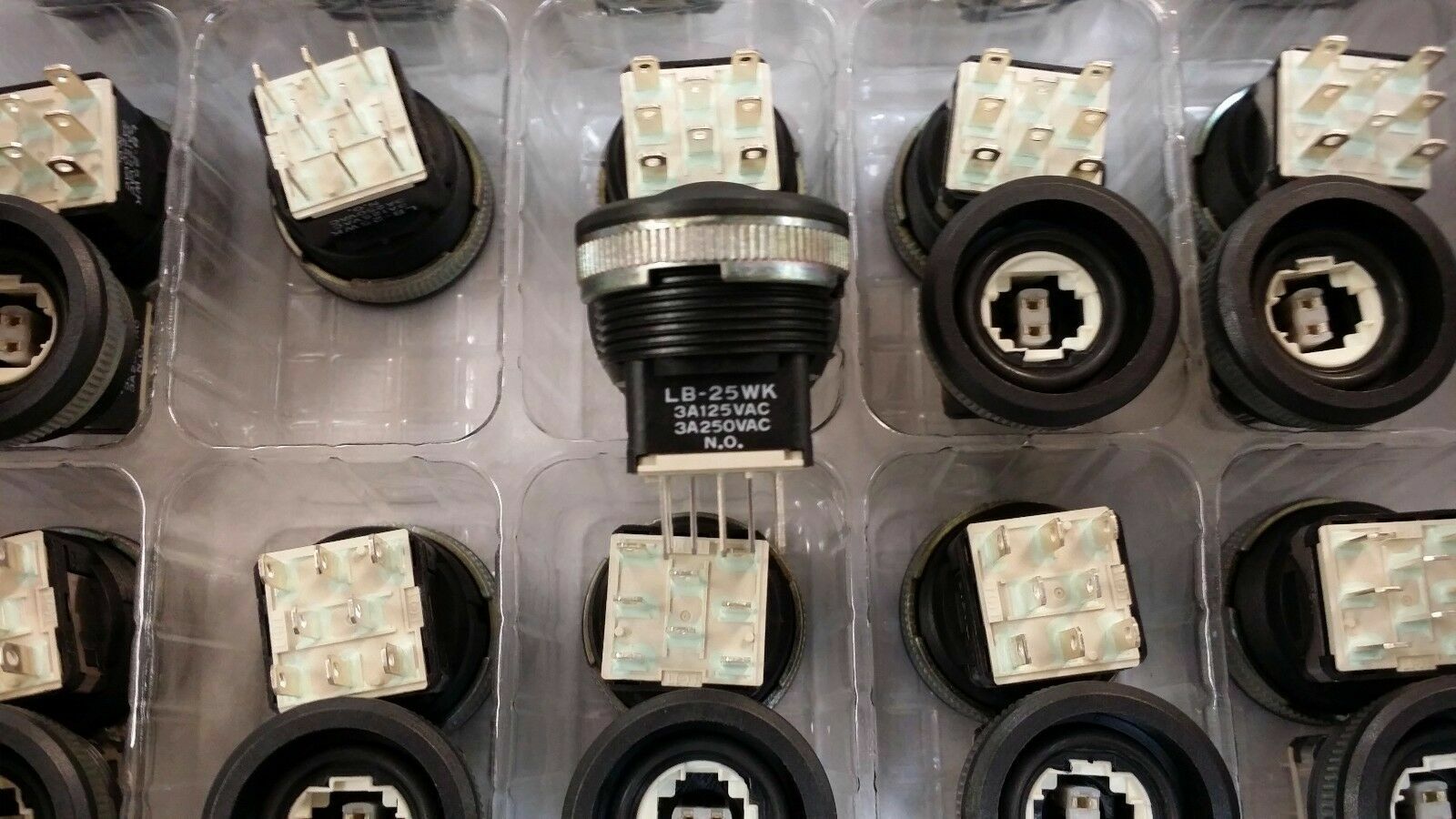

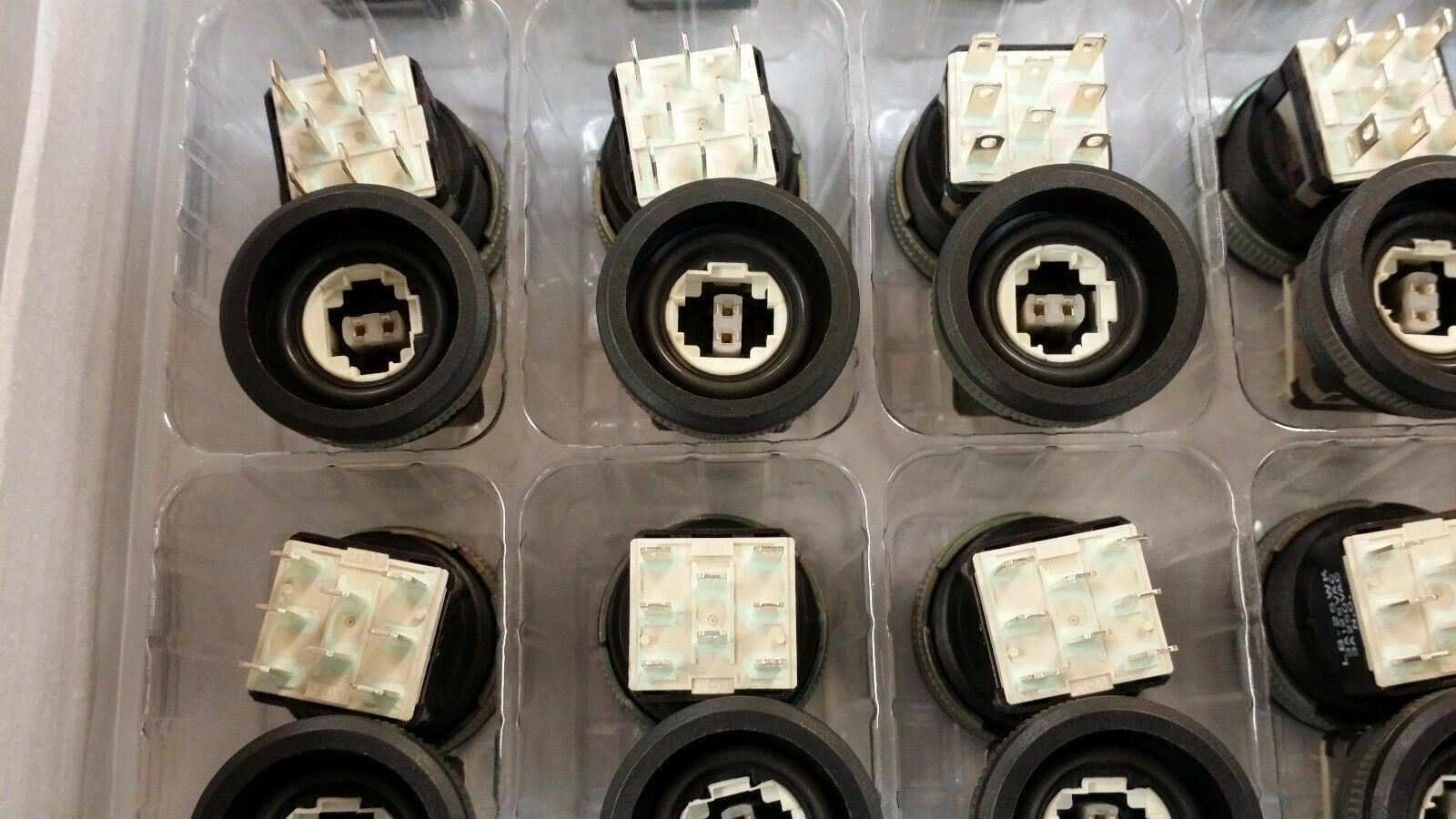

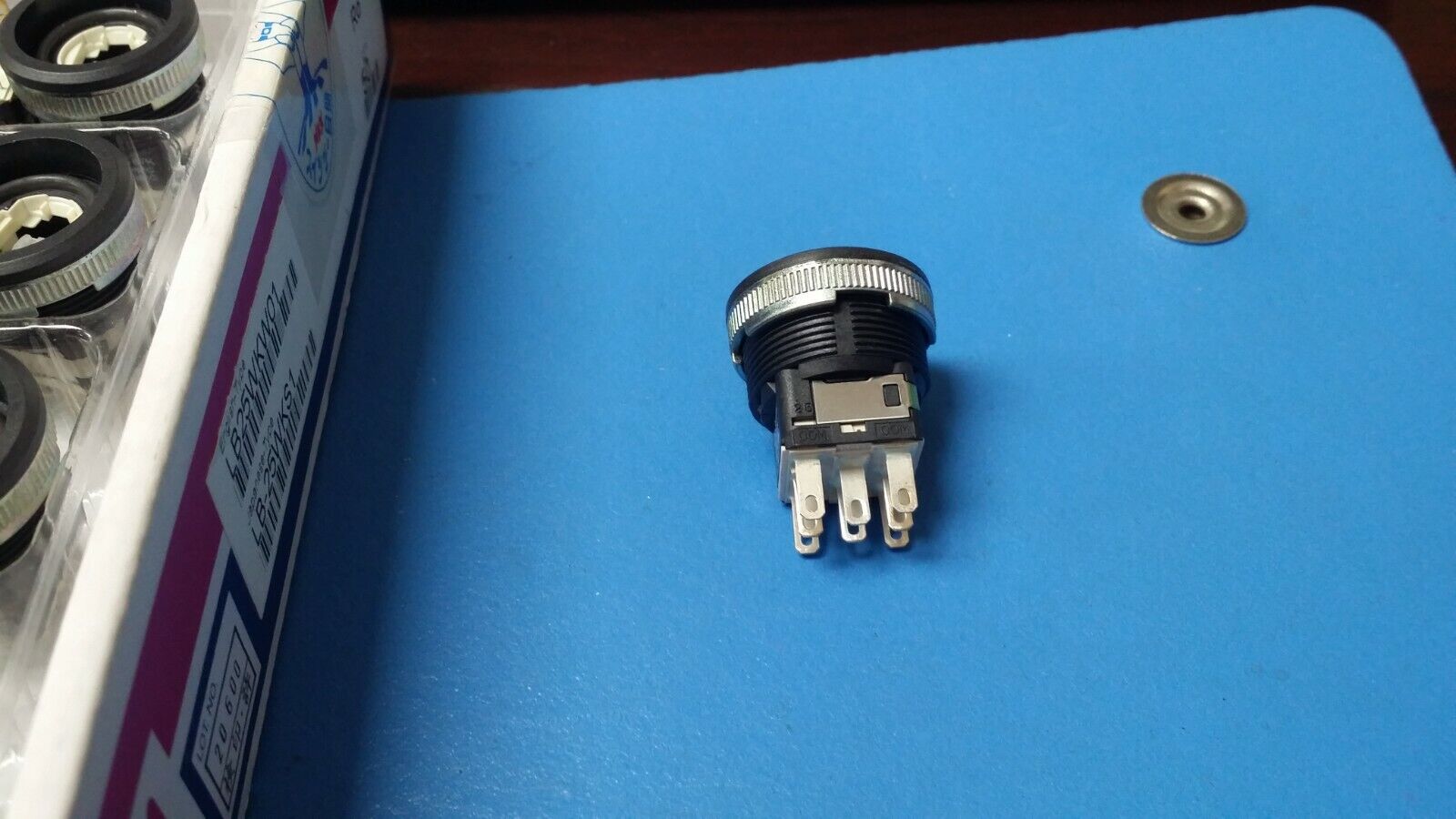

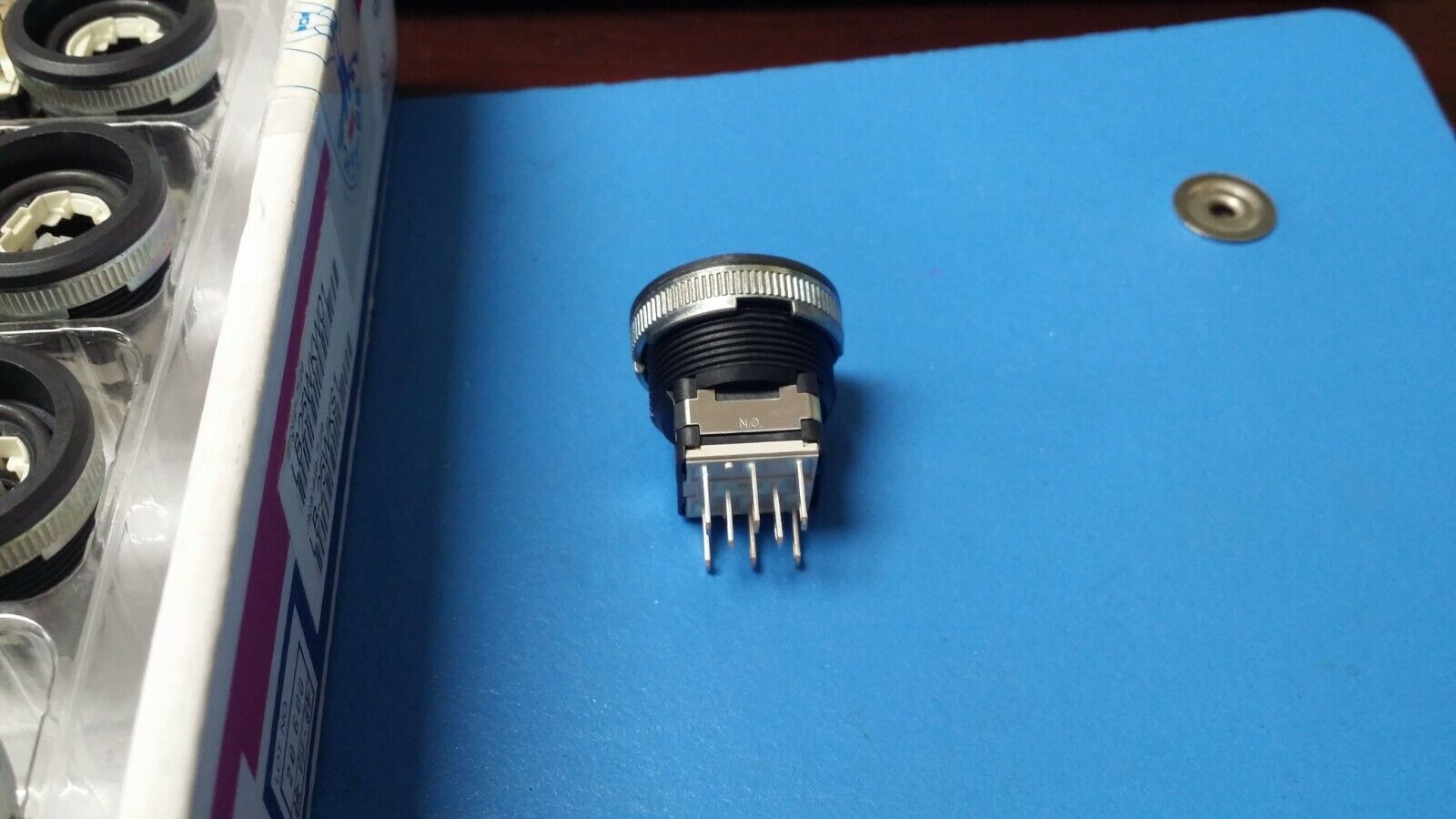

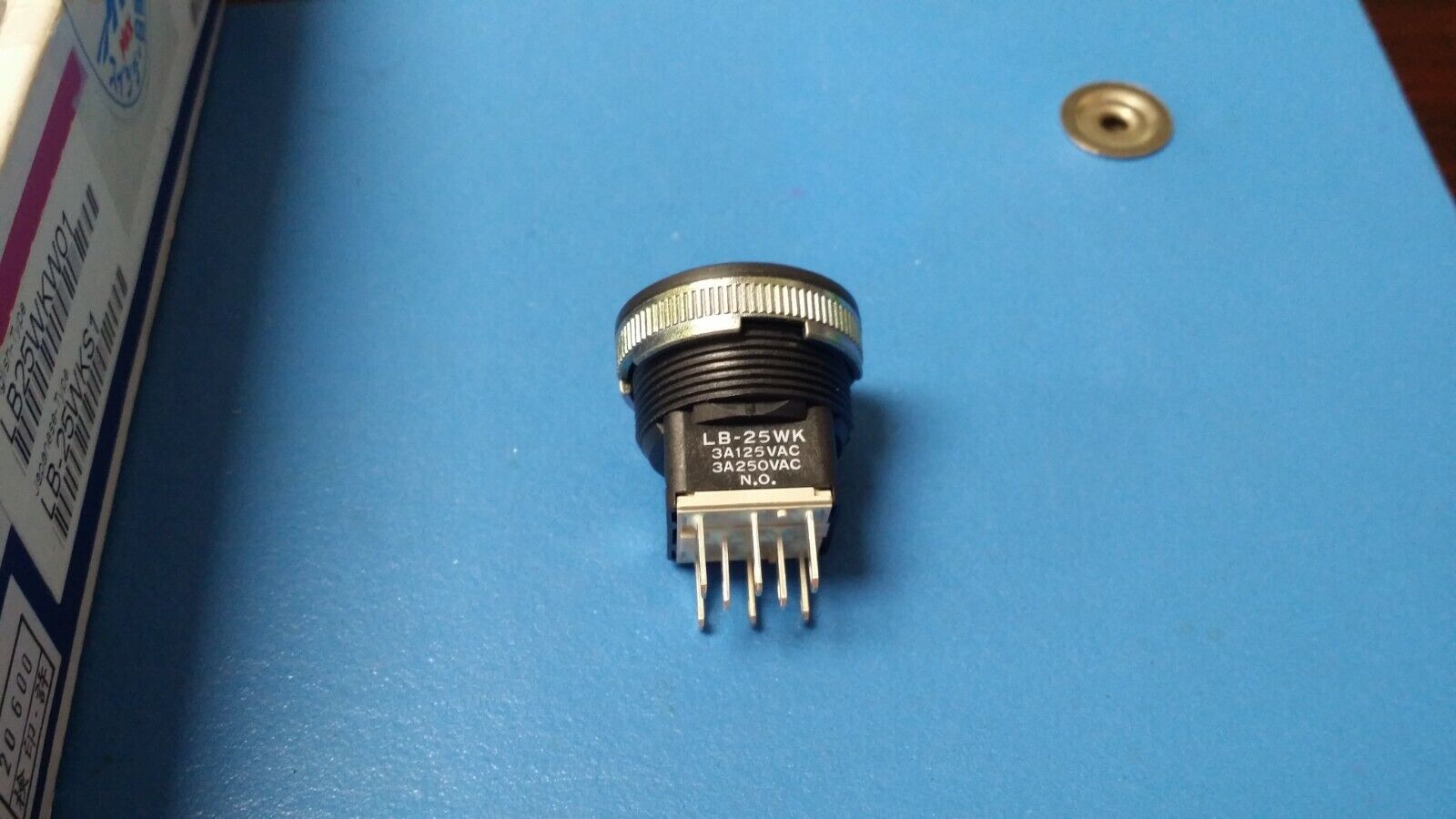

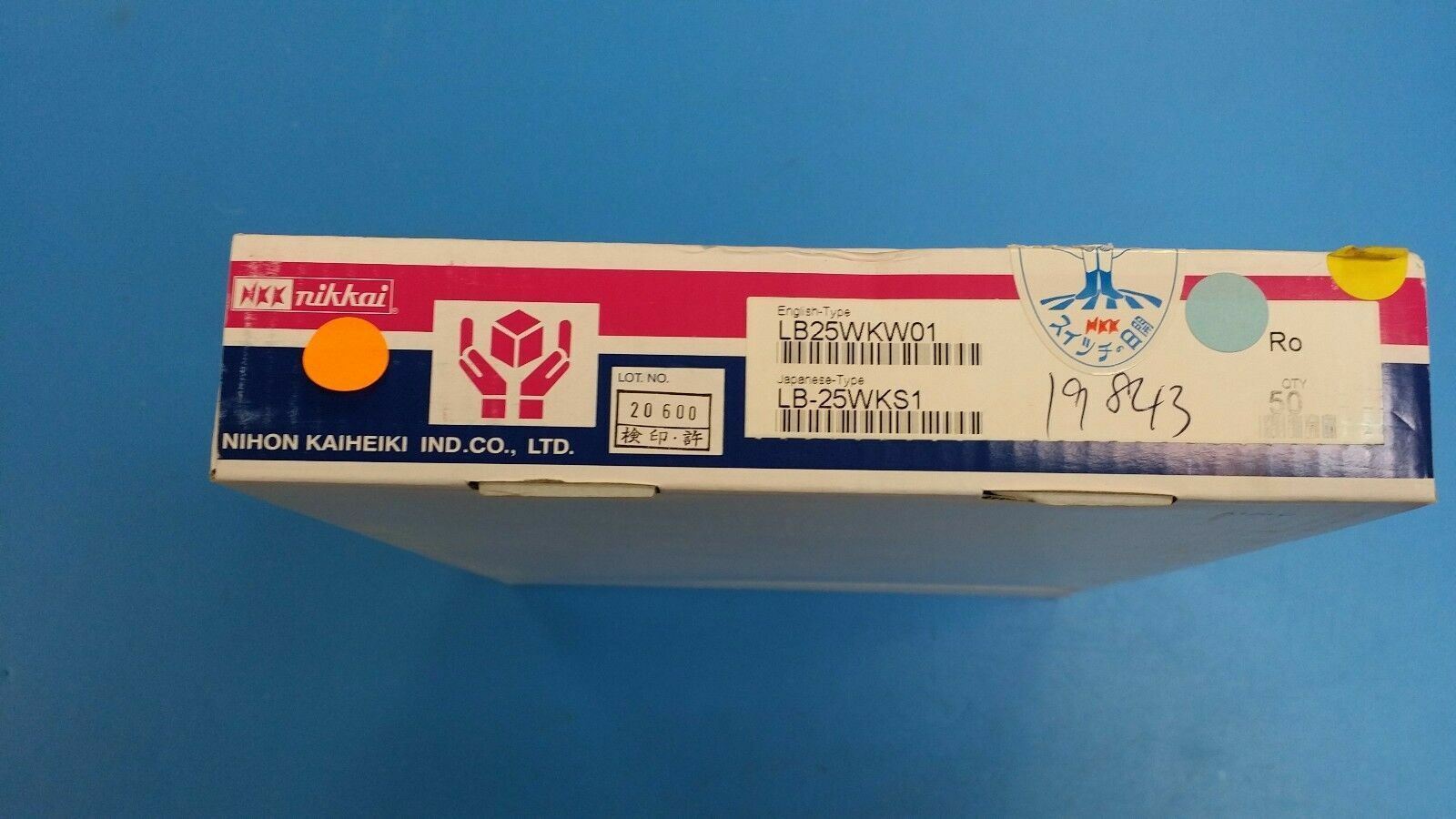

LB25WKW01, LB-25WKS1, NKK, Pushbutton Switch, DPDT, 3A, 125V ROHS
Tax included.
This listing is for 1 switch.
| Type | Standard |
|---|---|
| Circuit | DPDT |
| Switch Function | On-Mom |
| Current Rating | 3A (AC/DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Actuator Type | Plunger for Cap |
| Color - Actuator/Cap | - |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Mounting Type | Panel Mount, Front |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Circular - 22.00mm Dia |
| Operating Temperature | -25°C ~ 70°C |
| Mechanical Life | 1,000,000 Cycles |
| Electrical Life | 100,000 Cycles |
