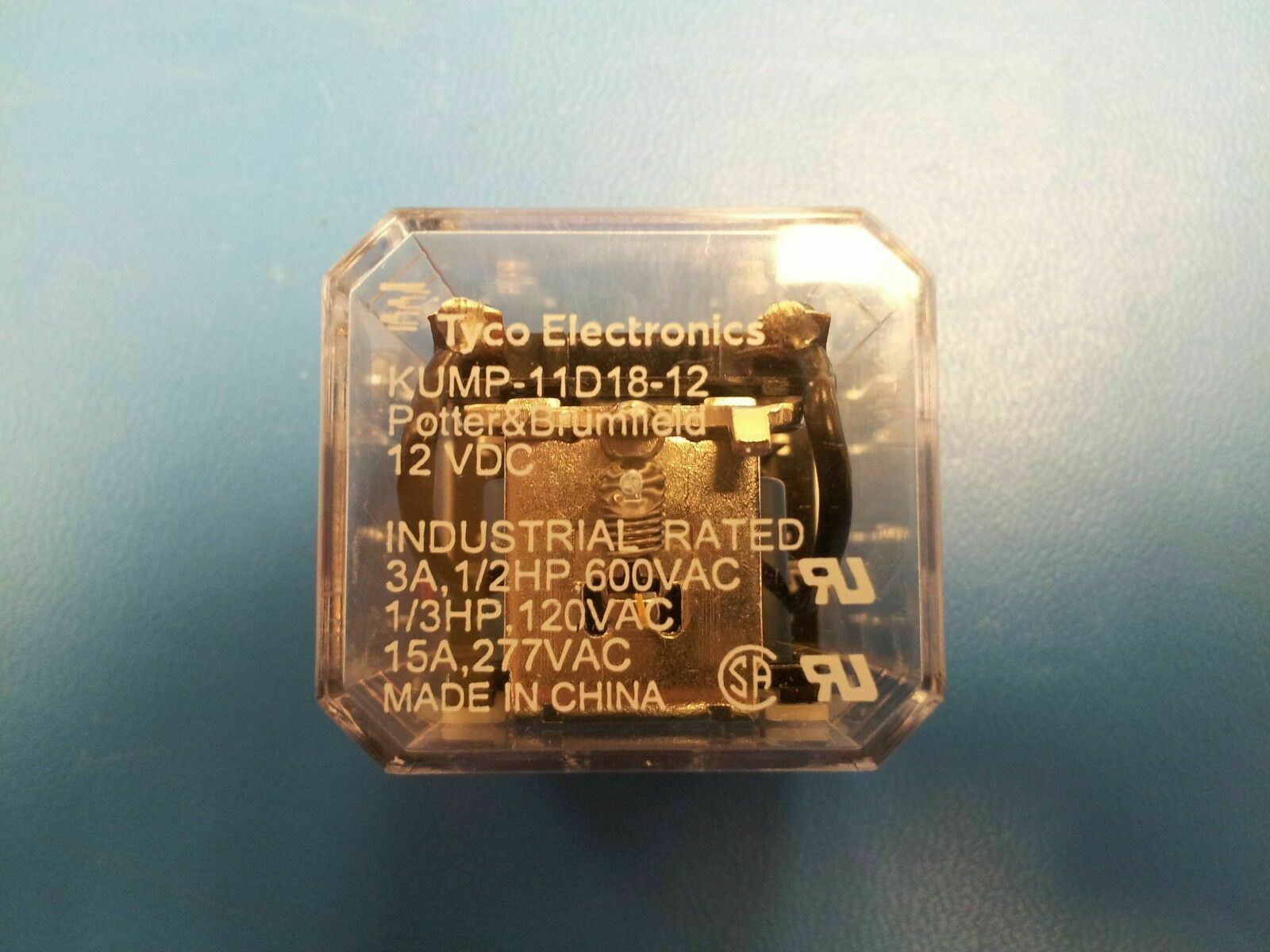

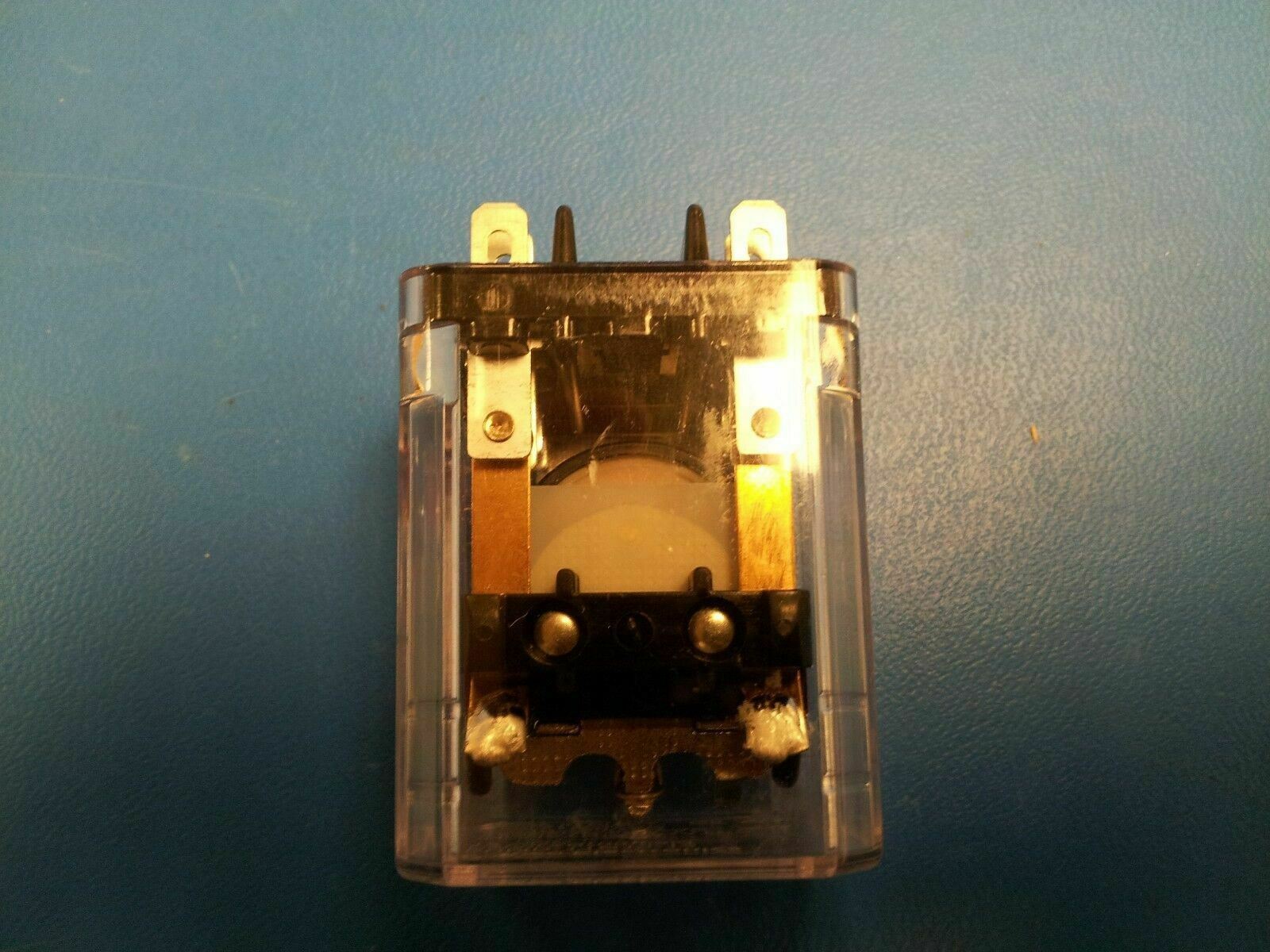

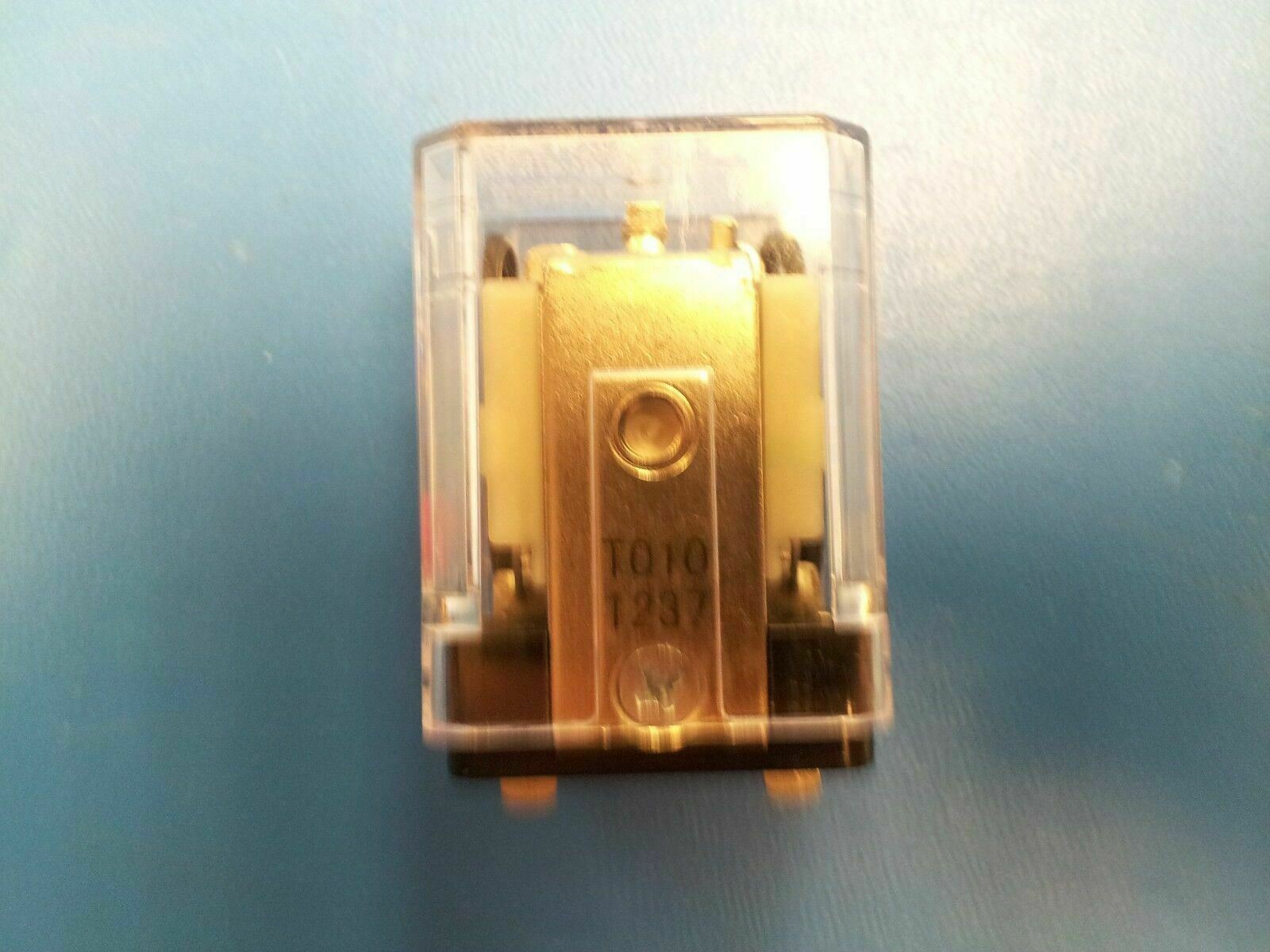

(1pc) KUMP-11D18-12, General Purpose Relays DP PLN QC/SLDR 12VDC
(1pc) KUMP-11D18-12, General Purpose Relays DP PLN QC/SLDR 12VDC
(1pc) KUMP-11D18-12, General Purpose Relays DP PLN QC/SLDR 12VDC
(1pc) KUMP-11D18-12, General Purpose Relays DP PLN QC/SLDR 12VDC

(1pc) KUMP-11D18-12, General Purpose Relays DP PLN QC/SLDR 12VDC

Tax included.
Only 186 left!
This listing is for 1 relay.

Brand: TE Connectivity / P&B
Product: Power Relays
Type: Cube Style

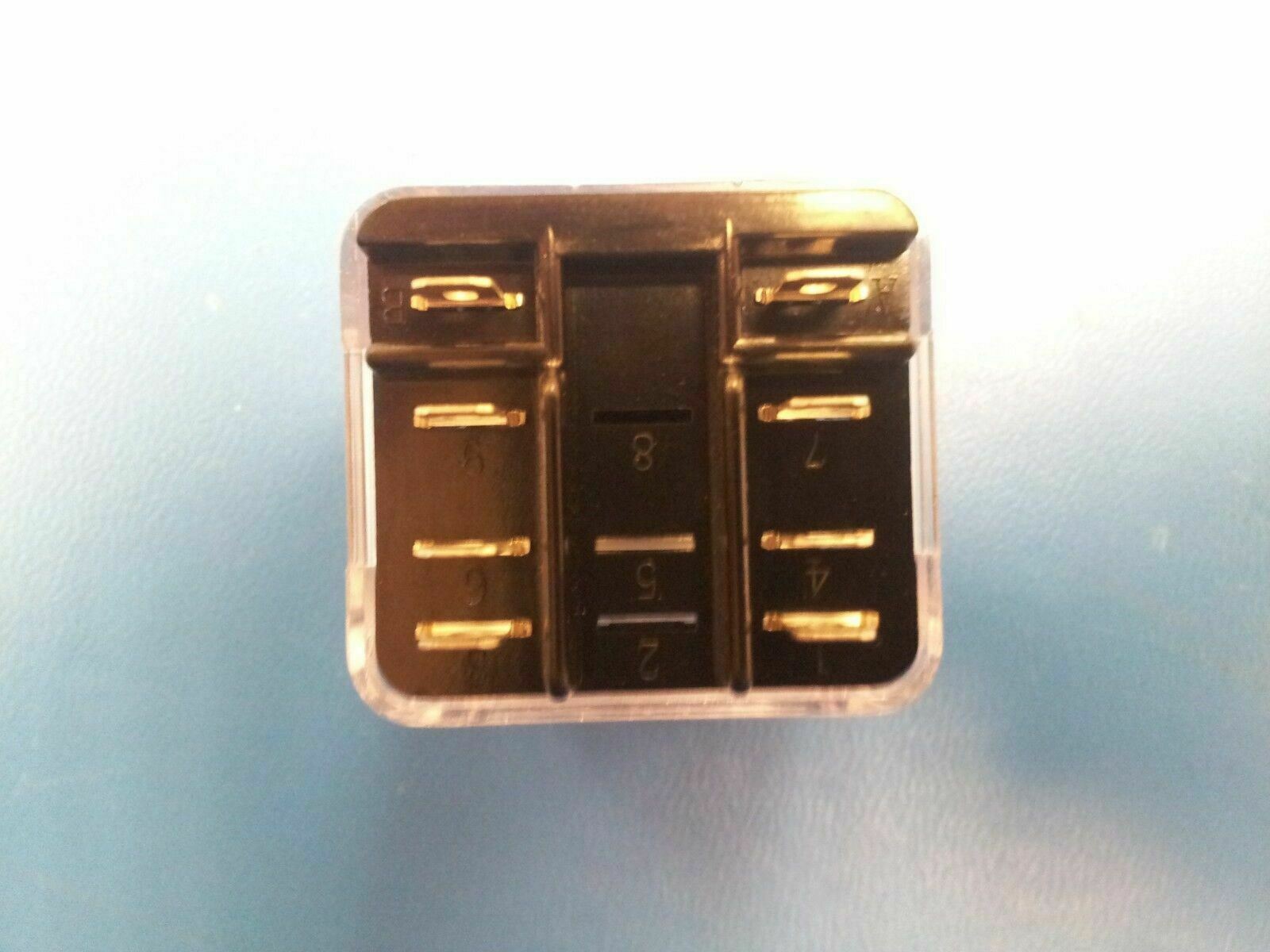

Termination Style: Quick Connect Terminal
Mounting Style: Socket
Mounting Type: DIN Rail
Contact Form: DPDT (2 Form C)
Contact Current Rating: 15 A
Switching Voltage: 277 VAC
Coil Termination: Quick Connect Terminal
Coil Type: Non-Latching
Coil Voltage: 12 VDC
Coil Resistance: 120 Ohms
Coil Current: 100 mA
Contact Material: Silver Cadmium Oxide
Contact Termination: Quick Connect
Height: 48.4 mm
Length: 38.9 mm
Maximum Switching Current: 15 A
Power Consumption: 1.2 W
