J134D-12PM M39016/42-043M Electromechanical Relay DPDT 1ADC/0.25AAC 12VDC 800Ohm
Tax included.

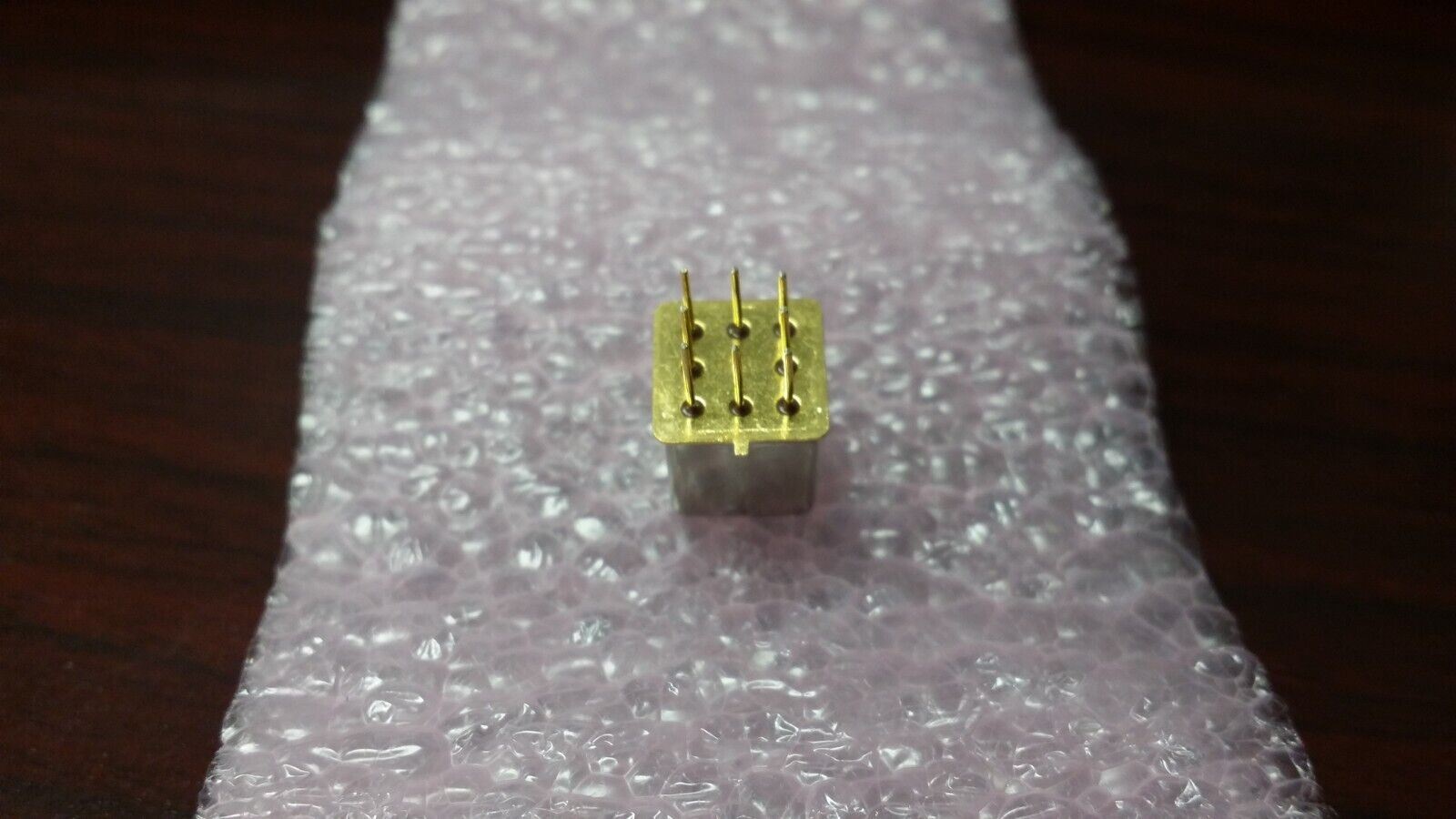

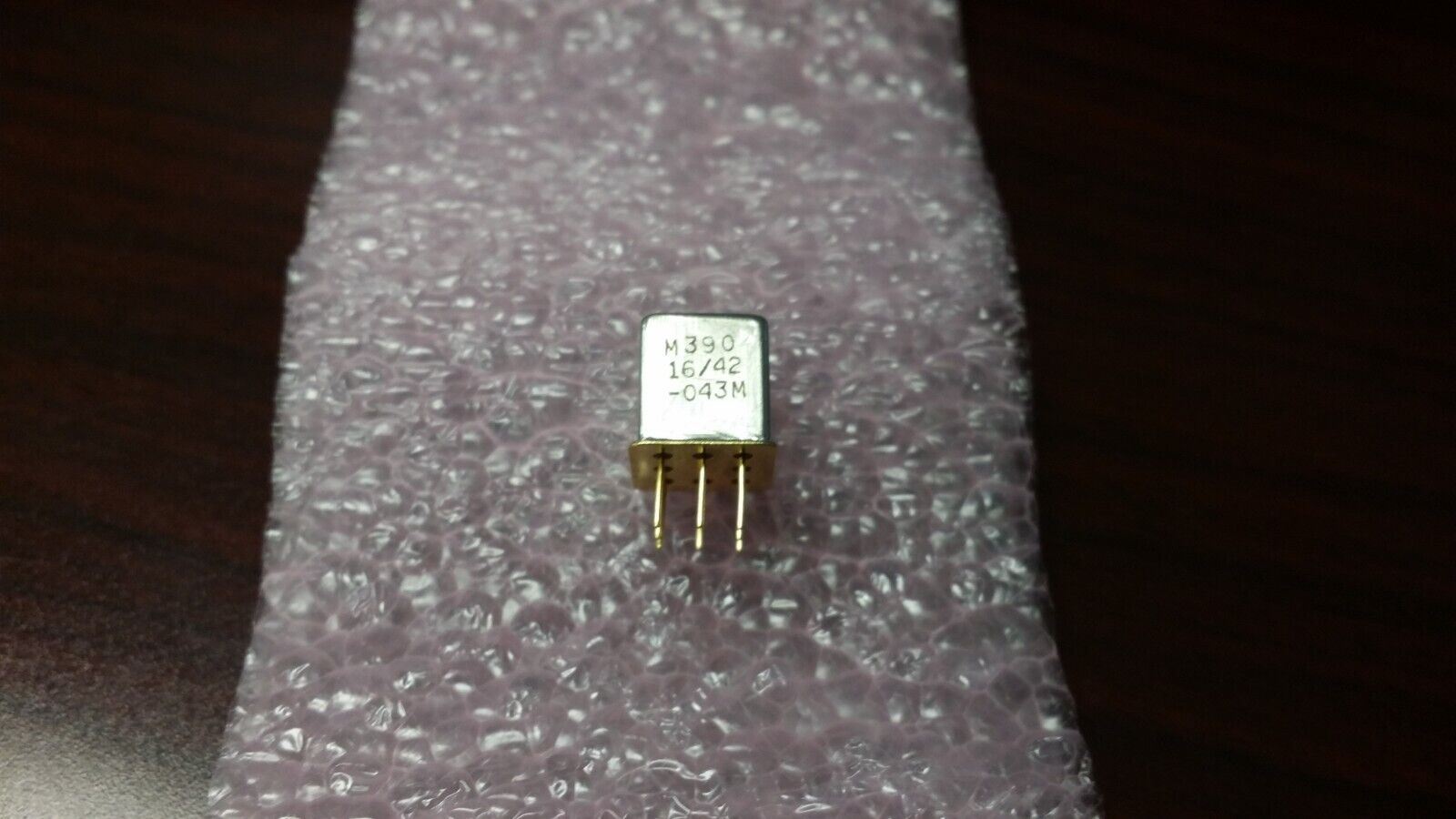

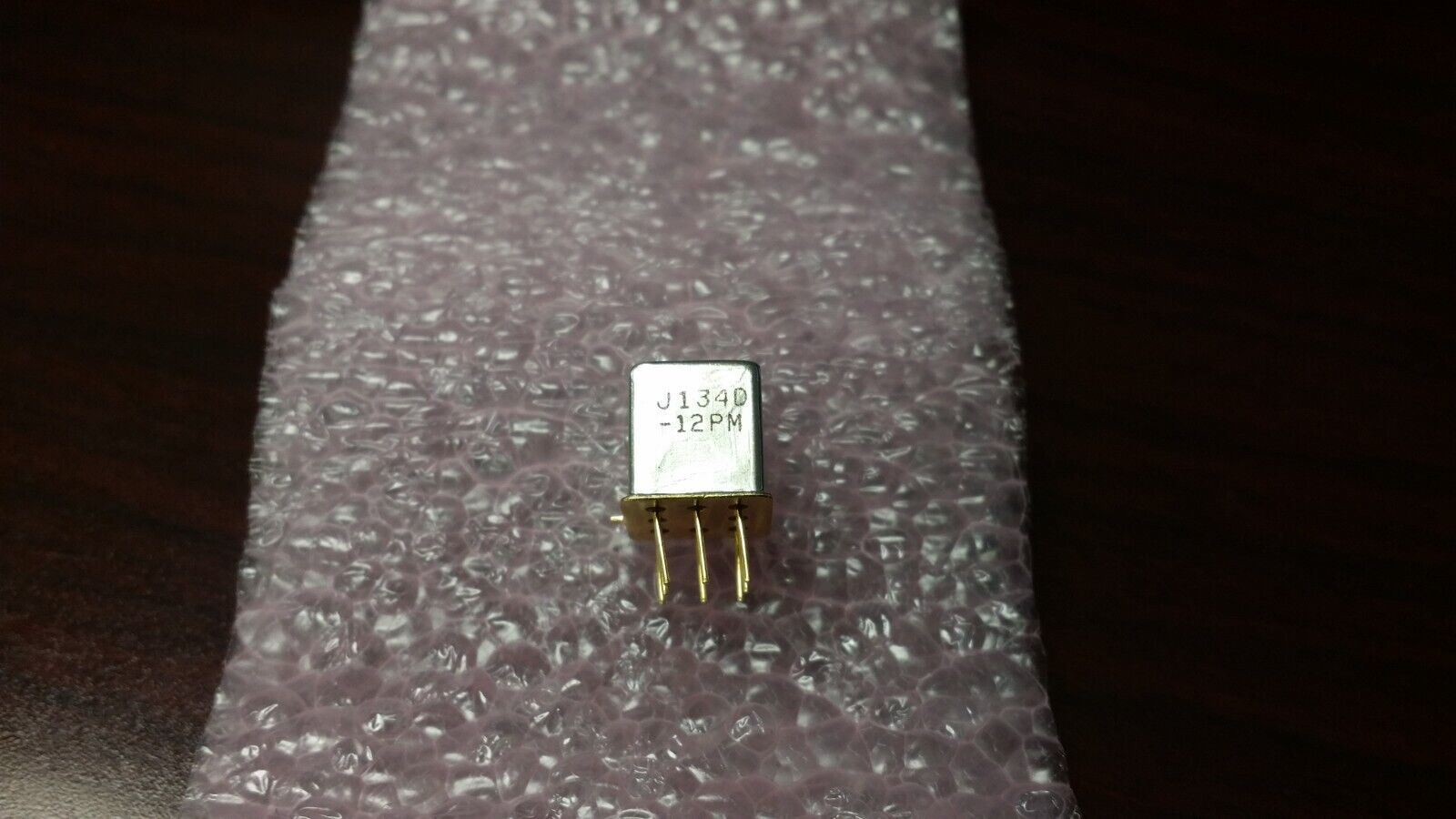

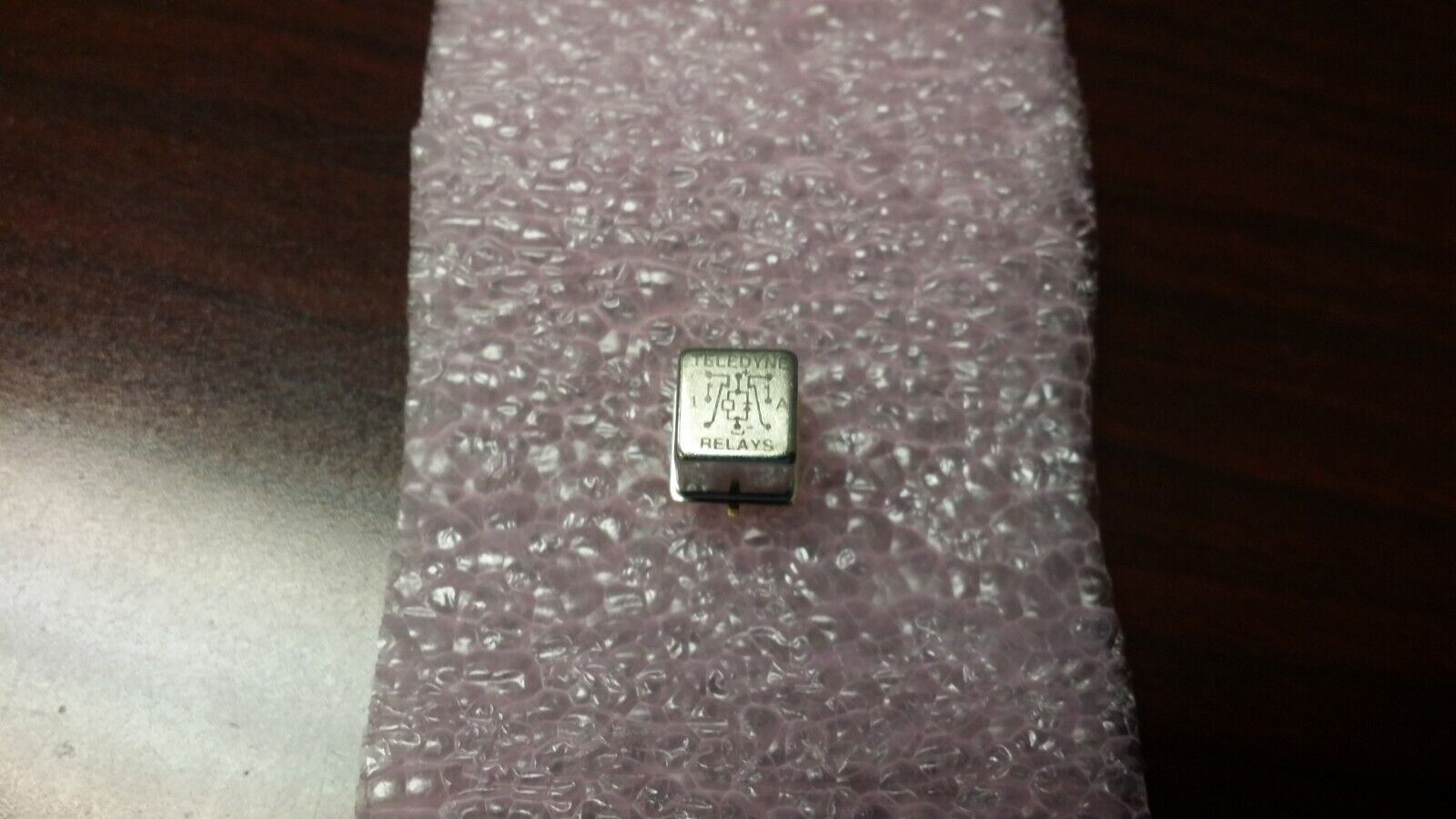

THIS IS FOR J134D-12PM OF M39016/42-043M BY TELEDYNE RELAYS
Electromechanical Relay DPDT 1ADC/0.25AAC 12VDC 800Ohm
REACH Compliant Yes
Status Active
Relay Type RF RELAY
Body Breadth 9.53 mm
Body Height 9.53 mm
Body Length or Diameter 9.53 mm
Coil Current(DC)-Max 0.015 A
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 9.0 V
Coil Release Voltage(DC) 0.41 V
Coil Resistance 800.0 ohm
Coil Voltage-Nom 12.0 V
Coil Voltage(DC)-Max 12.0 V
Contact AC Max Rating R Load .25A@115VAC
Contact Current(AC)-Max 0.25 A
Contact Current(DC)-Max 1.0 A
Contact DC Max Rating R Load 1A@28VDC
Contact/Output Supply Type AC/DC
Contact Resistance 100.0 mohm
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Electrical Life 100000.0 Cycle(s)
Input Switching Control Type Random
Insulation Resistance 1.0E10 ohm
Mounting Feature THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals 8
Operate Time 5.5 ms
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 125.0 Cel
PCB Hole Count 8.0
Physical Dimension 9.53mm X 9.53mm X 9.53mm
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Release Time 9.0 ms
Sealing HERMETICALLY SEALED
Switching Time 5.5 ms
Terminal Length 0.0047 Meter
Termination Type SOLDER
Weight 4.3 g
Additional Feature WITH INTERNAL DIODE
