IMX7_96_BOARD Novtech, iMX7-96 Meerkat96 Development Board
Tax included.
THIS IS FOR (1) FACTORY BOX OF IMX7_96_BOARD BY Novtech,

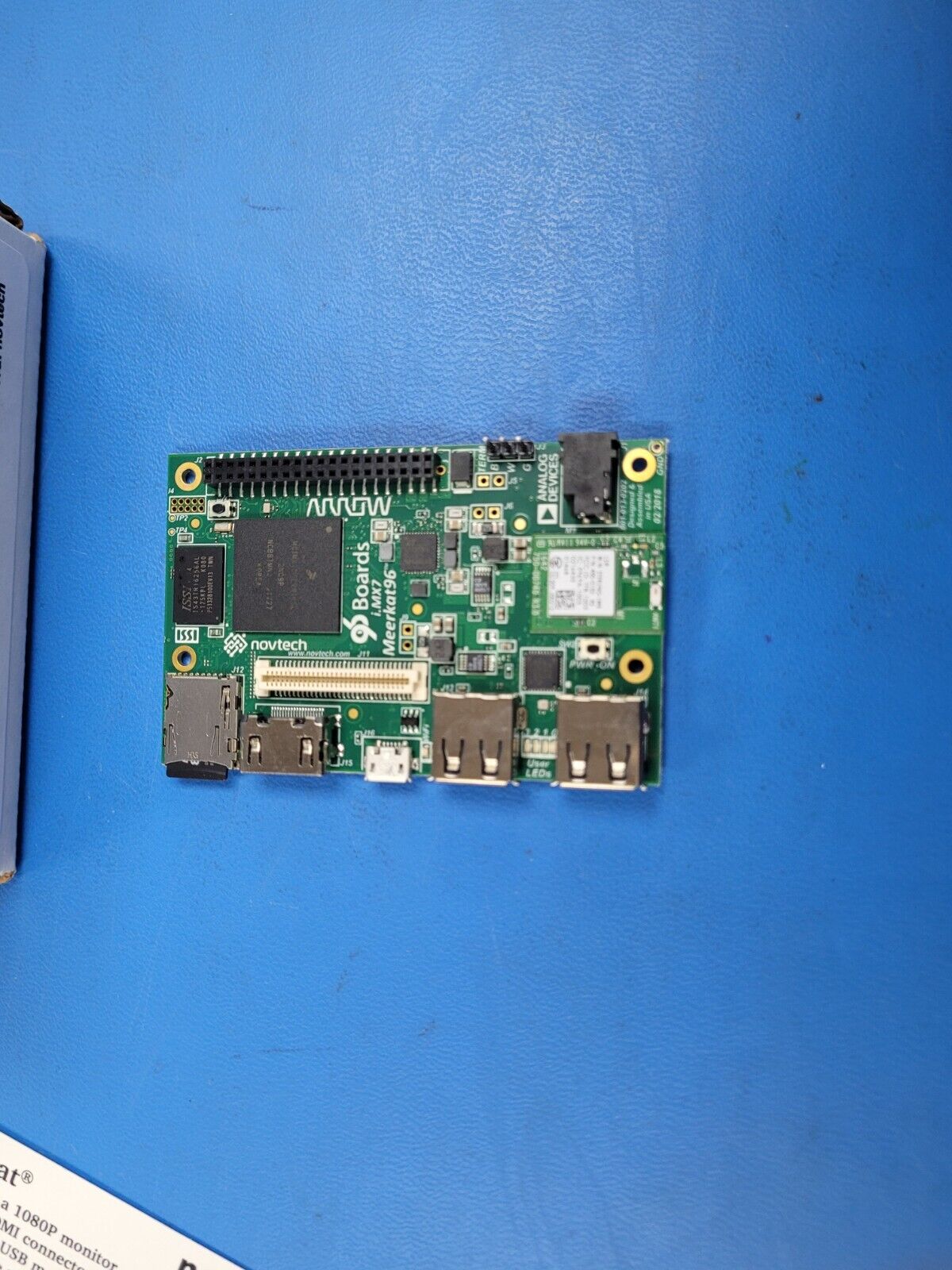

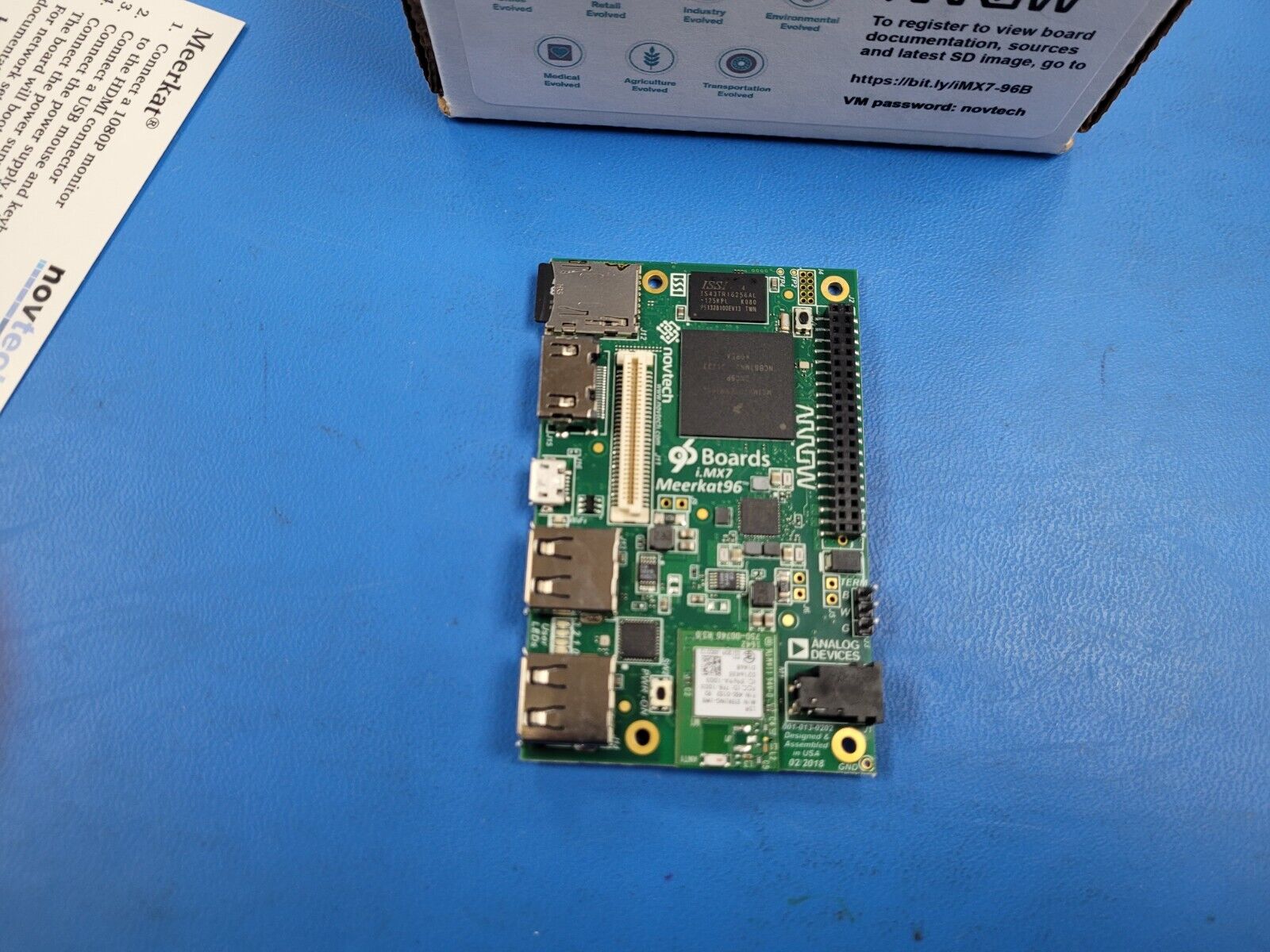

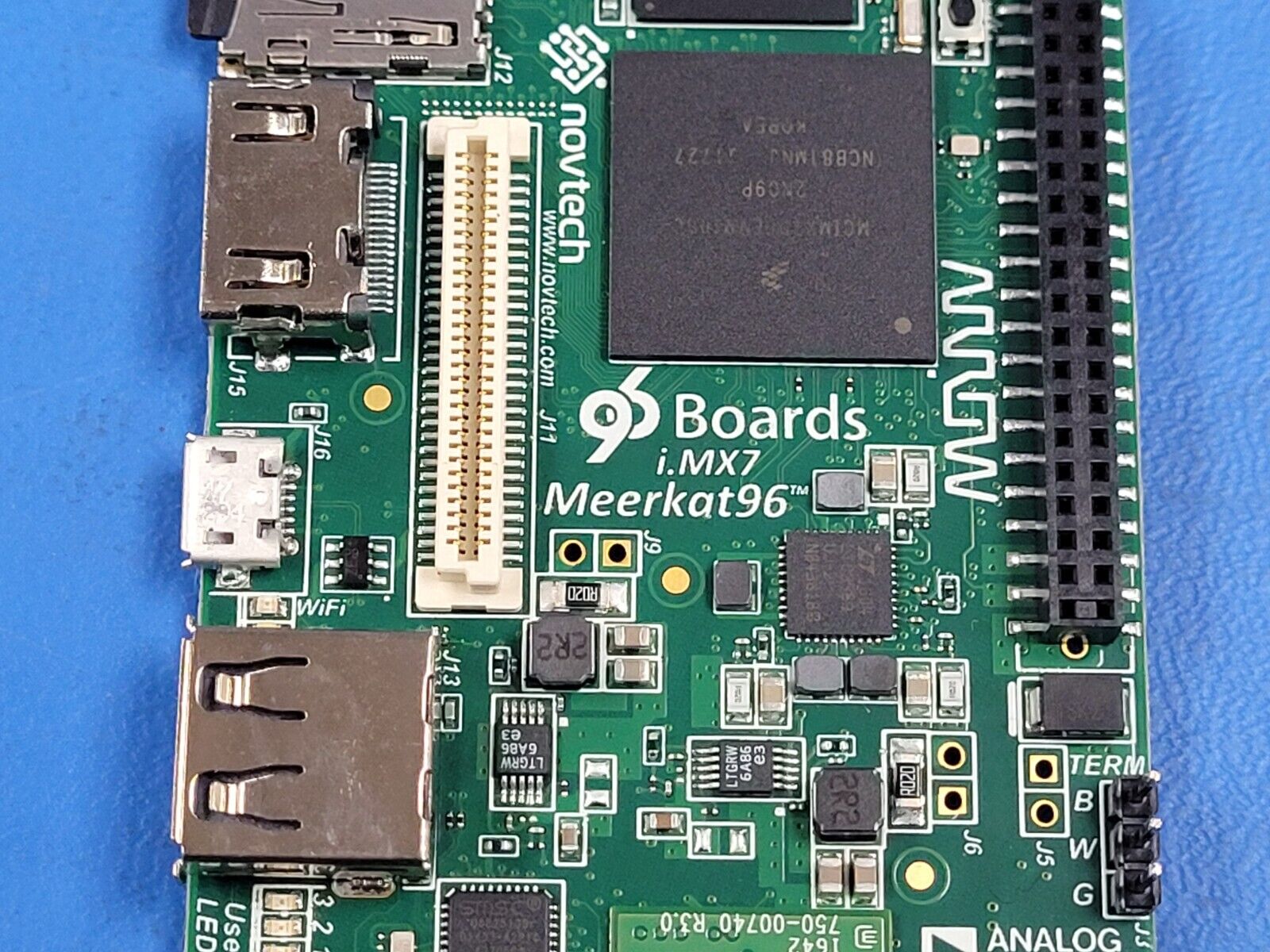

IMX7_96_BOARD Novtech, iMX7-96 Meerkat96 Development Board
The iMX7-96 Development Board is a 96Boards compliant Consumer Edition board based on the i.MX7 series of SoCs. The i.MX7 series is a highly integrated multi-market applications processor designed to enable secure and portable applications within the Internet of Things. iMX7-96 board features Dual-core ARM Cortex-A7 processors operating at up to 1.2GHz, Single-core ARM Cortex M4 operating up to 200MHz. In addition, an extensive set of interfaces and connectivity peripherals are included to interface to cameras, touch-screen displays ,MMC/SD cards and Media processor engine. It also fully supports wireless communication, including WLAN and BLE.
Additional Information
Component Description
SoC i.MX7
CPU Dual ARM® Cortex®-A7 at 1.2 GHz / Cortex-M4 at 200 MHz
RAM 512 MB DRAM
Wireless 802.11 b/g/n + BT / 2.4 GHz 802.11 b/g/n / BT 2.1+EDR (Enhanced Data Rate), BLE 4.1 / LSR Sterling-LWB
USB 2 x USB 2.0 Host 1 x USB 2.0 OTG
