ICS8302AM ICS/IDT Clock Fanout Buffer IC 1:2 200 MHz 8-SOIC
Tax included.

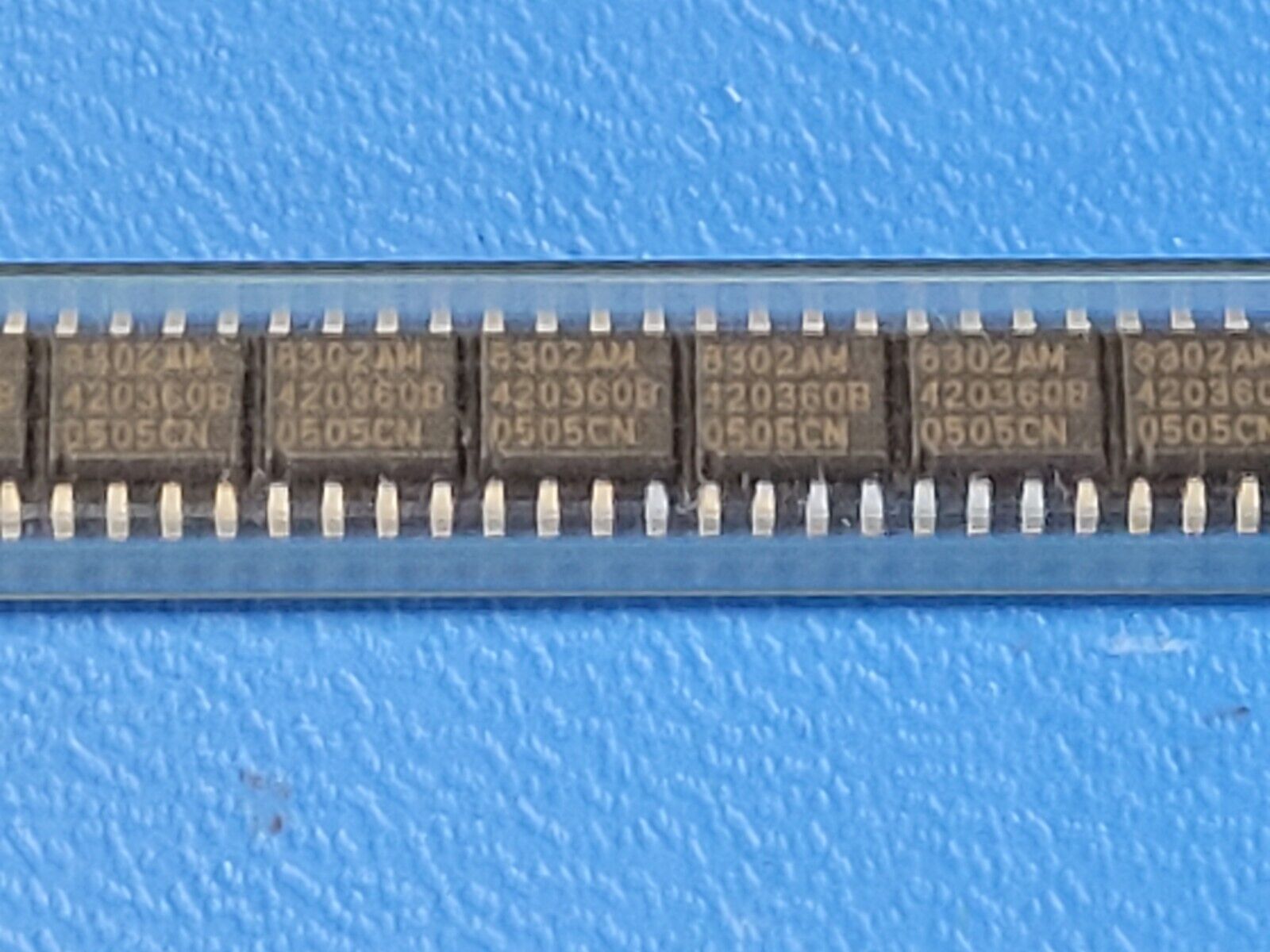

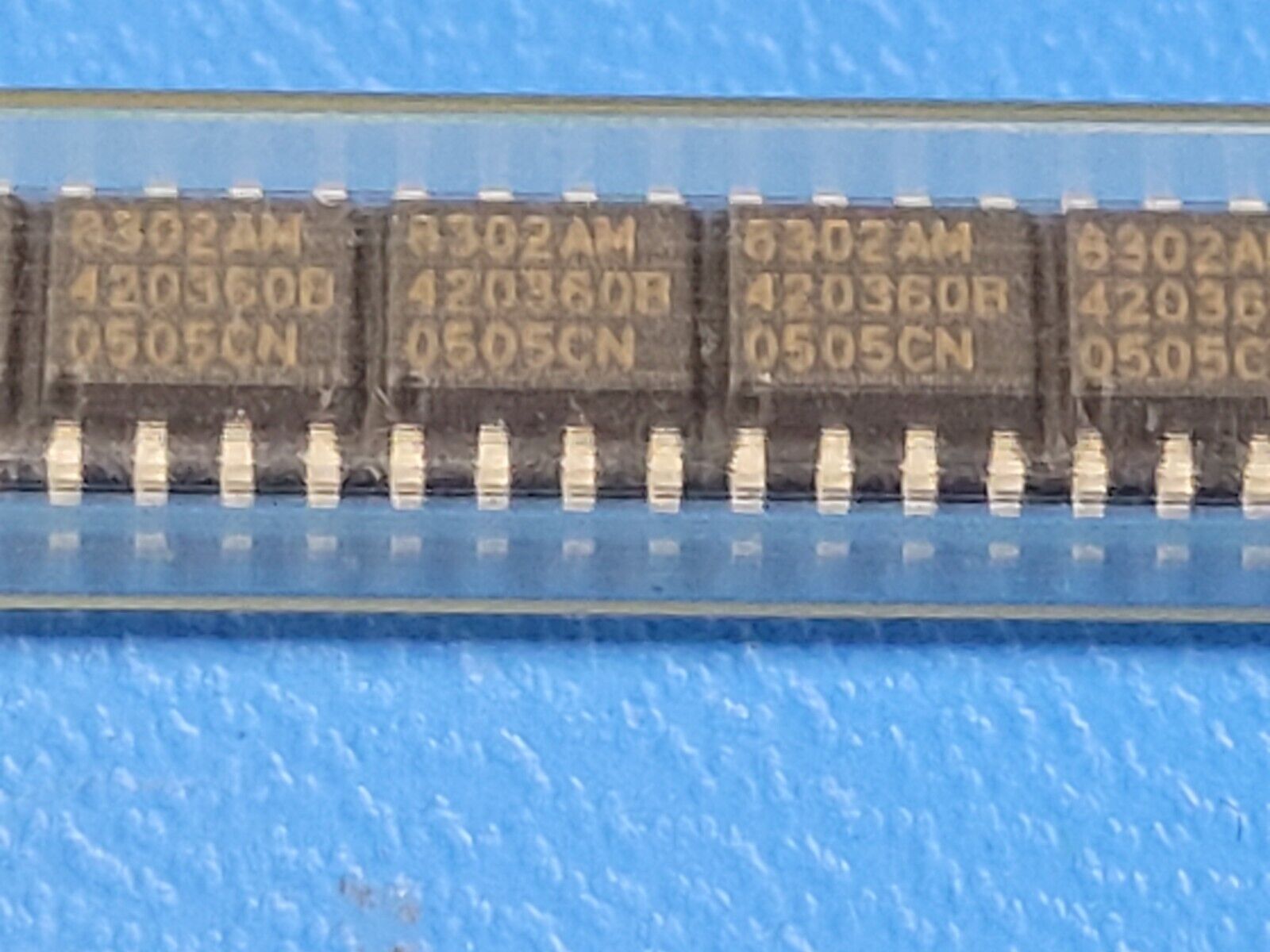

THIS IS FOR (1 PC) OF ICS8302AM BY ICS/IDT
Clock Fanout Buffer IC 1:2 200 MHz 8-SOIC
Part #: ICS8302AM
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Low Skew Clock Driver, 2 True Output(s), 0 Inverted Output(s), PDSO8
Mfr Package Description 3.80 X 4.80 MM, 1.47 MM HEIGHT, MS-012, SOIC-8
Status Transferred
Logic IC Type LOW SKEW CLOCK DRIVER
Sub Category Clock Drivers
Input Conditioning STANDARD
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 8
Number of True Outputs 2.0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Prop. Delay@Nom-Sup 2.8 ns
Propagation Delay (tpd) 3.3 ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.085 ns
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.465 V
Surface Mount YES
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 4.9 mm
Width 3.9 mm
