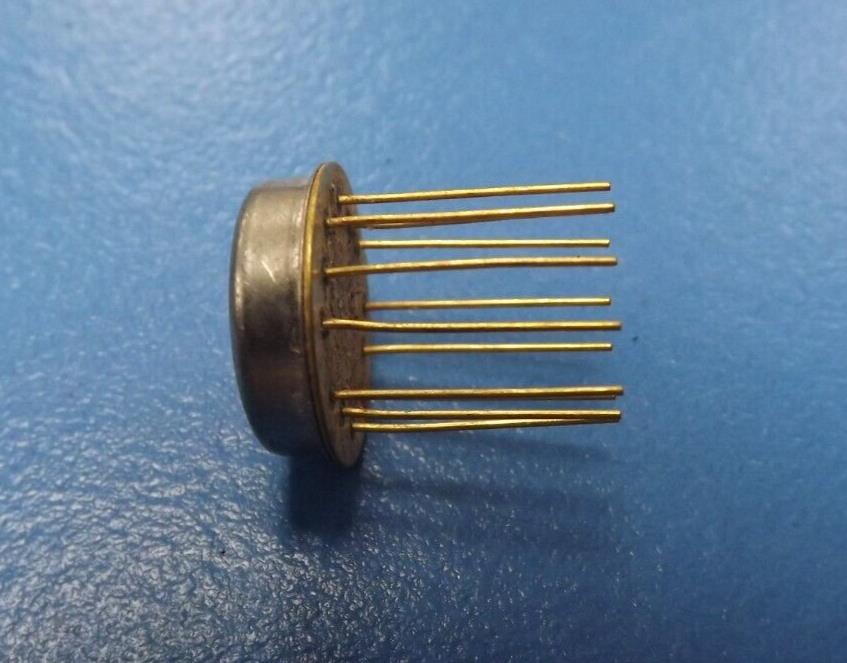

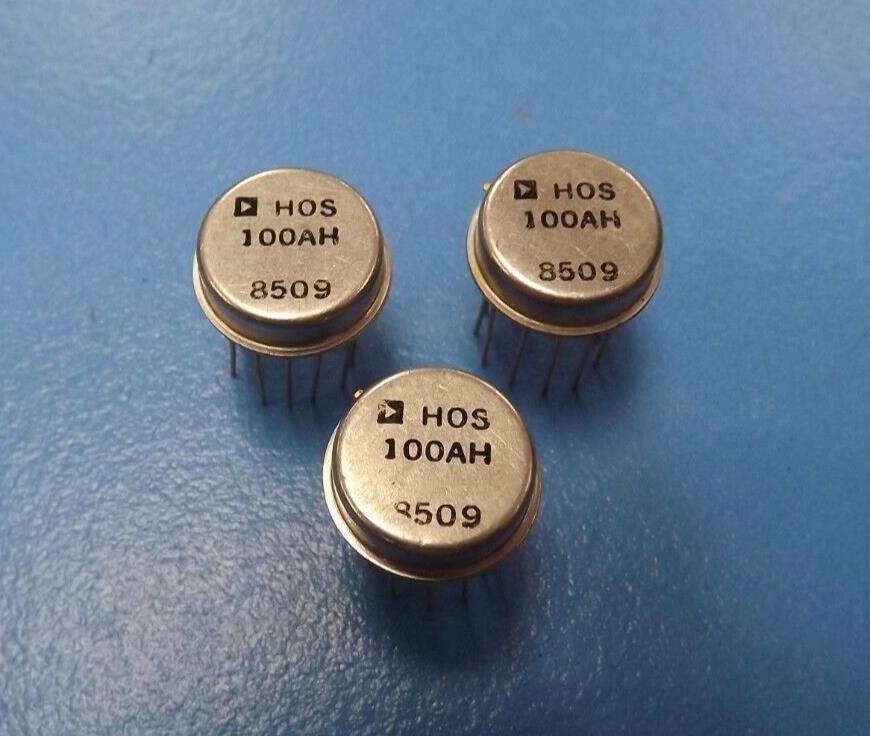

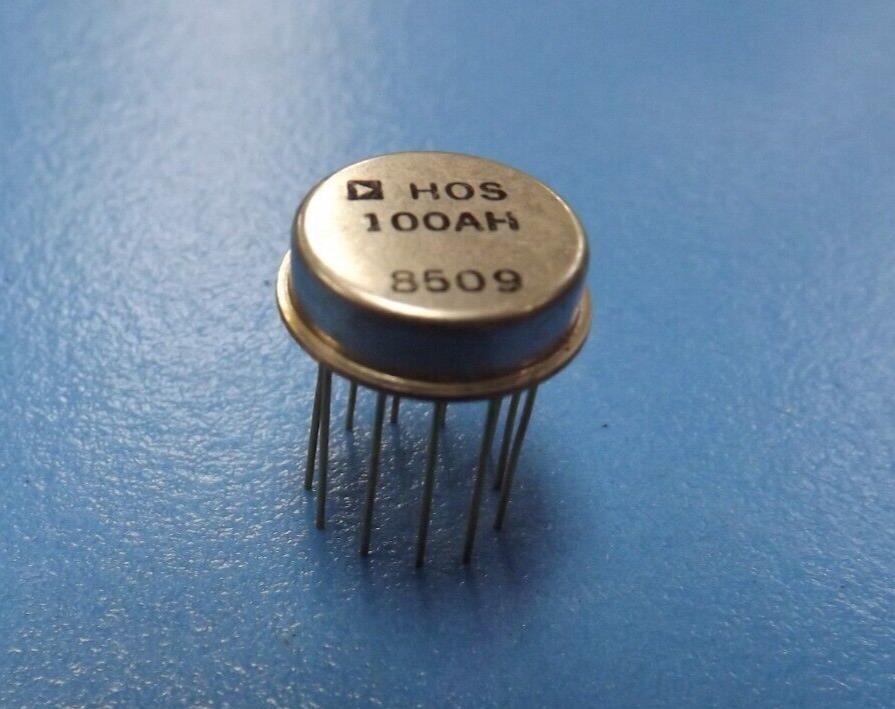

HOS-100AH Buffer Amplifier, 1 Func, BIPolar, METAL CAN, TO-8, 12-PIN
Tax included.
THIS LISTING IS FOR (1PC) OF HOS-100AH BY ANALOG DEVICES
Mfr Package Description METAL CAN, TO-8, 12 PIN
Status Discontinued
Amplifier Type BUFFER
Average Bias Current-Max (IIB) 25.0 µA
Bandwidth (3dB)-Nom 125.0 MHz
Bias Current-Max (IIB) @25C 25.0 µA
Input Offset Voltage-Max 35000.0 µV
JESD-30 Code O-MBCY-W12
JESD-609 Code e0
Neg Supply Voltage Limit-Max -20.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 12
Operating Temperature-Min -25.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material METAL
Package Code TO-8
Package Equivalence Code QUAD12,.4SQ
Package Shape ROUND
Package Style CYLINDRICAL
Qualification Status Not Qualified
Slew Rate-Nom 1400.0 V/us
Slew Rate-Min 1000.0 V/us
Sub Category Buffer Amplifier
Supply Current-Max 20.0 mA
Supply Voltage Limit-Max 20.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Pitch 2.54 mm
Terminal Position BOTTOM
