HI1-506AB2843 JM38510/19002BXA 5962-01-179-0512 PA60345-1 CMOS ANALOG MULTIPLEX
Tax included.

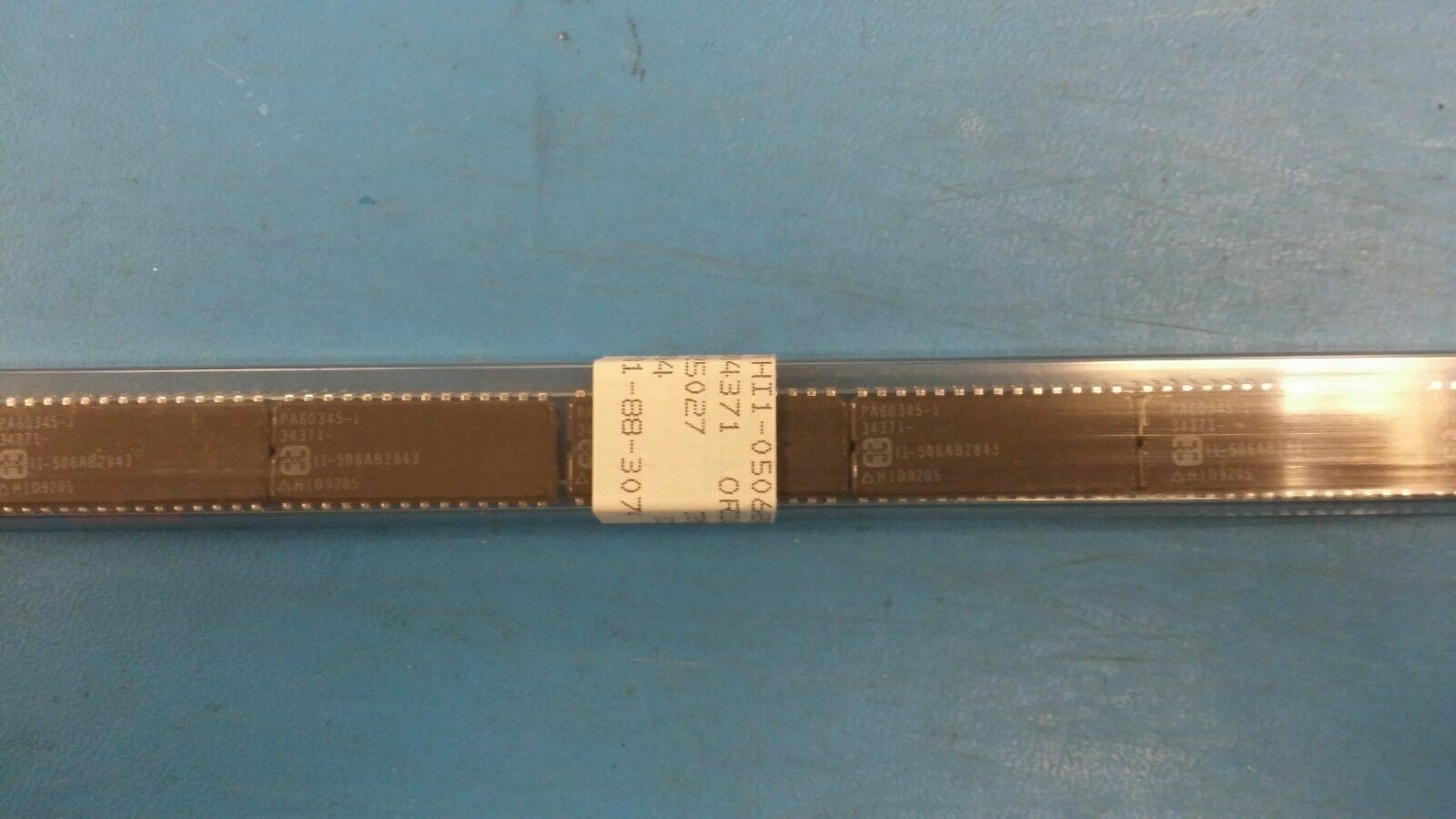

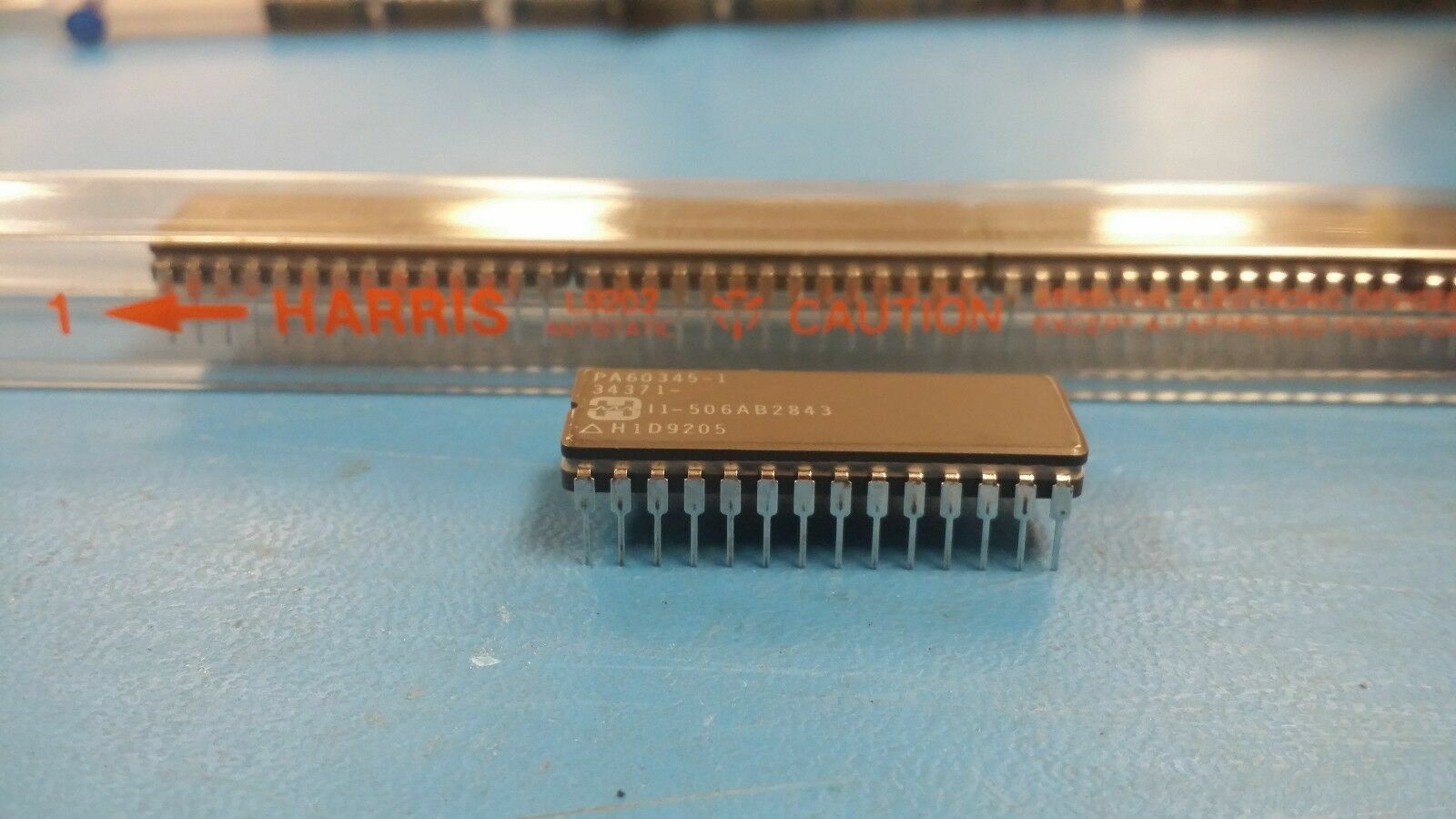

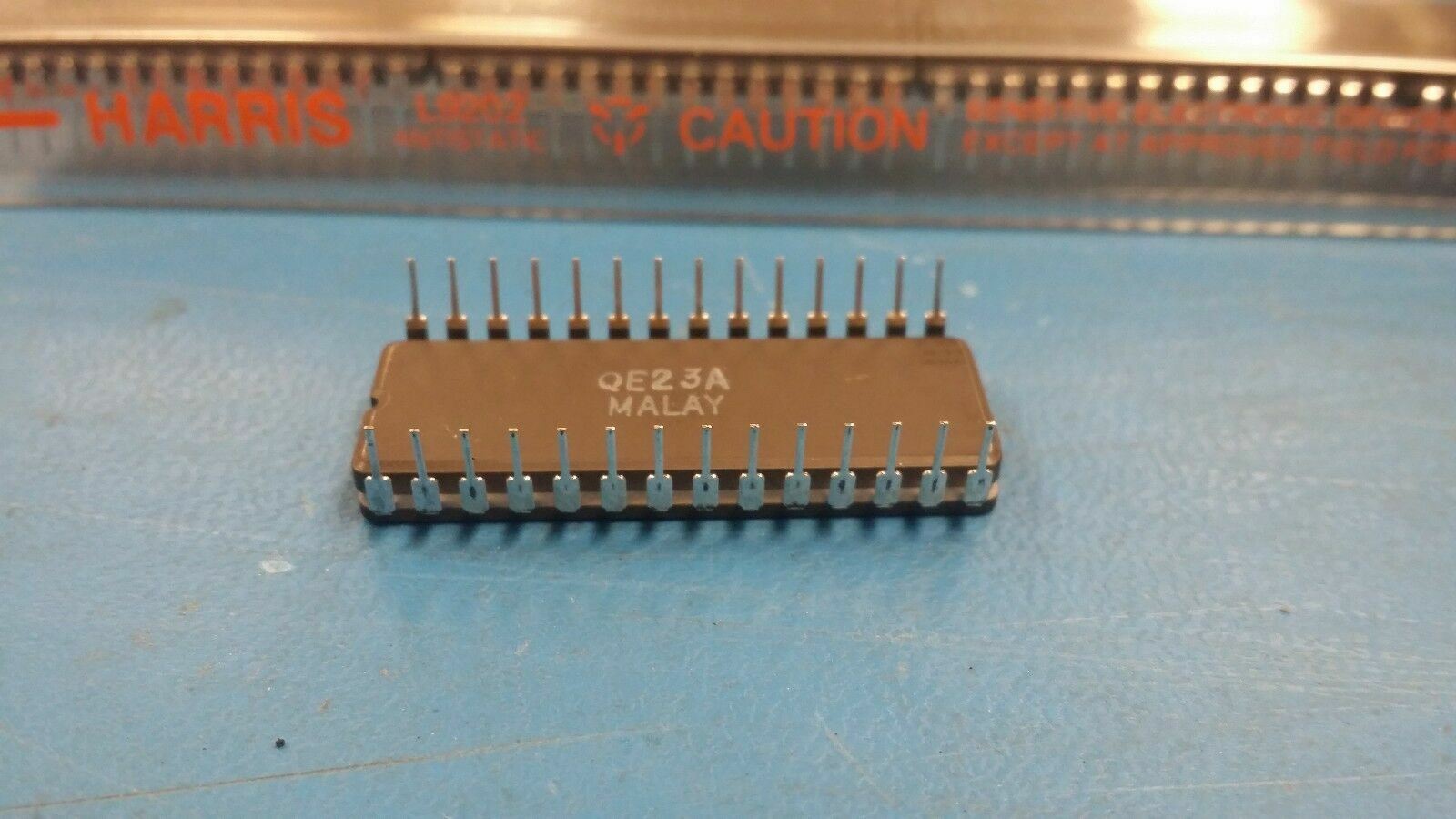

THIS LISTING IS FOR (1 PC) OF JM38510/19002BXA 5962-01-179-0512 PA60345-1 HI1-506AB2843 CMOS ANALOG MULTIPLEXER Single-Ended 16-Channel
| Status | Discontinued |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER |
| JESD-30 Code | R-GDIP-T28 |
| JESD-609 Code | e0 |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Channels | 16 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Off-state Isolation-Nom | 50.0 dB |
| On-state Resistance-Max (Ron) | 300.0 ohm |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | +-15 |
| Qualification Status | Not Qualified |
| Signal Current-Max | 0.02 A |
| Sub Category | Multiplexer or Switches |
| Supply Current-Max (Isup) | 3.0 mA |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | NO |
| Switch-off Time-Max | 500.0 ns |
| Switch-on Time-Max | 500.0 ns |
| Switching (V) | BREAK-BEFORE-MAKE |
| Technology | CMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
