HA7-5102/883 HARRIS DUAL OP-AMP 2000uV OFFSET-MAX 8MHz BAND WIDTH CDIP8

$59.95
Unit price per

Tax included.

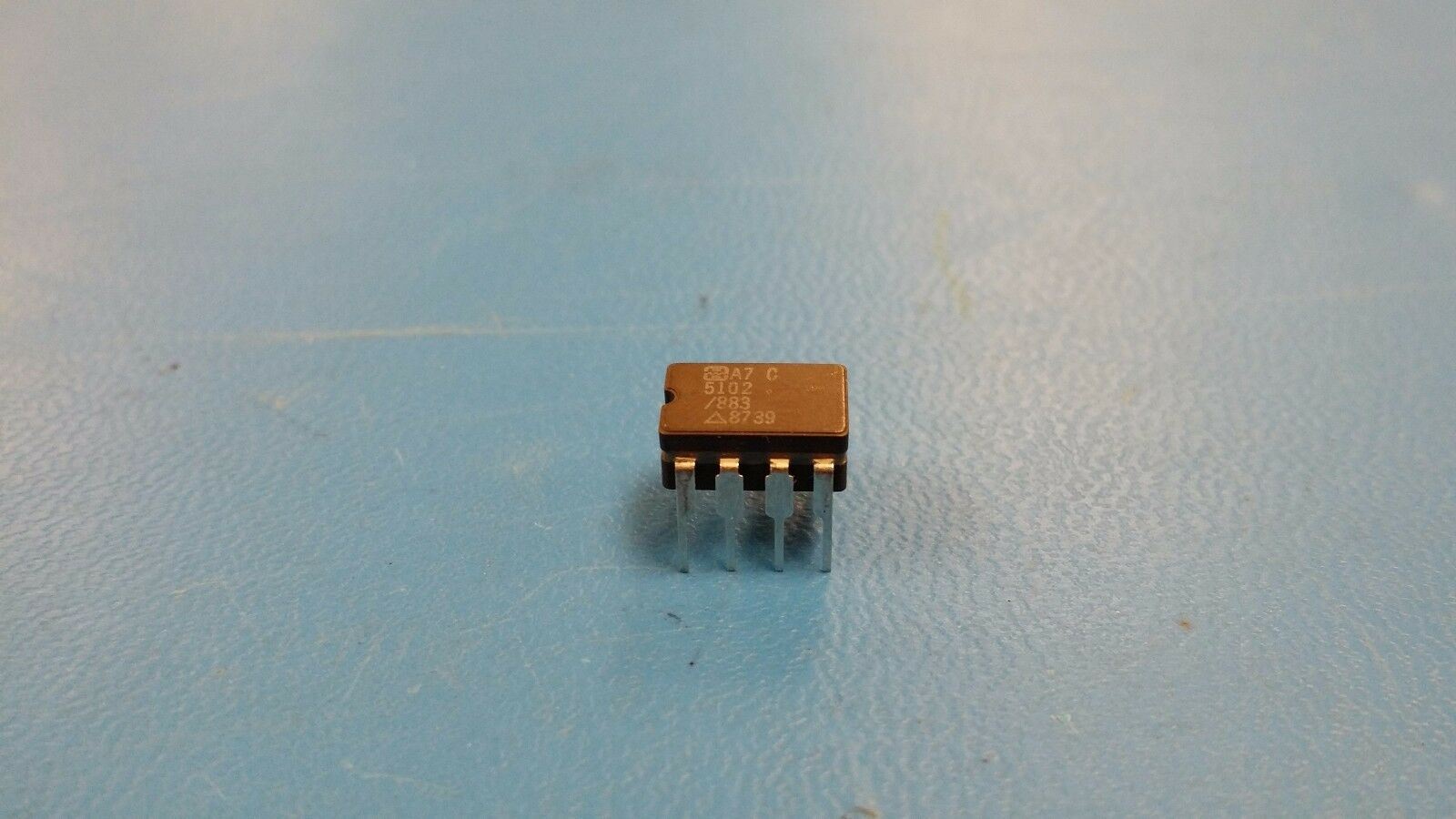

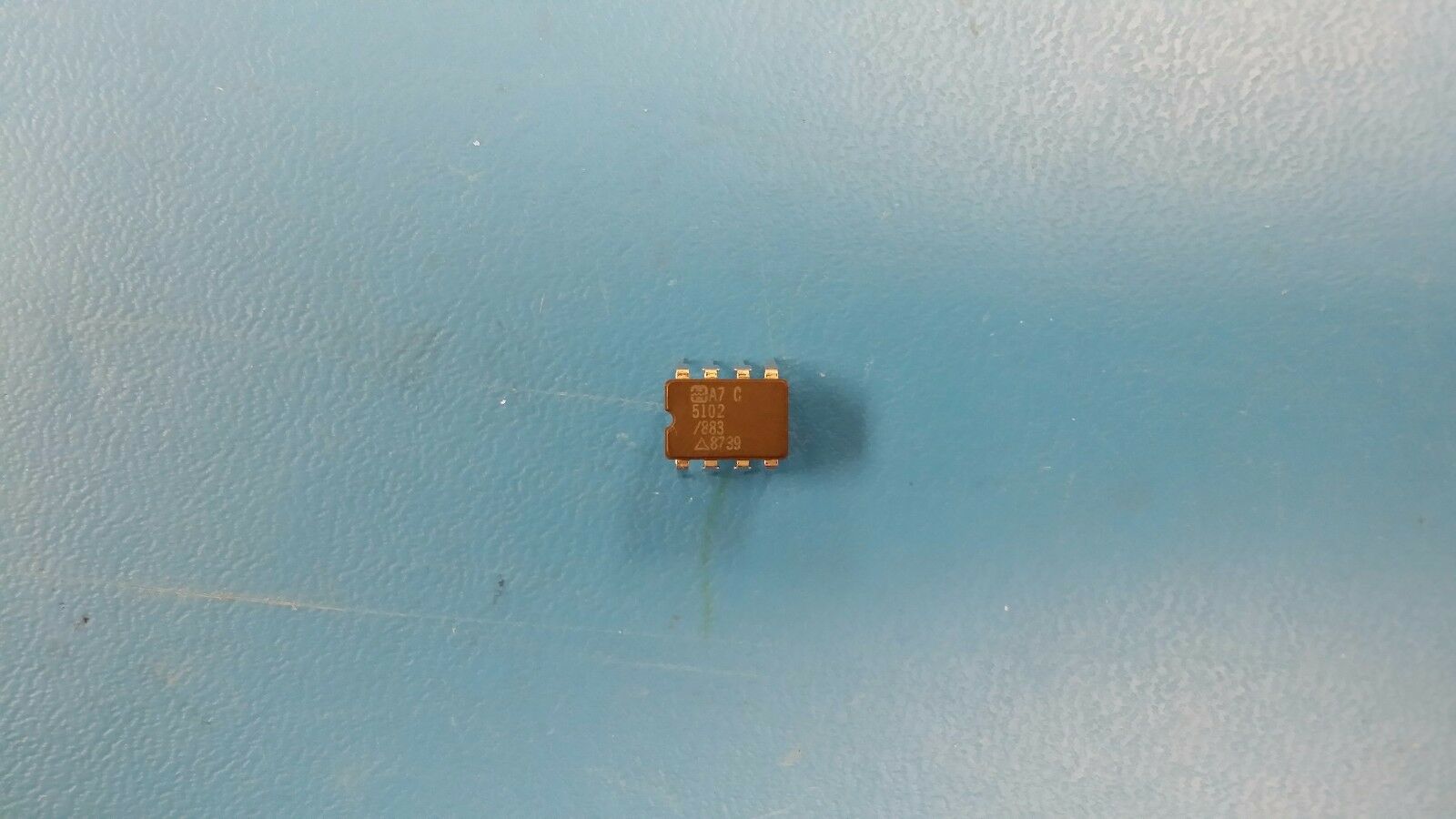

THIS LISTING IS FOR (1 PC) OF HA7-5102/883 BY HARRIS
DUAL OP-AMP 2000uV OFFSET-MAX 8MHz BAND WIDTH CDIP8

Part #: HA7-5102/883

Part Category: Amplifiers
Manufacturer: Harris Corporation
Description: DUAL OP-AMP, 2000uV OFFSET-MAX, 8MHz BAND WIDTH, CDIP8

Mfr Package Description	CERDIP-8
Status	Discontinued
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.2 µA
Bias Current-Max (IIB) @25C	0.2 µA
Common-mode Reject Ratio-Nom	86.0 dB
Common-mode Reject Ratio-Min	86.0 dB
Frequency Compensation	YES
Input Offset Voltage-Max	2000.0 µV
JESD-30 Code	R-GDIP-T8
JESD-609 Code	e0
Low-Offset	NO
Neg Supply Voltage Limit-Max	-20.0 V
Neg Supply Voltage-Nom (Vsup)	-15.0 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Min	-55.0 Cel
Operating Temperature-Max	125.0 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies (V)	+-15
Qualification Status	Not Qualified
Screening Level	38535Q/M;38534H;883B
Slew Rate-Nom	3.0 V/us
Slew Rate-Min	1.0 V/us
Sub Category	Operational Amplifier
Supply Current-Max	6.0 mA
Supply Voltage Limit-Max	20.0 V
Supply Voltage-Nom (Vsup)	15.0 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	8000.0 kHz
Voltage Gain-Min	100000.0
