EPM7256SQC208-10 Altera IC CPLD 256MC 10NS 208QFP
Tax included.

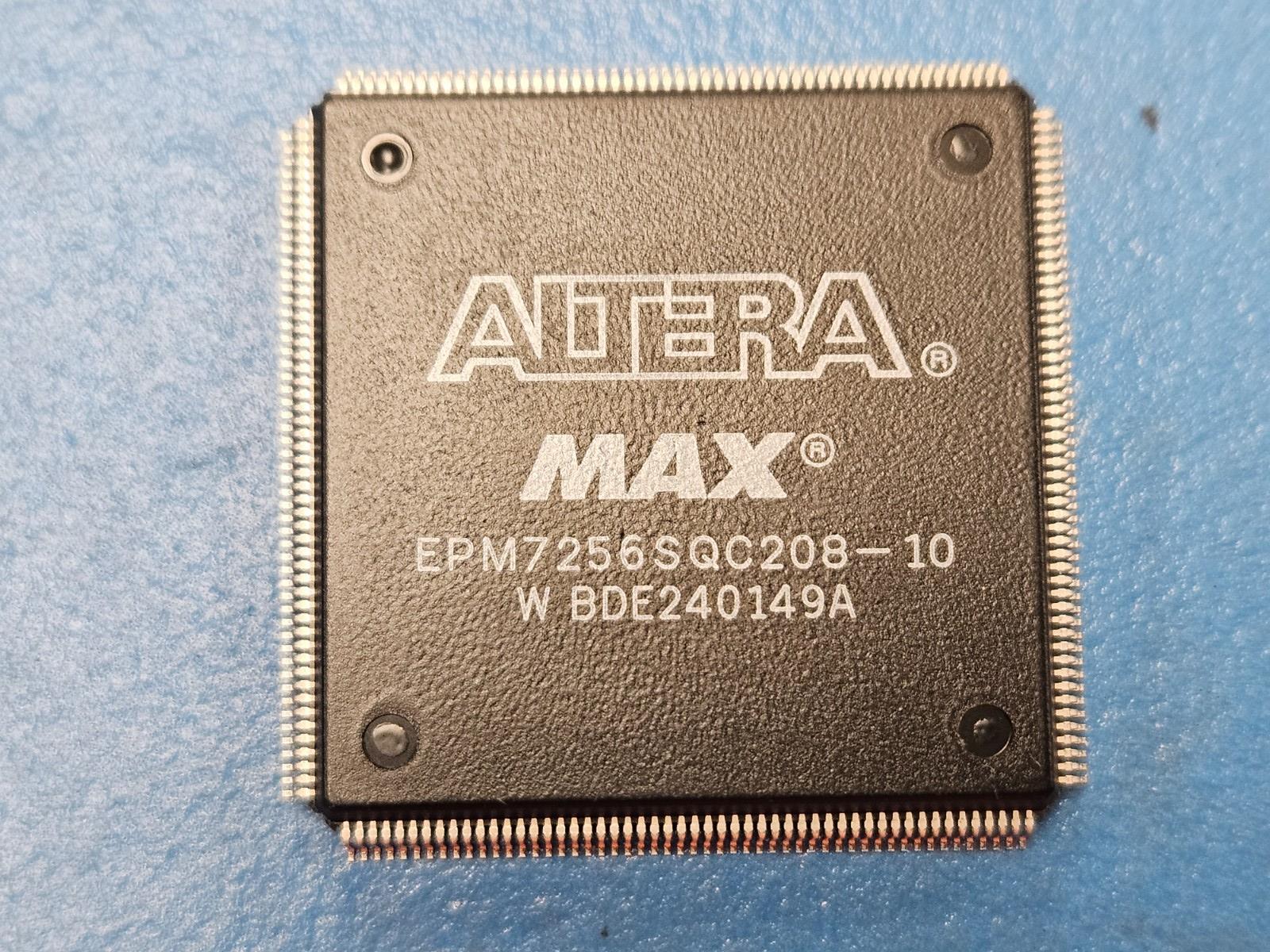

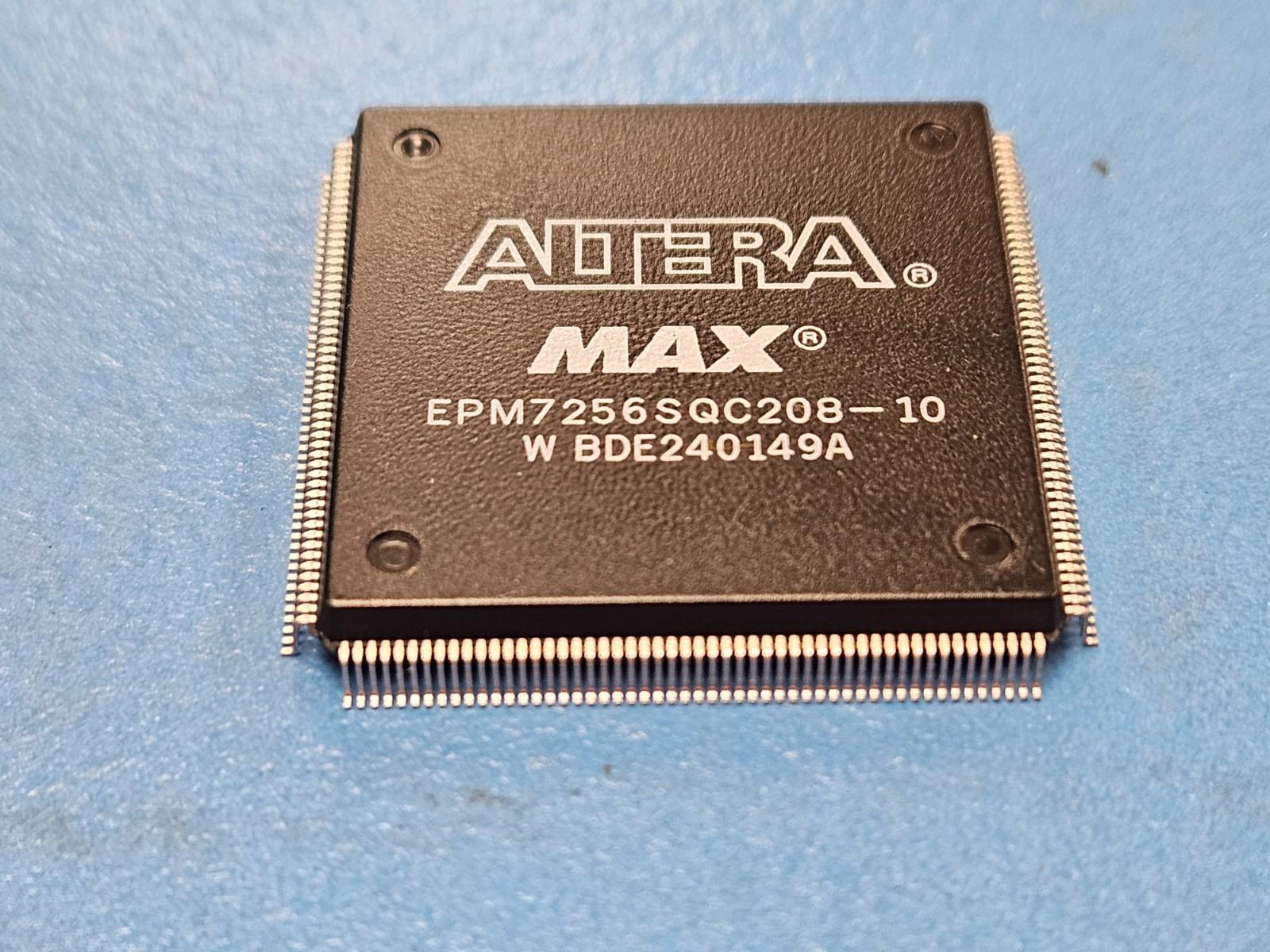

This listing is for (1) EPM7256SQC208-10 by Altera
Mfr Package Description PLASTIC, QFP-208
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 125.0 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G208
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 164.0
Number of Macro Cells 256.0
Number of Terminals 208
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 164 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP208,1.2SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 3.3/5,5
Propagation Delay 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.1 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 28.0 mm
Width 28.0 mm
Additional Feature 256 MACROCELLS; 16 LABS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
