EPM3256ATC144-7N EPM3256ATI144-10N EE PLD, 10ns, 256-Cell, CMOS, PQFP144
Tax included.

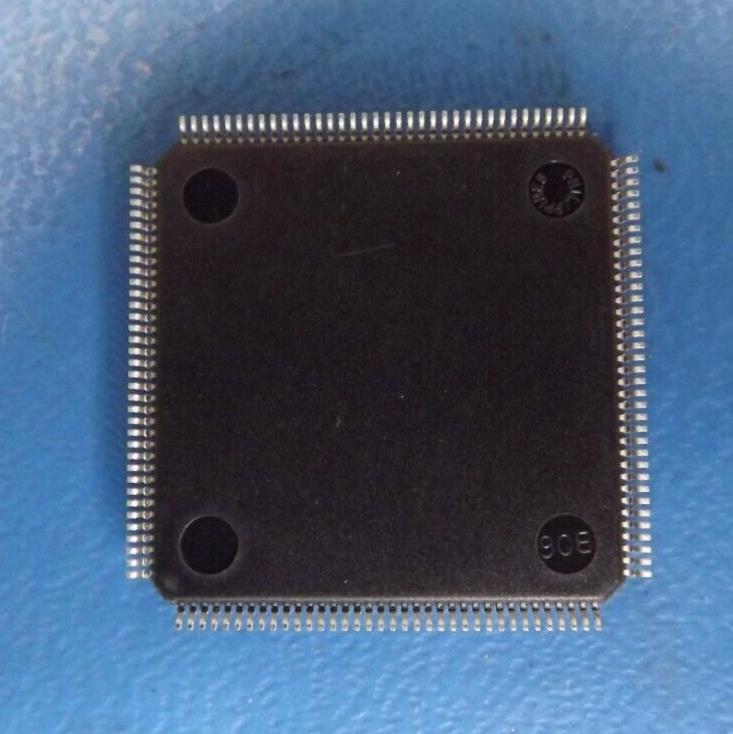

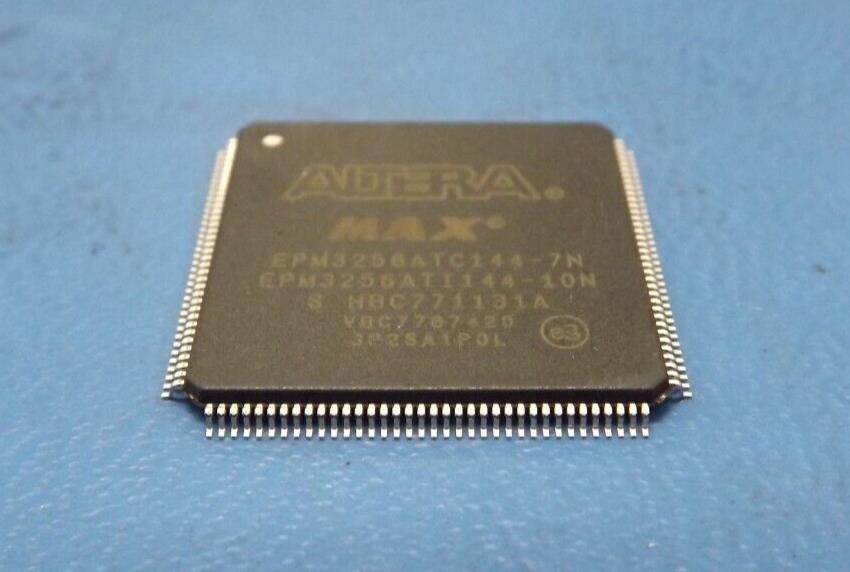

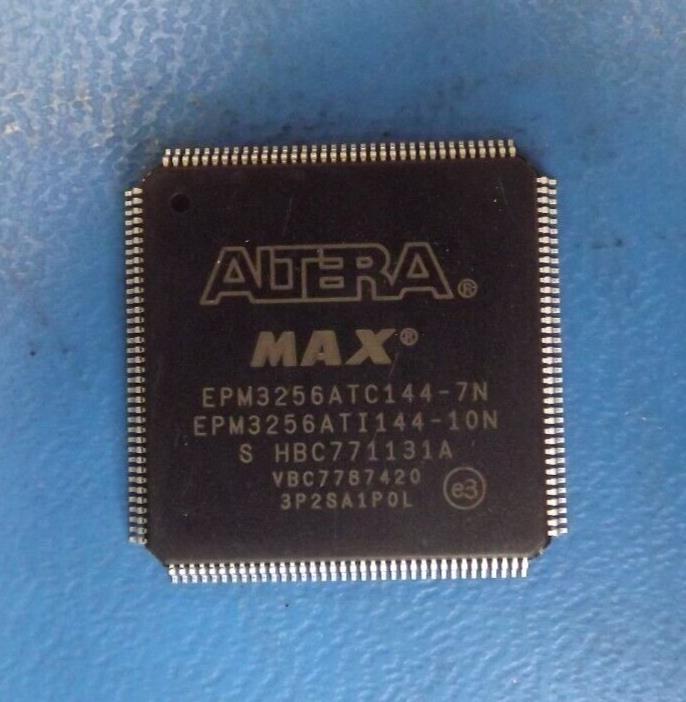

THIS LISTING IS FOR (1PC) OF EPM3256ATC144-7N/EPM3256ATC144-10N BY ALTERA
Mfr Package Description TQFP-144
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 95.2 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G144
JESD-609 Code e3
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 116.0
Number of Macro Cells 256.0
Number of Terminals 144
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 0 DEDICATED INPUTS, 116 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Power Supplies 2.5/3.3,3.3
Propagation Delay 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 20.0 mm
Width 20.0 mm
Additional Feature YES
