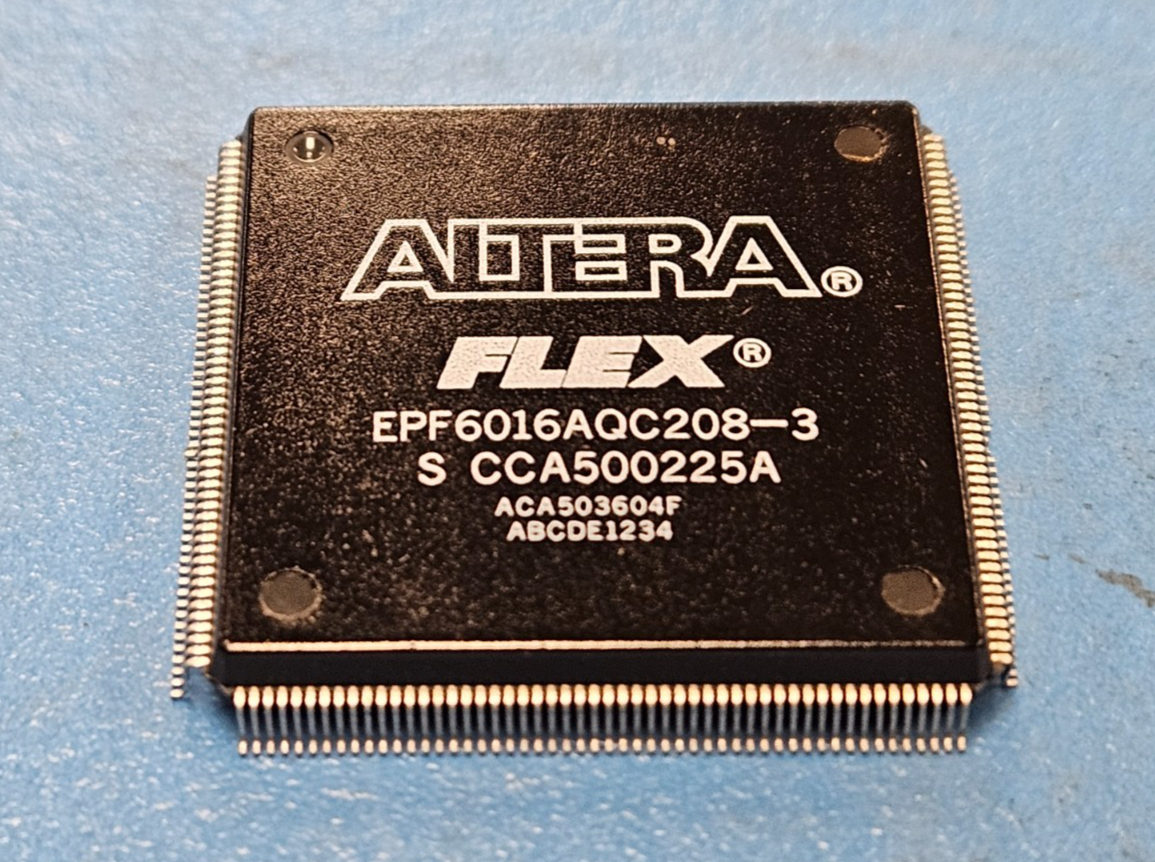

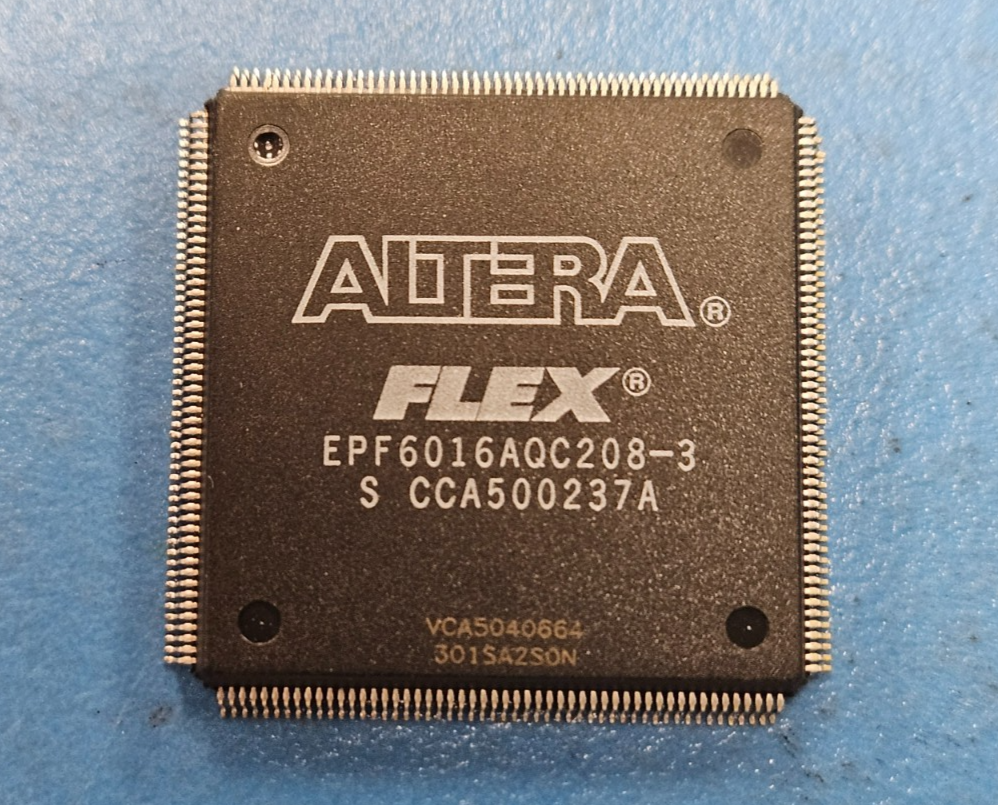

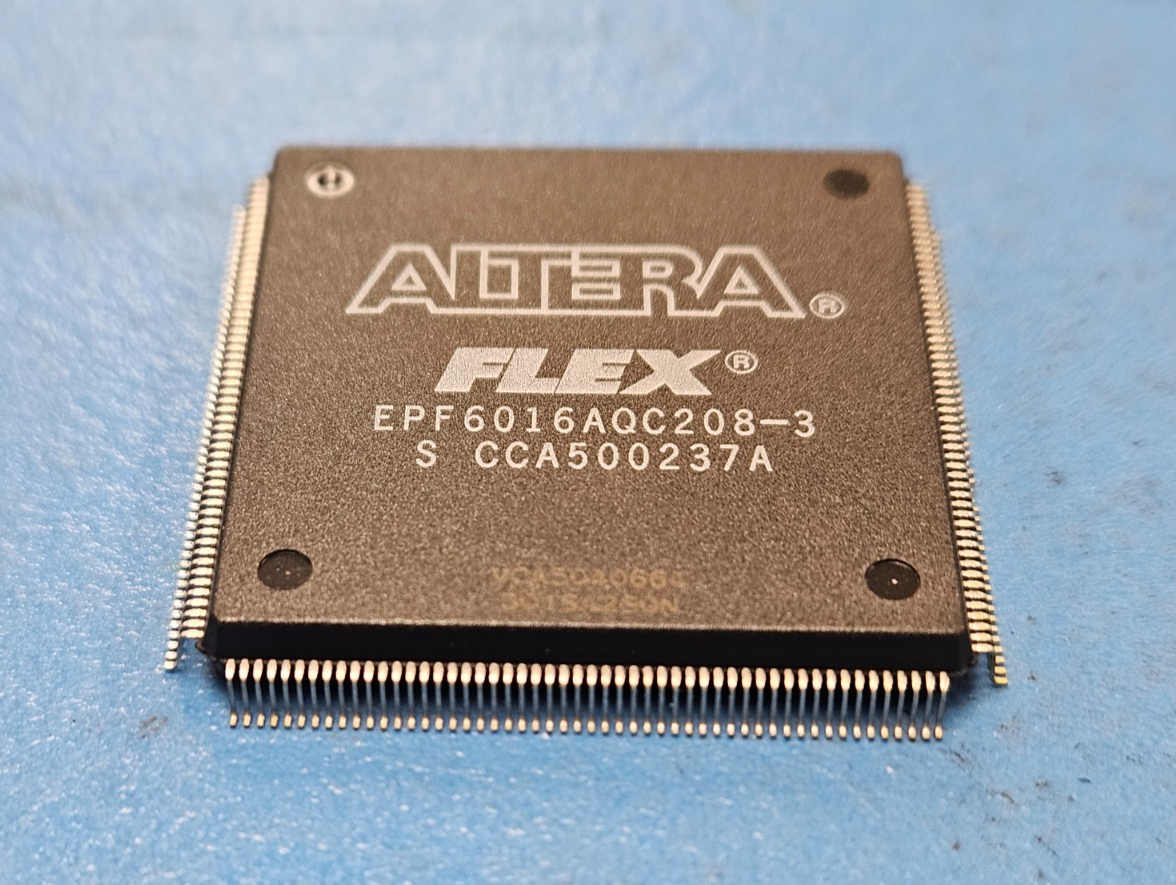

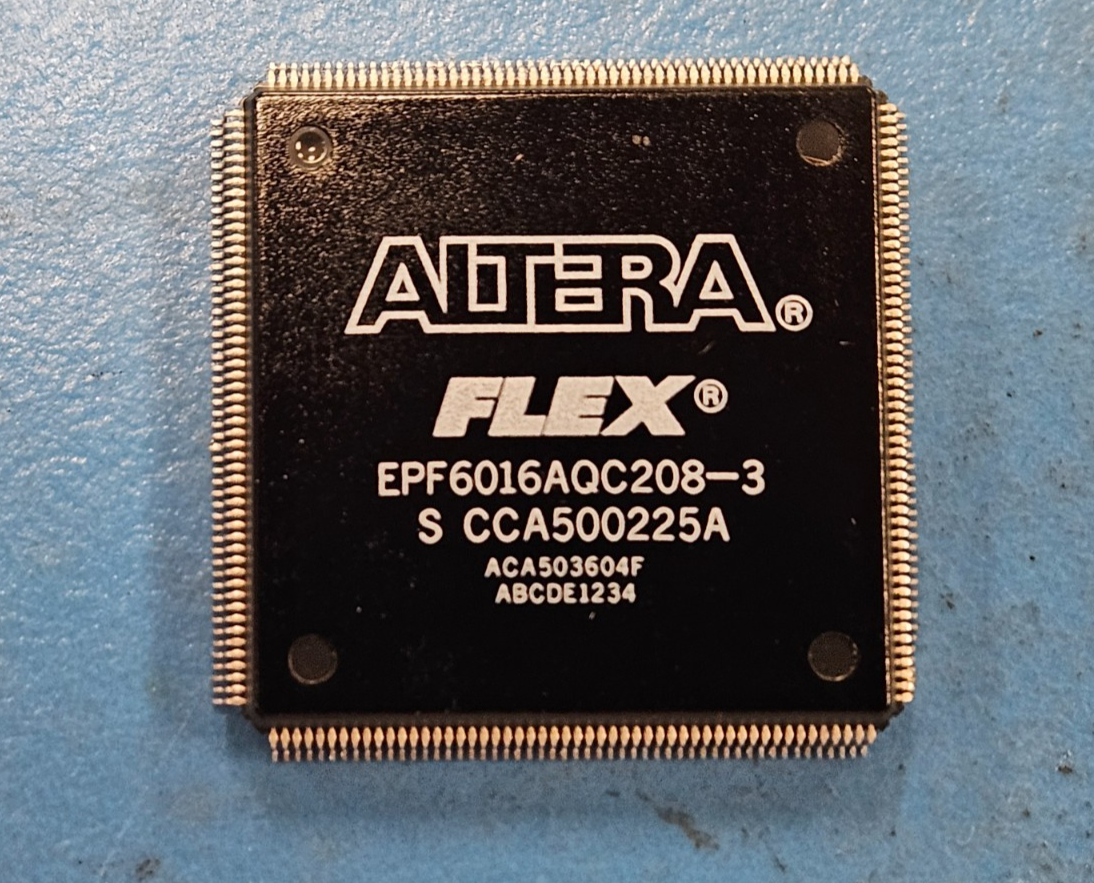

EPF6016AQC208-3 FLEX Field Programmable Gate Array (FPGA) IC 171 1320 208QFP
Tax included.
This listing is for (1PC) of EPF6016AQC208-3 by Altera
Status Transferred
Additional Feature CAN ALSO BE USED 16000 LOGIC GATES
Clock Frequency-Max (MHz) 133.00000
JESD-30 Code S-PQFP-G208
J-STD-609 Code e0
Length (mm) 28.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4
Number of I/O Lines 171
Number of Inputs 171
Number of Logic Cells 1320
Number of Outputs 171
Number of Terminals 208
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) 0.0
Organization 4 DEDICATED INPUTS, 171 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP208,1.2SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Peak Reflow Temperature (Cel) 220
Programmable Logic Type LOADABLE PLD
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.1000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 28.0000
