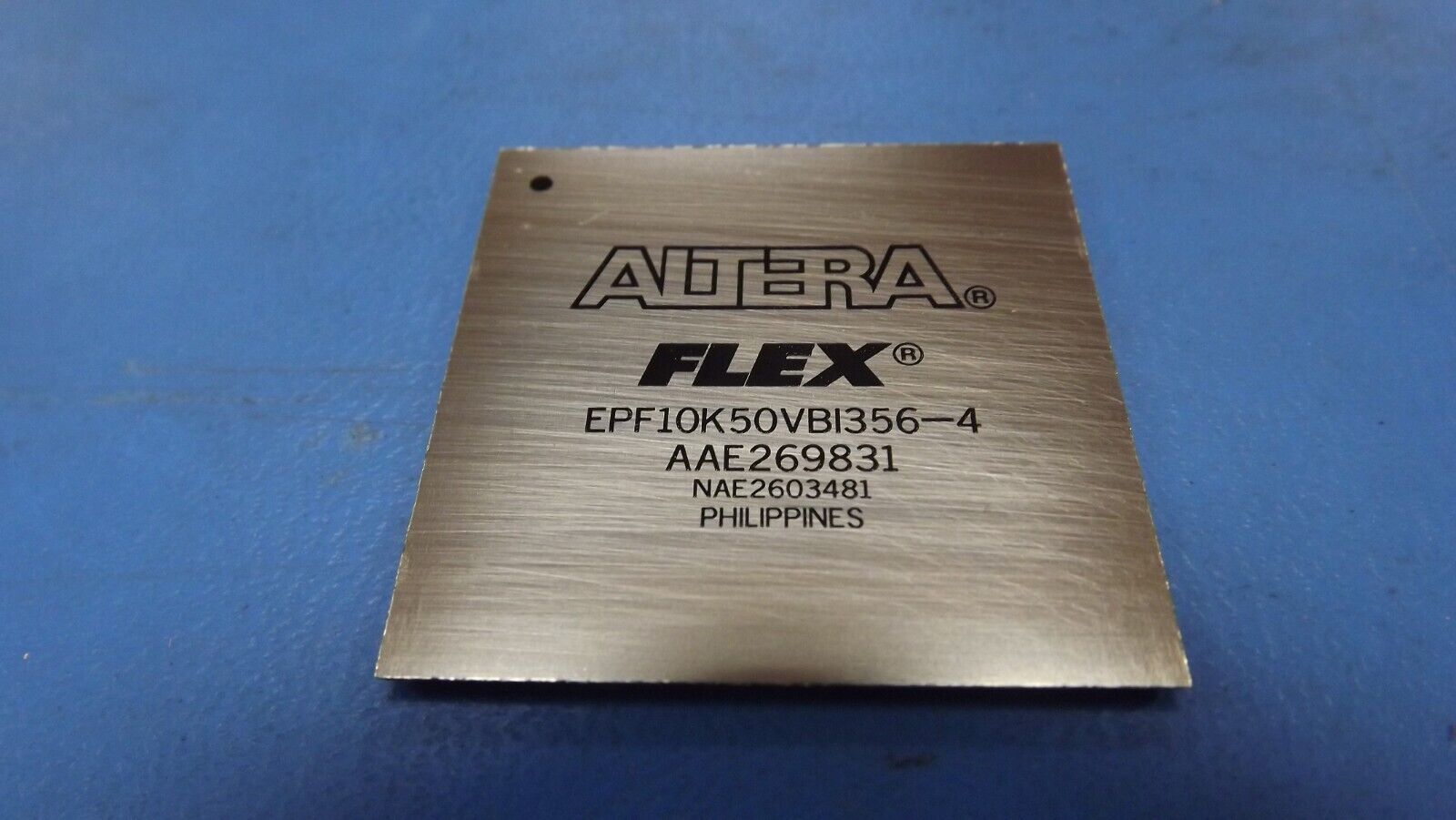

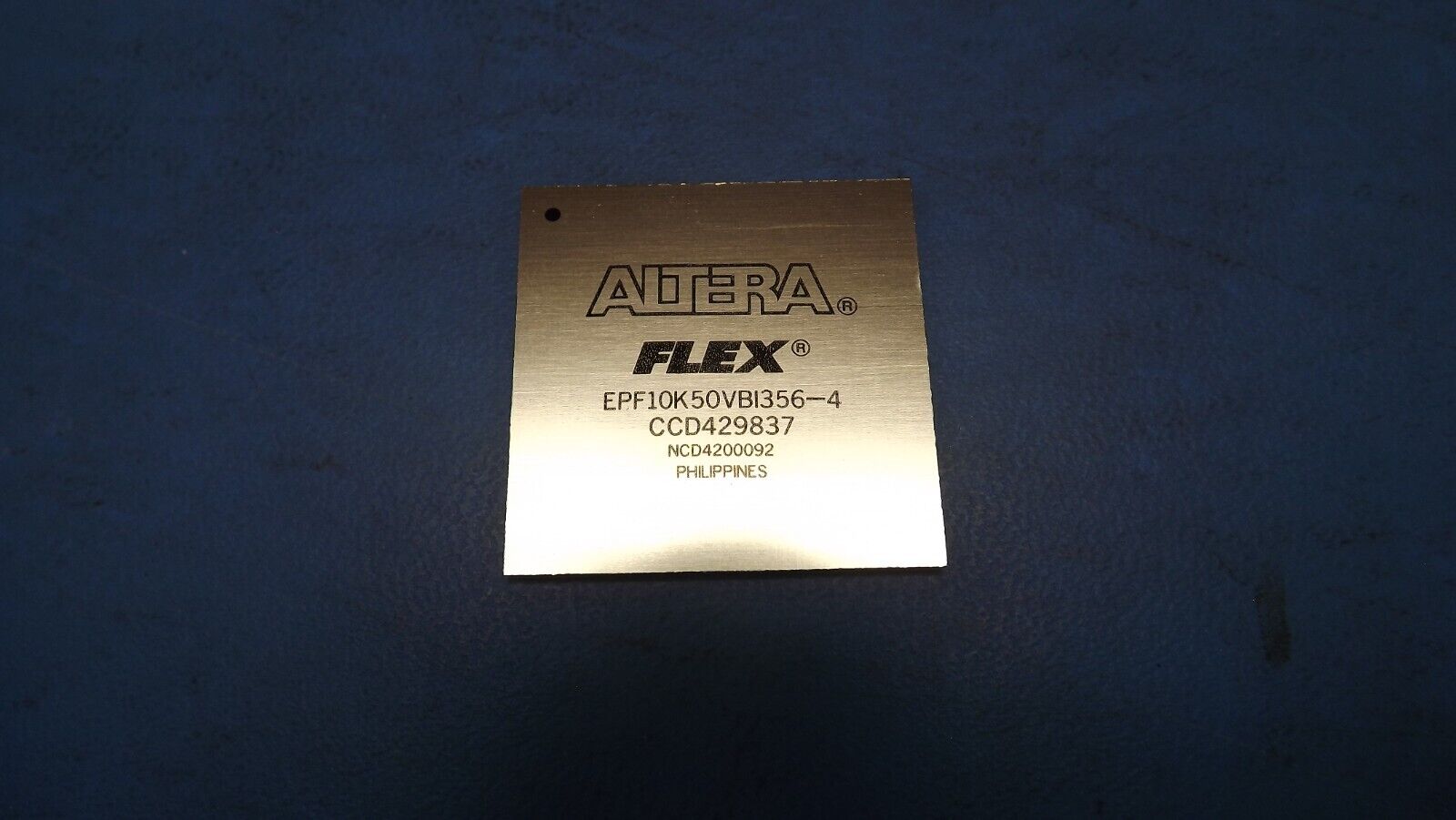

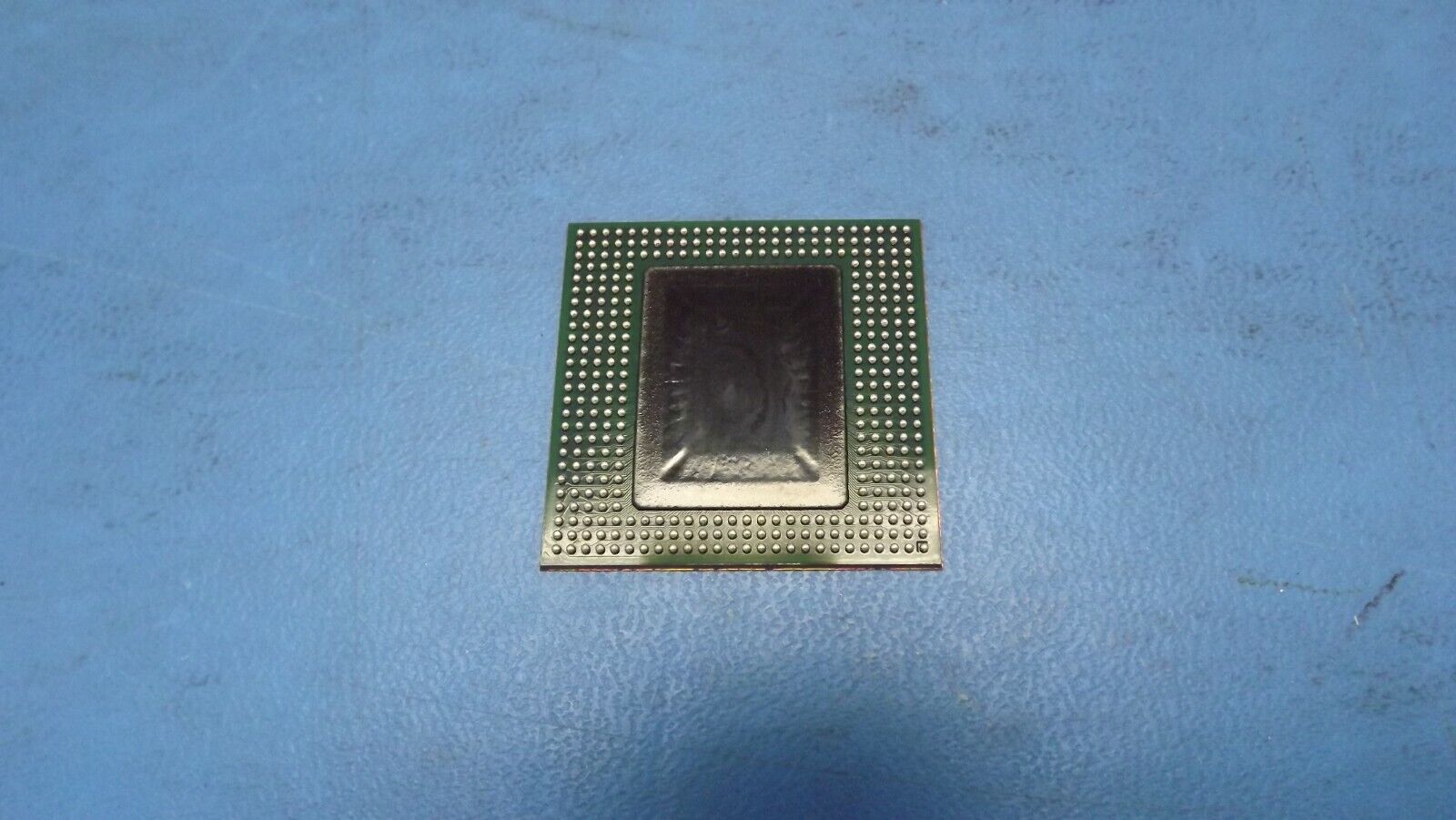

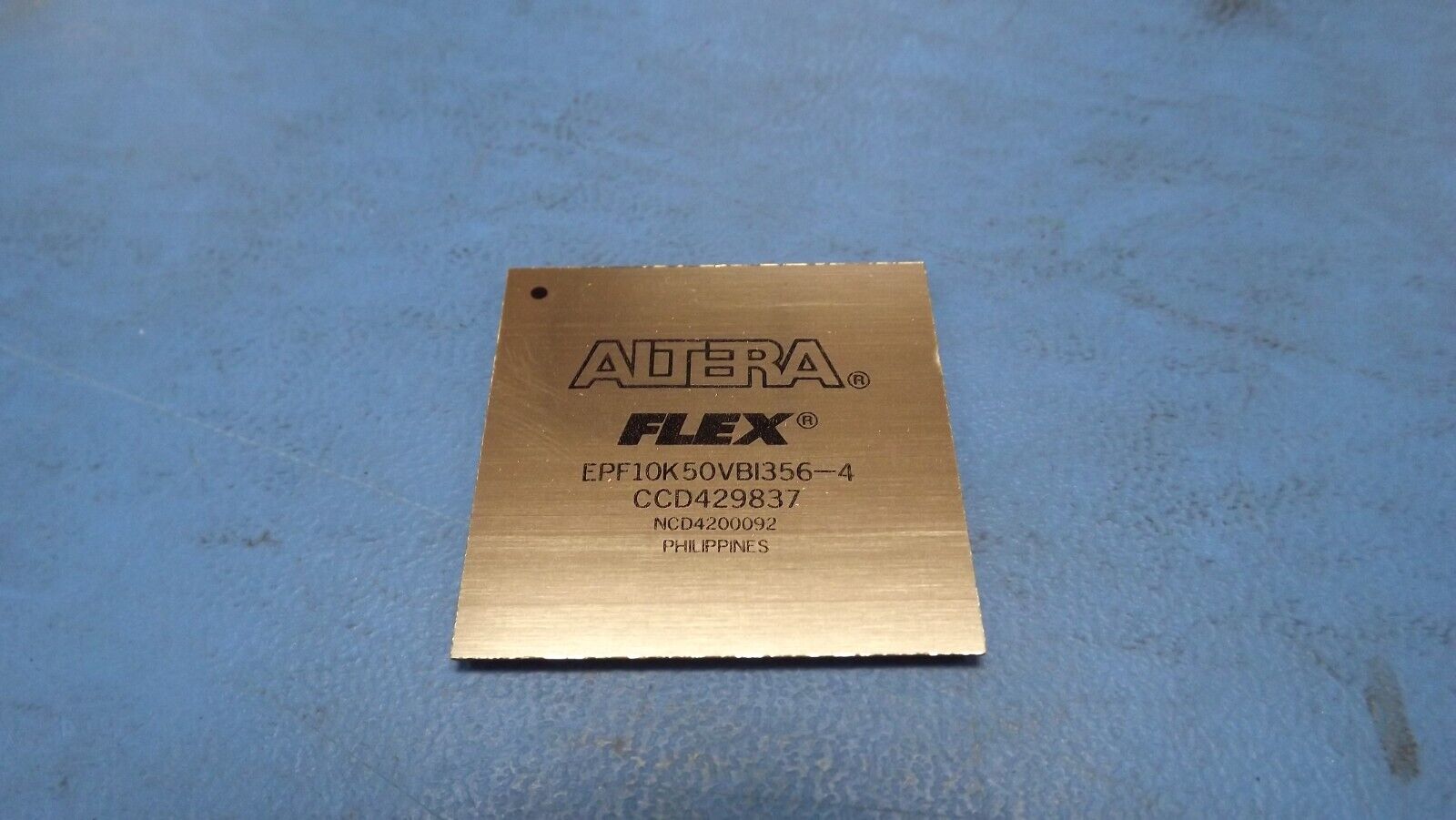

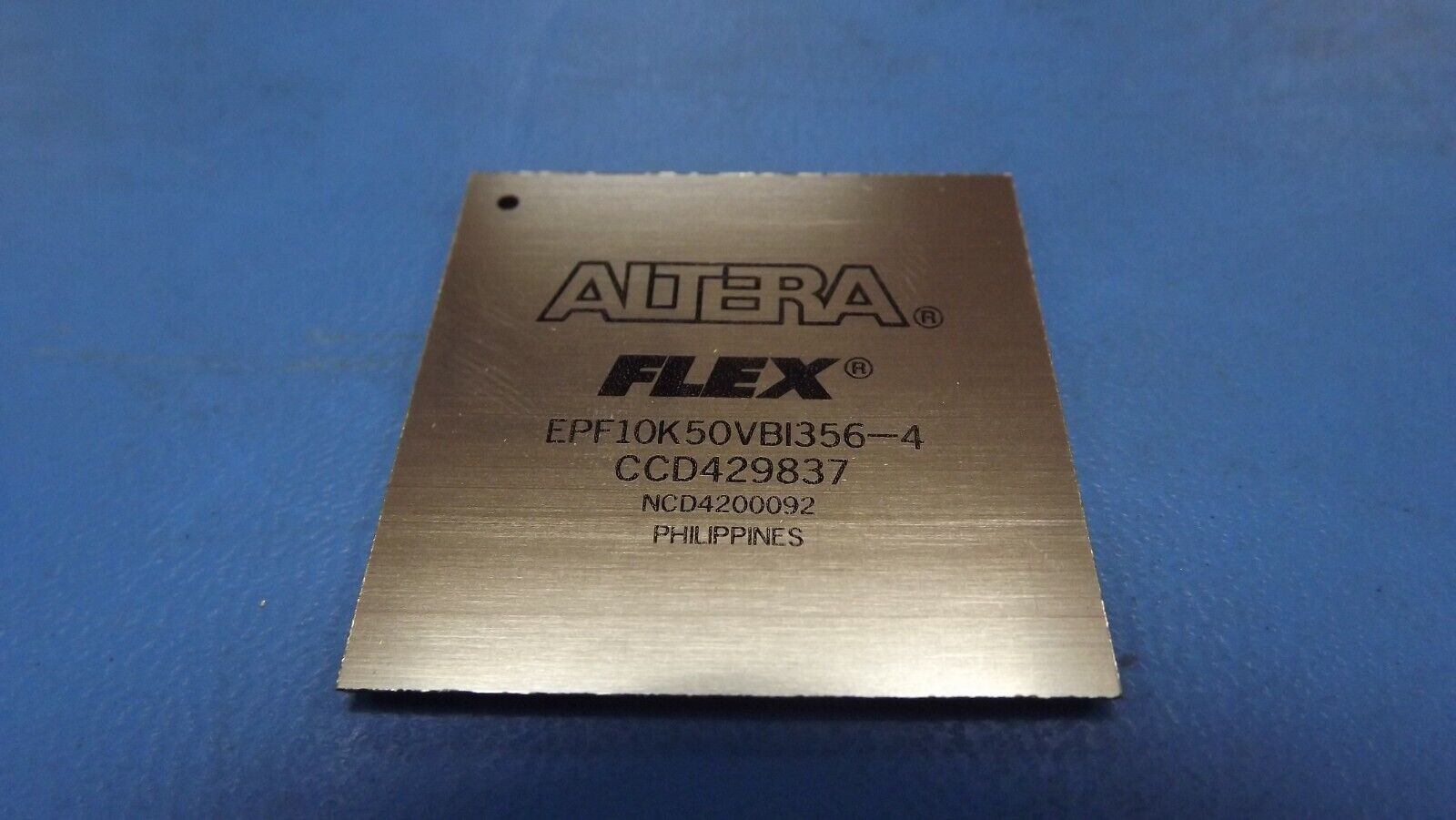

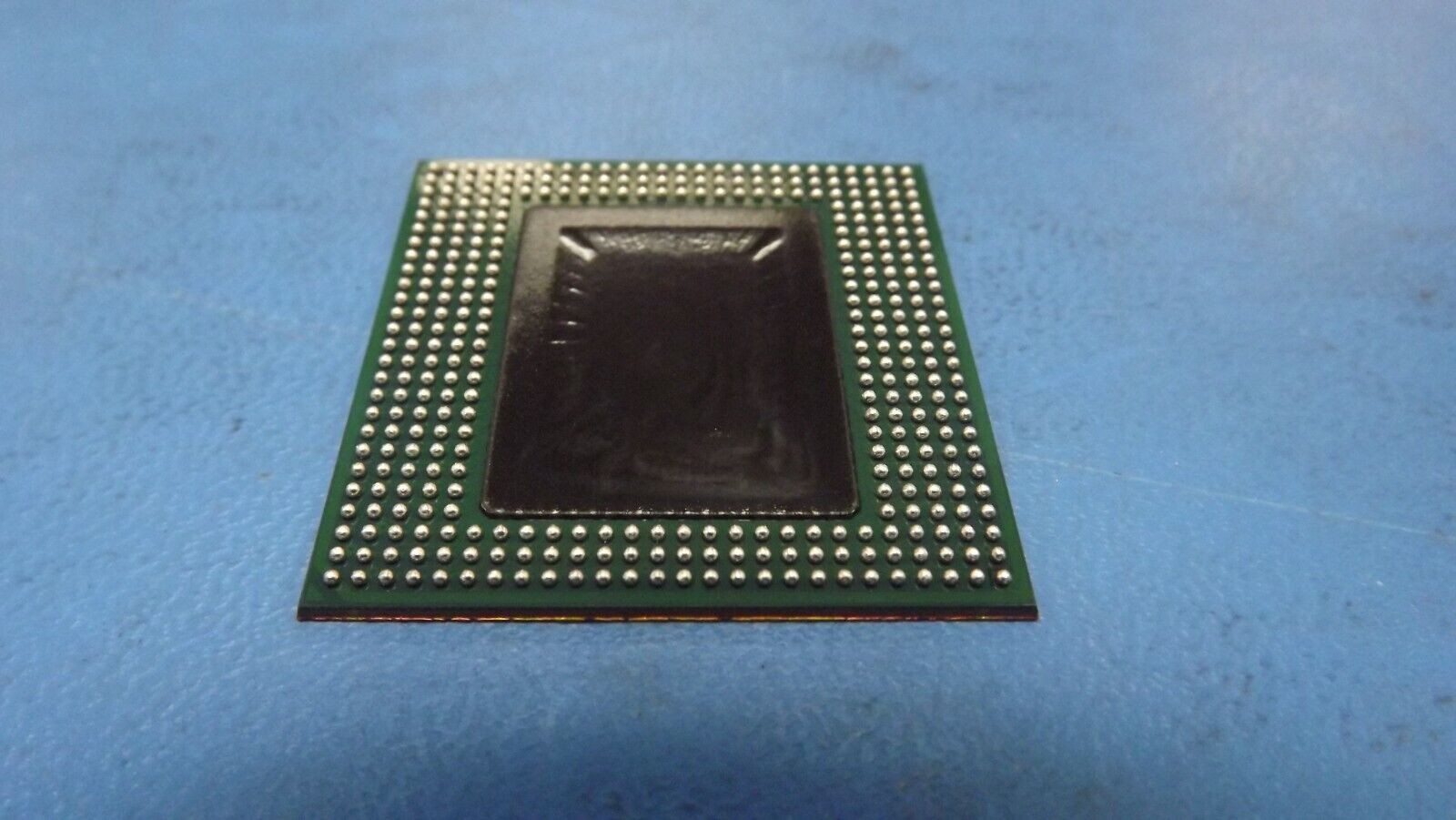

EPF10K50VBI356-4 Loadable PLD, 0.6ns, CMOS, PBGA356
Tax included.
THIS LISTING IS FOR (1PC) OF EPF10K50VBI356-4 BY ALTERA
Mfr Package Description BGA-356
REACH Compliant Yes
Status Discontinued
Programmable Logic Type LOADABLE PLD
JESD-30 Code S-PBGA-B356
Number of Dedicated Inputs 4.0
Number of I/O Lines 274.0
Number of Inputs 274.0
Number of Logic Cells 2880.0
Number of Outputs 274.0
Number of Terminals 356
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 4 DEDICATED INPUTS, 274 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA356,26X26,50
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 3.3
Propagation Delay 0.6 ns
Qualification Status Not Qualified
Seated Height-Max 1.63 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 35.0 mm
Width 35.0 mm
