CY7C1399-15ZC Cypress Cache SRAM, 32KX8, 15ns, CMOS, TSOP28
Tax included.

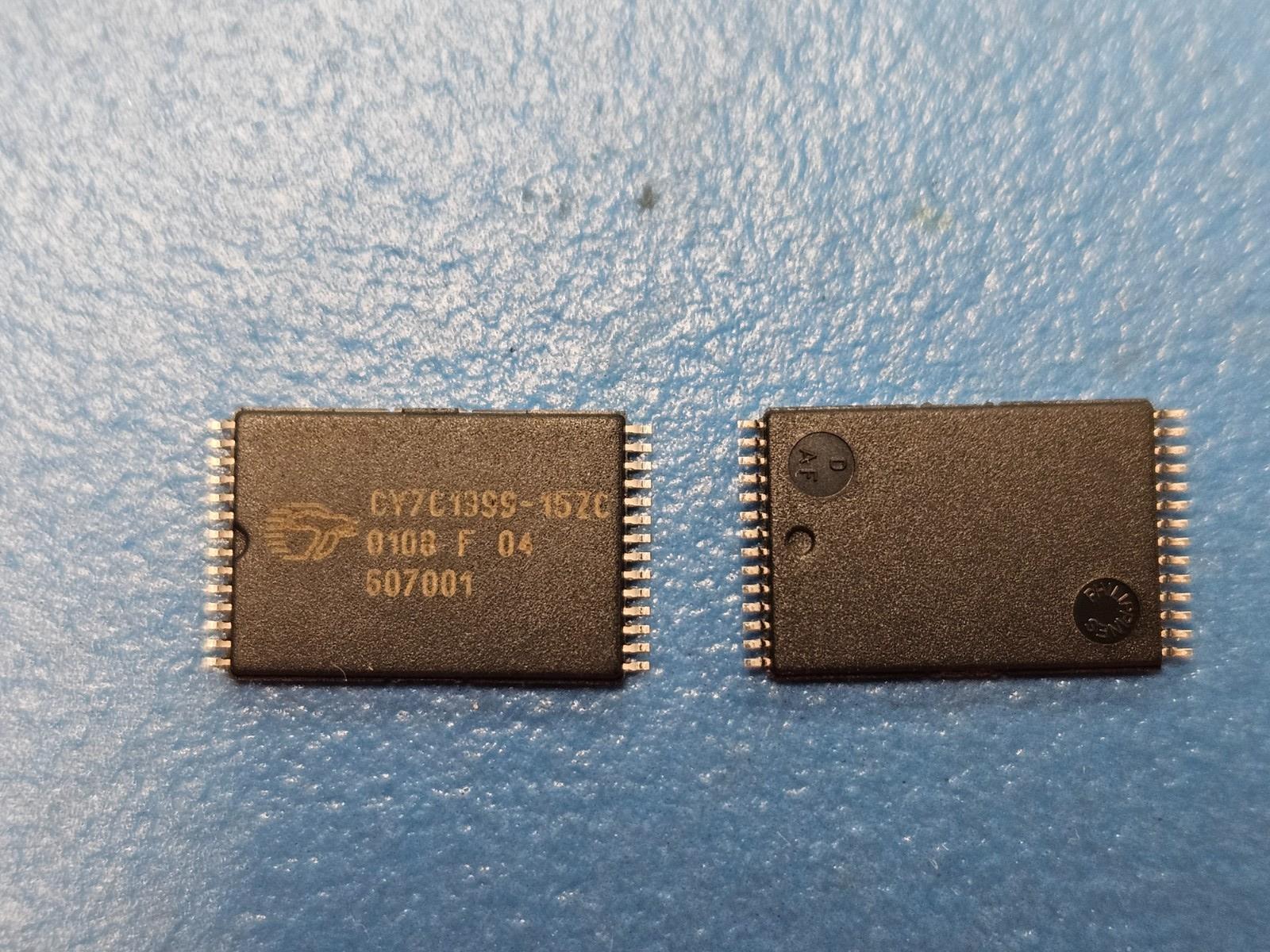

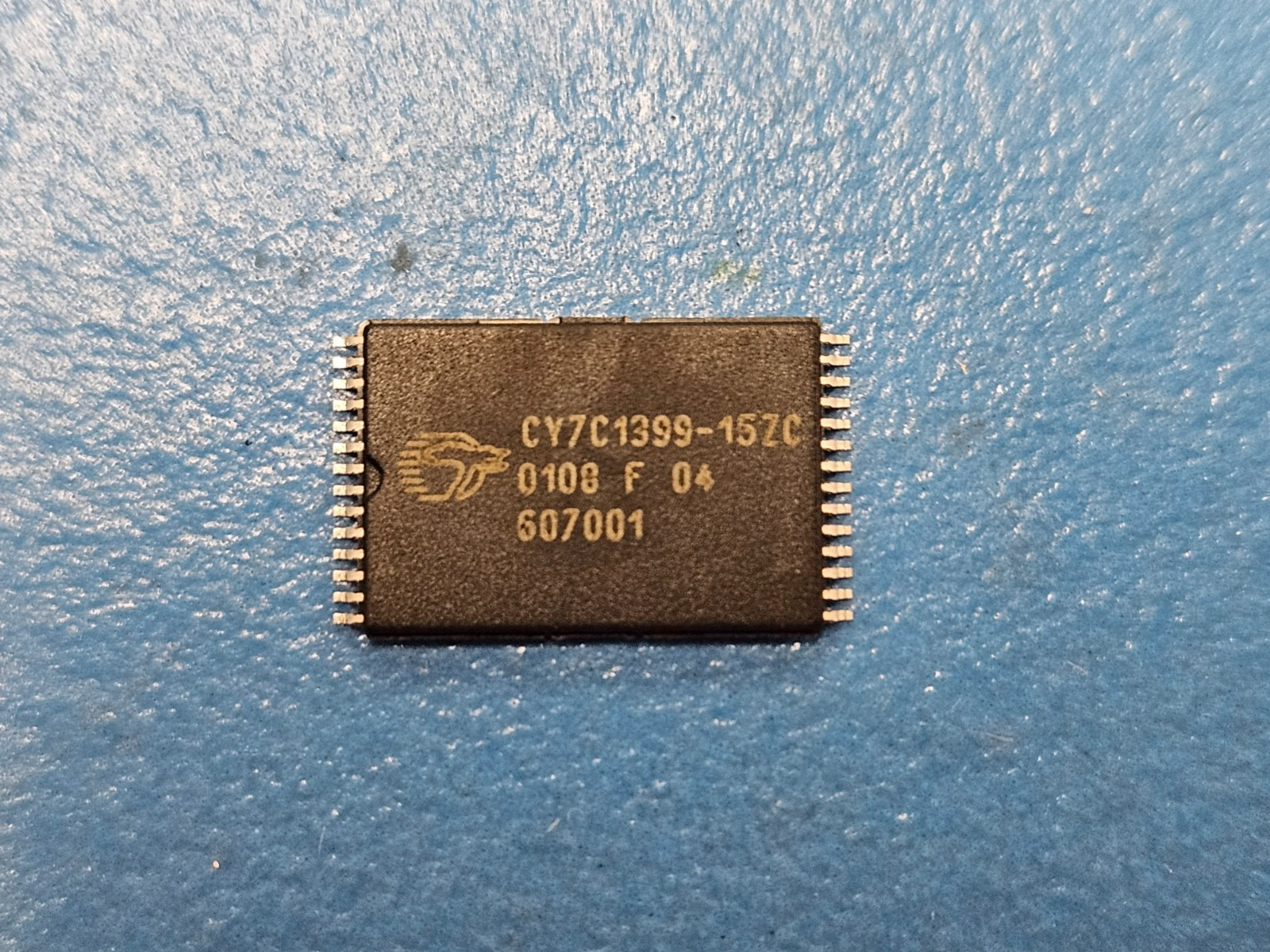

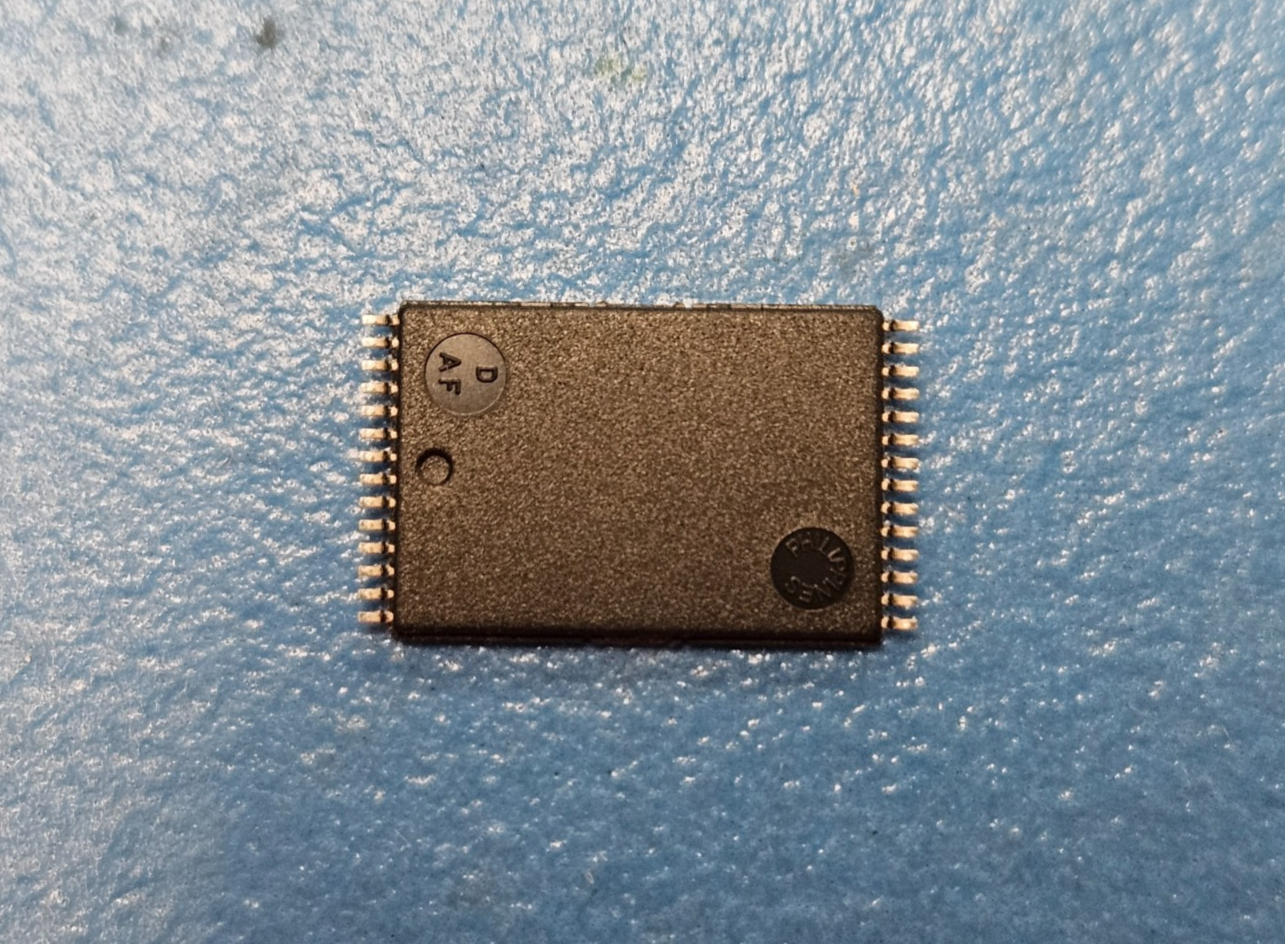

This listing is for (1) CY7C1399-15ZC by Cypress Semiconductor
Mfr Package Description TSOP1-28
Status Discontinued
Sub Category SRAMs
Access Time-Max 15.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type CACHE SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 28
Number of Words 32768.0 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP28,.53,22
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 2.0E-4 Amp
Standby Voltage-Min 2.0 V
Supply Current-Max 0.055 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.55 mm
Terminal Position DUAL
Length 11.8 mm
Width 8.0 mm
