(Box of 10) KLKD.300 or KLKD3/10 - KLKD Series Fast Blow, 0.3A, 600VAC, 600VDC
(Box of 10) KLKD.300 or KLKD3/10 - KLKD Series Fast Blow, 0.3A, 600VAC, 600VDC
(Box of 10) KLKD.300 or KLKD3/10 - KLKD Series Fast Blow, 0.3A, 600VAC, 600VDC
(Box of 10) KLKD.300 or KLKD3/10 - KLKD Series Fast Blow, 0.3A, 600VAC, 600VDC
(Box of 10) KLKD.300 or KLKD3/10 - KLKD Series Fast Blow, 0.3A, 600VAC, 600VDC

(Box of 10) KLKD.300 or KLKD3/10 - KLKD Series Fast Blow, 0.3A, 600VAC, 600VDC

Tax included.
Only 6 left!

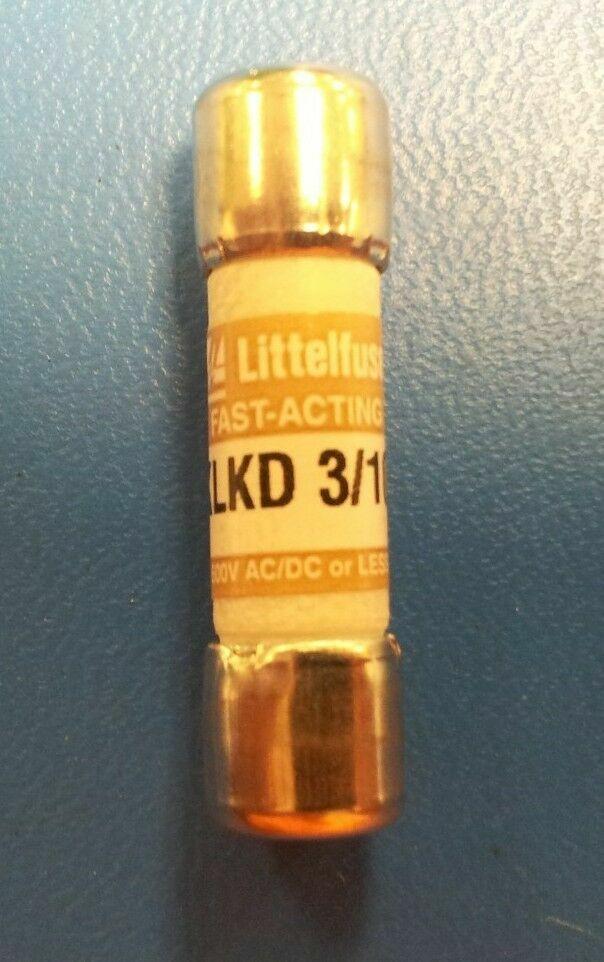

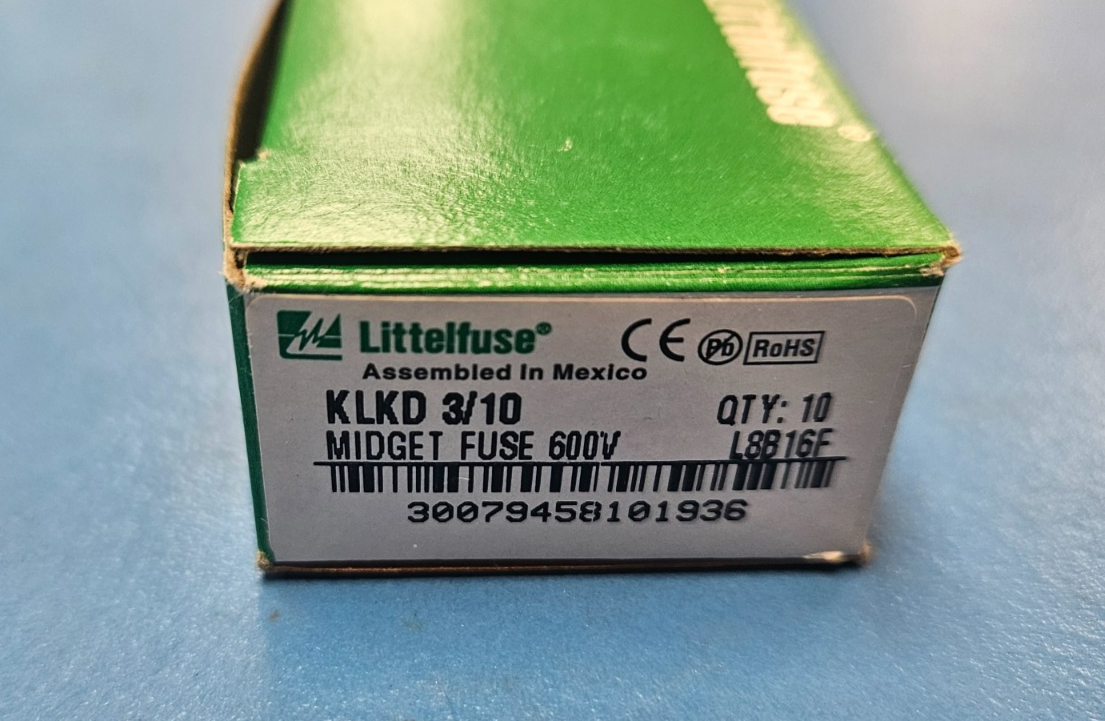

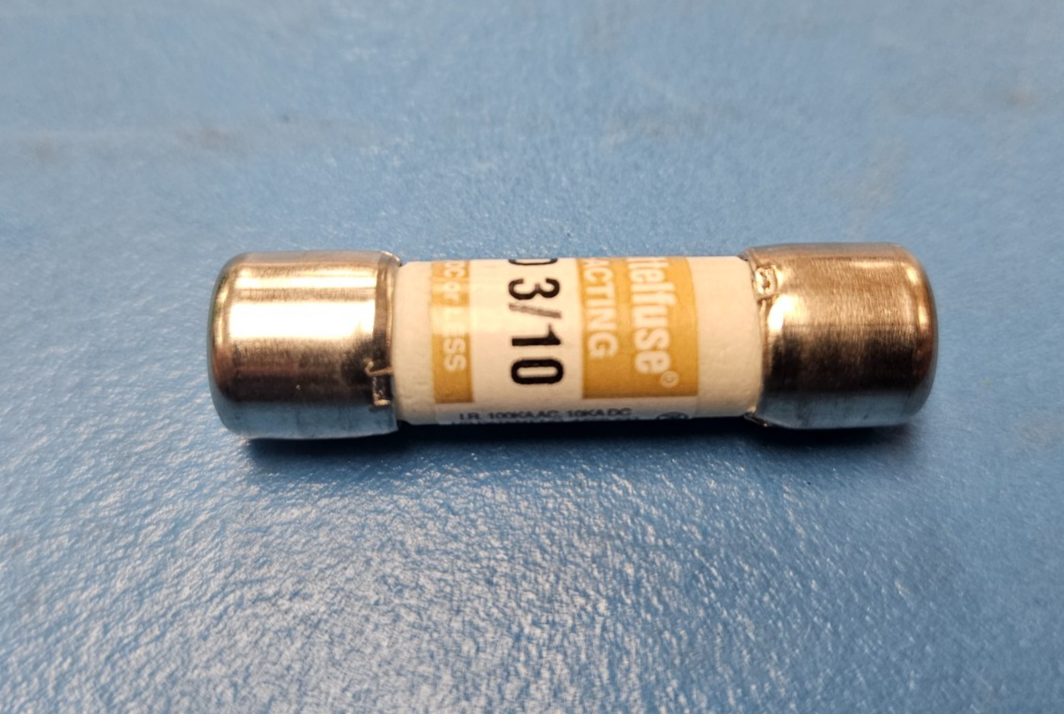

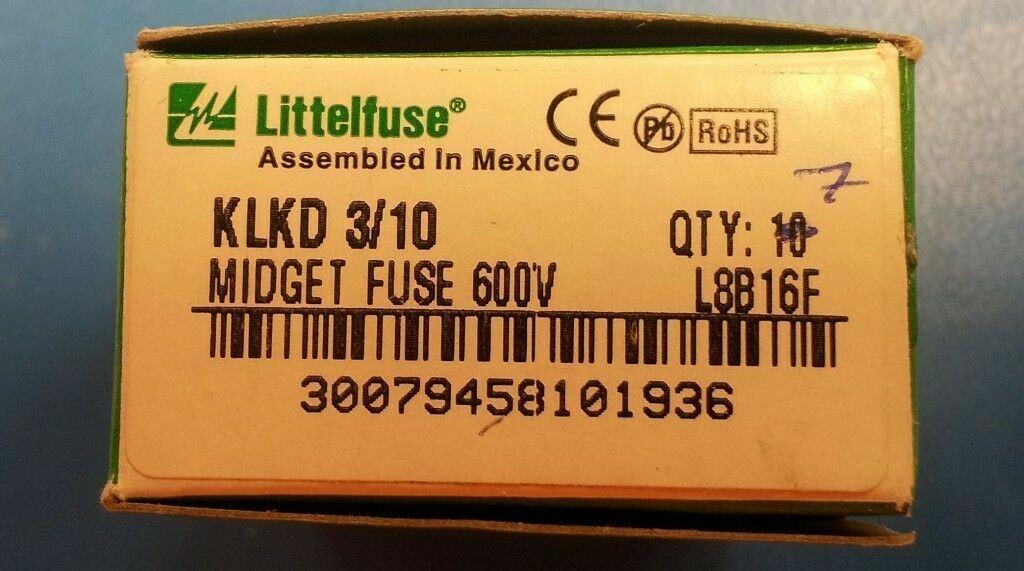

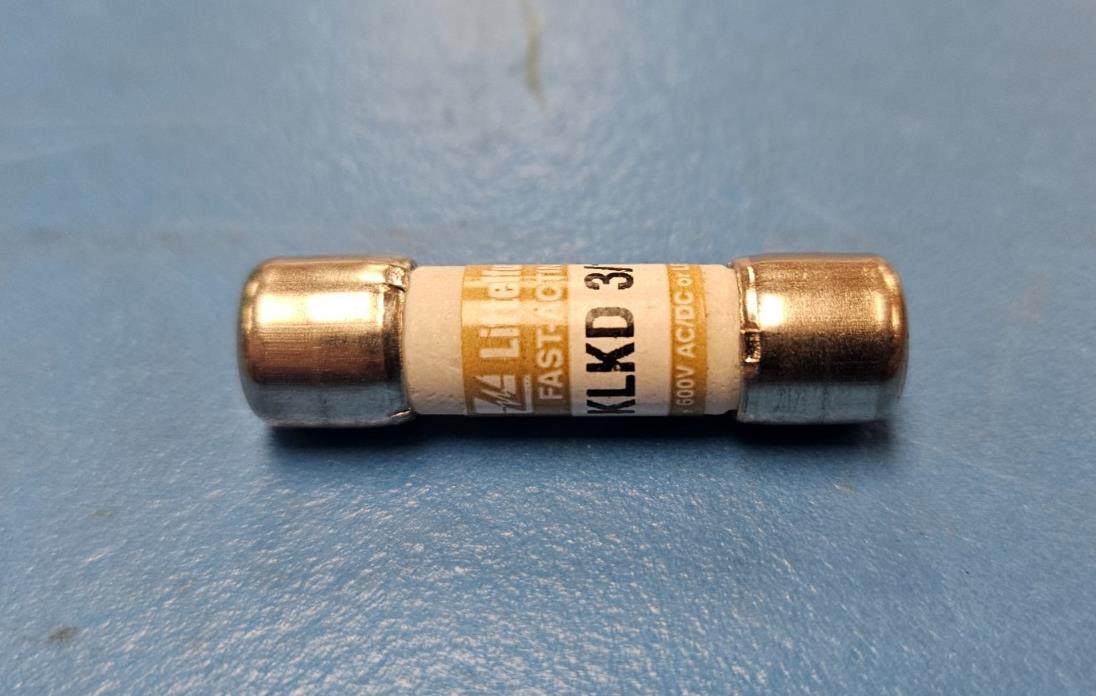

This listing is for 10 fuses KLKD.300 by Littelfuse

Applications
• Combiner boxes and Inverters
• Power supplies
• Desktop meters

Status Active
Blow Characteristic FAST
Body Height (mm) 38.1000
Body Length or Diameter (mm) 10.3100
Circuit Protection Type ELECTRIC FUSE
Fuse Size 10x38mm
Mounting Feature INLINE/HOLDER
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Rated Breaking Capacity (A) 100000.00000000
Rated Current (A) 0.30000000
Rated Voltage (AC) (V) 600.00000000
Rated Voltage (DC) (V) 600.00000000
Screening Level / Reference Standard CE; CSA; IEC; UL
Terminal Shape END CAP
Trip Time or Delay (Seconds) 240.000000000000000
