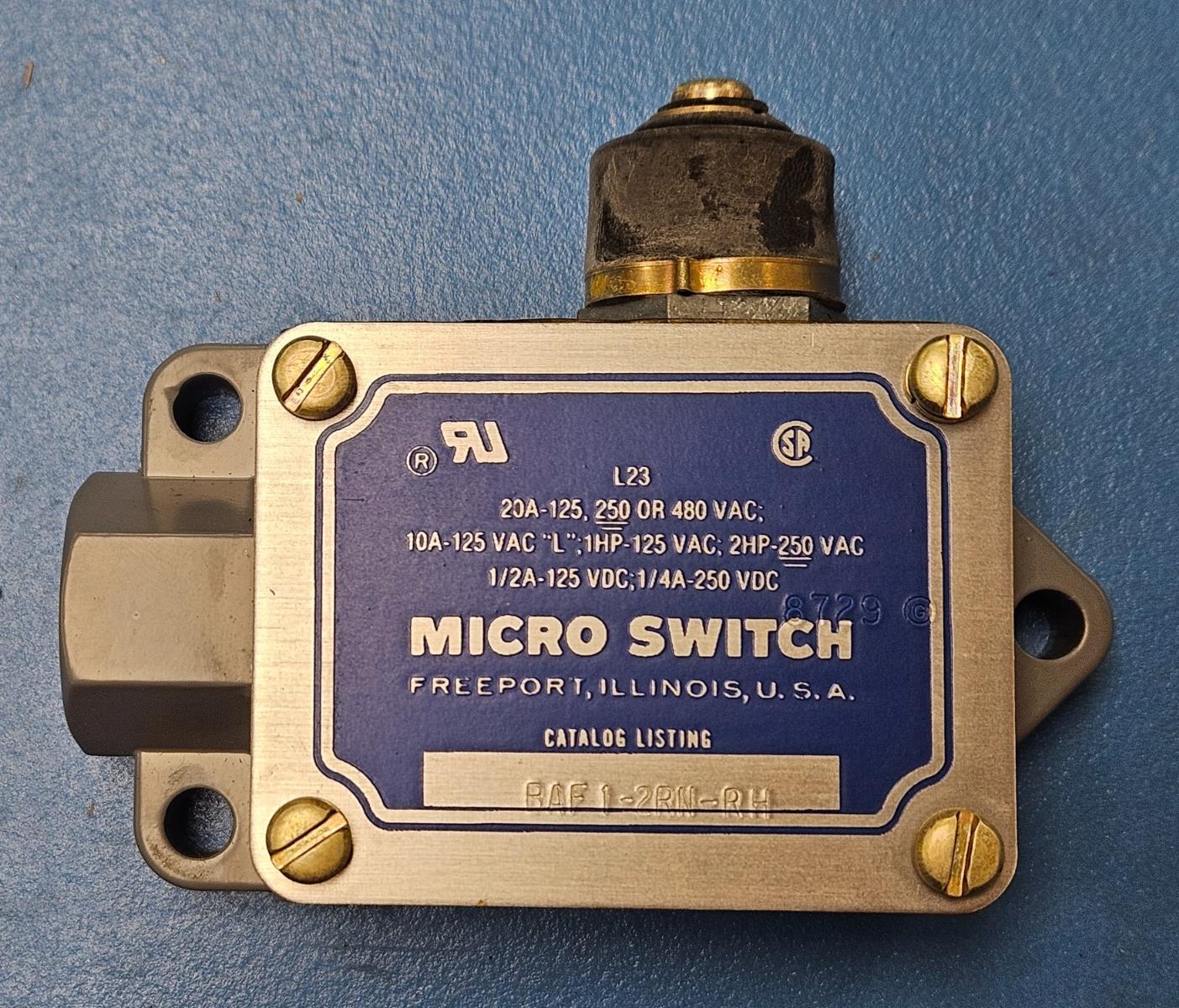

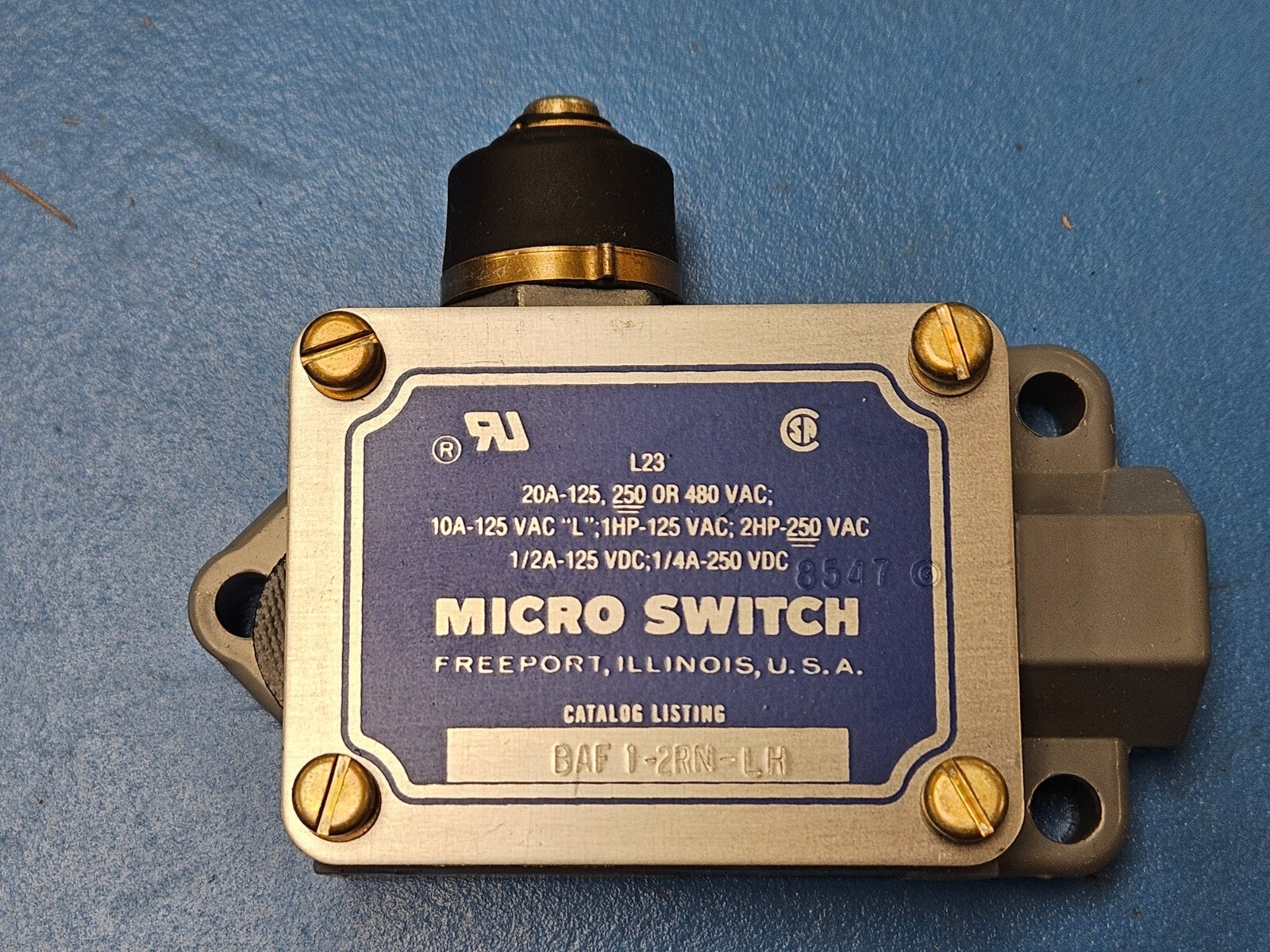

BAF1-2RN-RH Limit Switches SPDT Top Plunger Actuator-Rt Snp Act
Tax included.
This listing is for (1) BAF1-2RN-RH by Microswitch
Status NRFND
Switch Type SNAP ACTING/LIMIT SWITCH
Actuator Type STEEL PLUNGER
Body Breadth 33.02 mm
Body Height 54.86 mm
Body Length or Diameter 101.6 mm
Contact AC Max Rating R Load 20A@480VAC
Contact Current(AC)-Max 20.0 A
Contact Current(DC)-Max 0.5 A
Contact DC Max Rating R Load .5A@125VDC
Contact Voltage(AC)-Max 480.0 V
Contact Voltage(DC)-Max 125.0 V
Mounting Feature PANEL MOUNT-THREADED
Operating Force-Max 11.12 N
Pre-Travel-Max 2.39 mm
Switch Action MOMENTARY
Switch Function SPDT
Termination Type SCREW
