BAF1-2RN-LH Limit Switches SPDT Top Plunger Actuator-Rt Snp Act
Tax included.

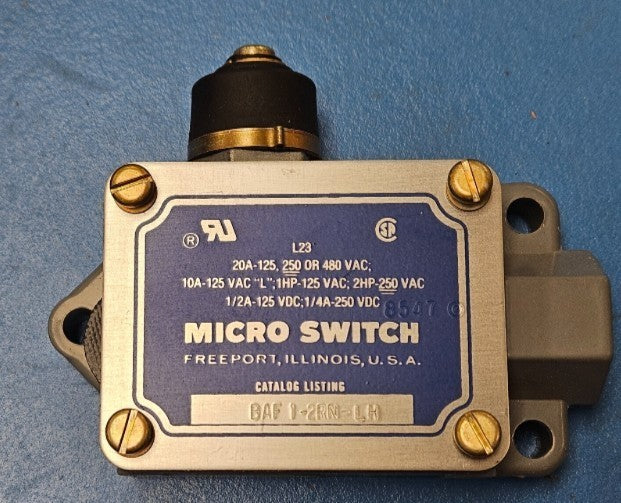

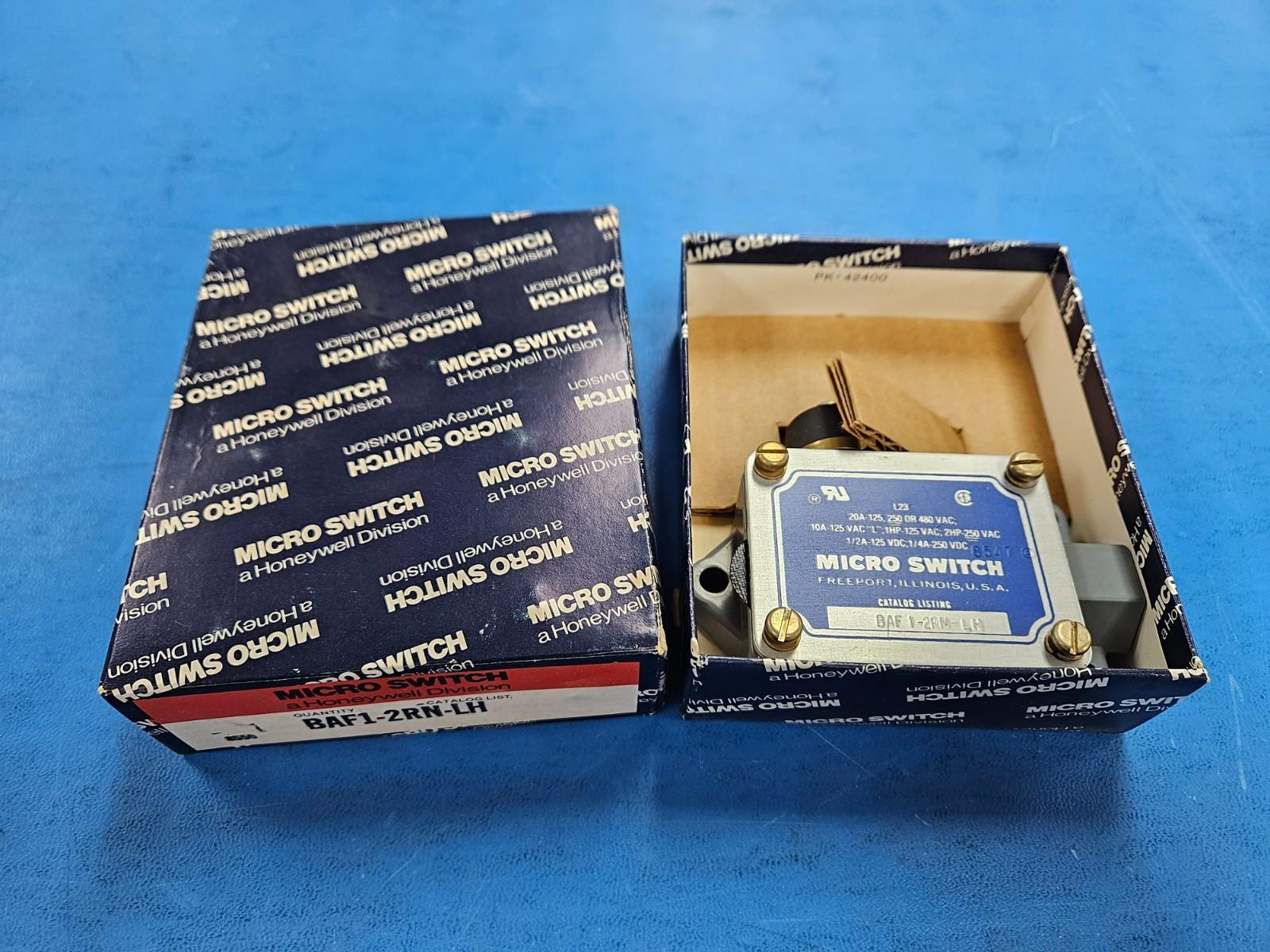

This listing is for (1) BAF1-2RN-LH by Microswitch
Status Active
Actuator Travel (mm) 7.95
Actuator Type STEEL PLUNGER
Body Breadth (mm) 33.0200
Body Height (mm) 54.8600
Body Length or Diameter (mm) 101.6000
Contact AC Max Rating R Load 20A@480VAC
Contact Current(AC)-Max (A) 20.00000000
Contact Current(DC)-Max (A) 0.50000000
Contact DC Max Rating R Load .5A@125VDC
Contact Voltage(AC)-Max (V) 480.00000000
Contact Voltage(DC)-Max (V) 125.00000000
Mounting Feature PANEL MOUNT
Operating Force-Max (N) 11.1200
Pre-Travel-Max (mm) 2.3900
Switch Action MOMENTARY
Switch Function SPDT
Switch Type SNAP ACTING/LIMIT SWITCH
Termination Type SCREW
