ADSP-2115KP-66 DSP Fixed-Point 16-Bit 16.67MHz 16.67MIPS 68-Pin PLCC
Tax included.
THIS LISTING IS FOR (1PC) OF ADSP-2115KP-66 BY ANALOG DEVICES.
DSP Fixed-Point 16-Bit 16.67MHz 16.67MIPS 68-Pin PLCC

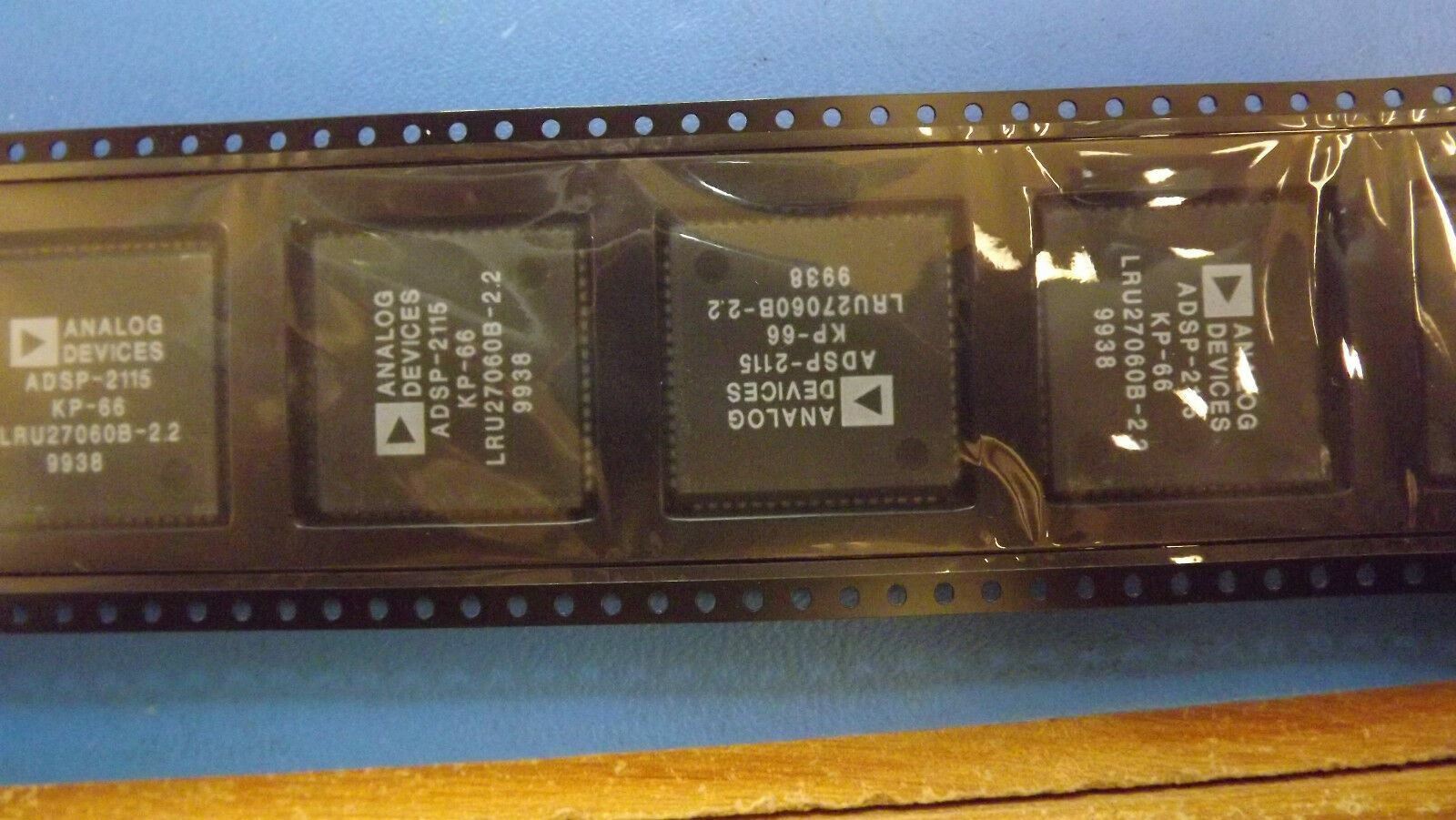

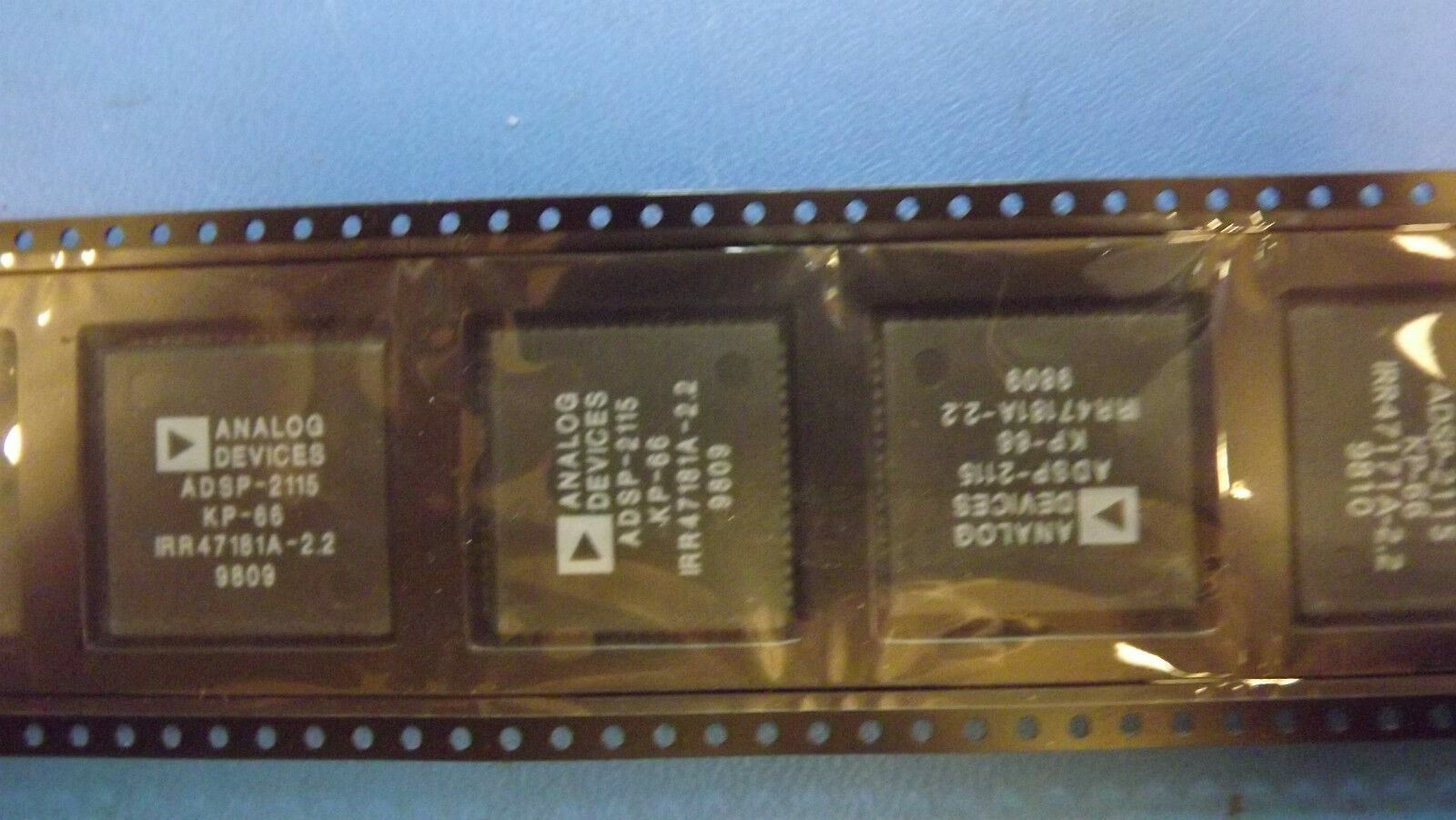

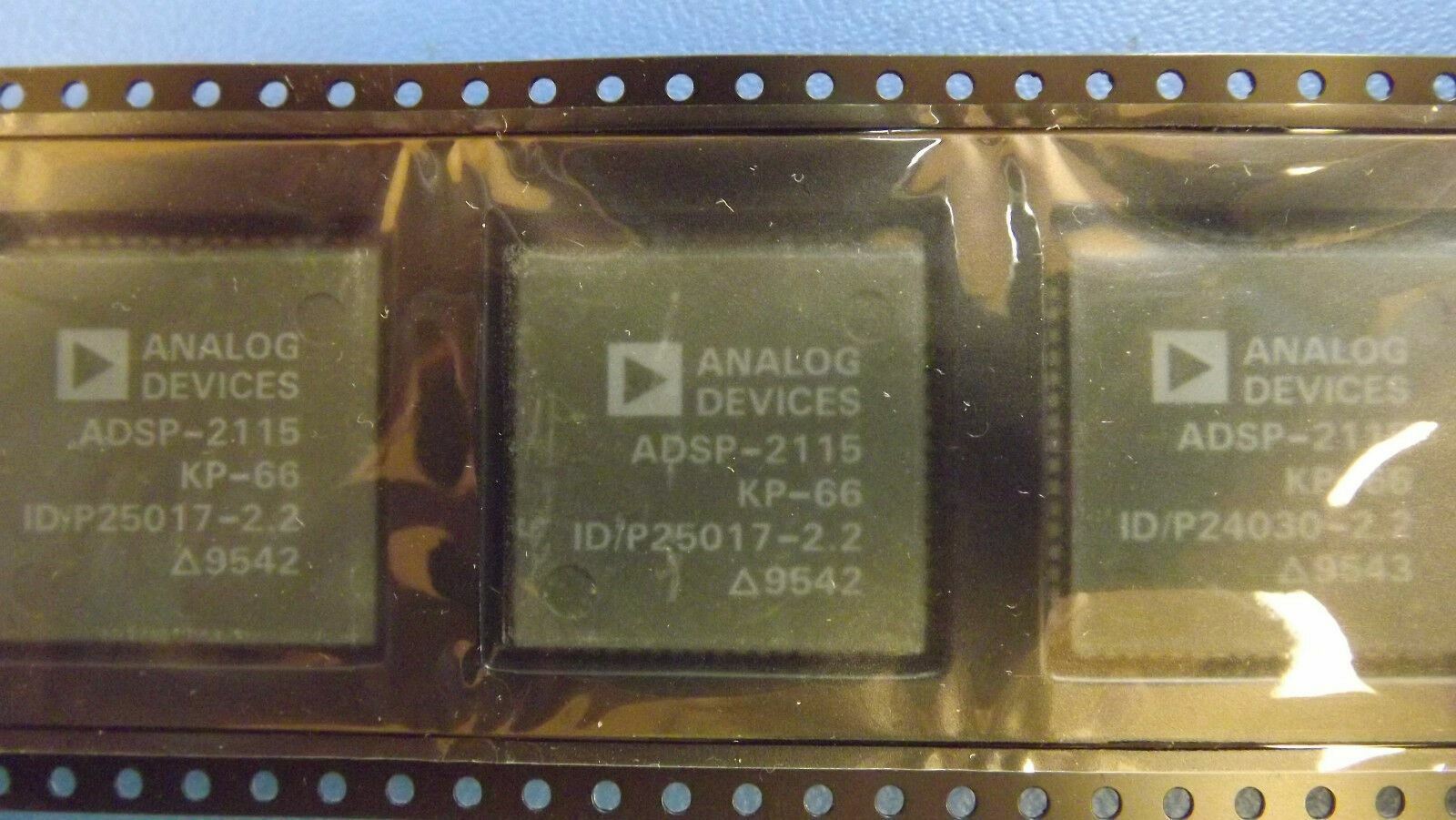

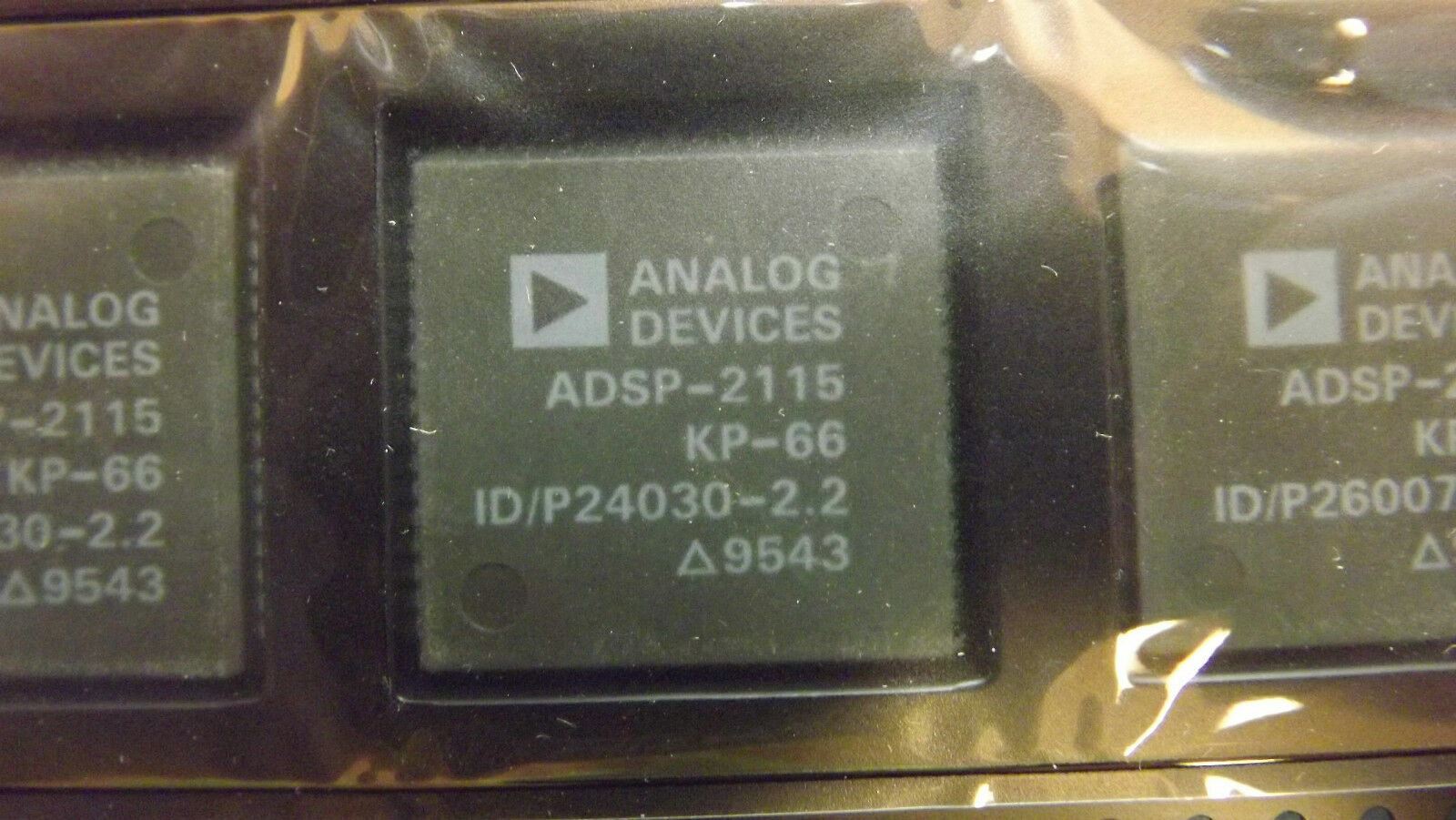

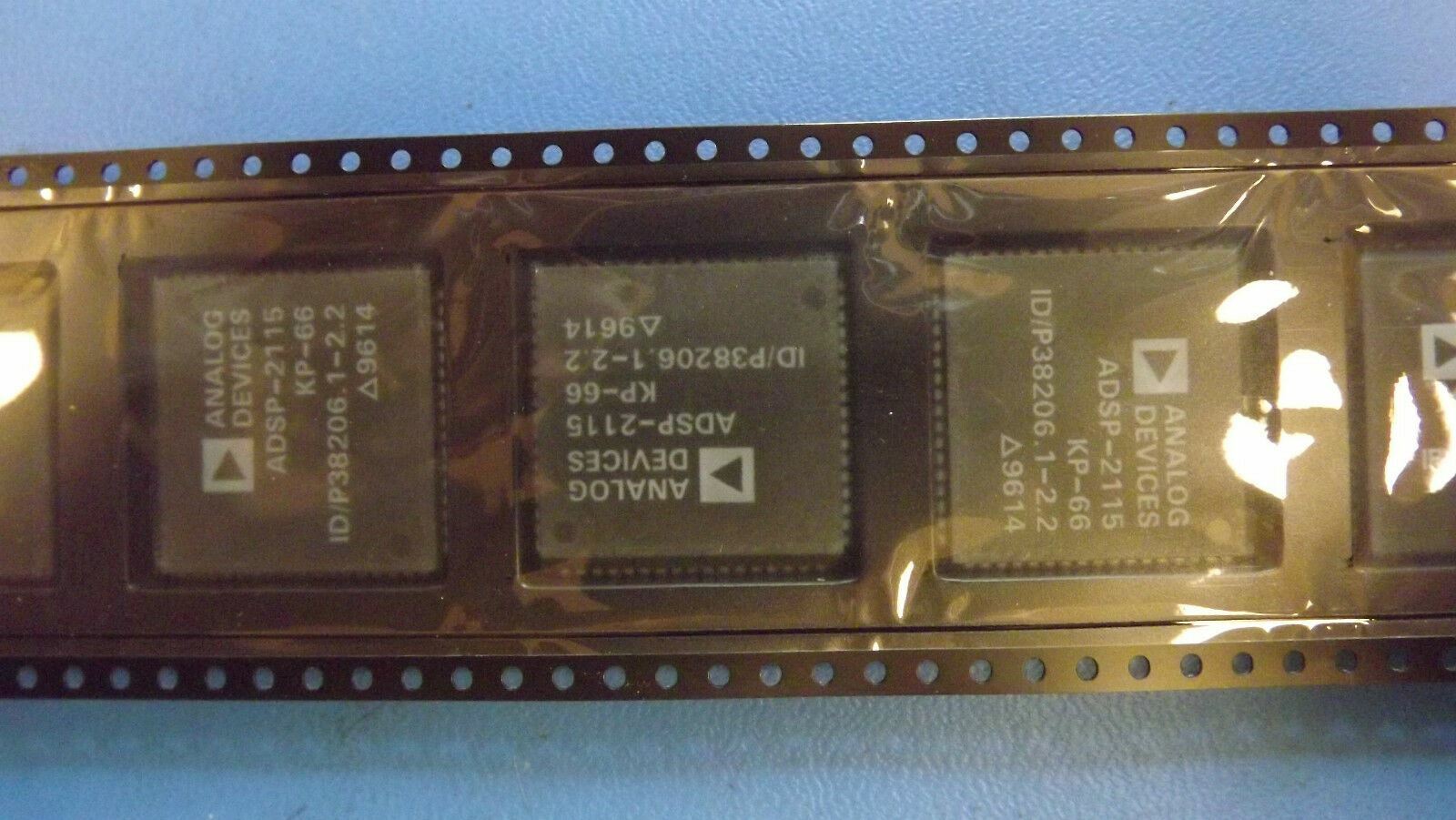

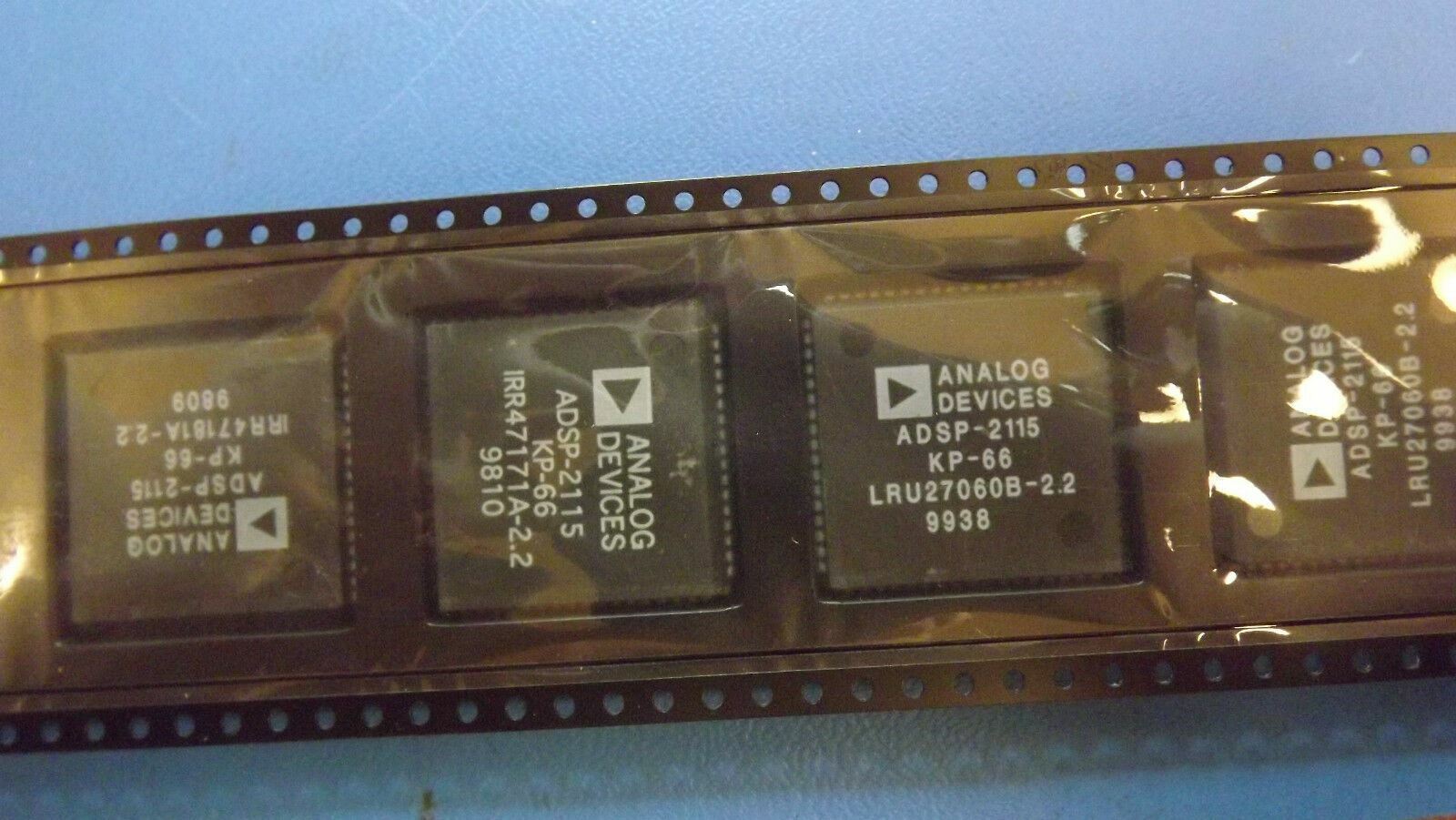

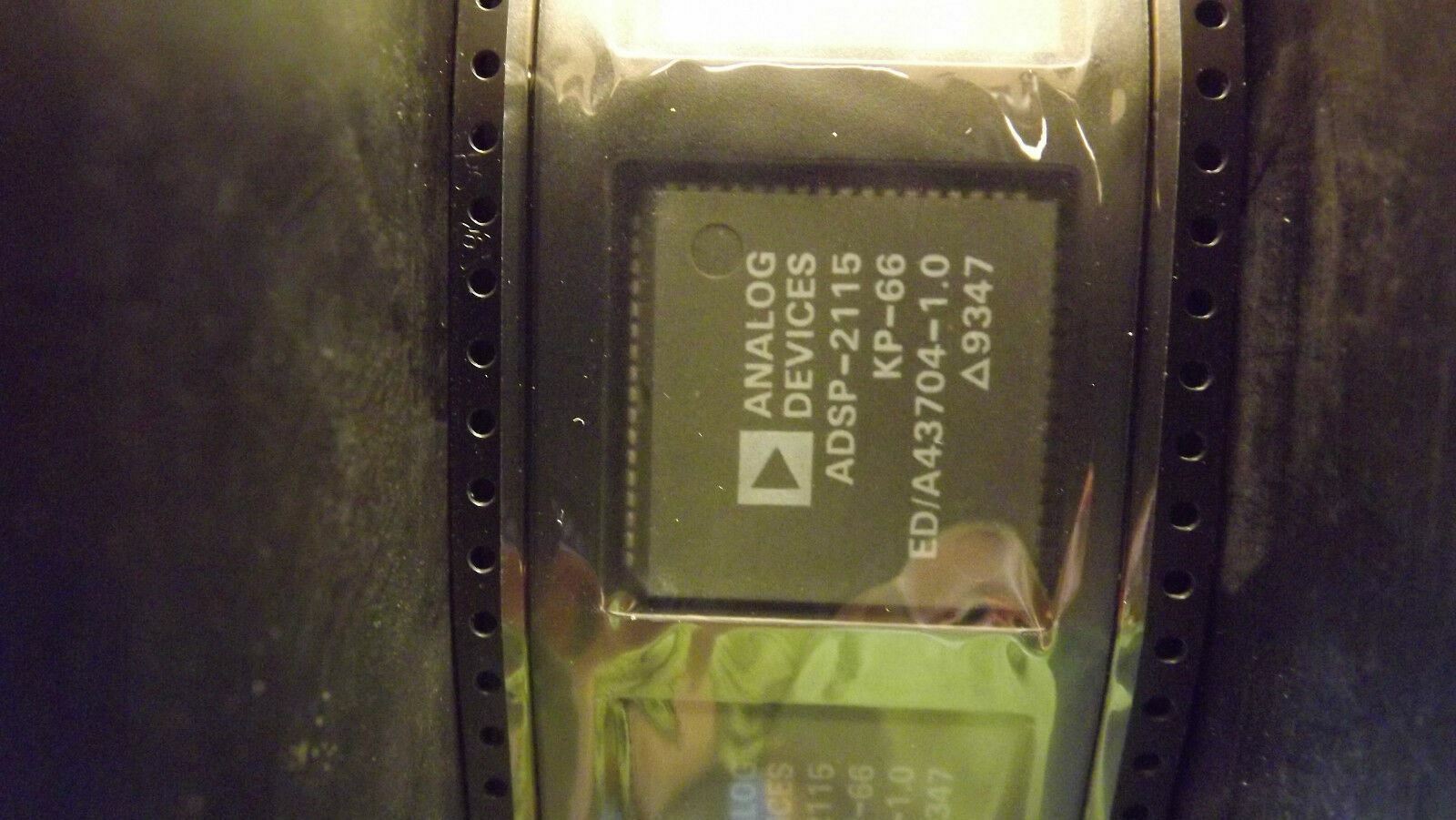

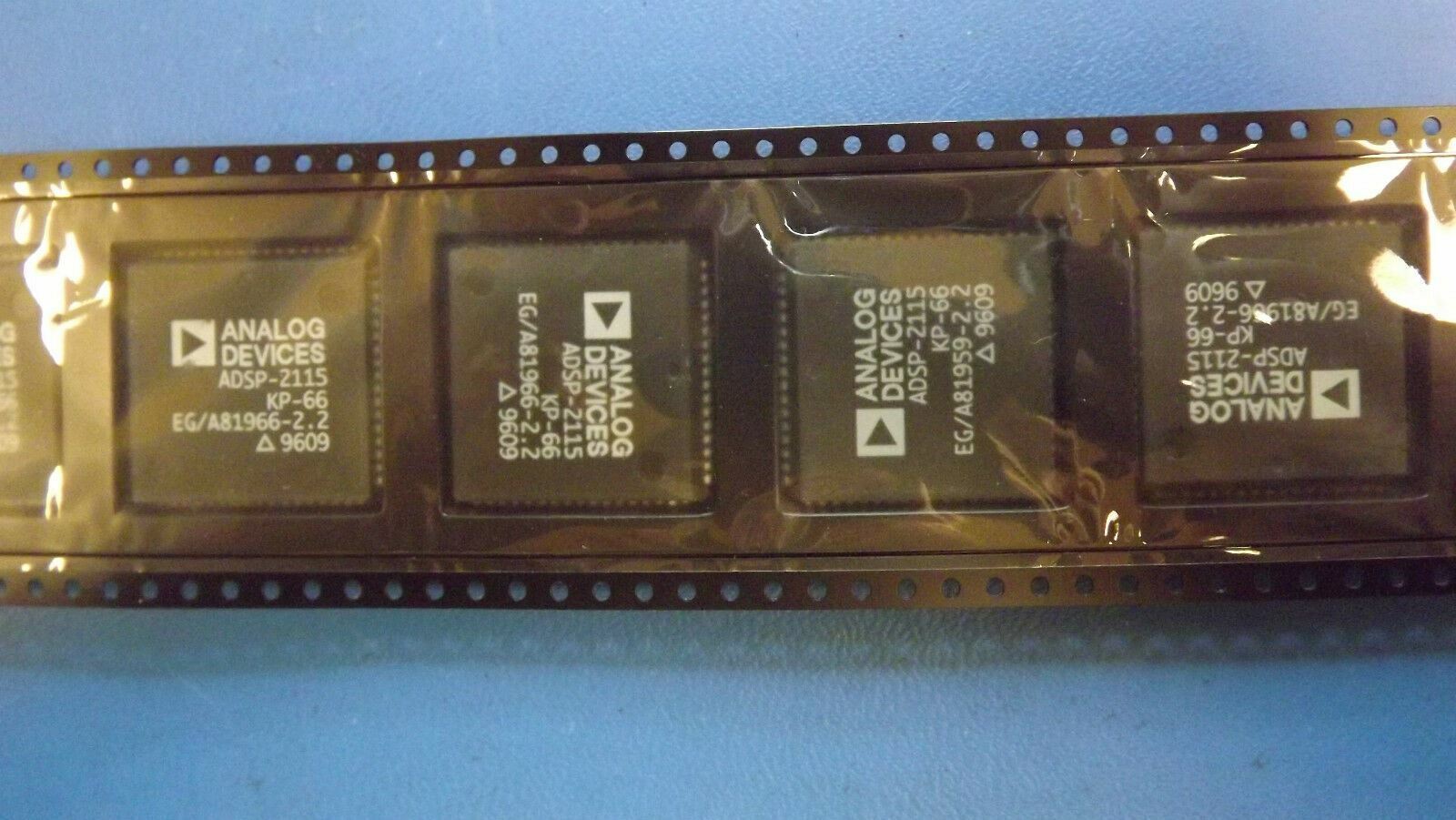

**CUSTOMER MIGHT NOT RECEIVE EXACT DATE CODE AS SHOWN IN PICTURE, BUT THEY ALL HAVE THE SAME PART NUMBER MARKING.
ADSP-2115KP-66 Part Details & Parametric
| EU RoHS | Not Compliant |
| Program Memory Type | ROMLess |
| I2C | 0 |
| CAN | 0 |
| Data Bus Width (bit) | 16 |
| Instruction Set Architecture | Enhanced Harvard |
| Numeric and Arithmetic Format | Fixed-Point |
| UART | 0 |
| Typical Operating Supply Voltage (V) | 5 |
| Ethernet | 0 |
| RAM Size | 1.5KB |
| USART | 0 |
| USB | 0 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| SPI | 0 |
| Max. Speed (MHz) | 16.67 |
| Device Million Instructions per Second (MIPS) | 16.67 |
| I2S | 0 |
| Device Input Clock Speed (MHz) | 16.67 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Screening Level | Commercial |
| Programmability | No |
| Lead Shape | J-Lead |
| Mounting | Surface Mount |
| Package Length (mm) | 24.18 |
| Package Width (mm) | 24.18 |
| PCB | 68 |
| Standard Package Name | PLCC |
| Supplier Package | PLCC |
| Pin Count | 68 |
| Lead Shape | J-Lead |
