ADSP-21062LKS-133 Digital Signal Processor, 32-Bit Size 33.33MHz, CMOS QFP240
Tax included.

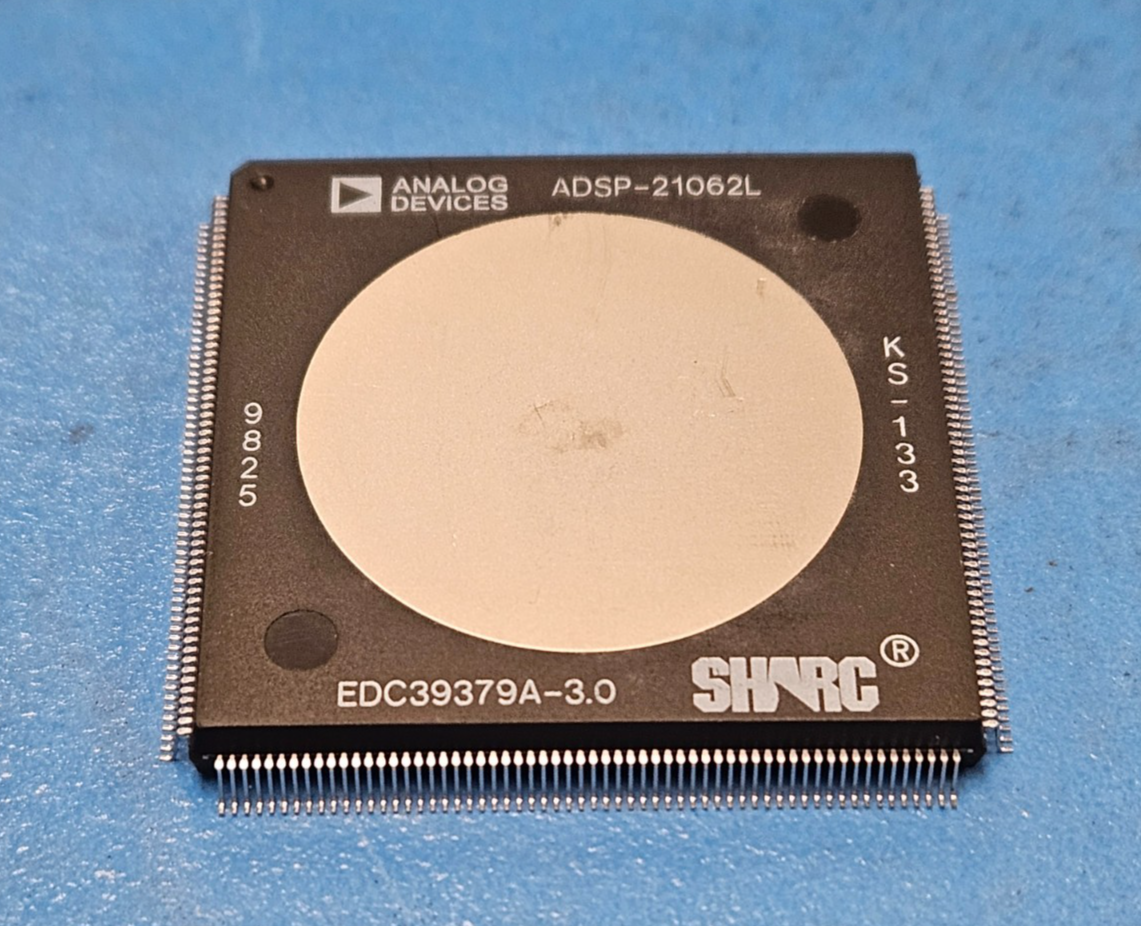

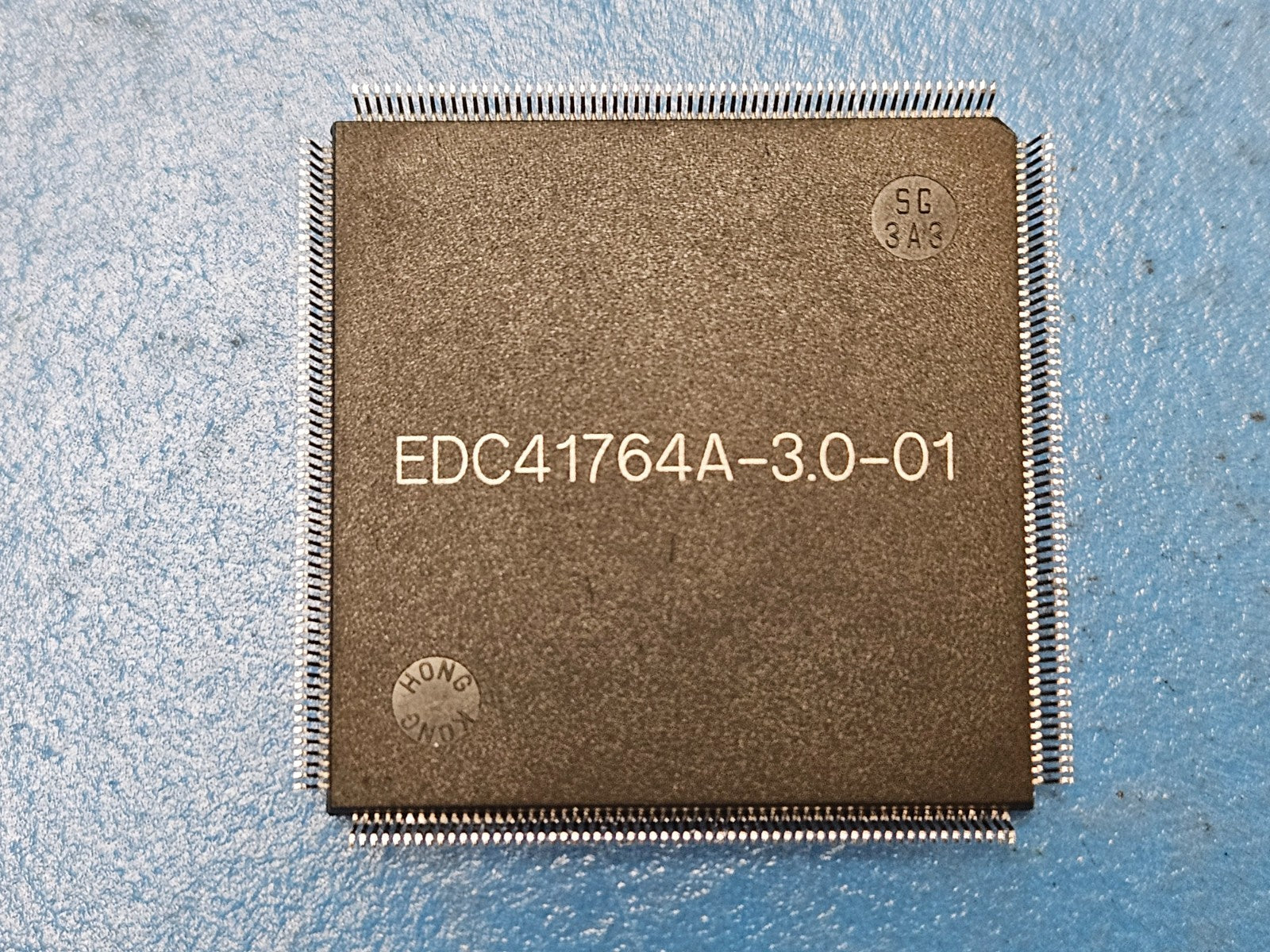

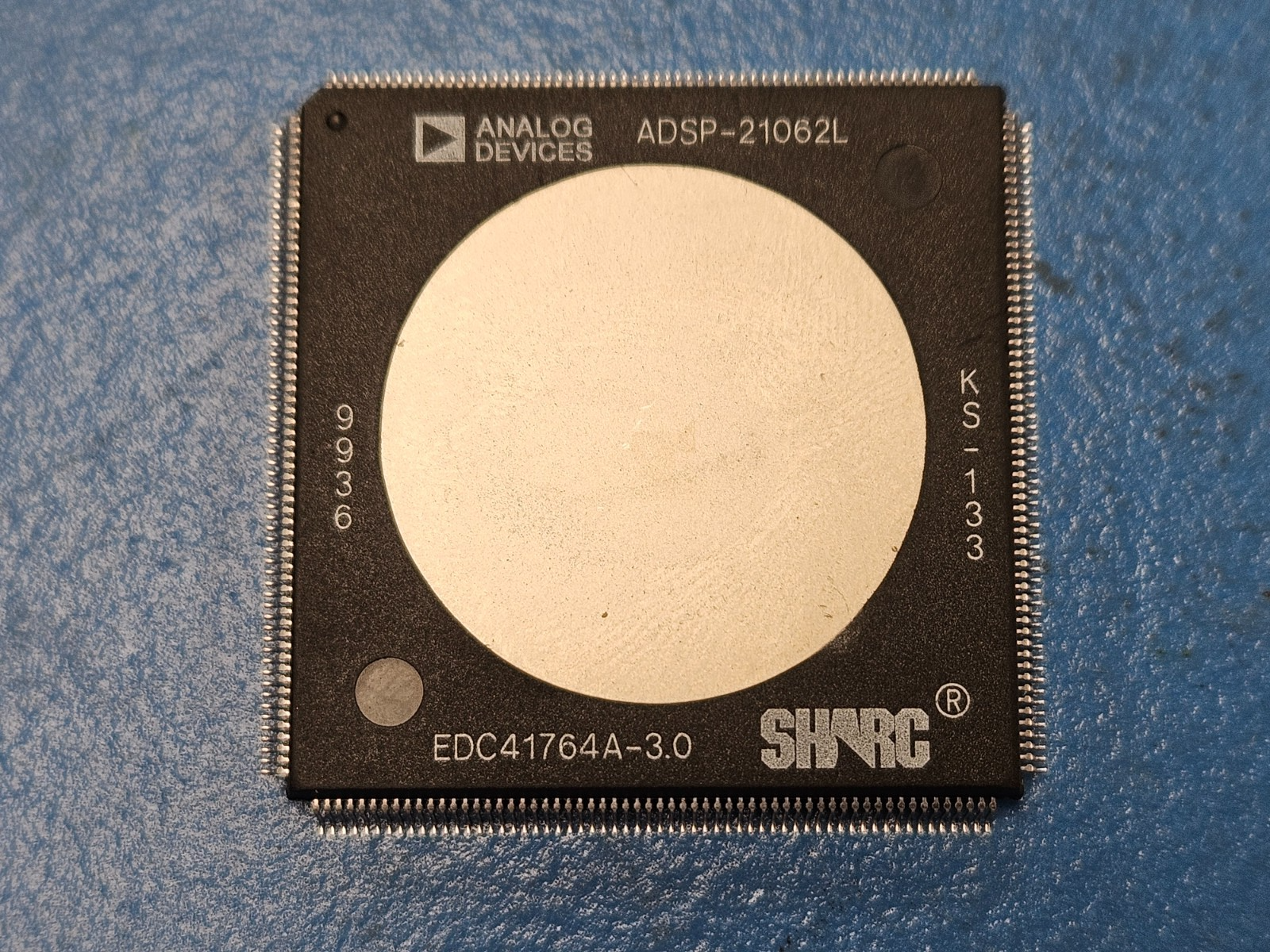

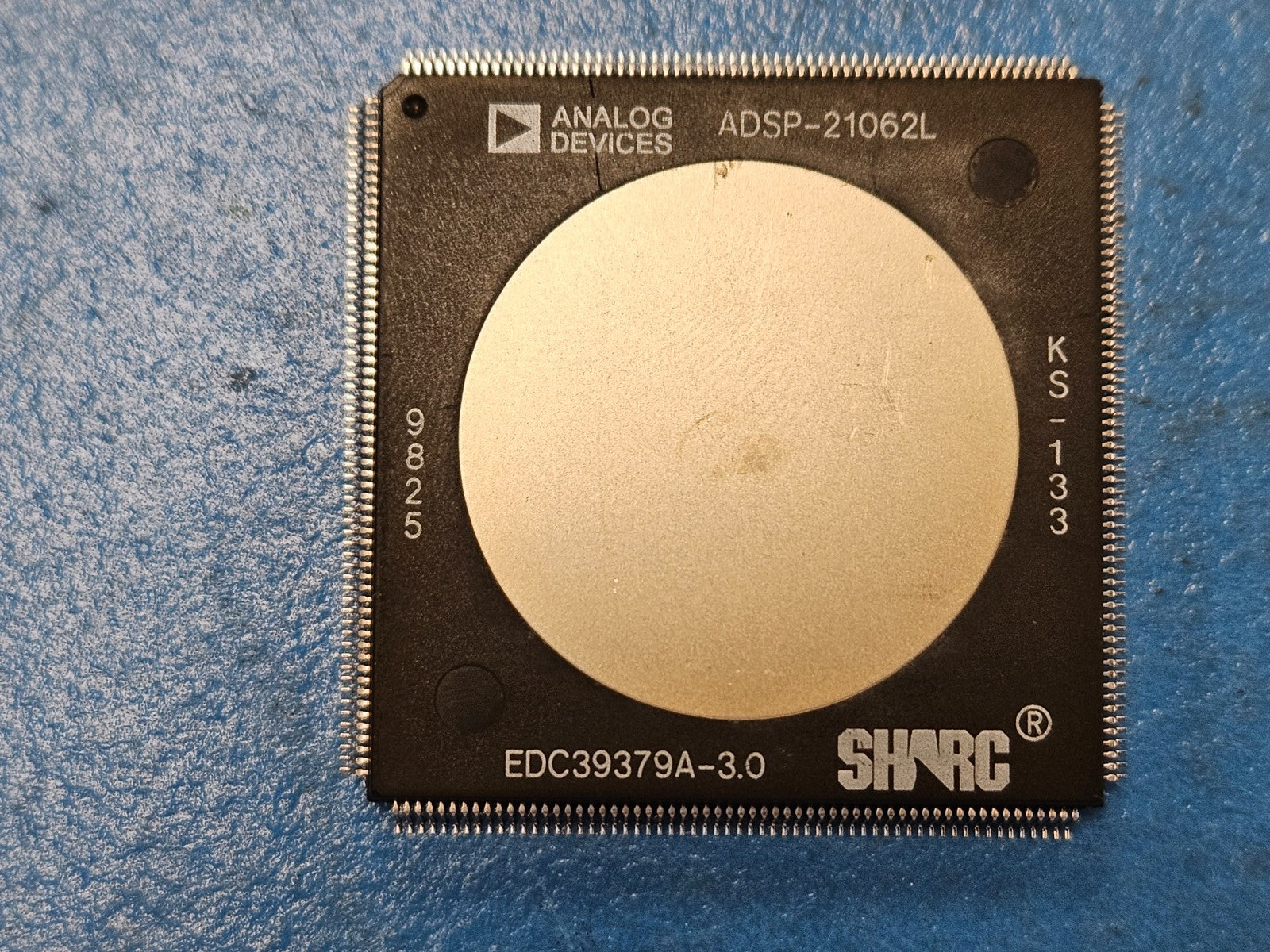

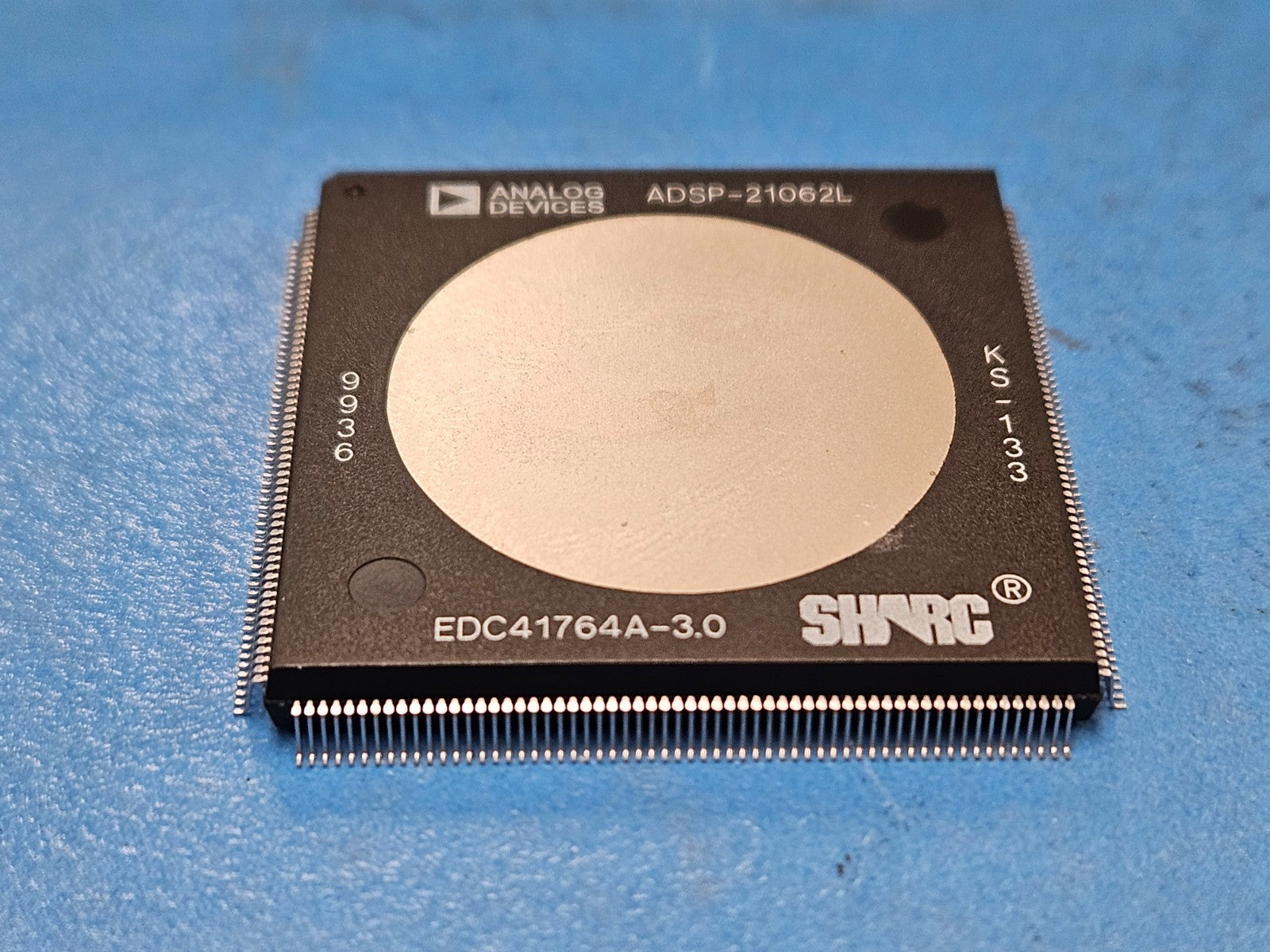

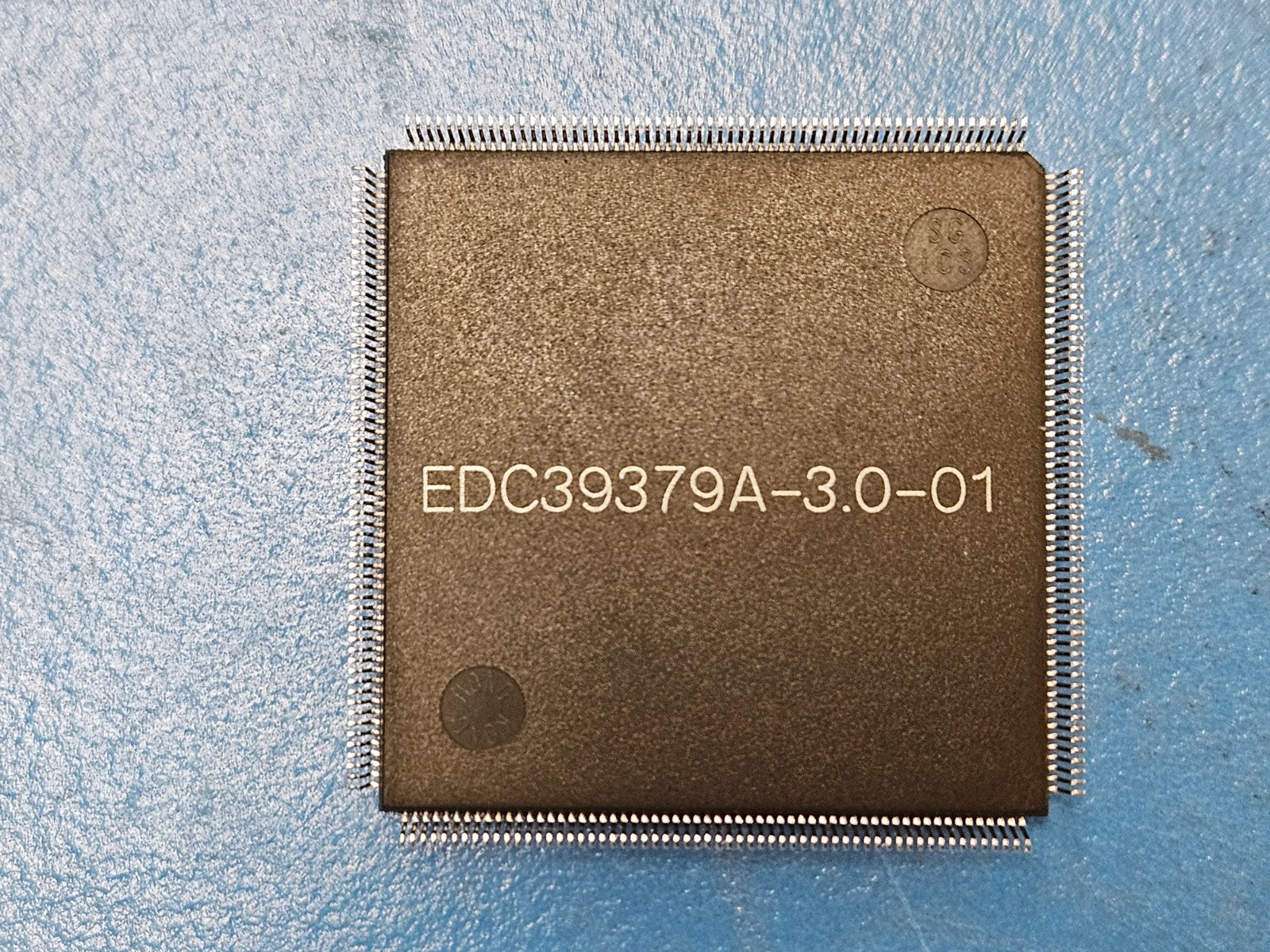

This listing is for (1PC) of ADSP-21062LKS-133 by Analog Devices
Digital Signal Processor, 32-Bit Size, 48-Ext Bit, 33.33MHz, CMOS, PQFP240
Status Discontinued
Address Bus Width 32
Barrel Shifter YES
Bit Size 32
Boundary Scan YES
Clock Frequency-Max (MHz) 33.3300000000000000
External Data Bus Width 48
Format FLOATING POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQFP-G240
J-STD-609 Code e0
Length (mm) 32.0000
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 10
Number of External Interrupts 3
Number of Serial I/Os 2
Number of Terminals 240
Number of Timers 1
On Chip Data RAM Width 1
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) 0.0000
Package Body Material PLASTIC/EPOXY
Package Code HFQFP
Package Equivalence Code QFP240,1.3SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, FINE PITCH
Peak Reflow Temperature (Cel) 225
DLA Qualification Not Qualified
RAM (words) 2M
Seated Height-Max (mm) 4.1000
Supply Current-Max (mA) 530.00000000
Supply Voltage-Max (V) 3.4500
Supply Voltage-Min (V) 3.1500
Supply Voltage-Nom (V) 3.3000
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Width (mm) 32.0000
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
