ADSP-2100KG 16-Bit Size, 24-Ext Bit, 32.768MHz, CMOS, CPGA100
Tax included.

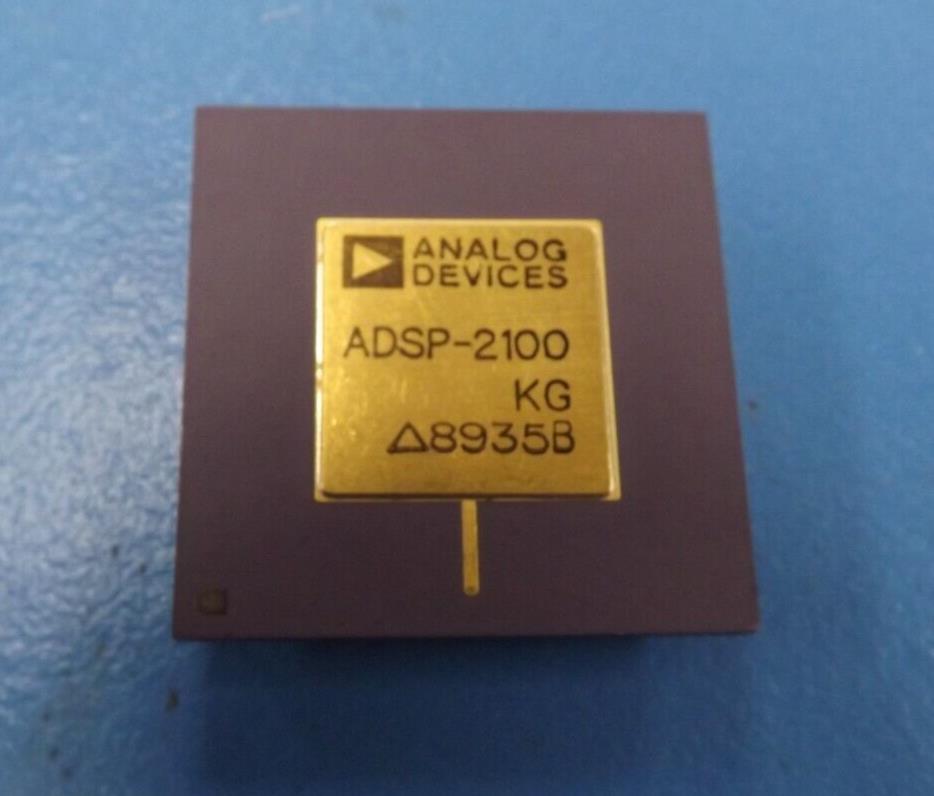

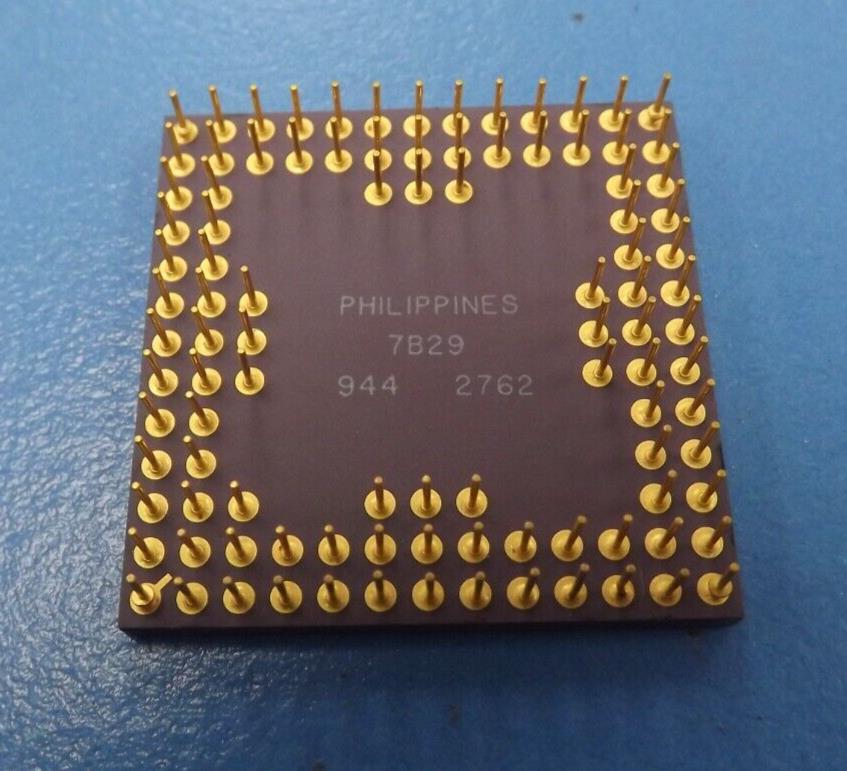

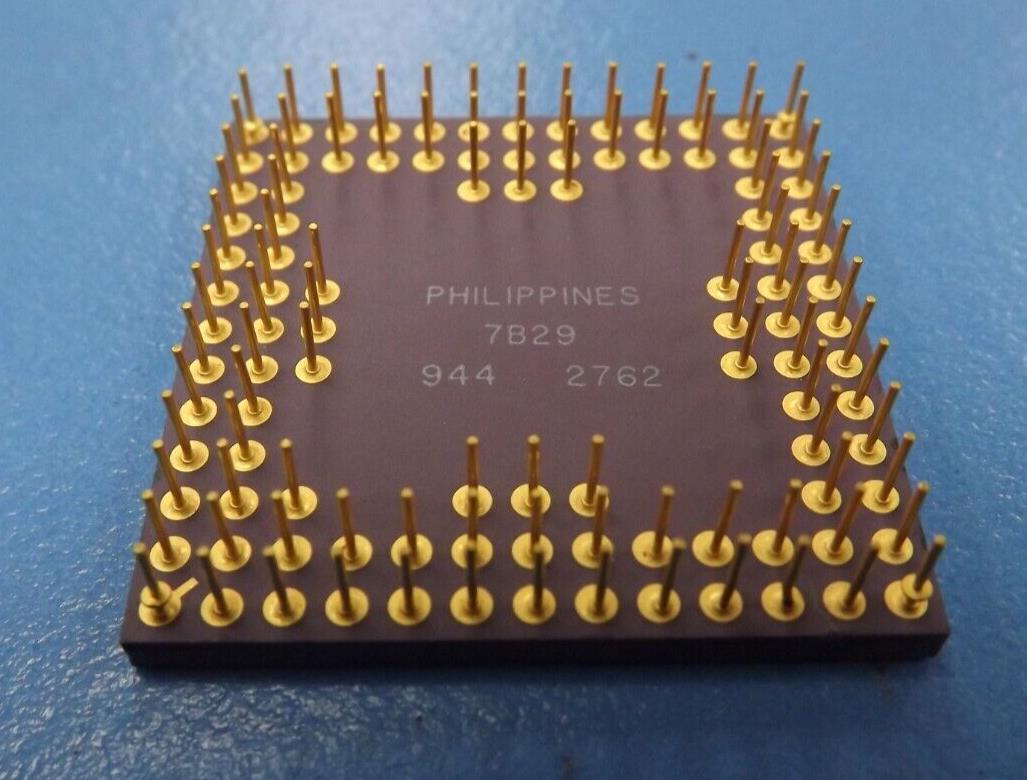

THIS LISTING IS FOR (1PC) OF ADSP-2100KG BY ANALOG DEVICES
Mfr Package Description PGA-100
Status Discontinued
Address Bus Width 15.0
Barrel Shifter YES
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 32.768 MHz
External Data Bus Width 24.0
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-CPGA-P100
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 4.0
Number of Serial I/Os 0.0
Number of Terminals 100
Number of Timers 0.0
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Equivalence Code PGA100M,13X13
Package Shape SQUARE
Package Style GRID ARRAY
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Sub Category Digital Signal Processors
Supply Current-Max 90.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position PERPENDICULAR
Additional Feature SINGLE CYCLE INSTRUCTION EXECUTION
