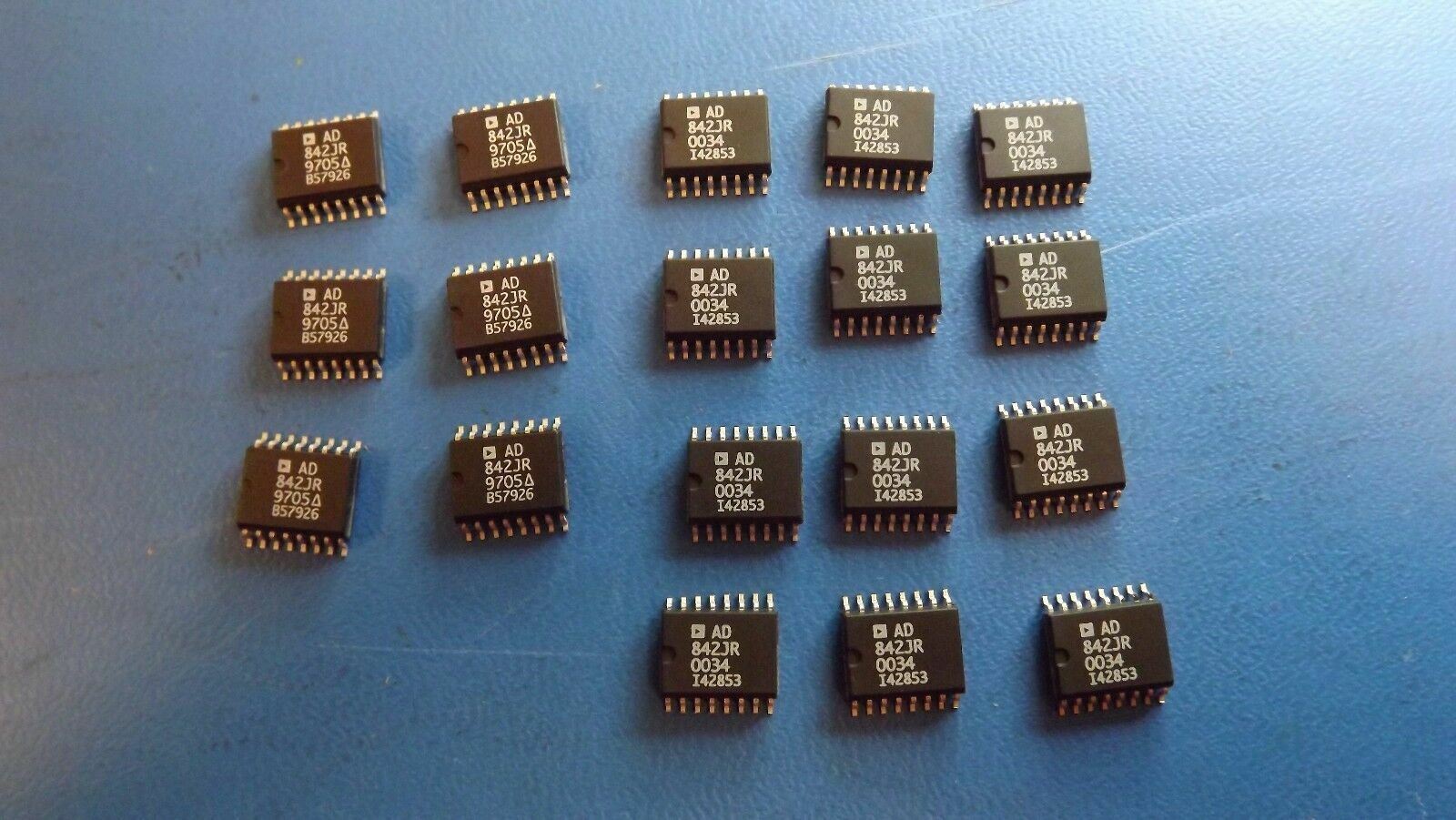

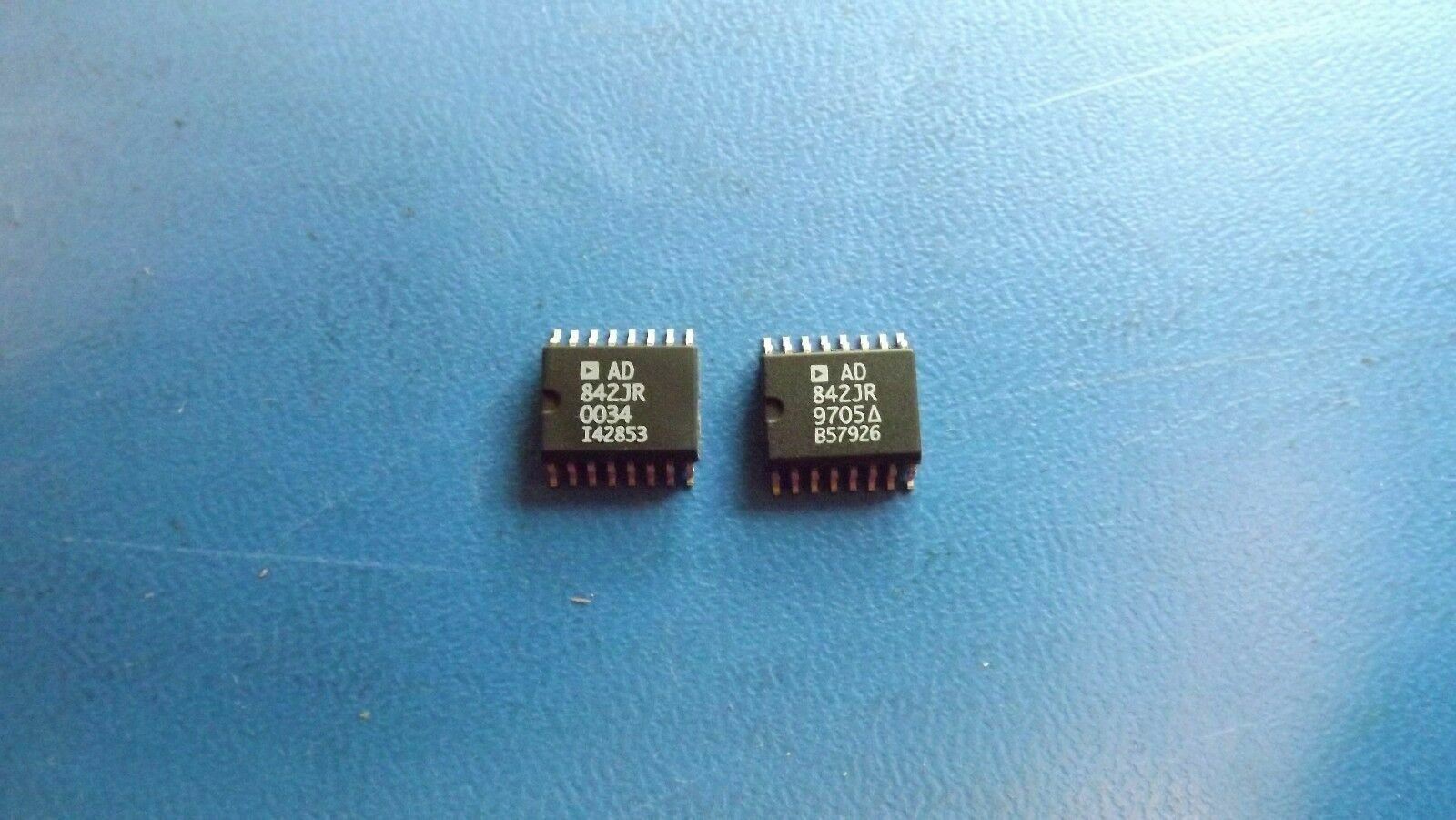

AD842JR-16 OP Amp Single GP ±18V 16-Pin SOIC
Tax included.
THIS LISTING IS FOR (1PC) OF AD842JR-16 BY ANALOG DEVICES
OP Amp Single GP ±18V 16-Pin SOIC
PART INFORMATION
AD842JR-16 PART DETAILS & PARAMETRIC
| EU RoHS | Not Compliant |
| Manufacturer Type | Wideband Amplifier |
| Maximum Input Offset Current (uA) | 0.4@±15V |
| Type | General Purpose Amplifier |
| Number of Channels per Chip | 1 |
| Minimum PSRR (dB) | 86 |
| Technology | BiCOM |
| Rail to Rail | No |
| Power Supply Type | Dual |
| Typical Slew Rate (V/us) | 375@±15V |
| Maximum Dual Supply Voltage (V) | ±18 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Input Offset Voltage (mV) | 1.5@±15V |
| Maximum Input Bias Current (uA) | 8@±15V |
| Typical Gain Bandwidth Product (MHz) | 80 |
| Minimum Dual Supply Voltage (V) | ±5 |
| Typical Dual Supply Voltage (V) | ±15 |
| Maximum Power Dissipation (mW) | 1300 |
| Minimum CMRR (dB) | 86 |
| Typical Voltage Gain (dB) | 99.08 |
| Maximum Operating Temperature (°C) | 75 |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height (mm) | 2.35(Max) |
| Package Length (mm) | 10.5(Max) |
| Package Width (mm) | 7.6(Max) |
| PCB | 16 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC W |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
