AD7711AN ADC, Delta-Sigma, 24-Bit, 1 Func, 2 Channel, Serial Access, CMOS,PDIP24

$18.95
Unit price per

Tax included.

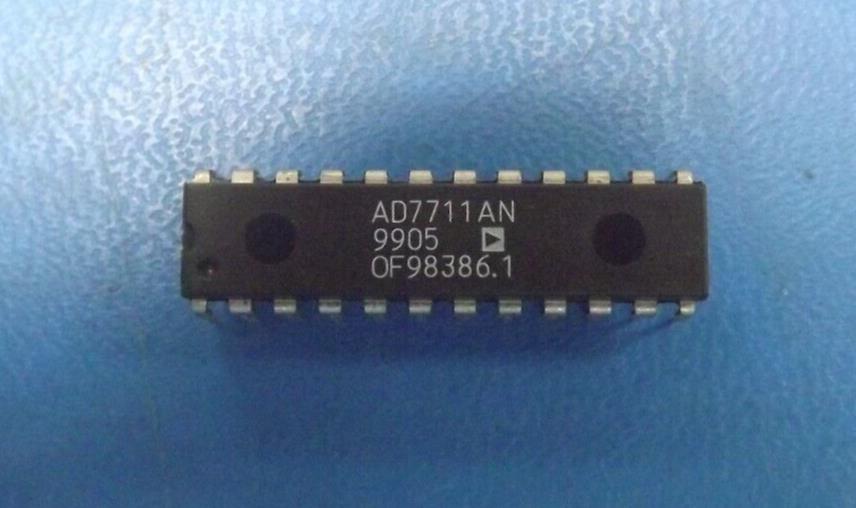

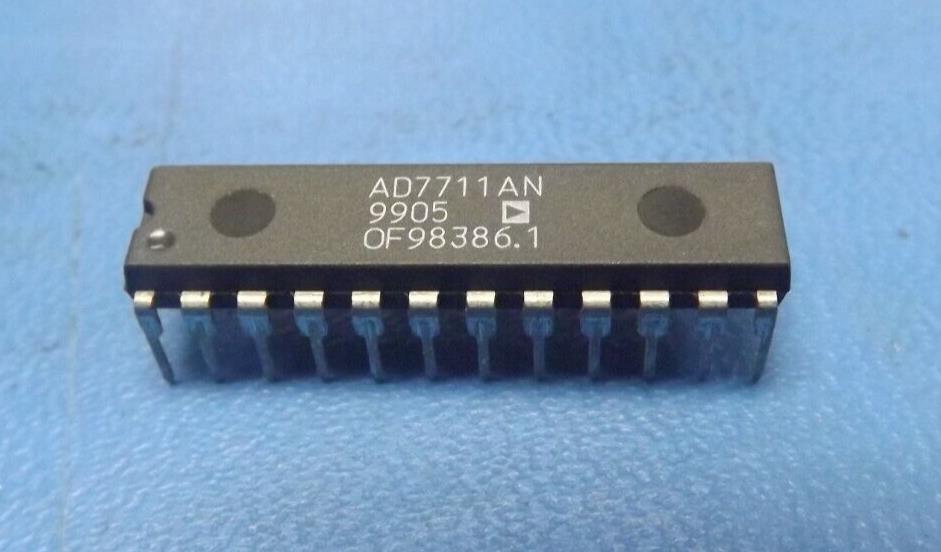

THIS LISTING IS FOR (1PC) OF AD7711AN BY ANALOG DEVICES

Mfr Package Description 0.300 INCH, PLASTIC, MO-095AG, DIP-24

Status Discontinued

Converter Type ADC, DELTA-SIGMA

Analog Input Voltage-Min -2.5 V

Analog Input Voltage-Max 2.5 V

JESD-30 Code R-PDIP-T24

JESD-609 Code e0

Linearity Error-Max (EL) 0.003 %

Number of Analog In Channels 2.0

Number of Bits 24

Number of Functions 1

Number of Terminals 24

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Bit Code BINARY, OFFSET BINARY

Output Format SERIAL

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP24,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Qualification Status Not Qualified

Seated Height-Max 4.57 mm

Sub Category Analog to Digital Converters

Supply Voltage-Nom 5.0 V

Surface Mount NO

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE
