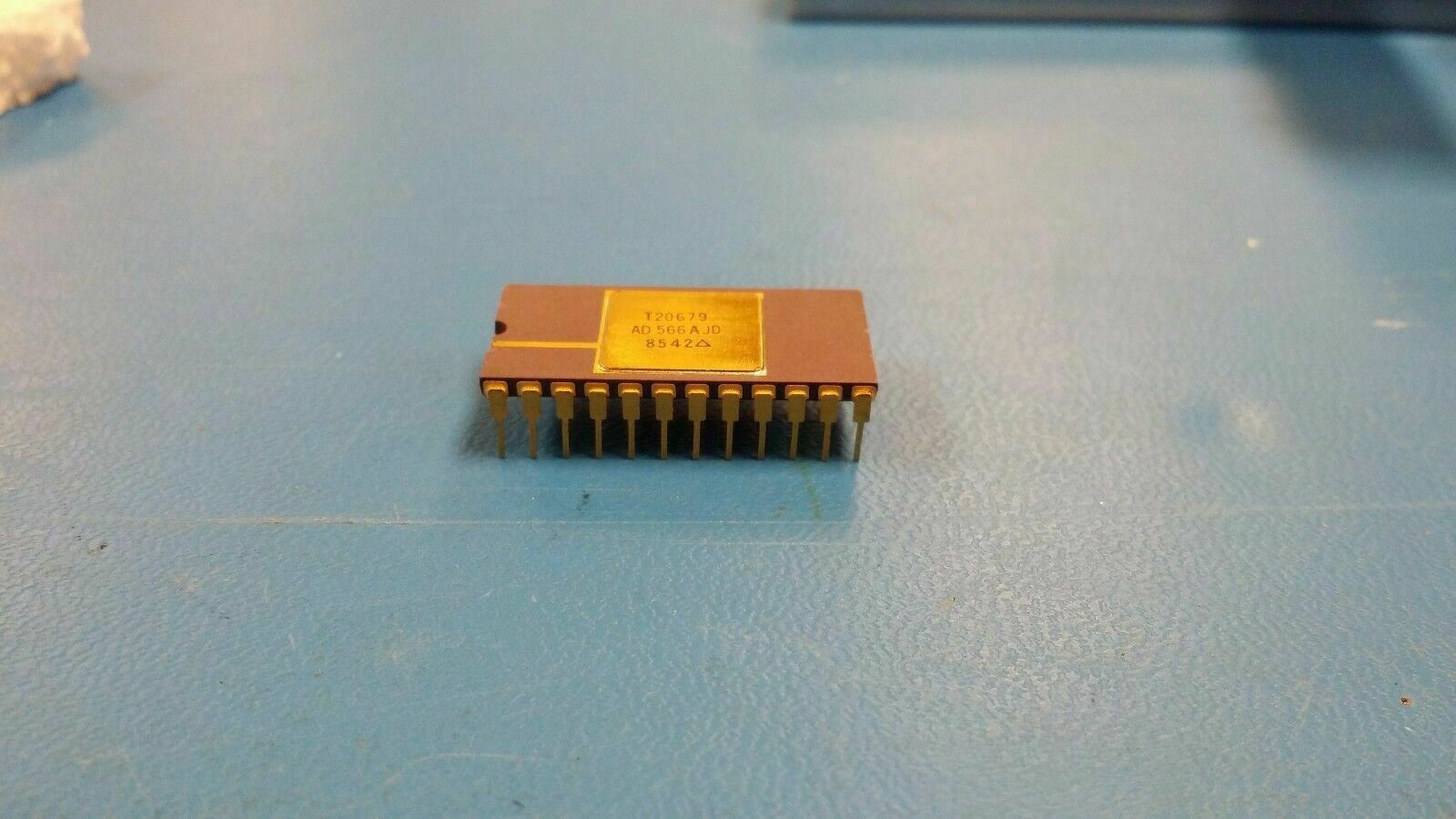

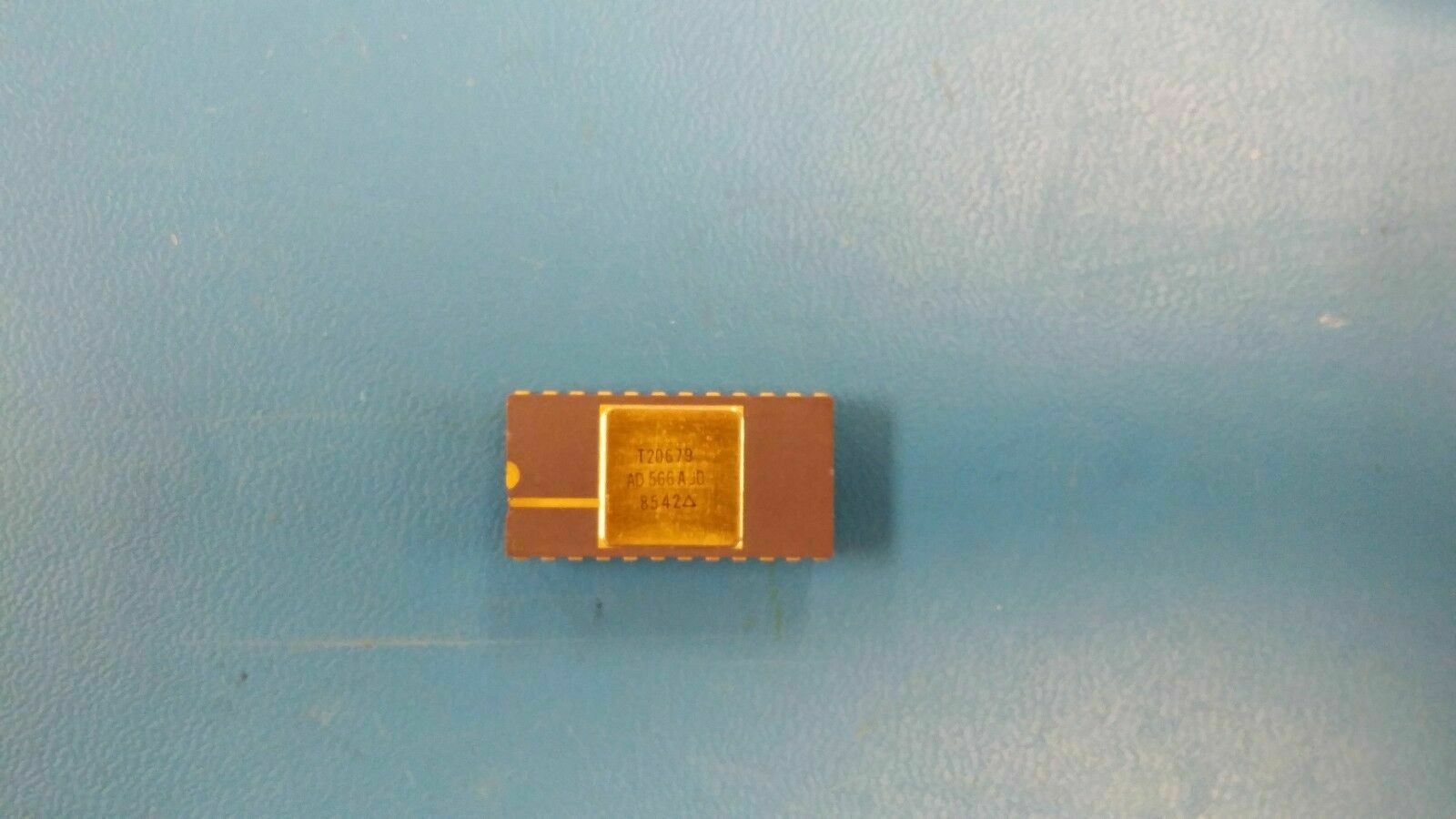

AD566AJD AD PARALLEL WORD INPUT LOADING 0.25us SETTLING TIME, 12-BIT DAC CDIP
Tax included.
THIS LISTING IS FOR (1 PC) OF AD566AJD BY AD
PARALLEL WORD INPUT LOADING 0.25us SETTLING TIME, 12-BIT DAC CDIP
Part #: AD566AJD
Part Category: Converters
Manufacturer: Analog Devices, Inc.
Description: PARALLEL, WORD INPUT LOADING, 0.25us SETTLING TIME, 12-BIT DAC, CDIP24
Manufacturer: Analog Devices, Inc.
Description: PARALLEL, WORD INPUT LOADING, 0.25us SETTLING TIME, 12-BIT DAC, CDIP24
| Mfr Package Description | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-24 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Converter Type | D/A CONVERTER |
| Analog Output Voltage-Min | -1.5 V |
| Analog Output Voltage-Max | 10.0 V |
| Input Bit Code | BINARY, OFFSET BINARY |
| Input Format | PARALLEL, WORD |
| JESD-30 Code | R-CDIP-T24 |
| JESD-609 Code | e0 |
| Linearity Error-Max (EL) | 0.0122 % |
| Negative Supply Voltage-Nom | -15.0 V |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | -15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.72 mm |
| Settling Time-Max | 0.0 µs |
| Settling Time-Nom (tstl) | 0.25 µs |
| Sub Category | Other Converters |
| Supply Current-Max | 18.0 mA |
| Supply Voltage-Nom | 15.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn63Pb37) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 15.24 mm |
