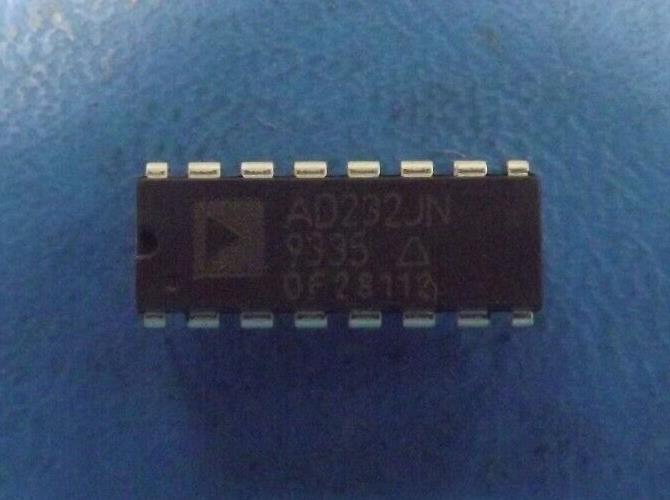

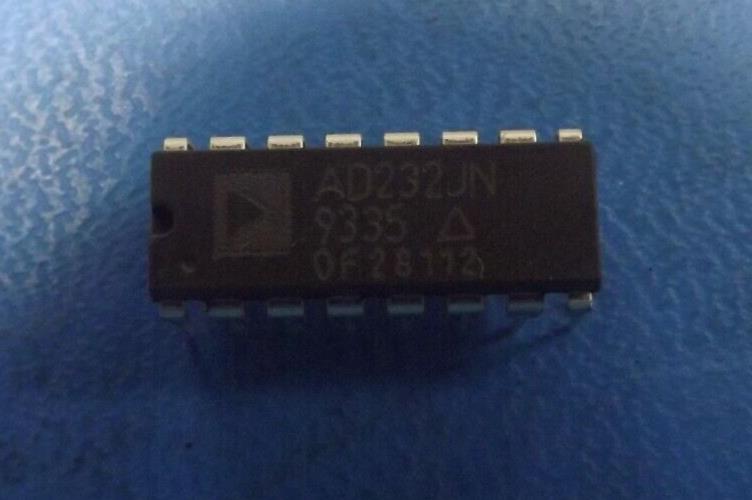

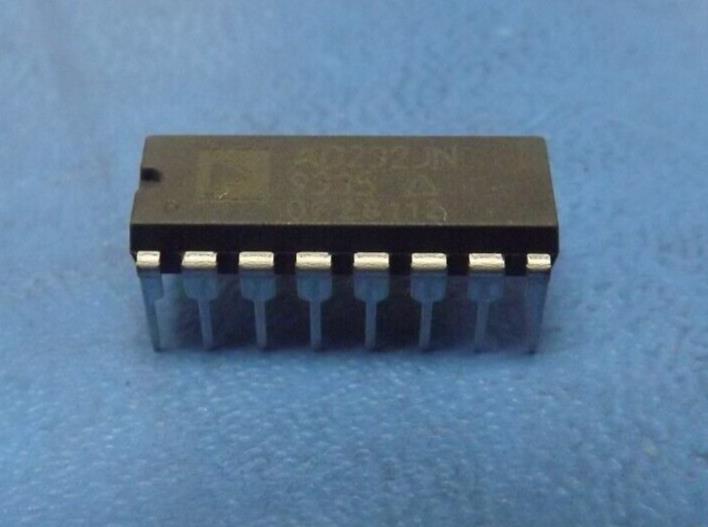

AD232JN Dual Transmitter/Receiver RS-232 16-Pin PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF AD232JN BY ANALOG DEVICES
Status Discontinued
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 2.0
High Level Input Current-Max 2.0E-4 Amp
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-C; V.28
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Out Swing-Min 10.0 V
Output Low Current-Max 0.0032 Amp
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 0.0 ns
Receiver Number of Bits 2.0
Seated Height-Max 5.33 mm
Sub Category Line Driver or Receivers
Supply Current-Max 10.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 20.13 mm
Width 7.62 mm
