(9PCS) NDS332P FSC MOSFET P-CH 20V 1A SSOT3
Tax included.

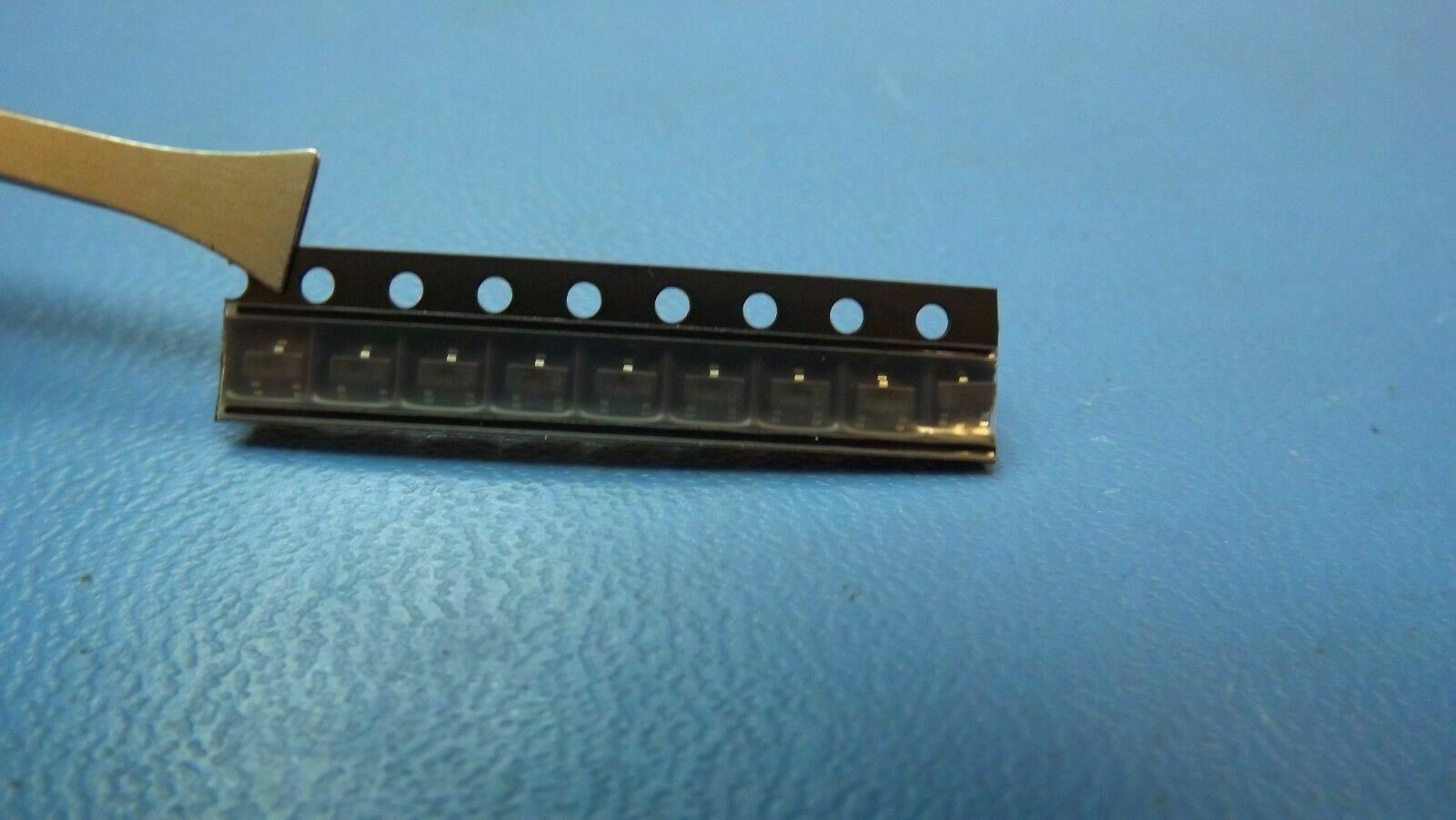

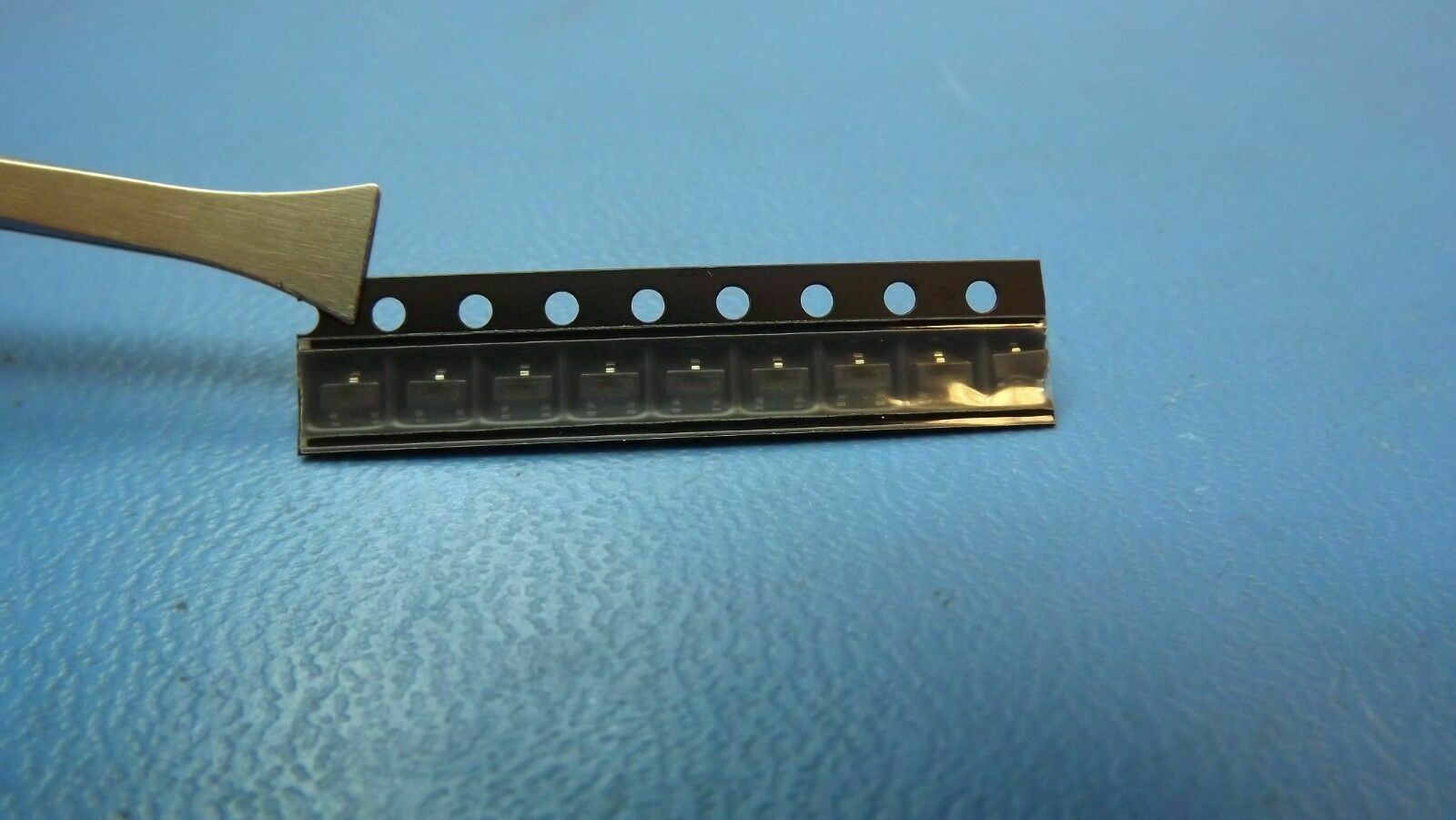

THIS LISTING IS FOR (9PCS) OF NDS332P BY FAIRCHILD SEMICONDUCTOR
SPECIFICATIONS
| Mfr Package Description | SUPERSOT-3 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Transferred |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Drain Current-Max (Abs) (ID) | 1.0 A |
| Drain Current-Max (ID) | 1.0 A |
| Drain-source On Resistance-Max | 0.3 ohm |
| DS Breakdown Voltage-Min | 20.0 V |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-236AB |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | P-CHANNEL |
| Power Dissipation-Max (Abs) | 0.5 W |
| Qualification Status | Not Qualified |
| Sub Category | Other Transistors |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Additional Feature | LOGIC LEVEL COMPATIBLE, ESD RATED |
