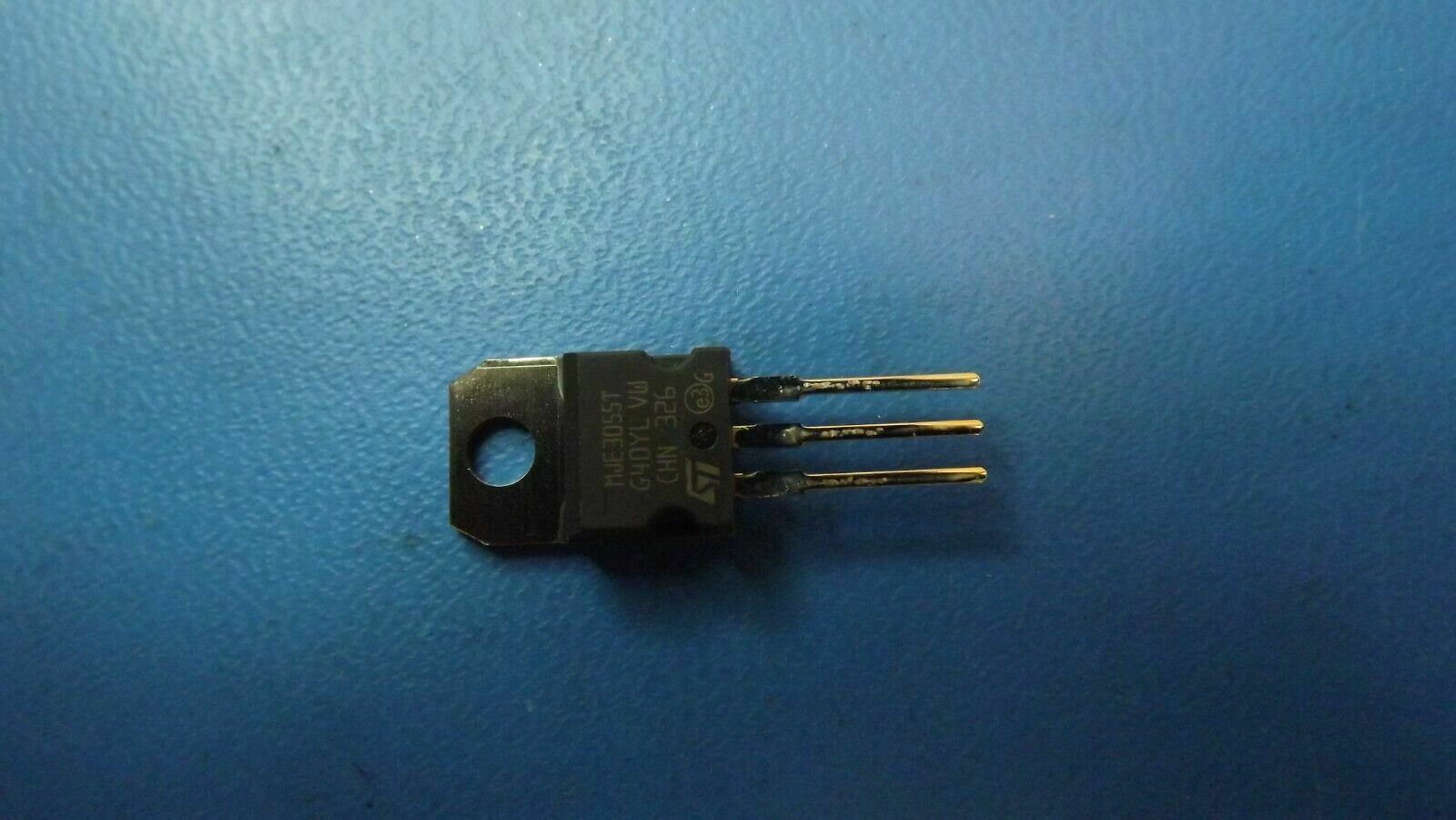

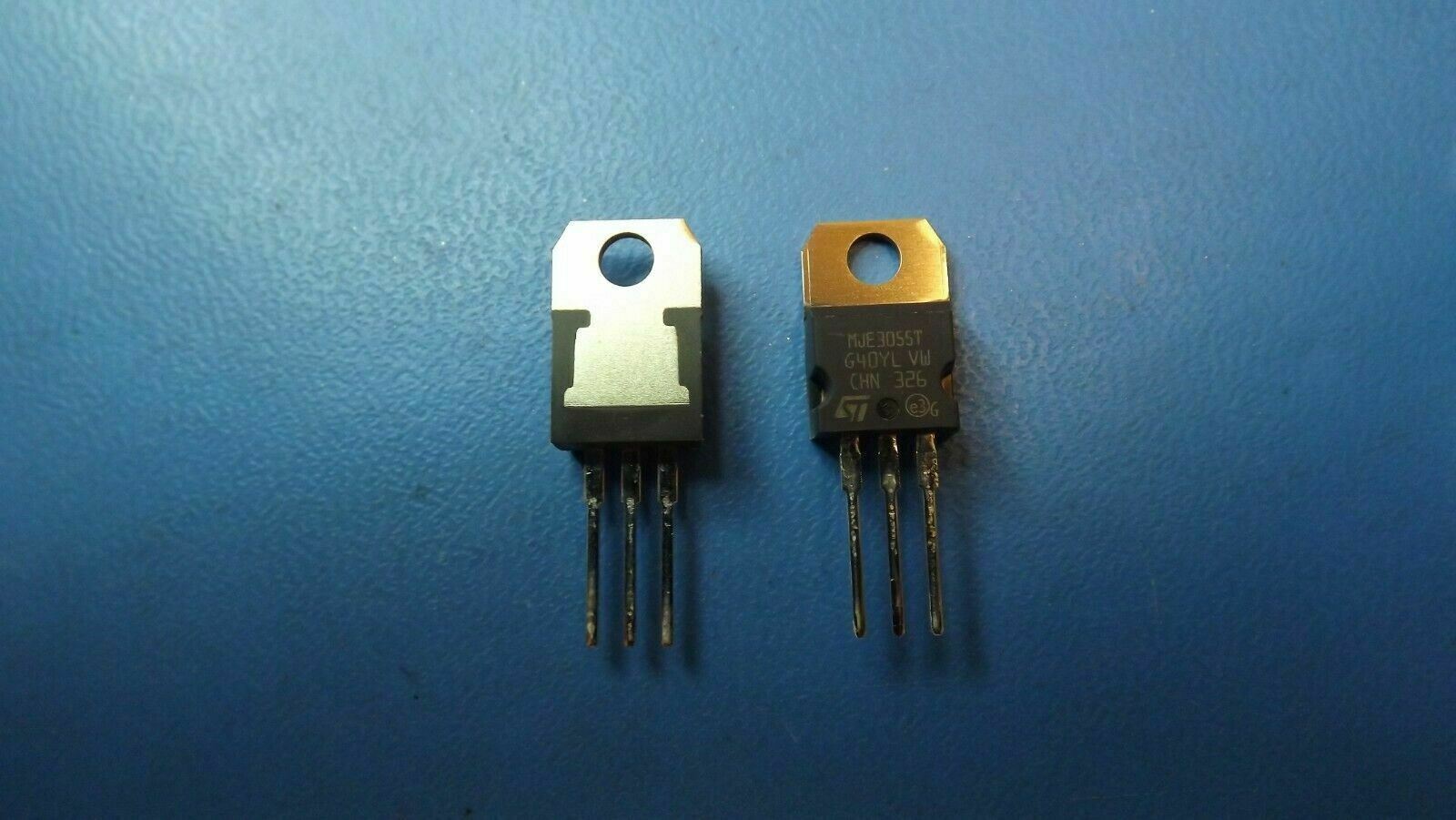

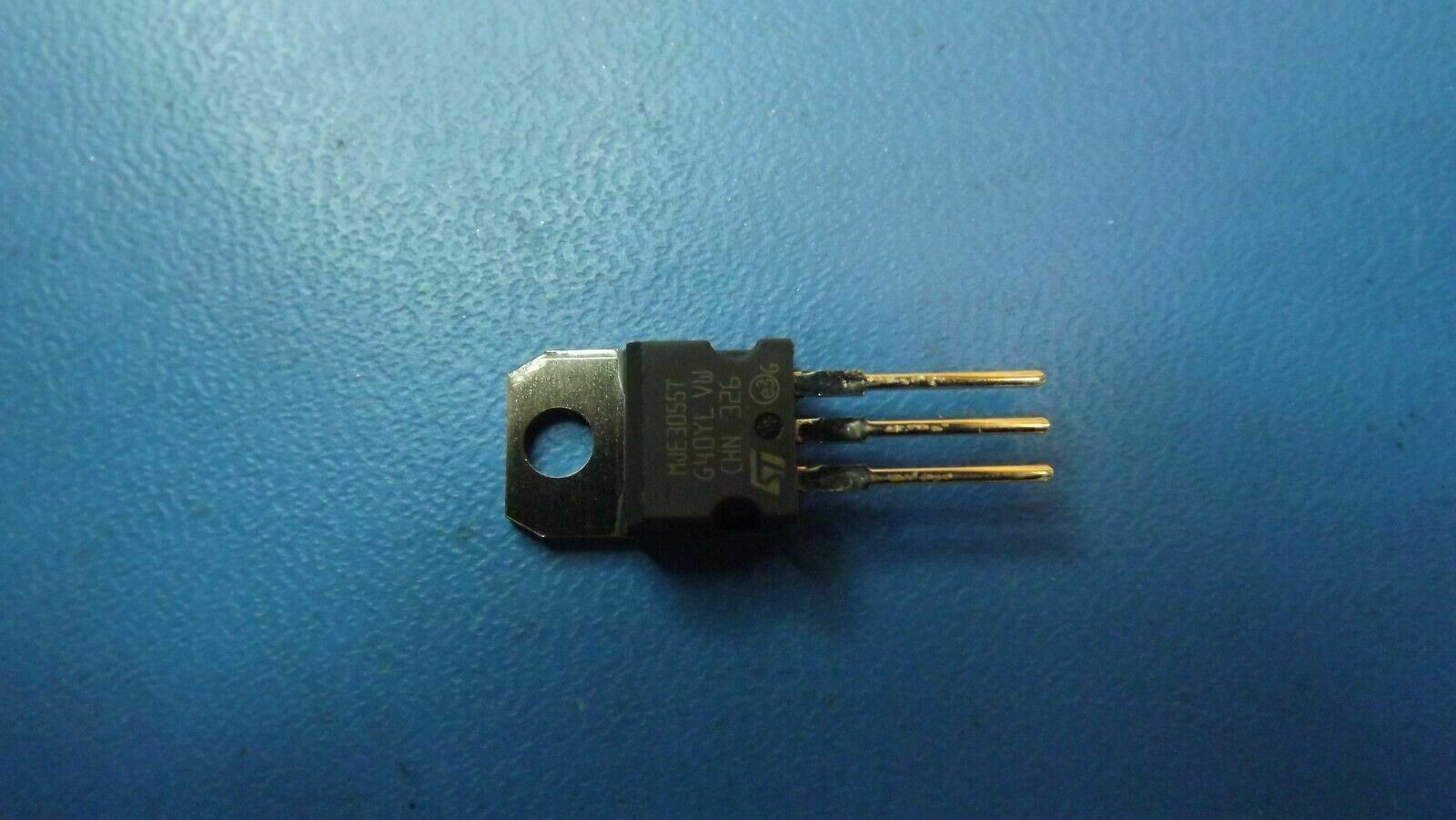

(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220
(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220
(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220
(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220
(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220
(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220

(9PCS) MJE3055T ST MICRO NPN 60 V 10 A Transistor - TO-220

Tax included.
Only 0 left!
Will be in stock after

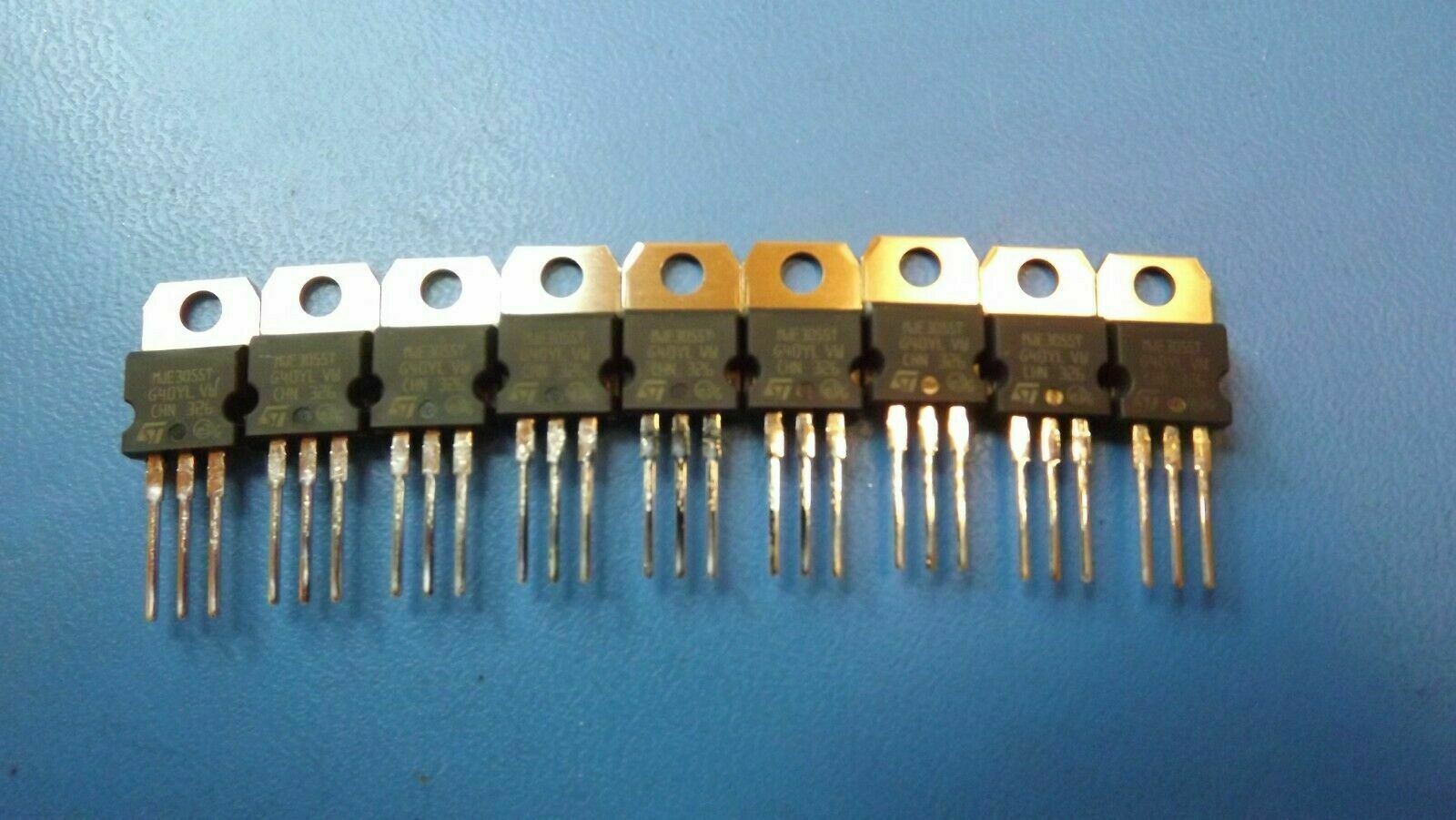

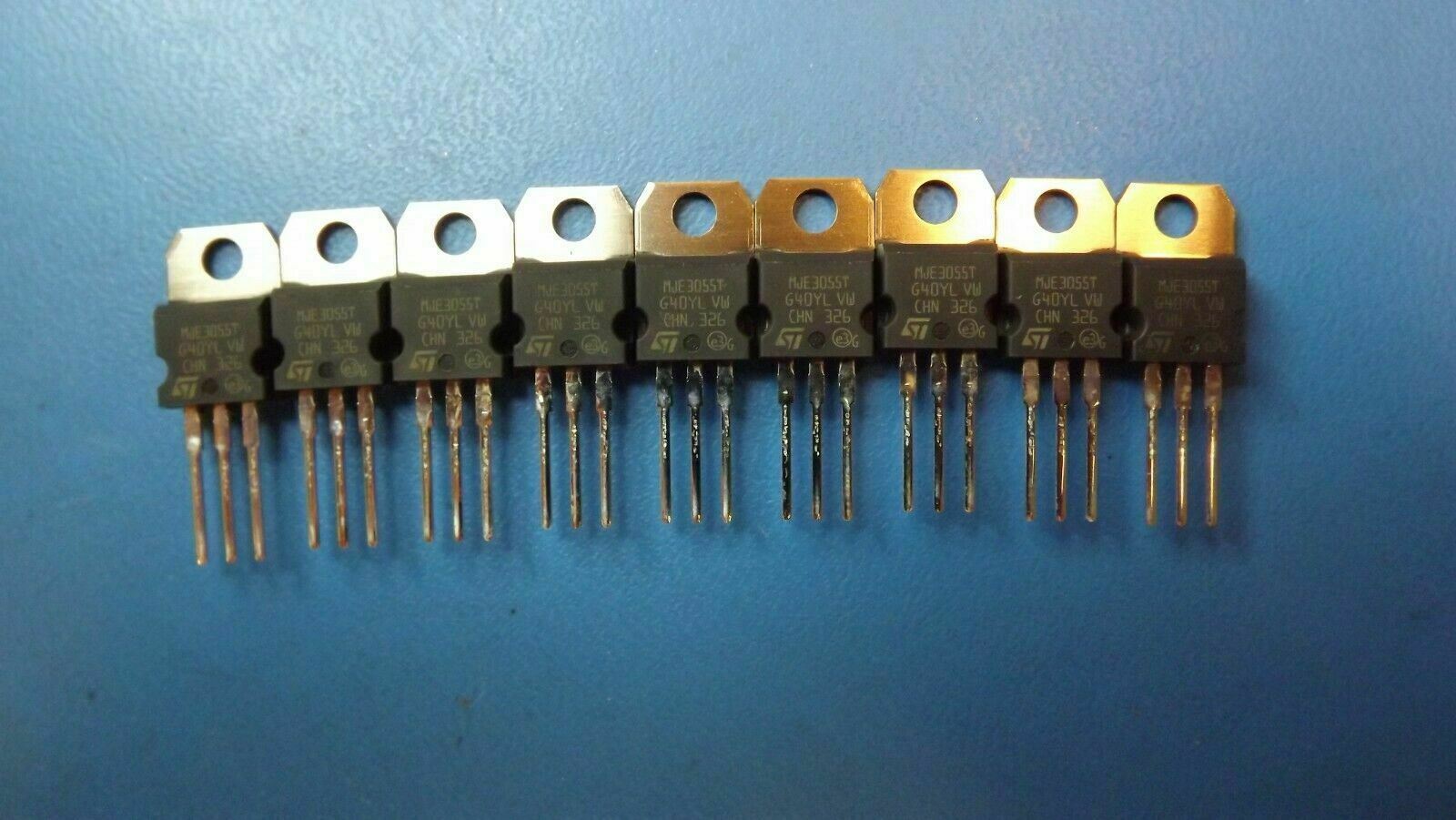

THIS LISTING IS FOR (9PCS) OF MJE3055T BY ST MICRO

Specifications
Product Attribute Attribute Value Search Similar
Manufacturer: STMicroelectronics
Product Category: Bipolar Transistors - BJT
RoHS:  Details
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 60 V
Collector- Base Voltage VCBO: 70 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 1.1 V
Maximum DC Collector Current: 10 A
Gain Bandwidth Product fT: 2 MHz
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Series: MJE3055T
DC Current Gain hFE Max: 70
Height: 9.15 mm
Length: 10.4 mm
Width: 4.6 mm
Brand: STMicroelectronics
Continuous Collector Current: 10 A
DC Collector/Base Gain hfe Min: 20
Pd - Power Dissipation: 75 W
Product Type: BJTs - Bipolar Transistors
