(9 PCS) SN74ACT00TDRQ1 TI NAND Gate IC 4 Channel 14-SOIC ROHS
Tax included.

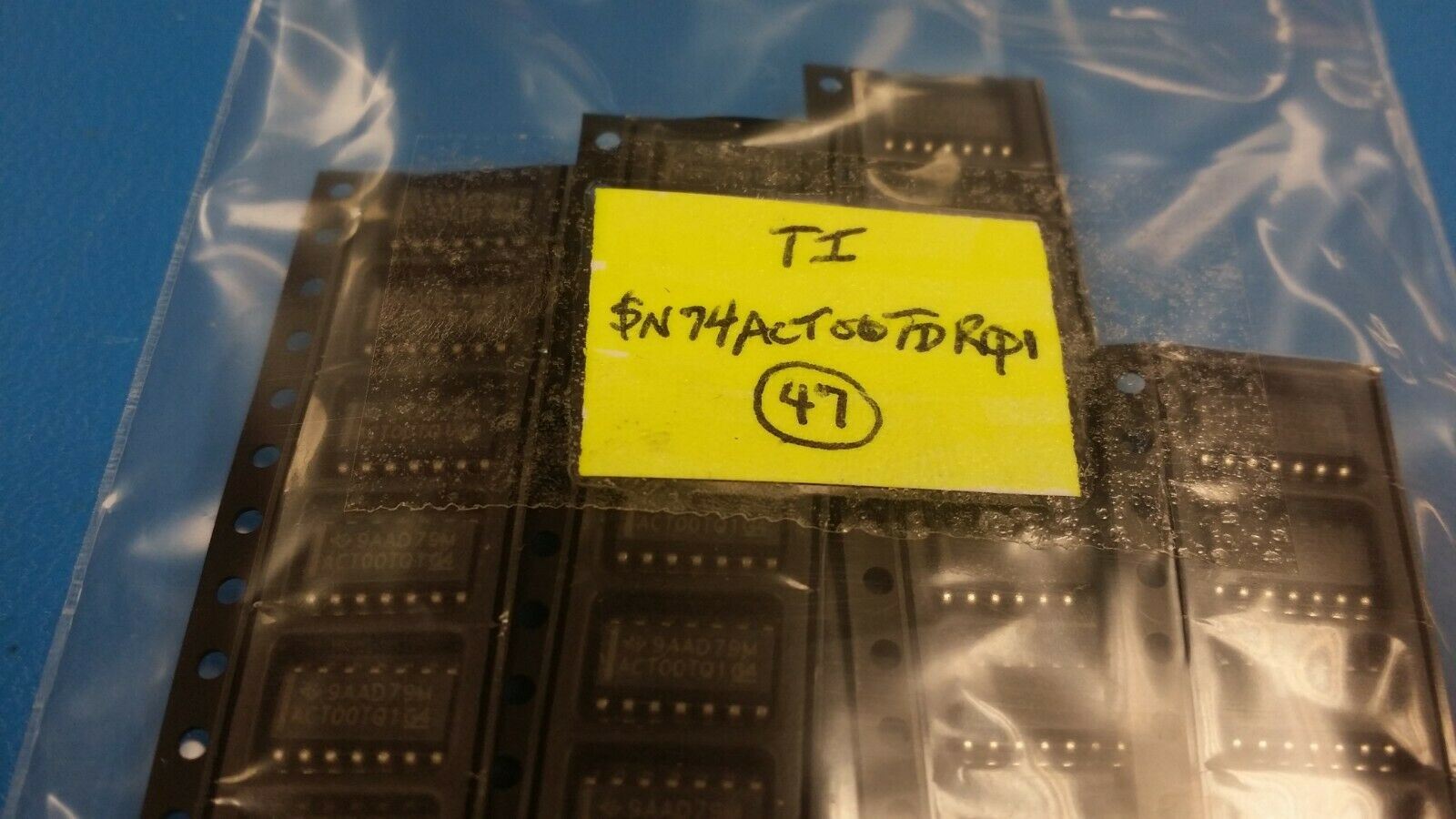

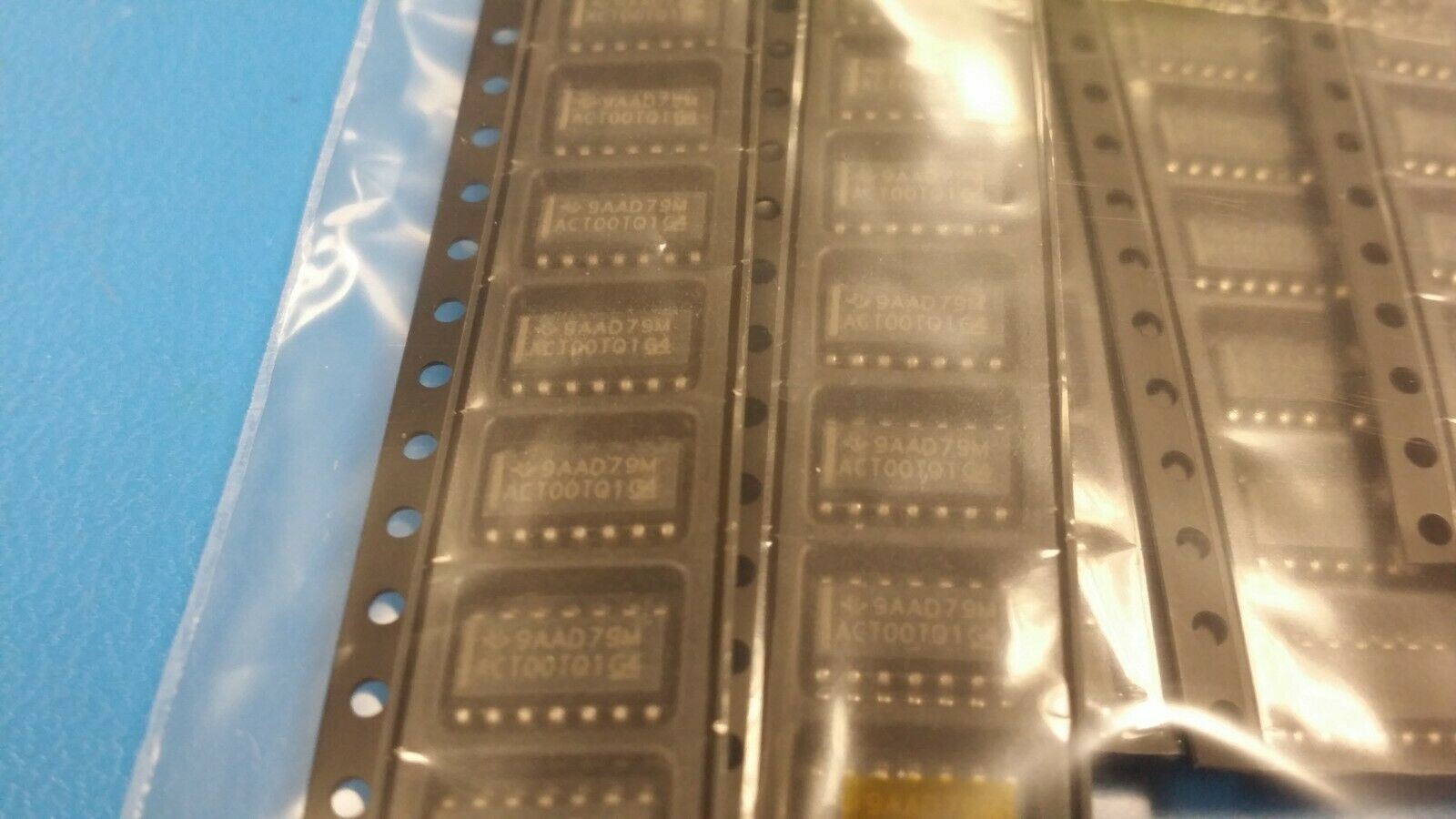

THIS LISTING IS FOR (9 PCS) OF SN74ACT00TDRQ1 BY TI
NAND Gate IC 4 Channel 14-SOIC ROHS
Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: YES
Product: Single-Function Gate
Logic Function: NAND
Logic Family: ACT
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 24 mA
Low Level Output Current: 24 mA
Propagation Delay Time: 9.5 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 105 C
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Qualification: AEC-Q100
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Function: Gate
Height: 1.58 mm
Input Type: TTL
Length: 8.65 mm
Operating Temperature Range: - 40 C to + 105 C
Output Type: CMOS
Series: SN74ACT00-Q1
Width: 3.91 mm
Brand: Texas Instruments
Logic Type: 2-Input NAND
Number of Bits: 4 bit
Operating Supply Current: 20 uA
Operating Supply Voltage: 5 V
Product Type: Logic Gates
