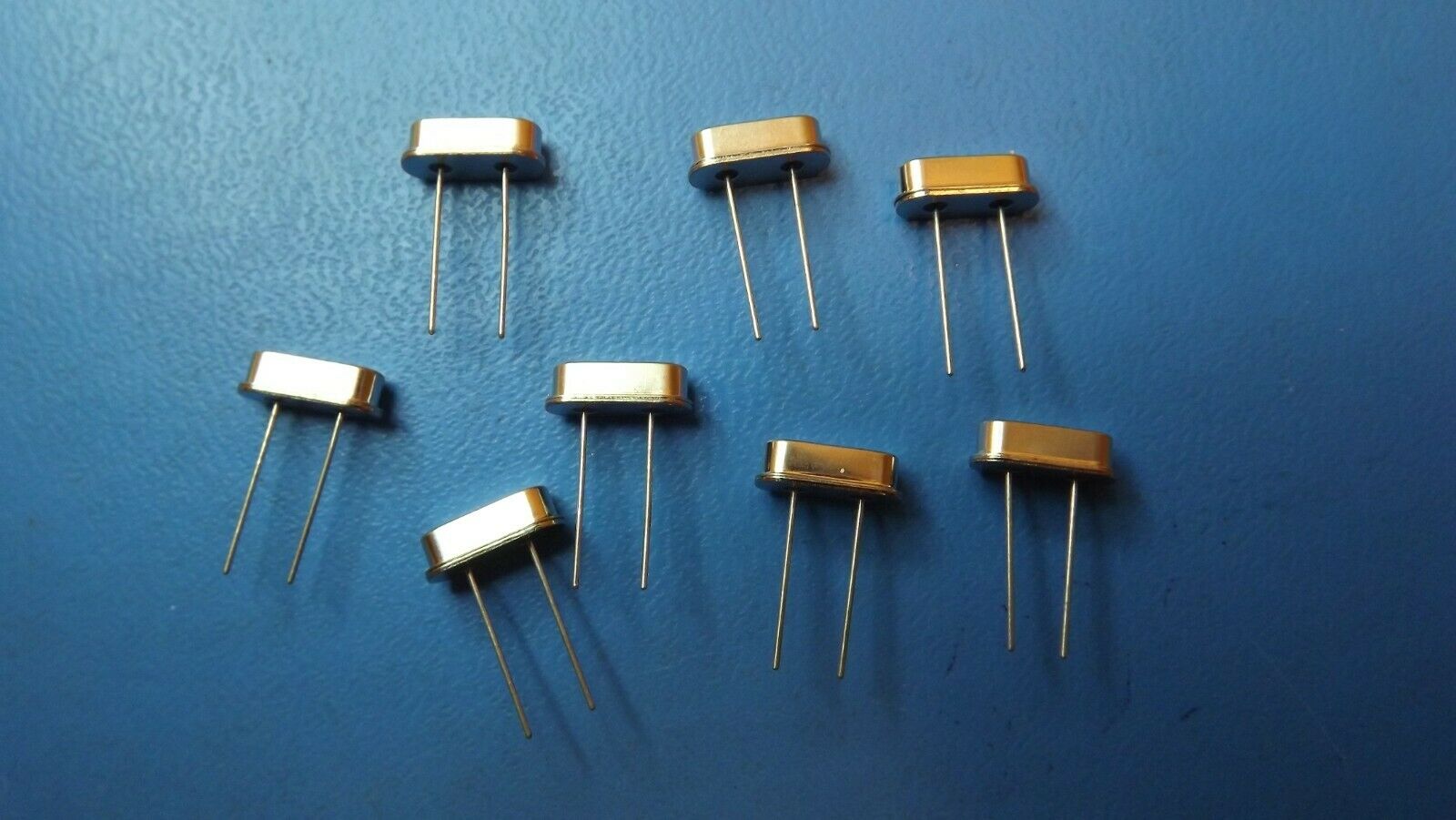

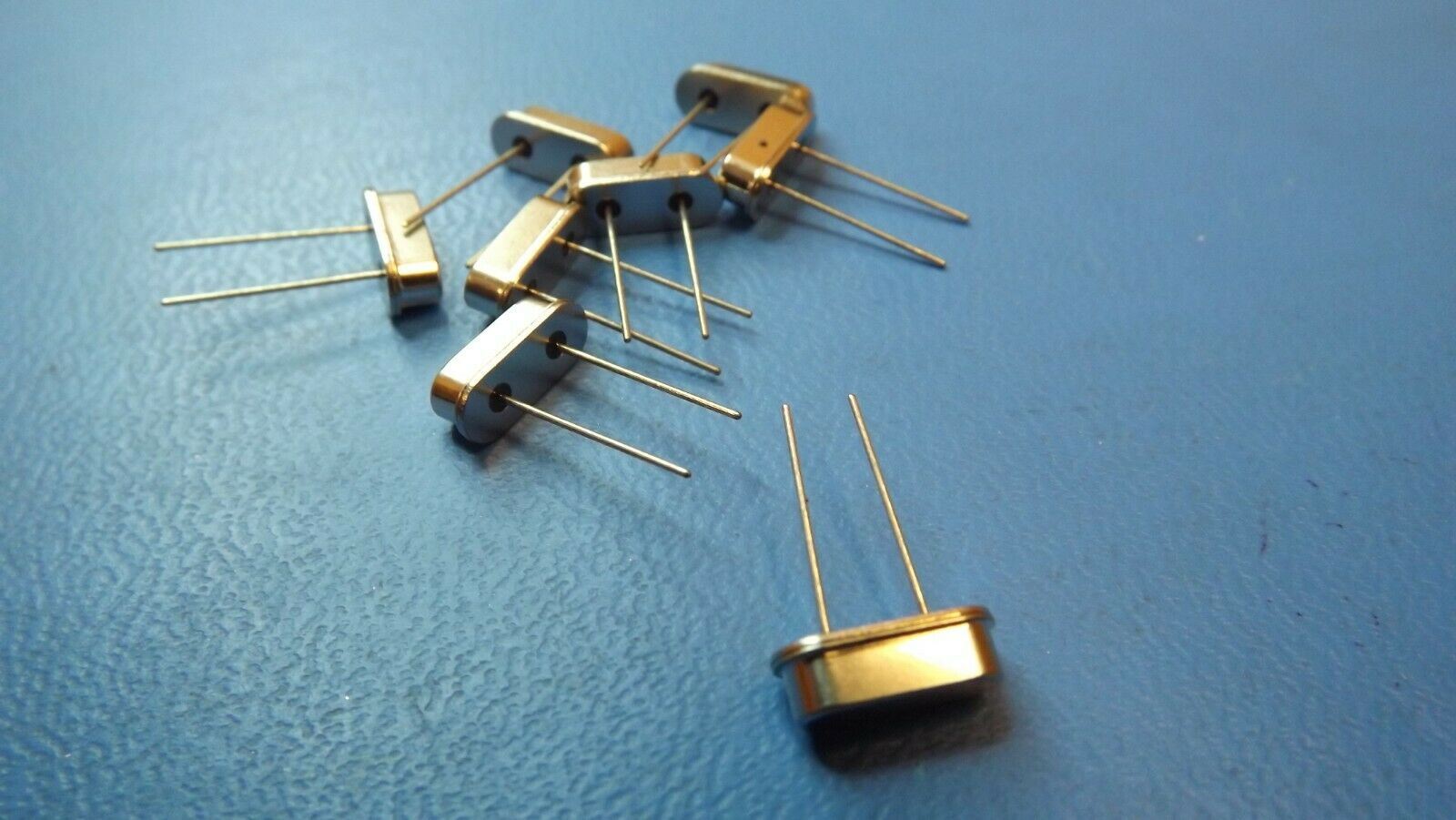

(8PCS) ECS-40-20-4 ECS CRYSTAL 4.0000MHZ 20PF T/H
Tax included.
THIS LISTING IS FOR (8PCS) OF ECS-40-20-4 BY ECS
Product AttributeAttribute ValueSearch Similar
Manufacturer:ECS
Product Category:Crystals
RoHS:No - RoHS Version Available
Termination Style:Radial
Load Capacitance:20 pF
Frequency:4 MHz
Tolerance:30 PPM
Frequency Stability:50 PPM
ESR:150 Ohms
Drive Level:500 uW
Minimum Operating Temperature:- 10 C
Maximum Operating Temperature:+ 70 C
Length:11.35 mm
Width:4.65 mm
Height:3.5 mm
Series:HC-49US
Product:Crystals
Type:Quartz Crystal
Brand:ECS
Mounting Style:Through Hole
Lead Spacing:4.88 mm
Product Type:Crystals
