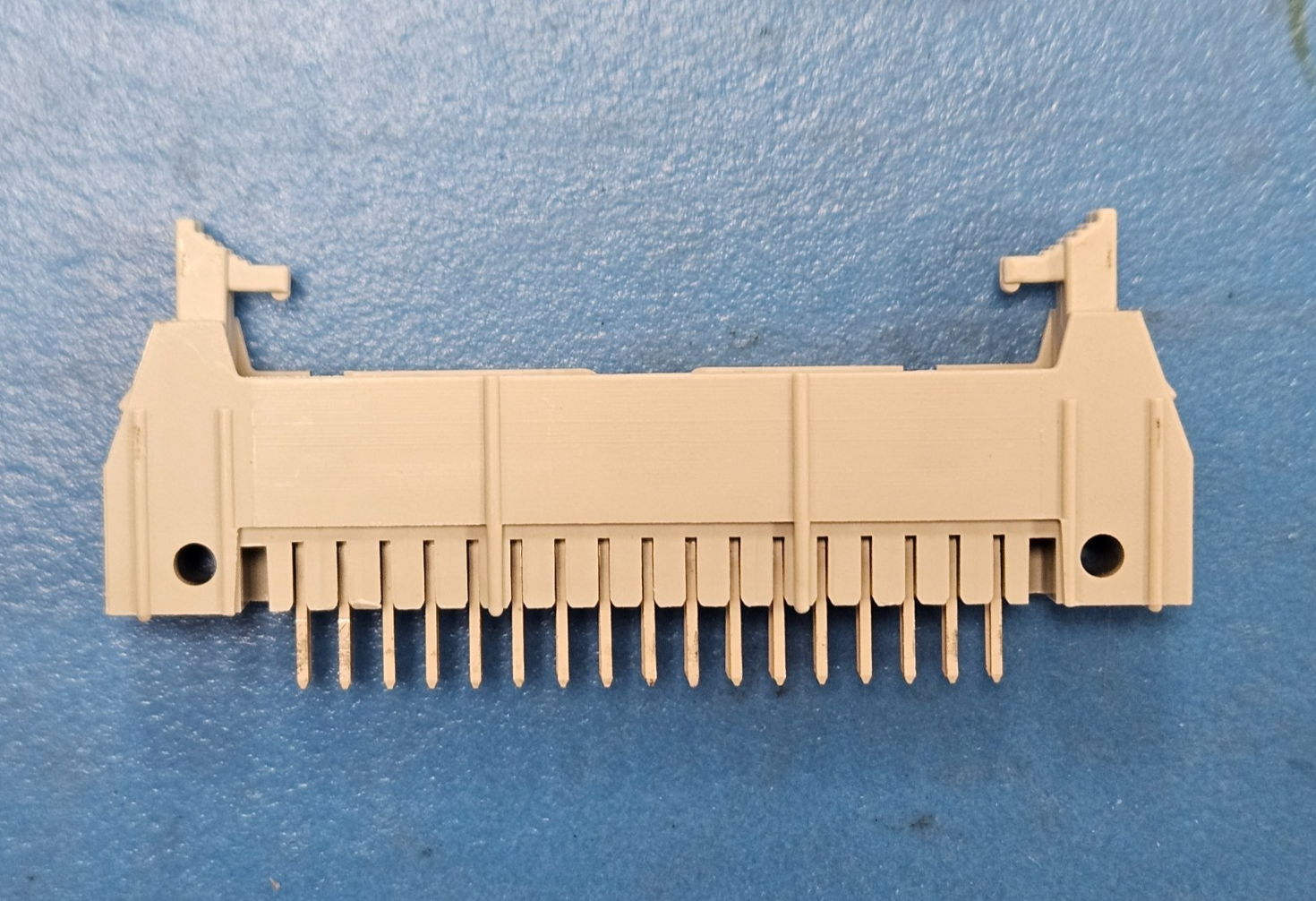

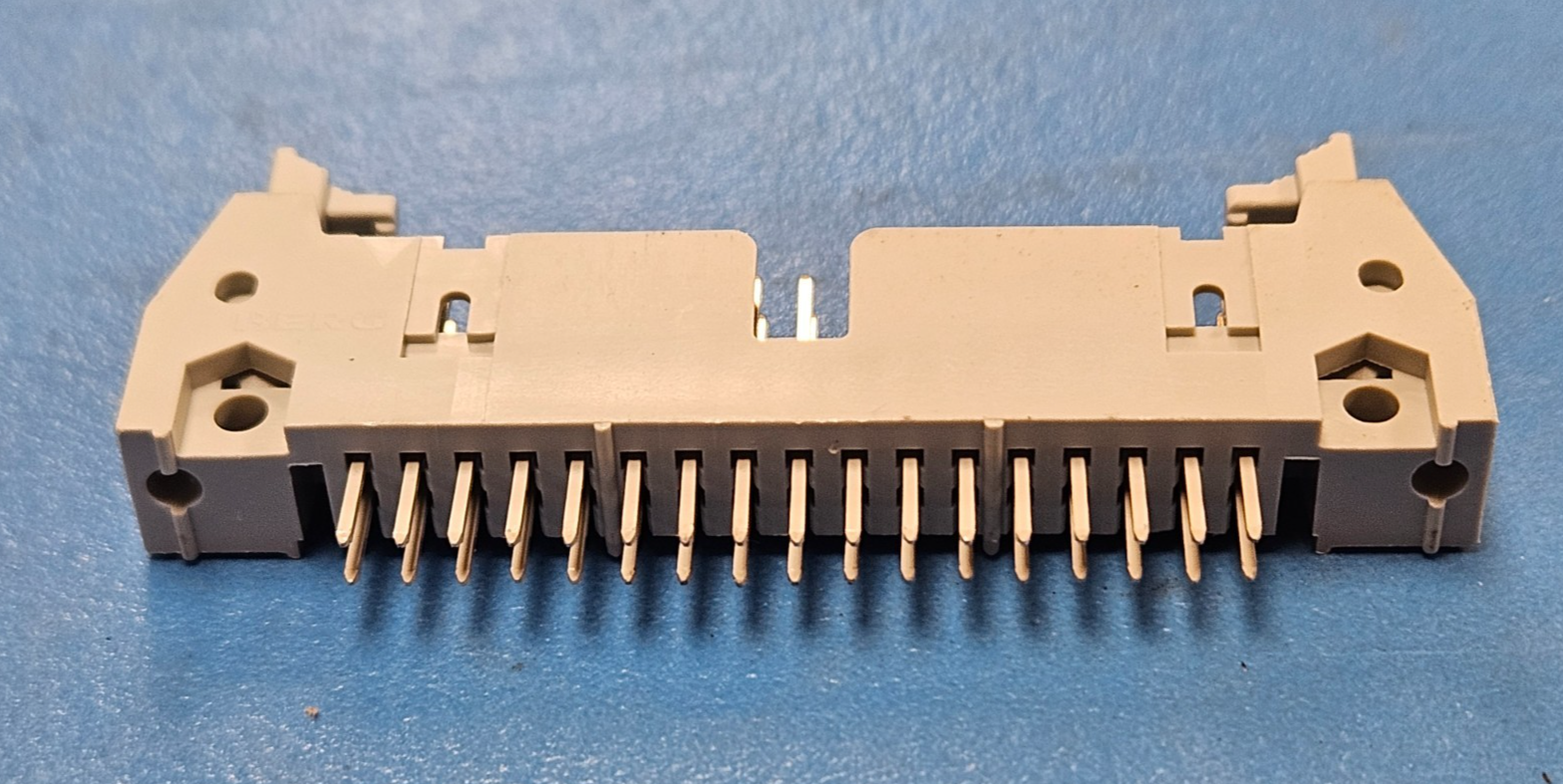

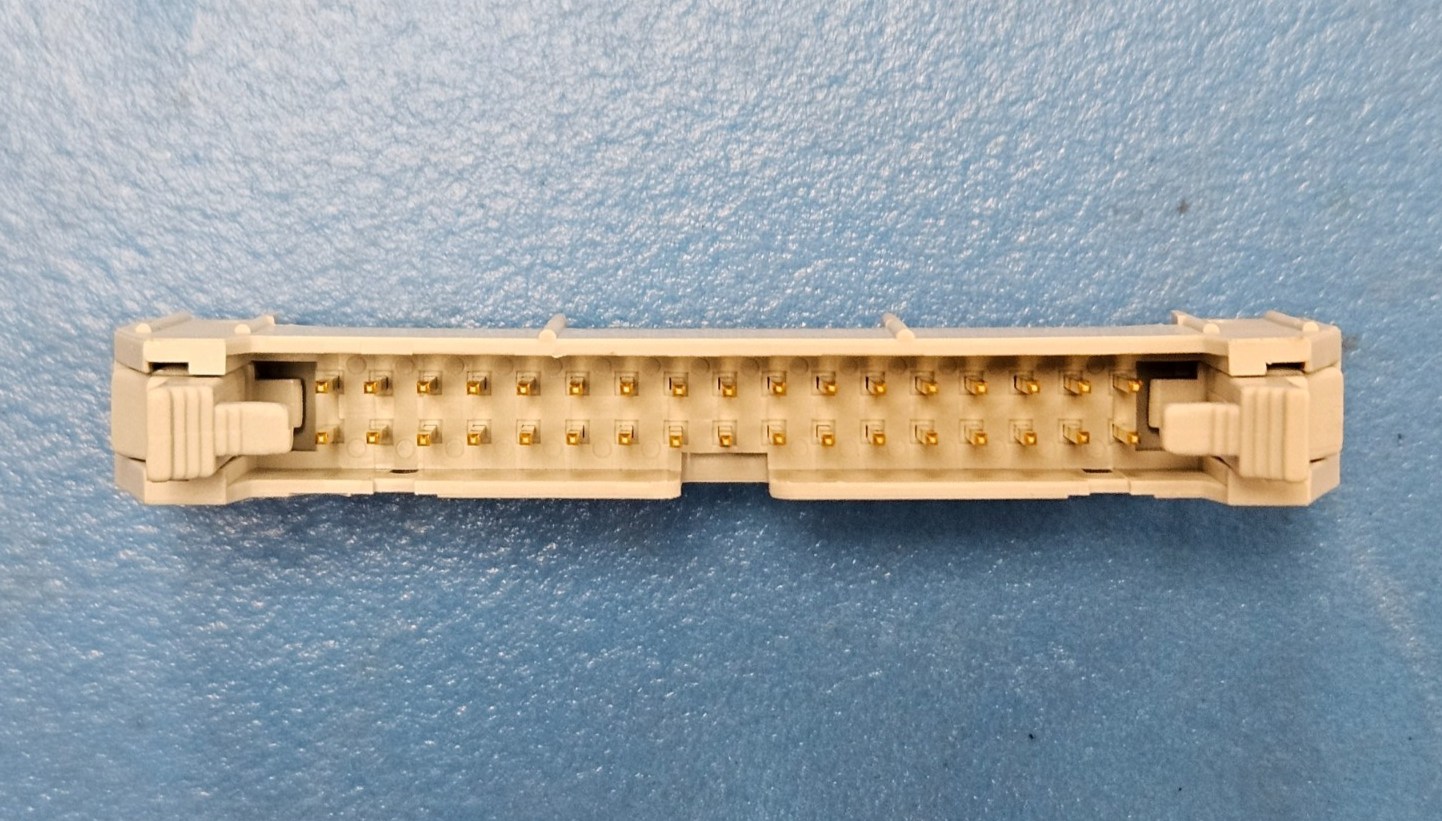

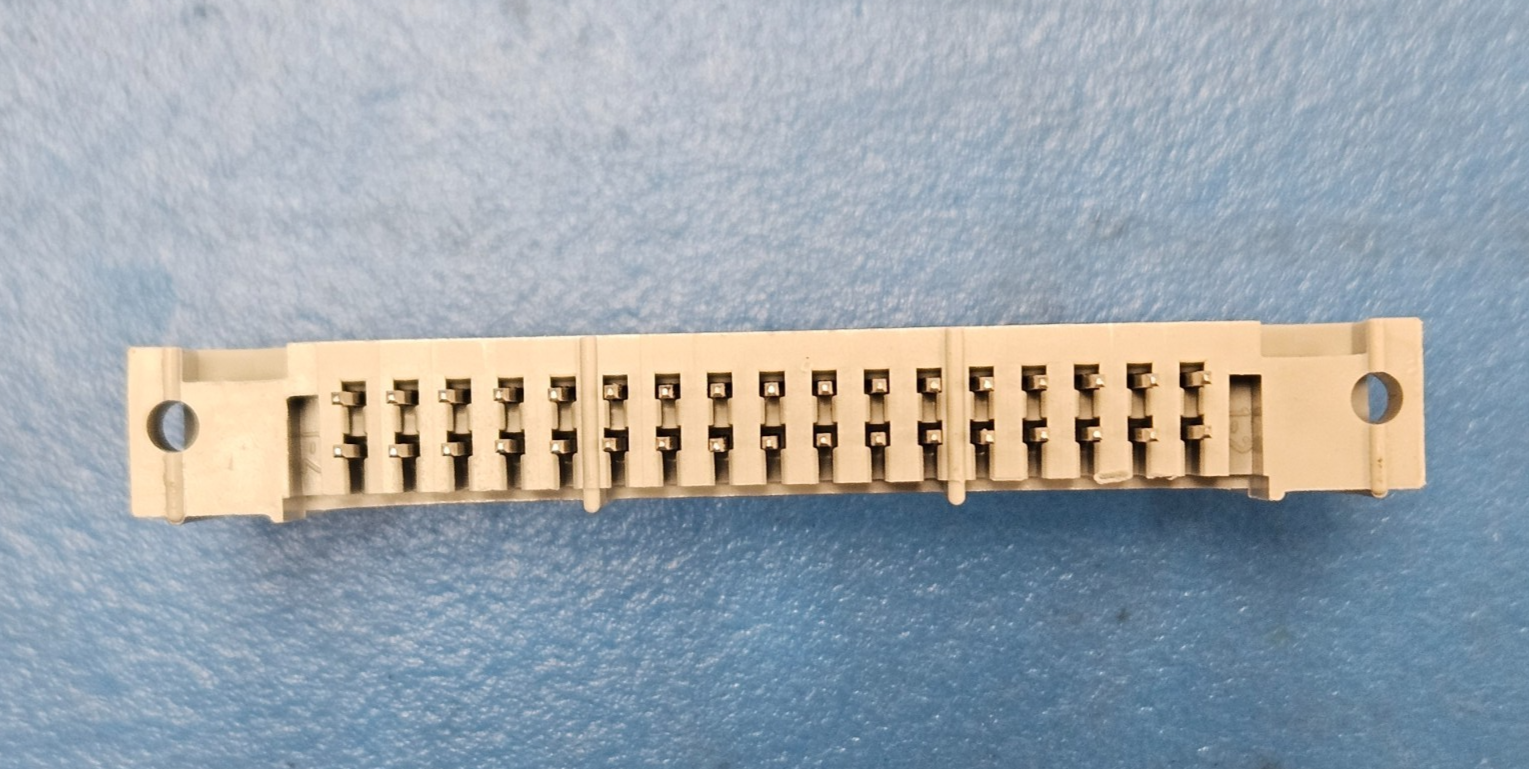

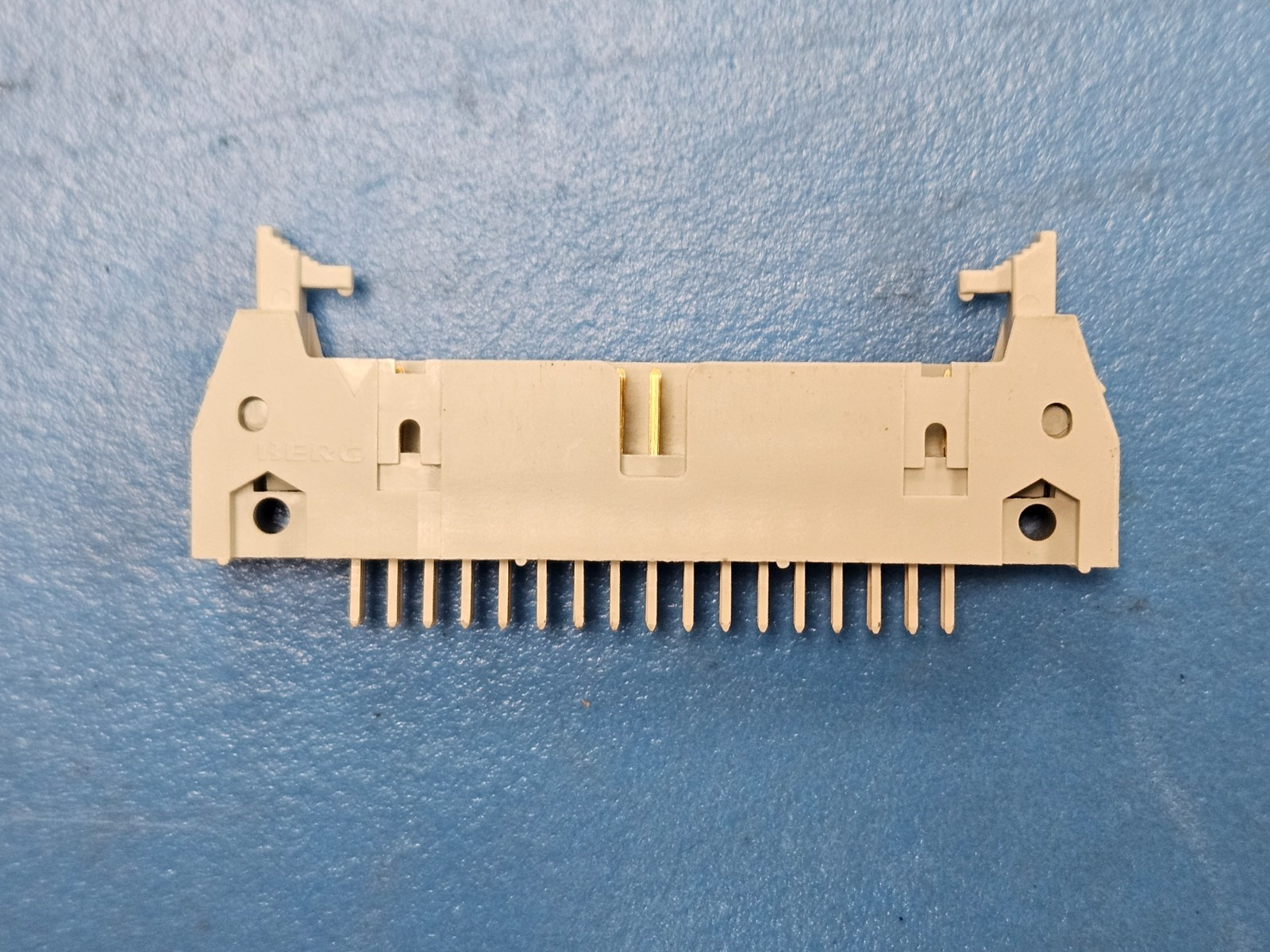

(8PCS) 71918-234 FCI Latch & Eject Connector 34 Contact, 2 Row, Male Straight
Tax included.

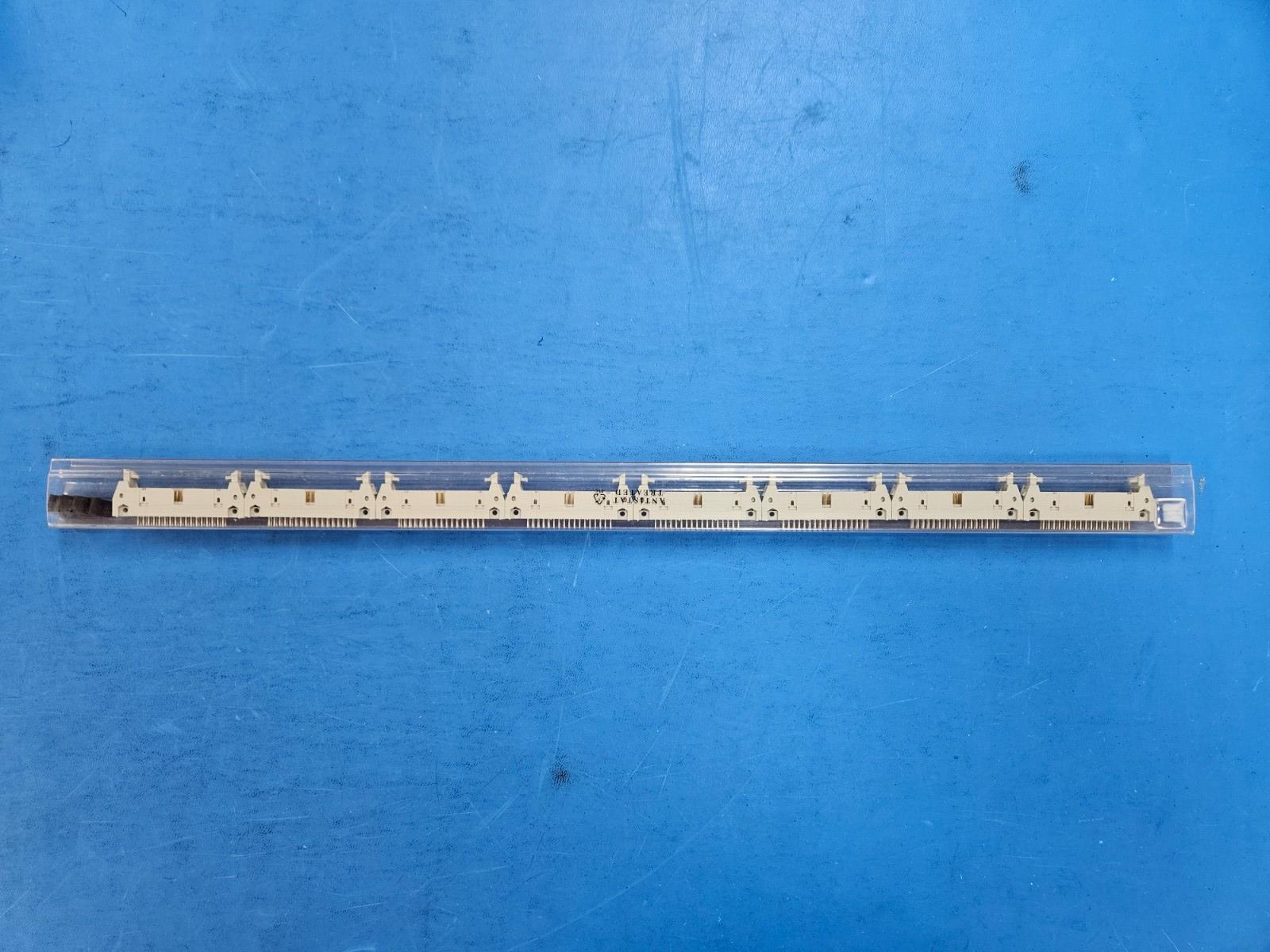

This listing is for (8PCS) of
Status Discontinued
Additional Feature LATCHED, POLARIZED
Body Breadth (inch) 0.339000
Body Depth (inch) 0.685000
Body Length (inch) 2.460000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Tin/Lead (Sn/Pb)
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 10000000000.000000000000000
Insulator Color GRAY
Insulator Material GLASS FILLED POLYETHYLENE
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mixed Contacts NO
Mounting Option 1 LATCH & EJECT
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 3.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.114000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 34
UL Flammability Code 94V-0
