(8PC) Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3
Tax included.

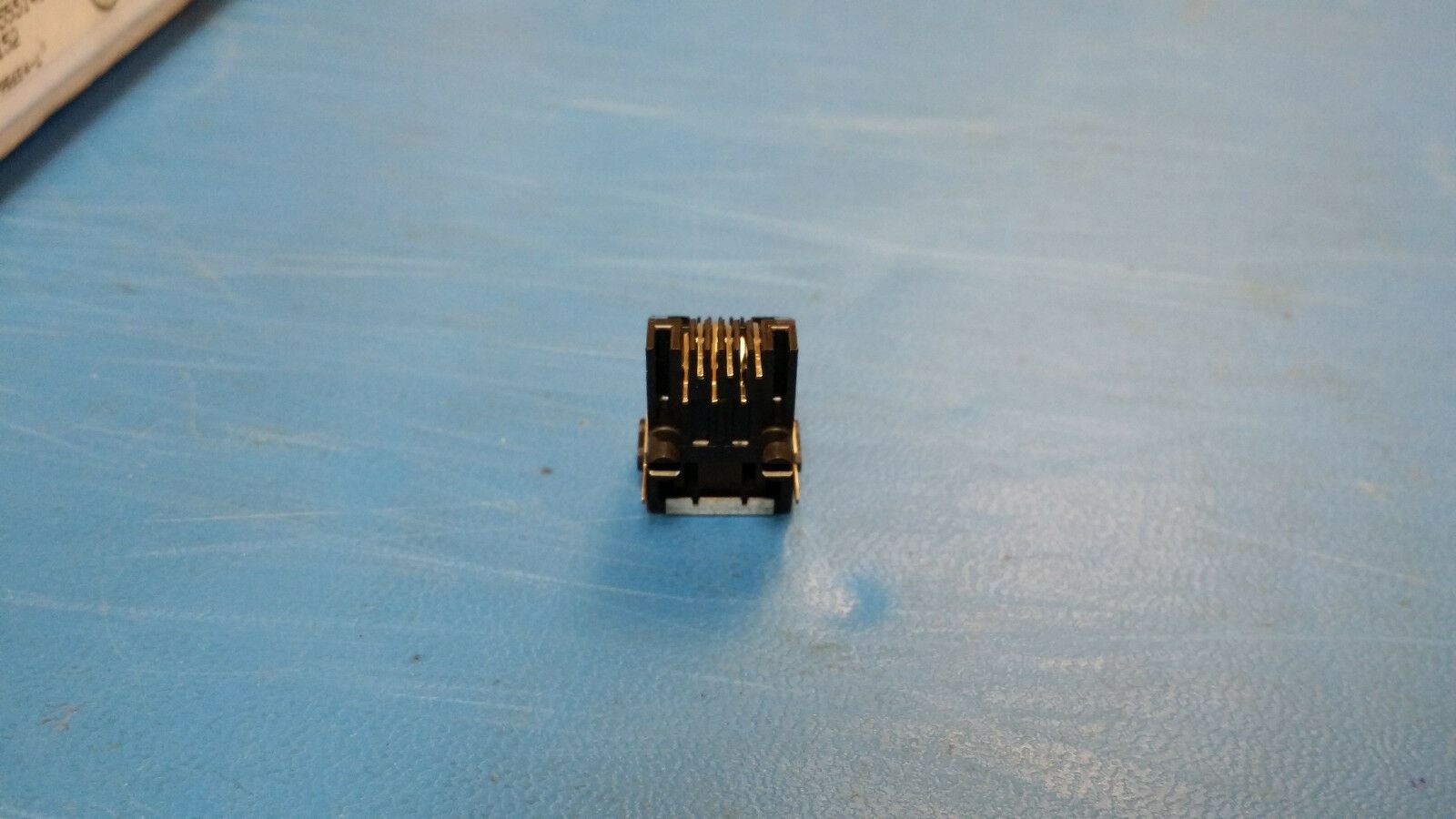

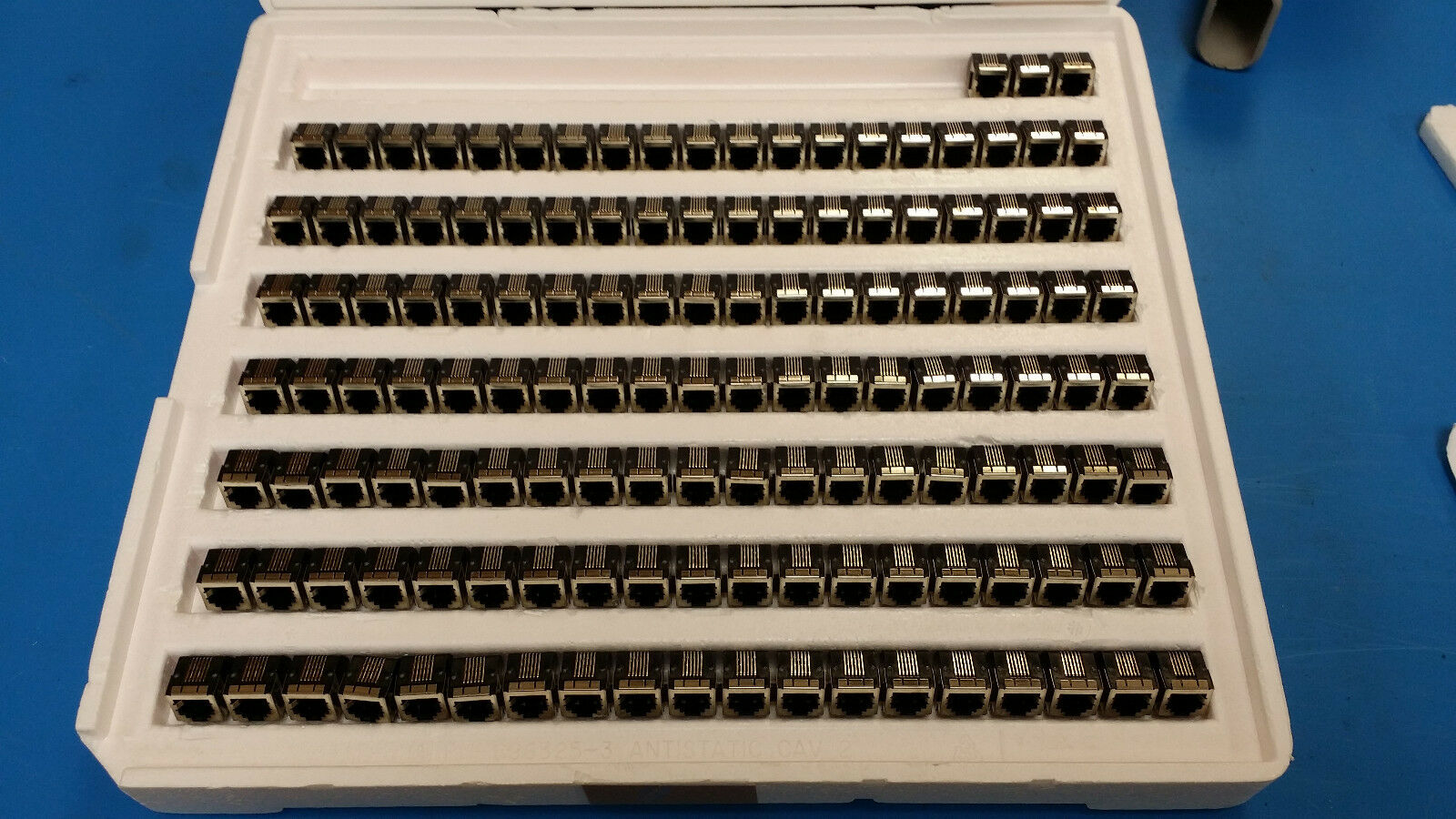

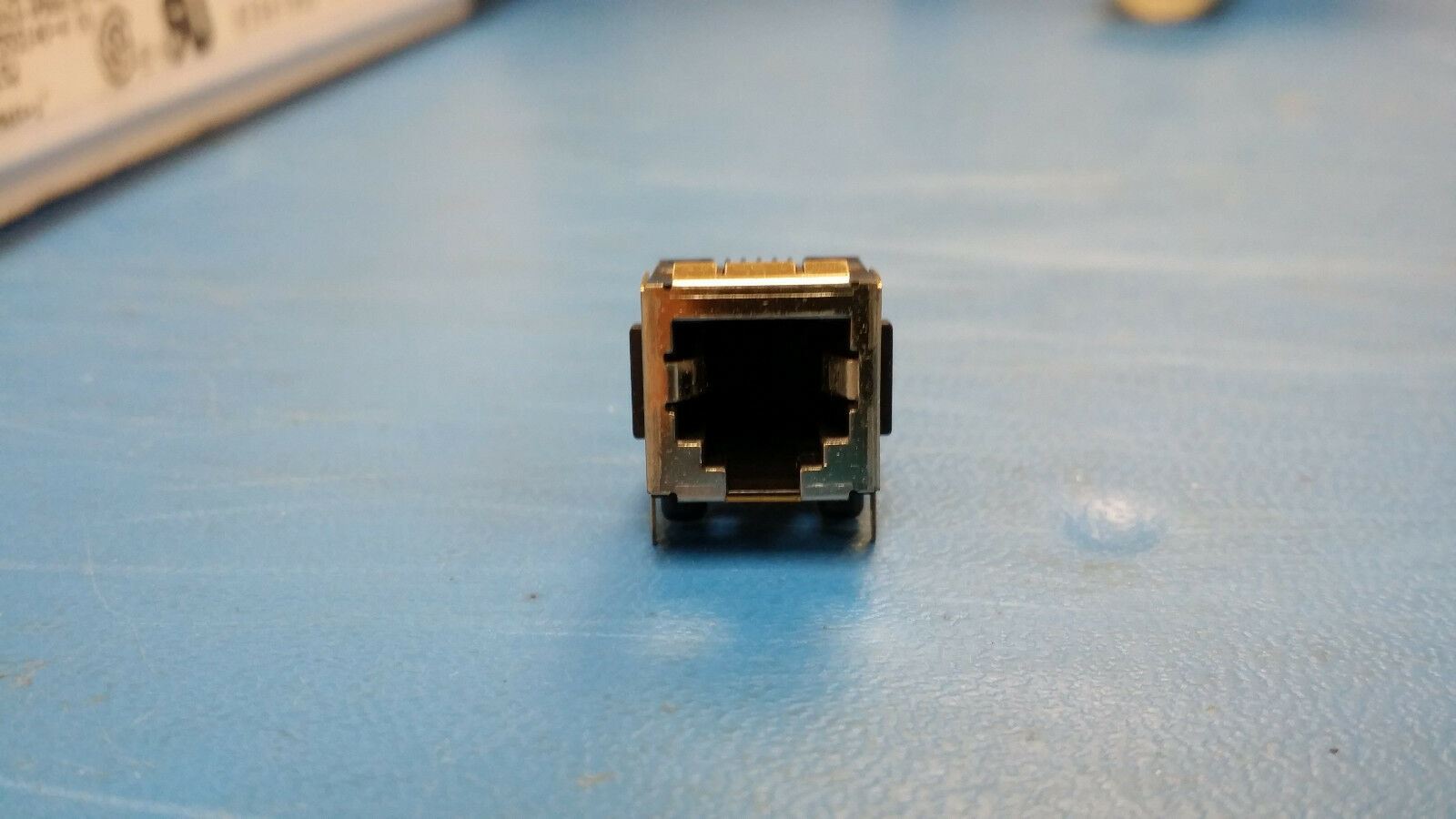

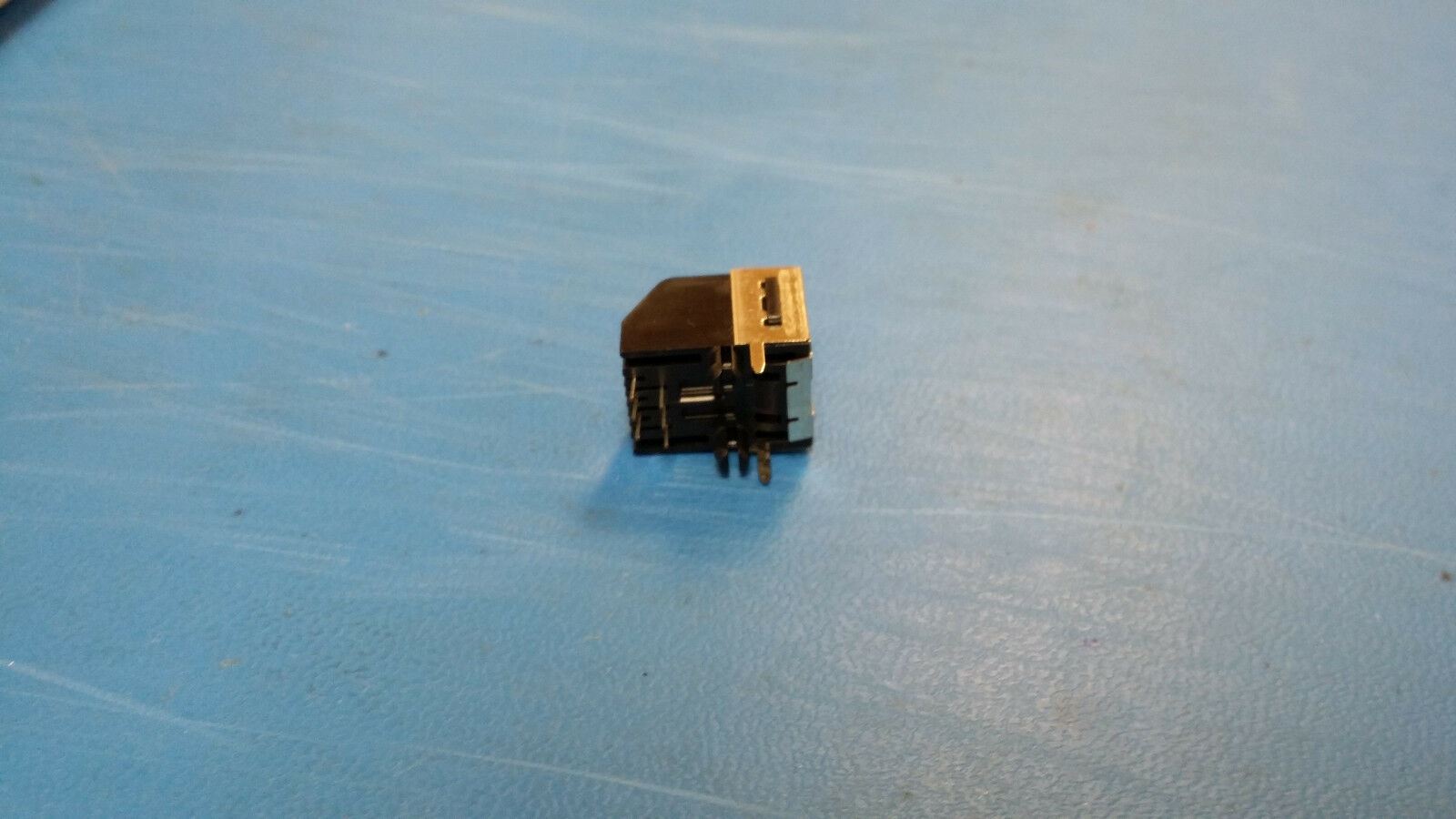

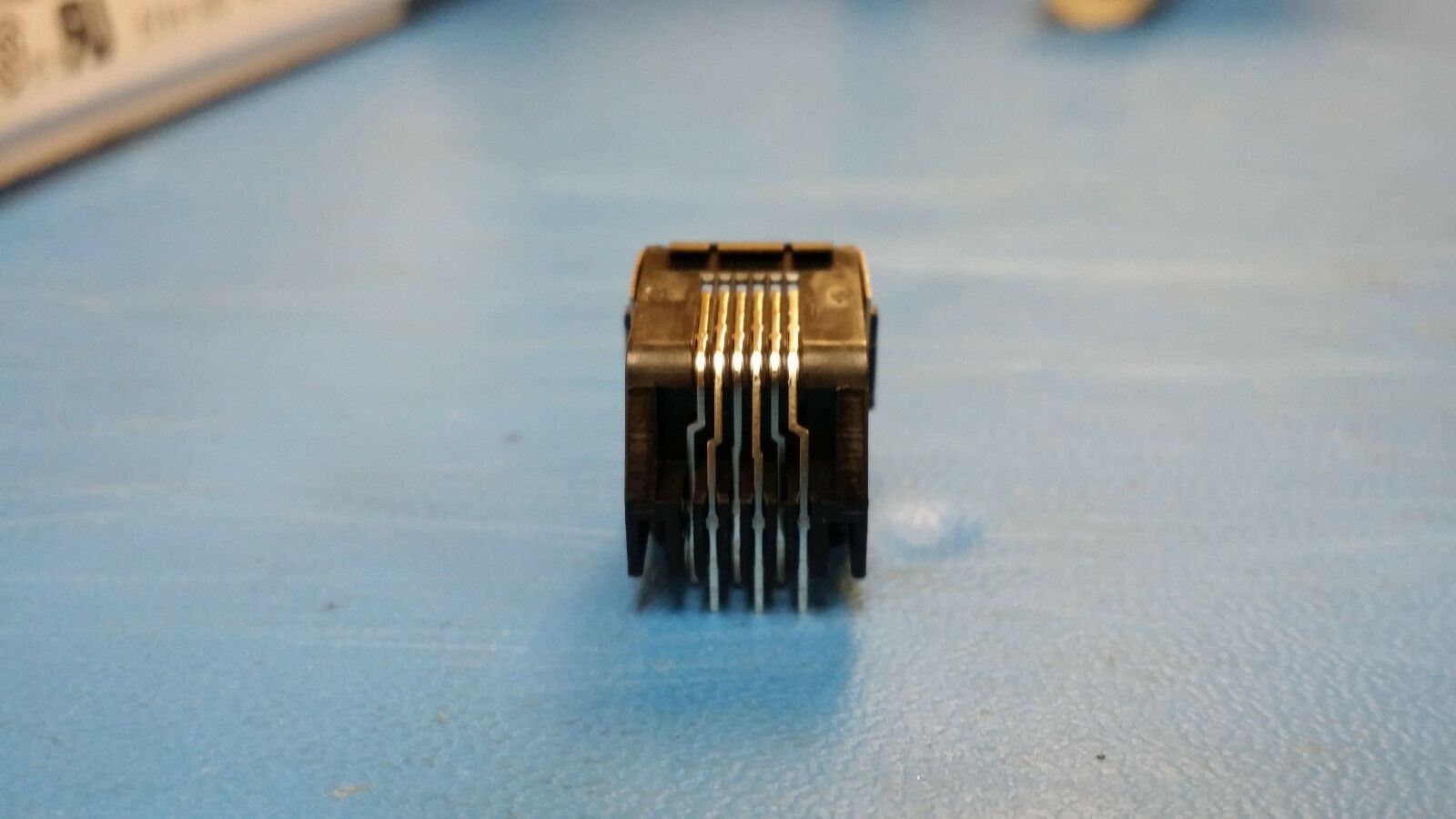

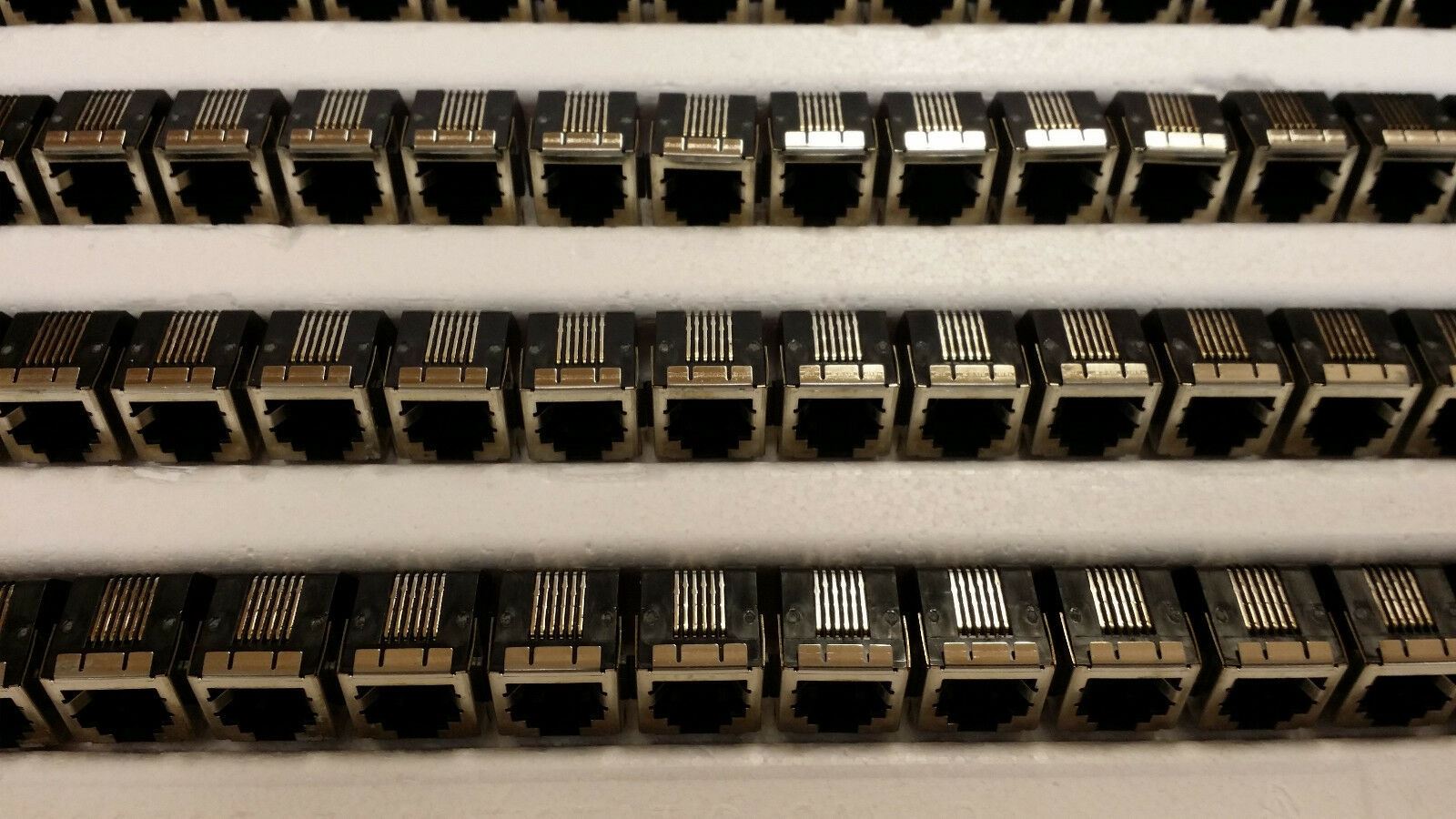

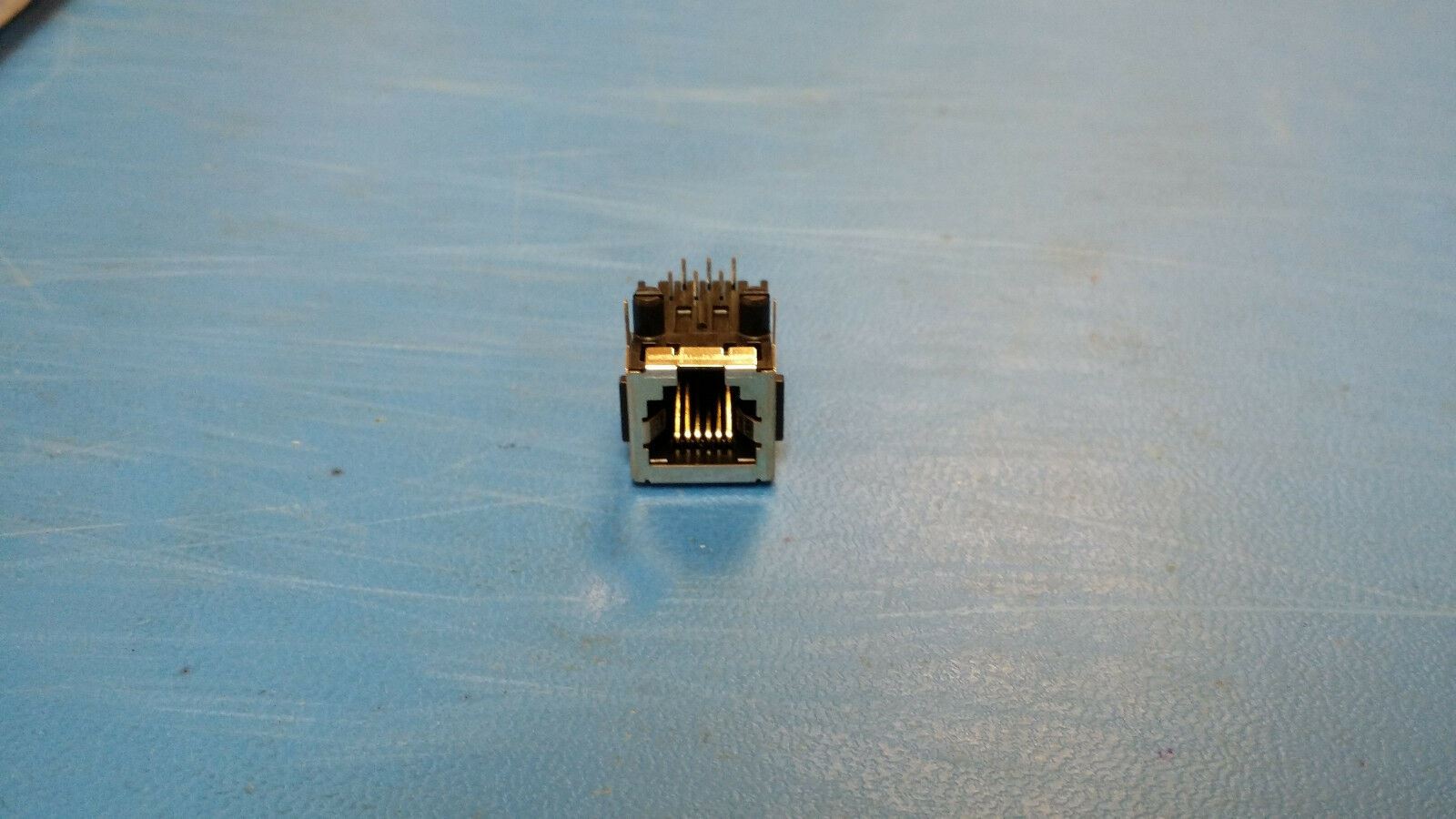

THIS LISTING IS FOR (8 PCS) OF 555140-4 BY TYCO/AMP
(10) Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3
(10) Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3
555140-4 Part Details & Parametric
| EU RoHS |
Not Compliant
|
| Type | RJ-25 |
| Gender | F |
| Number of Contacts | 6 |
| Pitch (mm) | 2.54 |
| Termination Method | Solder |
| Body Orientation | Right Angle |
| Mounting | Through Hole |
| Number of Ports | 1 |
| Packaging | Tray |
| Maximum Current Rating (A) | 1.5/Contact |
| Maximum Voltage Rating | 150VAC |
| Housing Color | Black |
| Housing Material | Polybutylene Terephthalate |
| Category Number | Cat 3 |
| Number of Loaded Positions | 6 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Over Nickel |
| Product Length (mm) | 13.97 |
| Product Depth (mm) | 18.42 |
| Product Height (mm) | 12.7 |
