(800 PCS) PSMN005-55B,118 PHILIPS/NXP MOSFET N-CH 55V 75A D2PAK ROHS
Tax included.

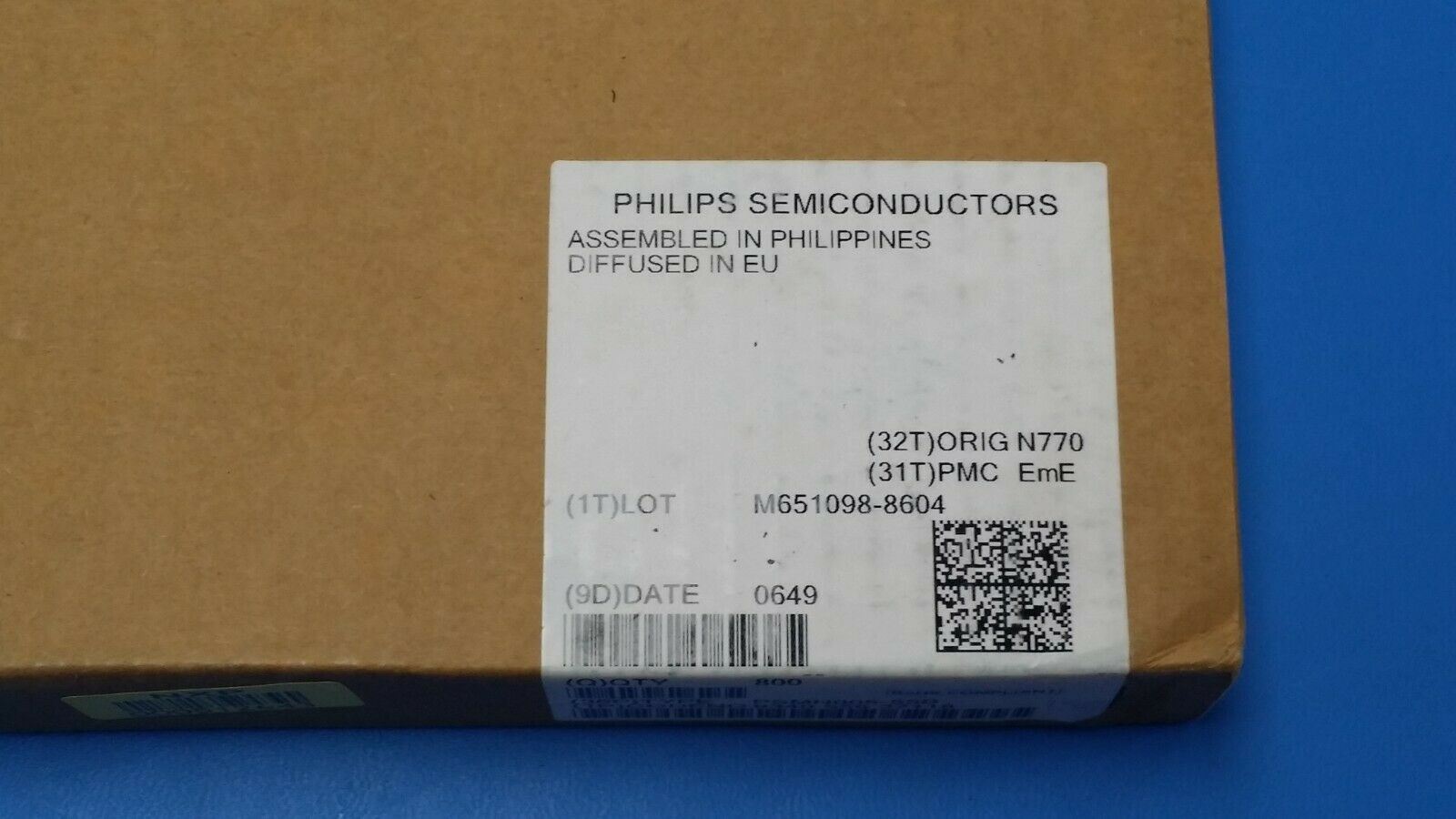

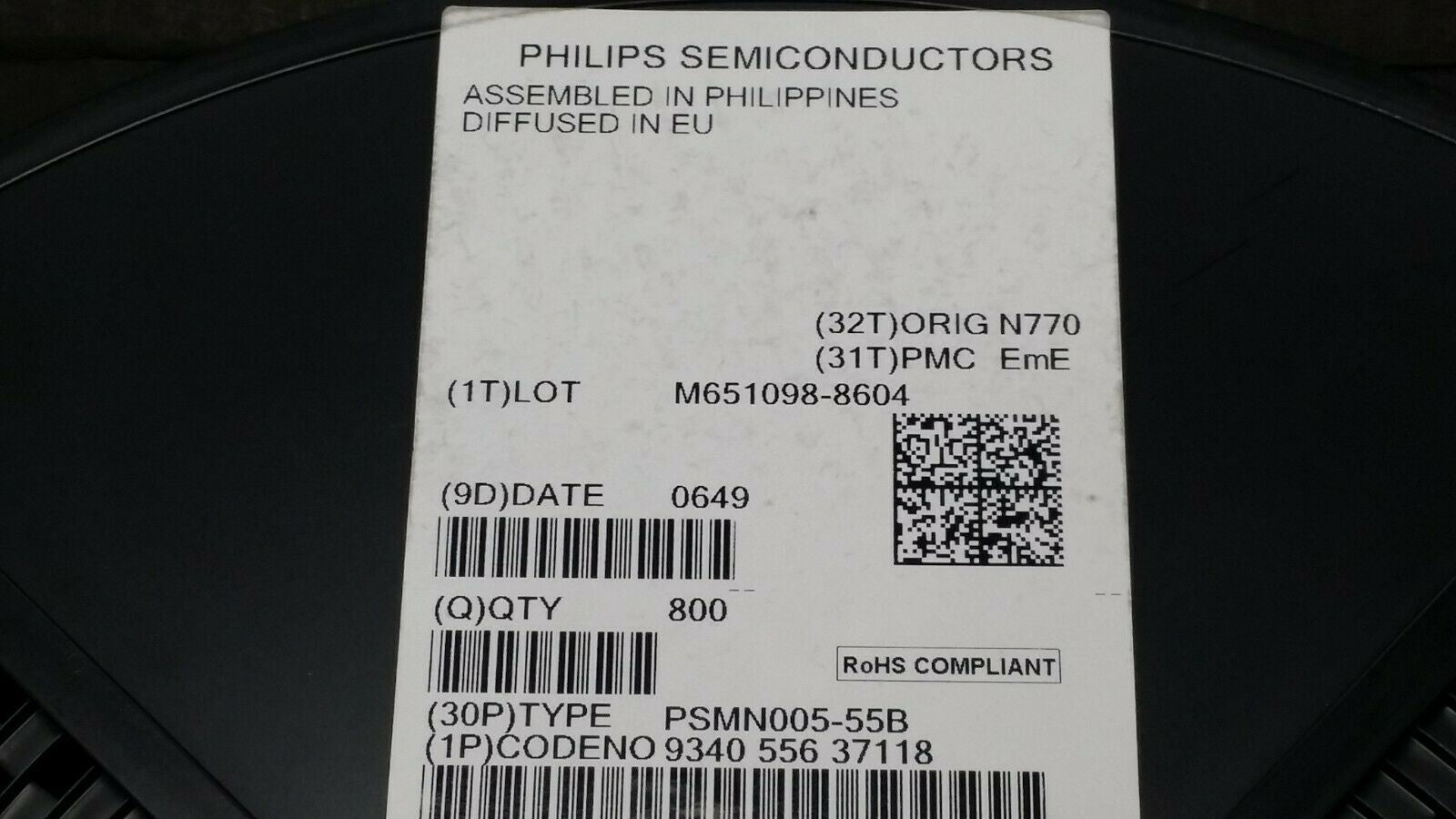

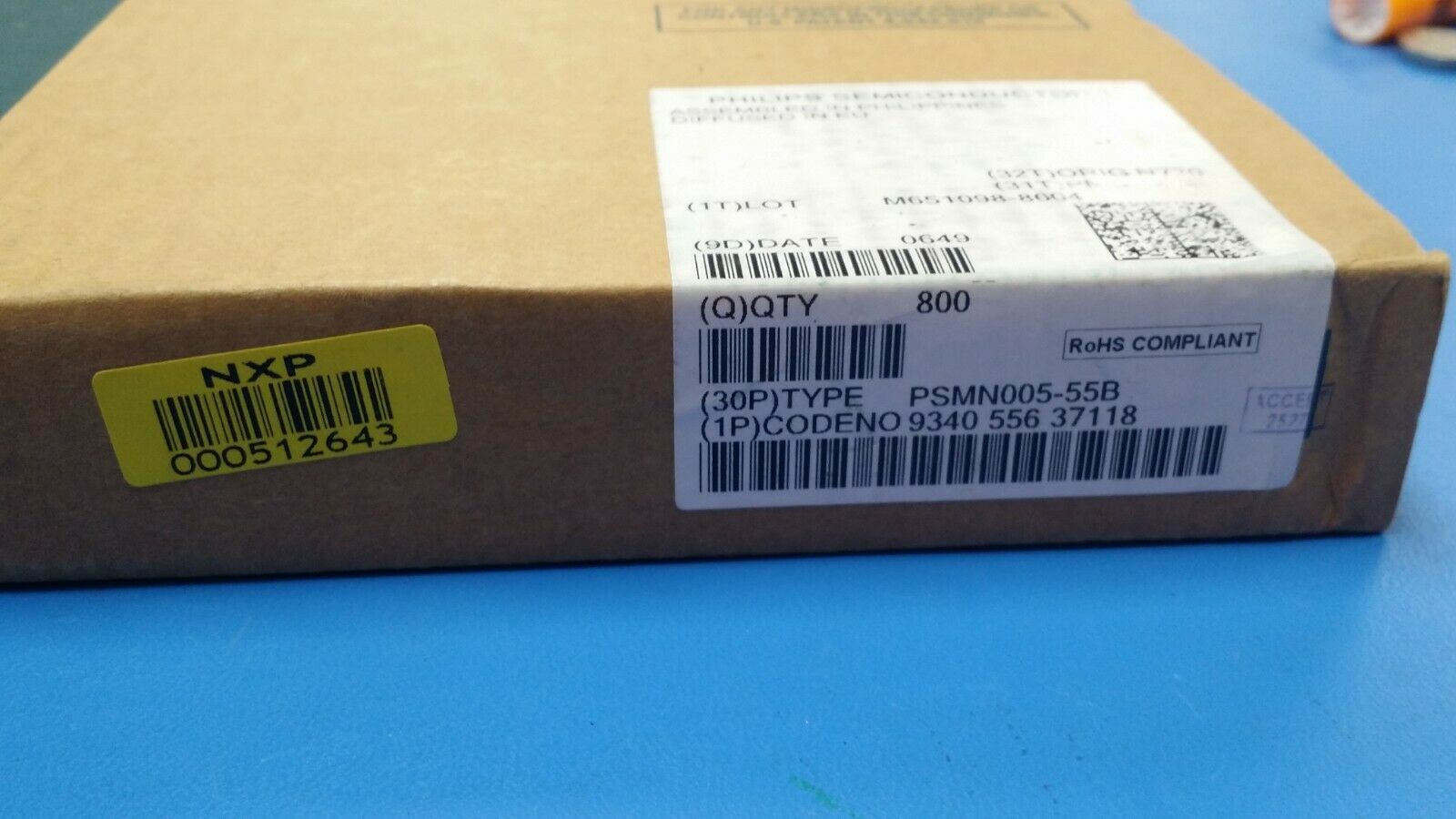

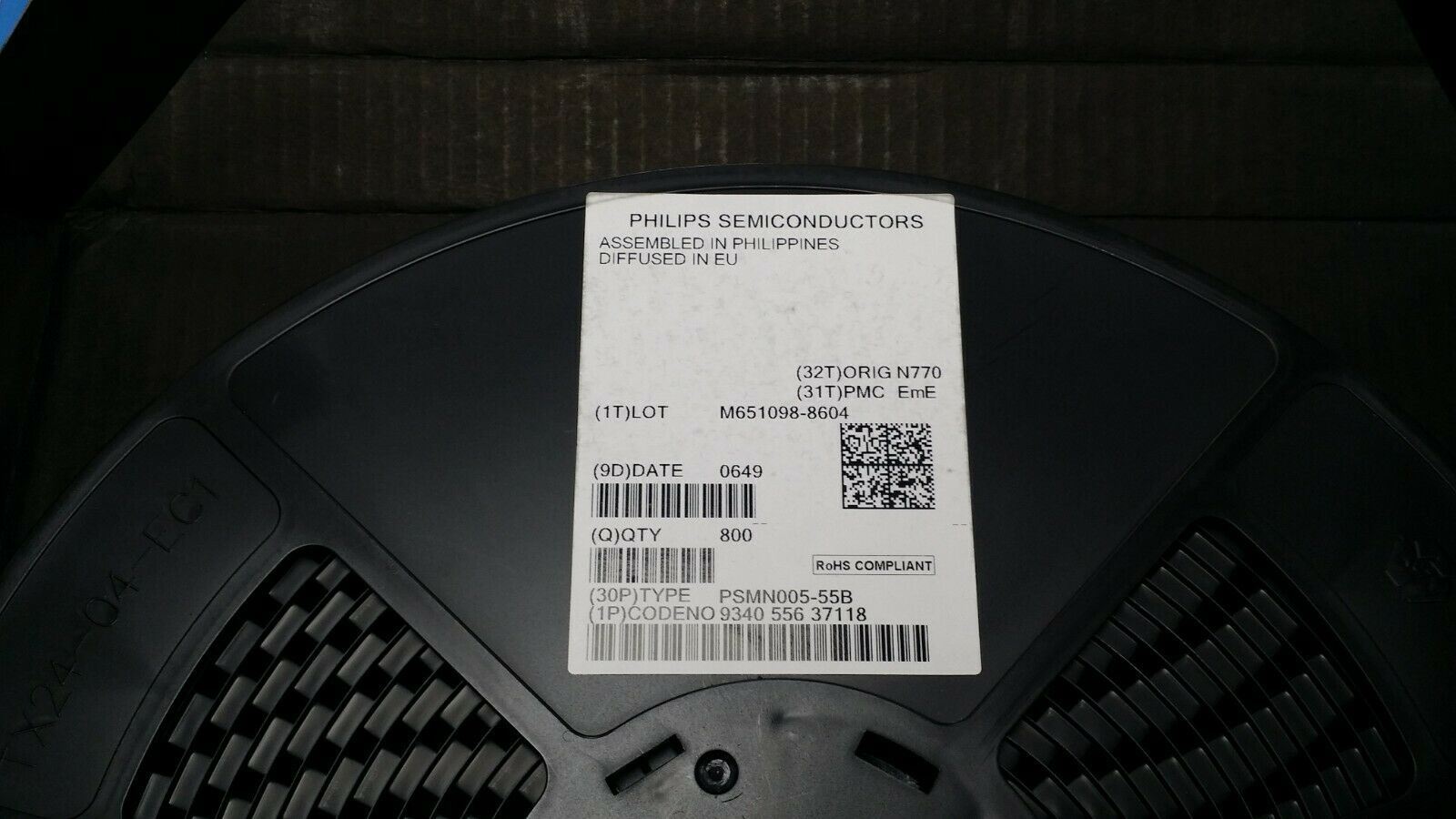

THIS IS FOR (800 PCS) OF PSMN005-55B,118 BY PHILIPS/NXP

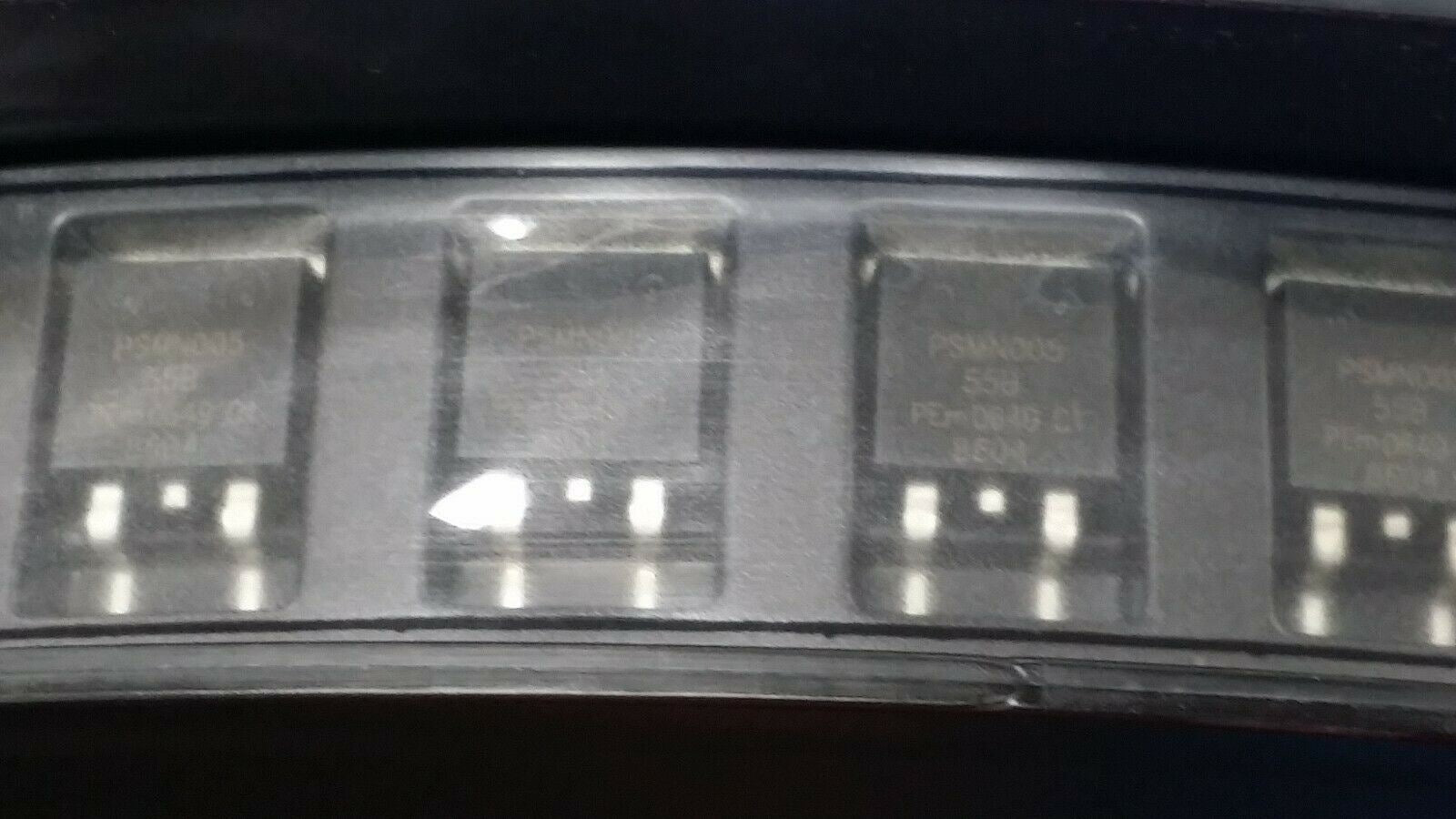

PHILIPS/NXP MOSFET N-CH 55V 75A D2PAK ROHS
Manufacturer: NXP
Product Category: MOSFET
Technology: Si
Mounting Style: SMD/SMT
Package / Case: TO-263-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 55 V
Id - Continuous Drain Current: 75 A
Rds On - Drain-Source Resistance: 5.8 mOhms
Vgs - Gate-Source Voltage: - 15 V, + 15 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 230 W
Channel Mode: Enhancement
Packaging: Reel
Brand: NXP Semiconductors
Configuration: Single
Fall Time: 235 ns
Height: 4.5 mm
Length: 10.3 mm
Product Type: MOSFET
Rise Time: 180 ns
800
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 420 ns
Typical Turn-On Delay Time: 45 ns
Width: 9.4 mm
Part # Aliases: PSMN005-55B /T3
Unit Weight: 0.139332 oz
