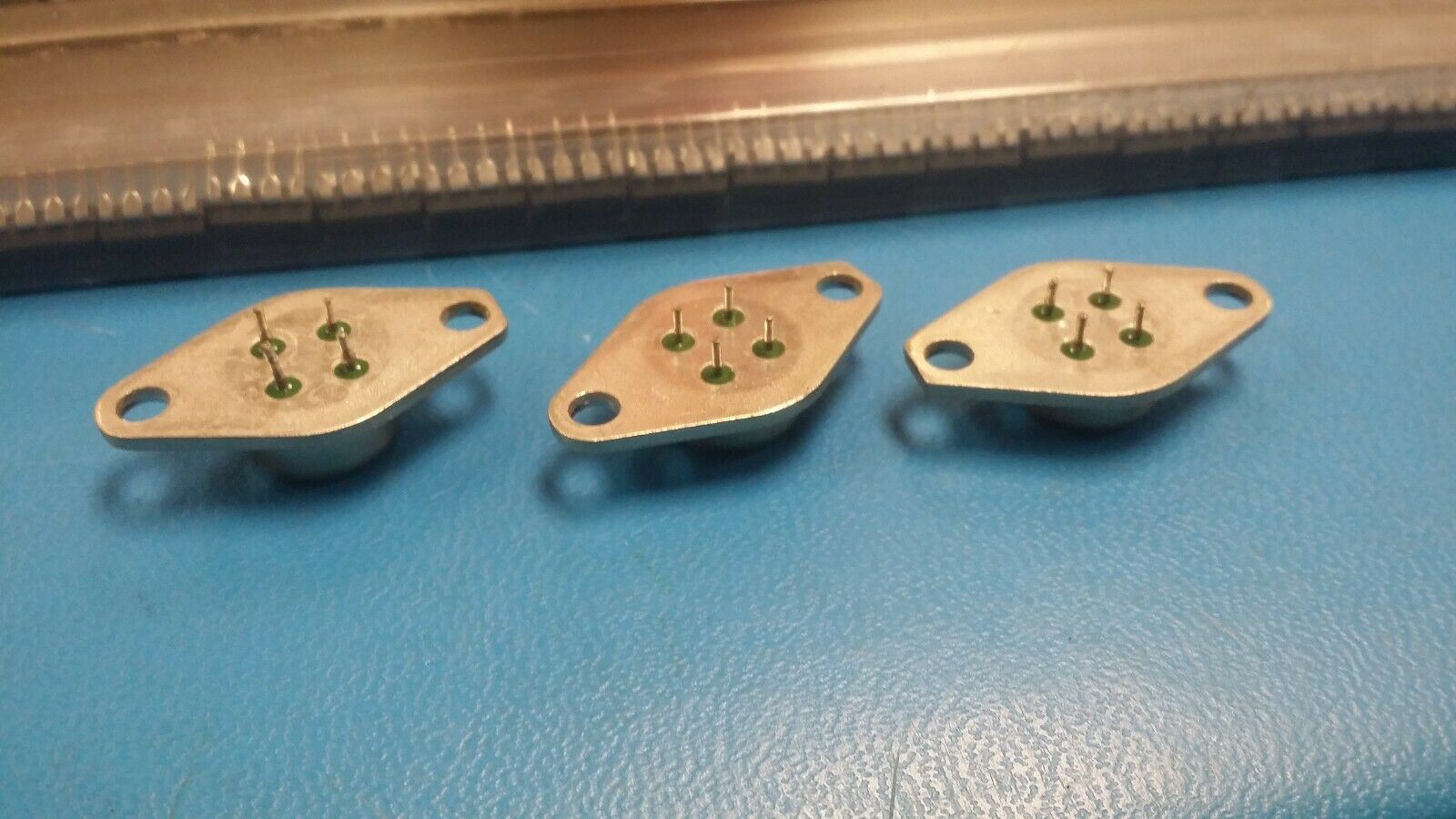

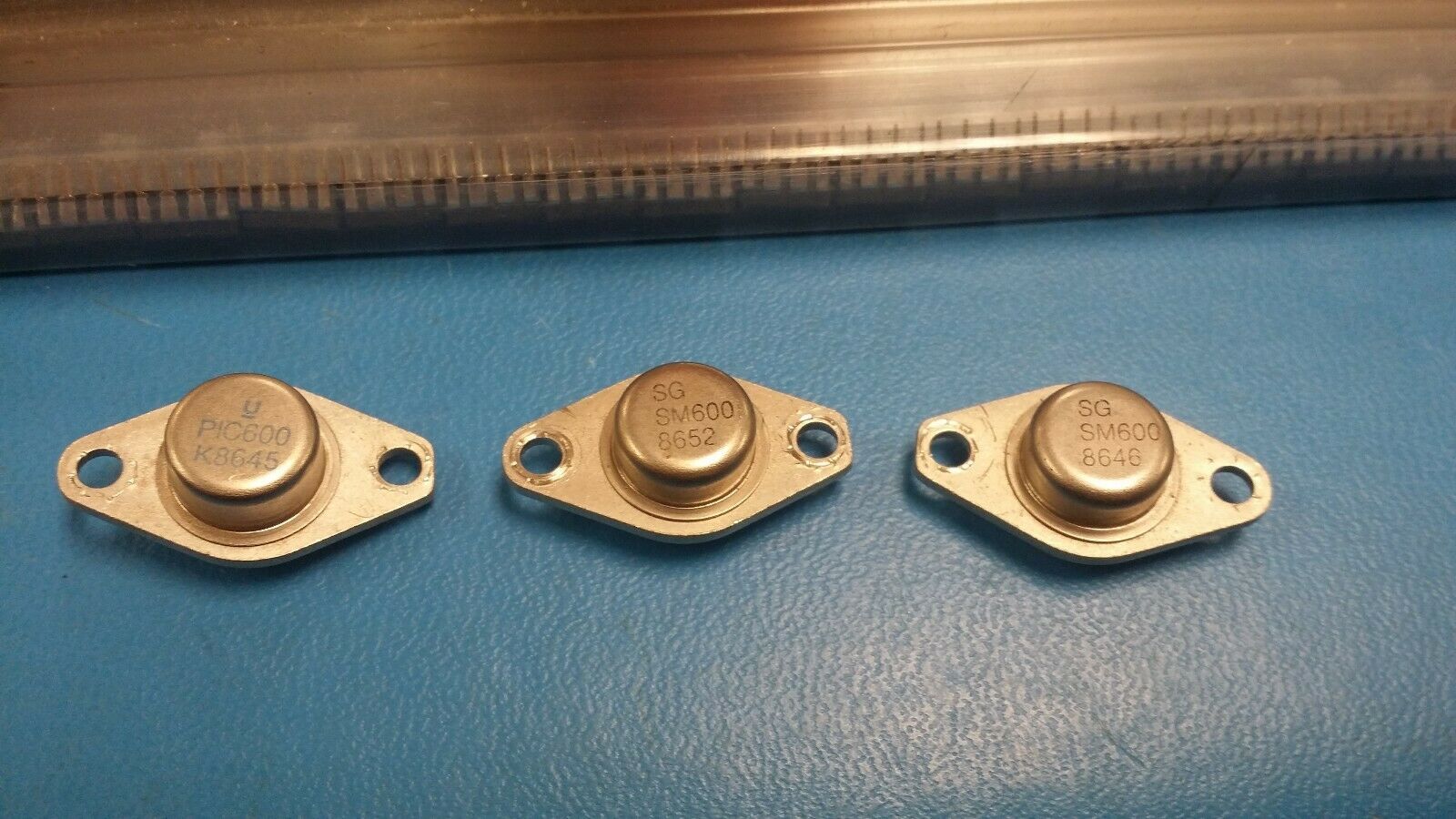

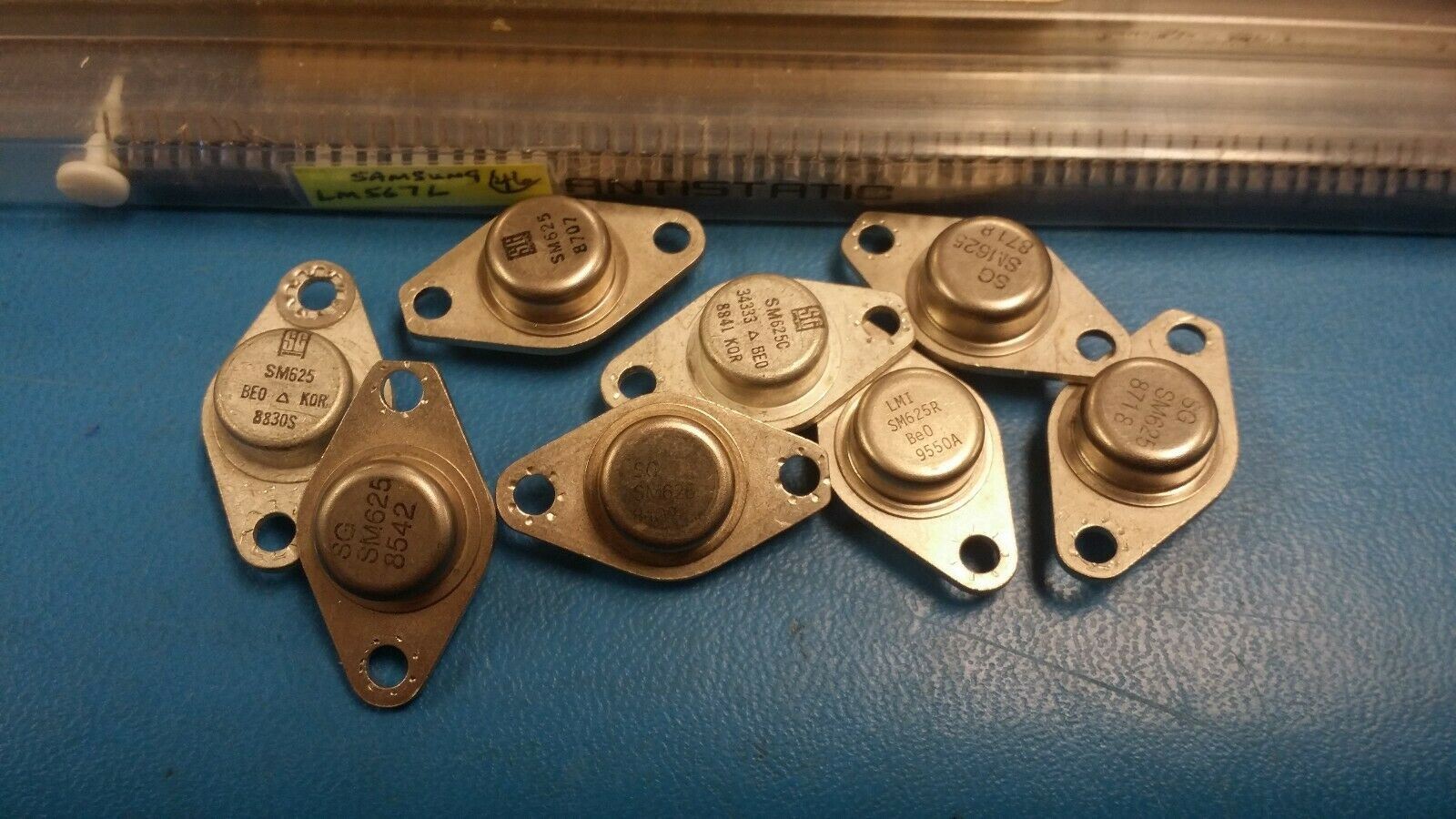

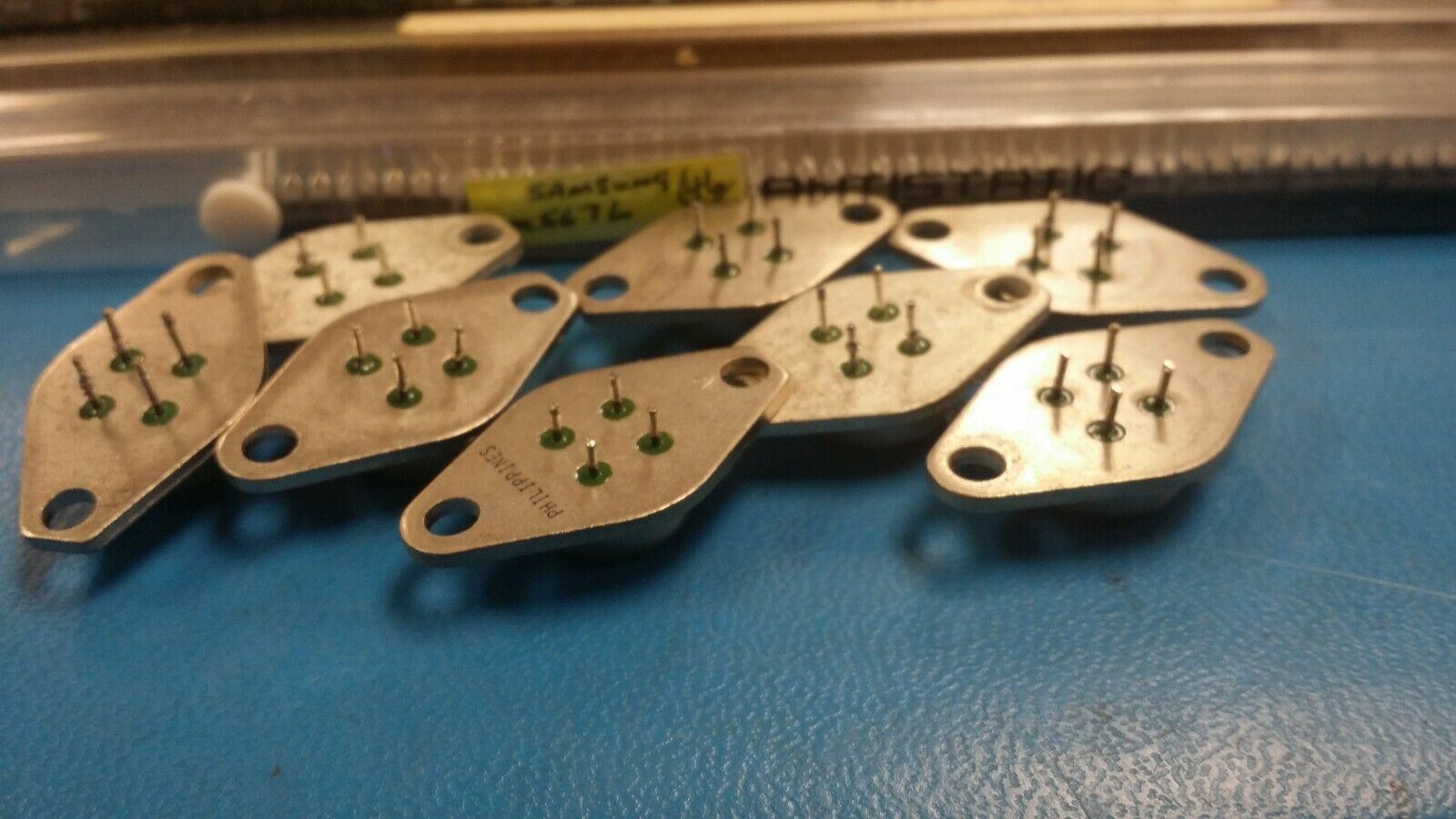

(8 PCS) SM625 SM625R SM626 Switching Voltage Regulators Power IC 15 AMP TO-66
Tax included.
THIS LISTING IS FOR (8 PCS) OF SG625 SG625R PIC625 BY SG & LINFINITY
Switching Voltage Regulators Power IC 15 AMP TO-66
Input Voltage, V4 - 2 ......................................... 60V
Output Voltage, V1 - 2 ...................................... 60V
Drive Input Reverse Voltage, V3 - 4 ................. 5V
Output Current, I1 .......................................... 15A
Drive Current, I3 ............................................. -0.4A
Note 1. Exceeding these ratings could cause damage to the device.
RECOMMENDED OPERATING CONDITIONS (Note 2)
Input Voltage, V4 - 2 ......................................... 50V
Output Voltage, V1 - 2 ...................................... 50V
Drive Input Reverse Voltage, V3 - 4 ................. 4V
Output Current, I1 .......................................... 13A
Drive Current, I3 ............................................. -0.3A
Operating Ambient Temperature Range .0°C to 70°C
