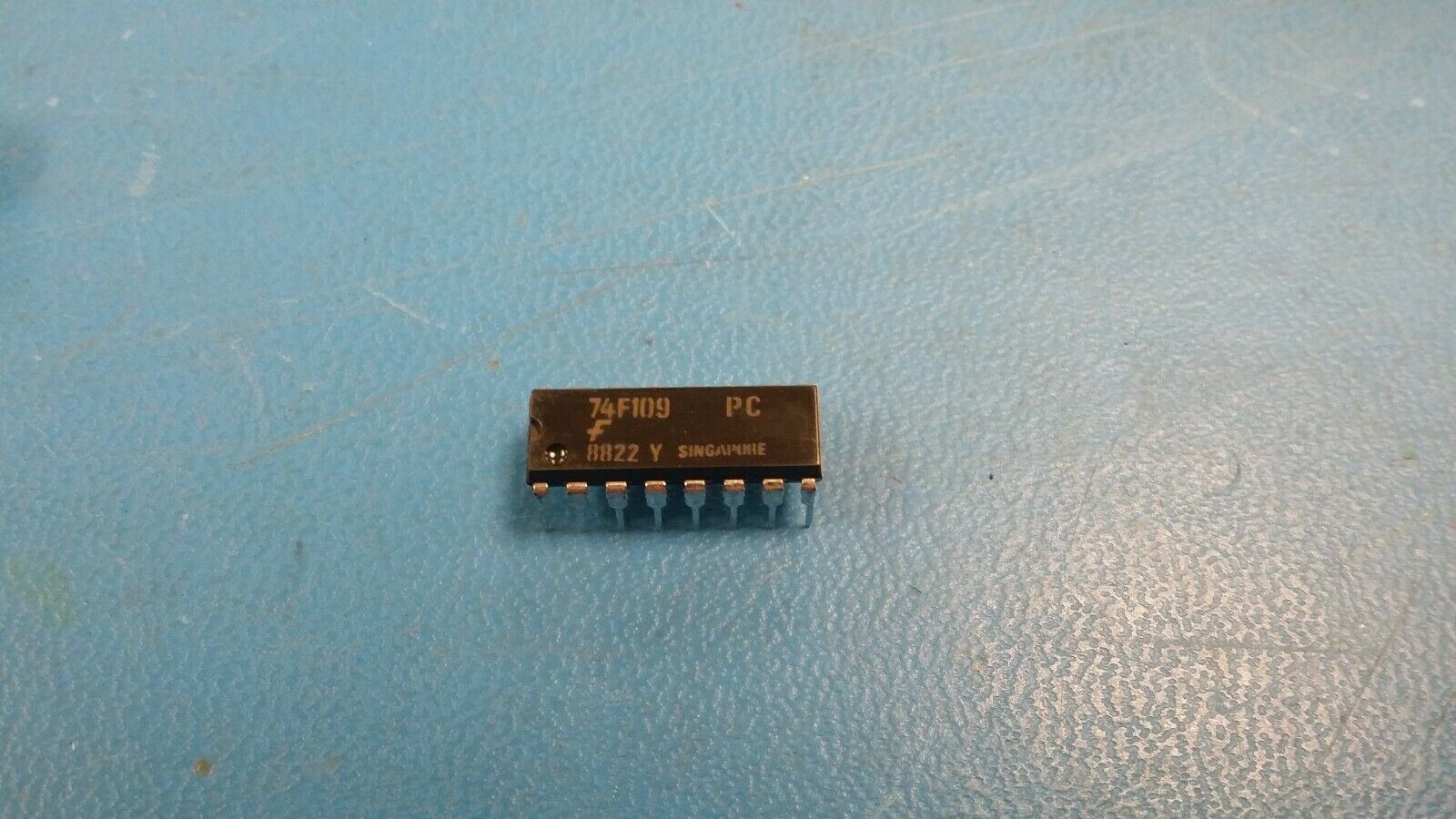

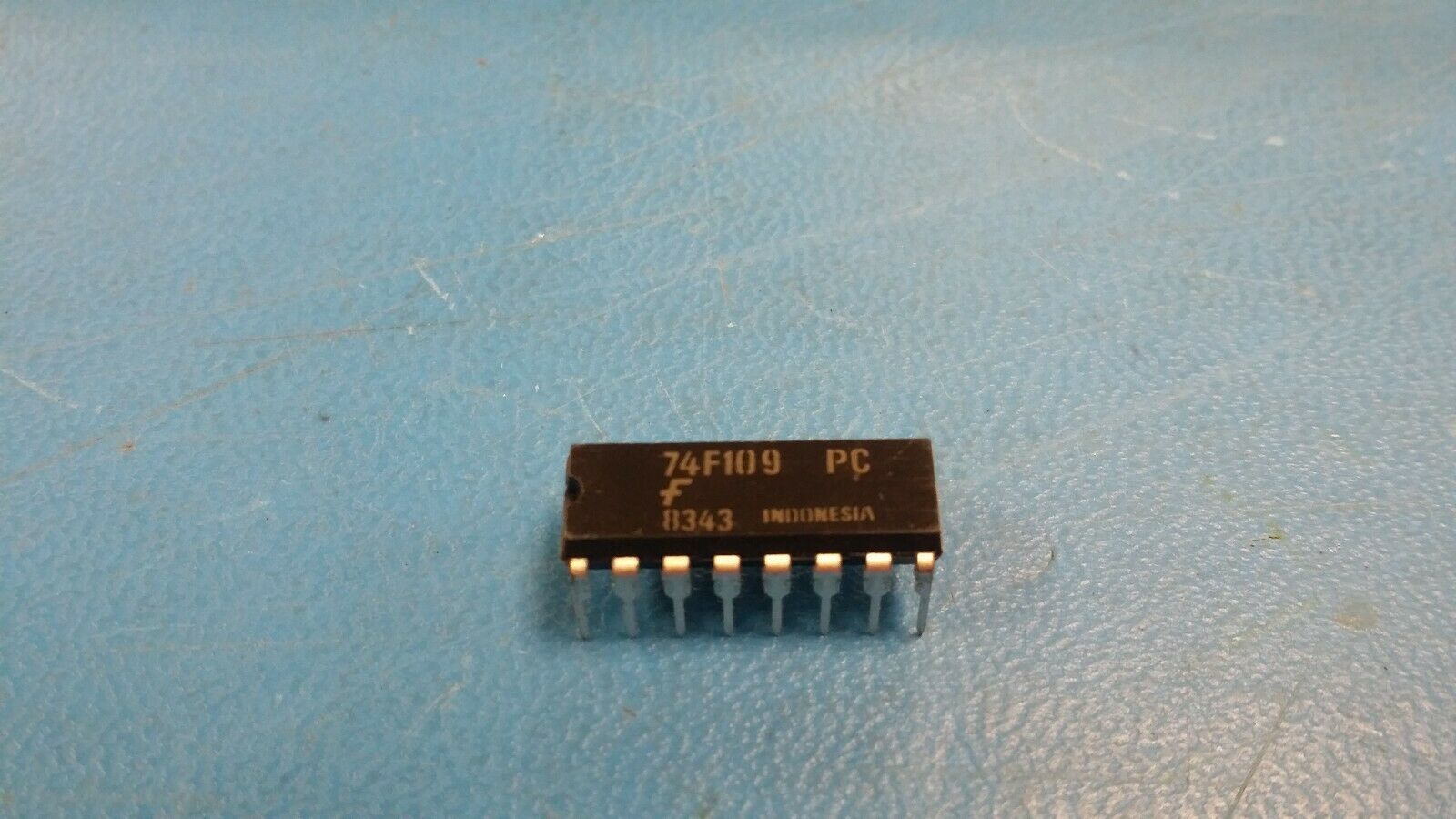

(8 PCS) 74F109PC FSC Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP
Tax included.
THIS LISTING IS FOR (8 PCS) OF 74F109PC BY FSC
Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP
Part #: 74F109PC
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16
Mfr Package Description 0.300 INCH, PLASTIC, MS-001, DIP-16
EU RoHS Compliant NO
Status Discontinued
Logic IC Type J-KBAR FLIP-FLOP
Sub Category FF/Latches
Family F/FAST
fmax-Min 90.0 MHz
JESD-30 Code R-PDIP-T16
JESD-609 Code e3
Max Frequency@Nom-Sup 9.0E7 Hz
Max I(ol) 0.02 Amp
Number of Bits 2
Number of Functions 2
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT APPLICABLE
Power Supply Current-Max (ICC) 17.0 mA
Propagation Delay (tpd) 9.2 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Trigger Type POSITIVE EDGE
Length 19.305 mm
Width 7.62 mm
